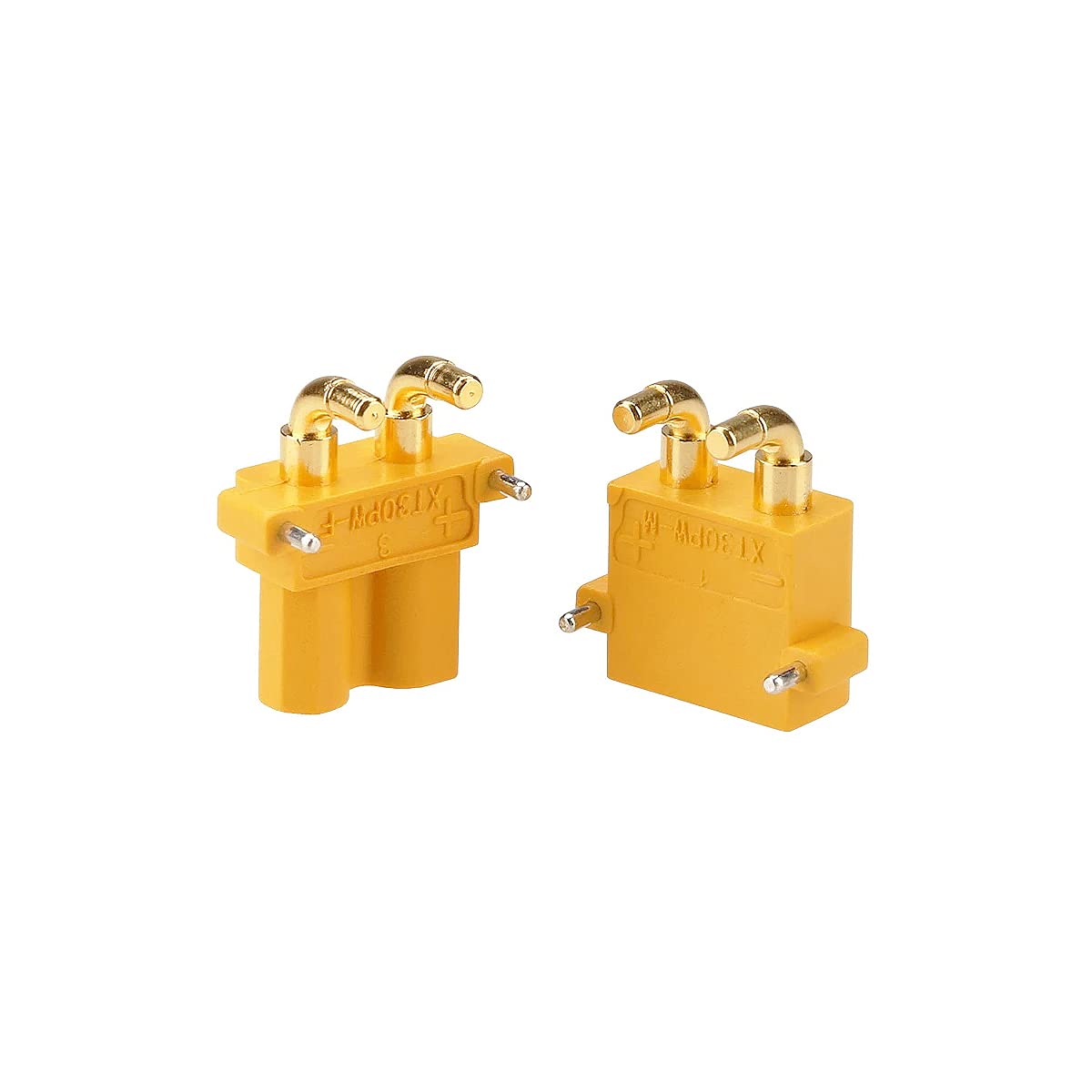

Made from high-temp Nylon and gold plated bullet connectors, both included in the injection mold
at the time when forming the connector. The Amass XT30PW ensures a solid high-amp connection,
perfect for small lipo applications. Made of high temperature nylon the plug is also less likely to
deform or melt.
Specifications:
Brand Name: Amass

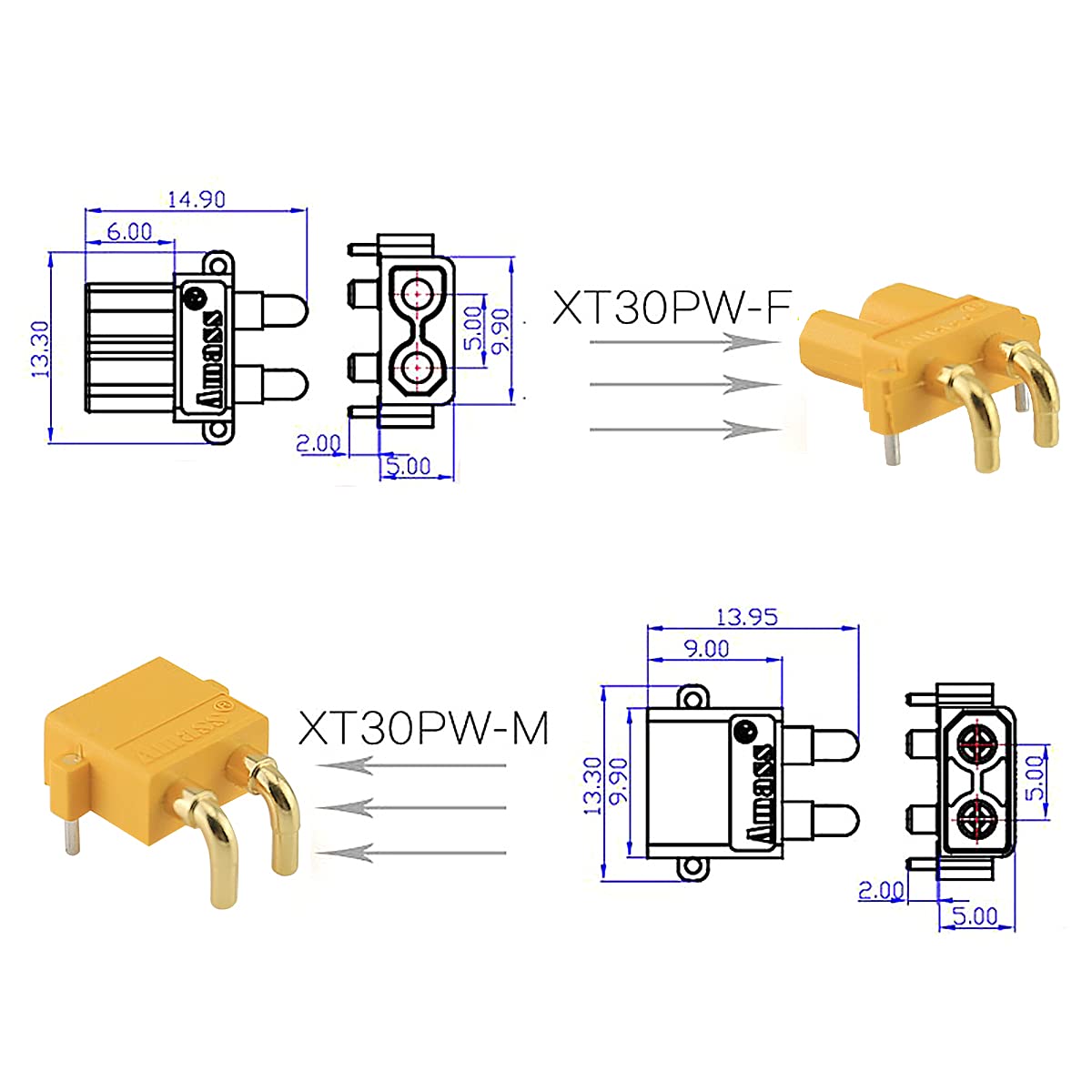

Item Name: XT30PW XT30 connector
Metal Material: Brass gold-plated
Plastic Material: PA66
Flammability Rating: UL94 V0
Contact Resistance: 1.2mΩ
Rated Voltage: DC 500V
Rated Current: 15A
Instantaneous Current: 30A
Recommend Use: 100 times
Recommend Cable Spec.: 14-18 AWG
Recommend Temperature: -20°C ~ 120°C
