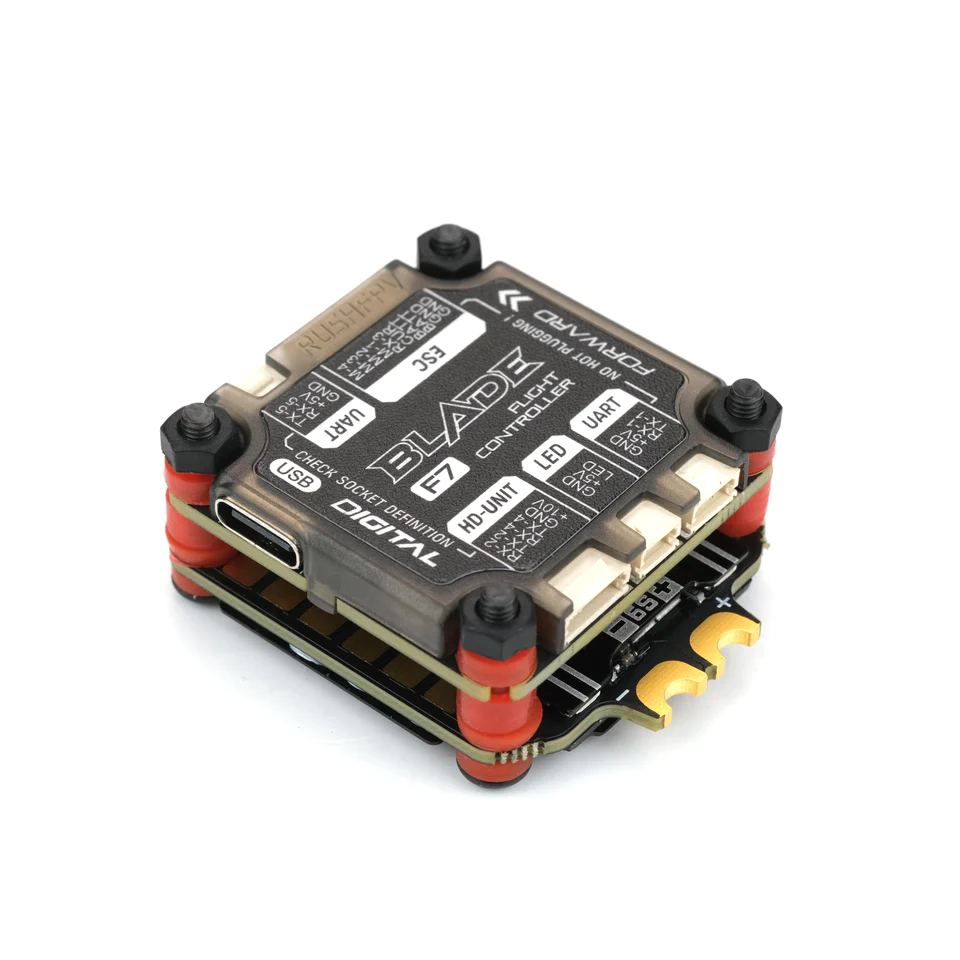

The RUSH BLADE F722 Stack for the DJI Digital FPV System by RUSHFPV features the RUSH BLADE F722 Digital Flight Controller and RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC (Extreme Edition), which can handle up to 6S input voltage and push your FPV racer to the max.
SPECIFICATIONS:

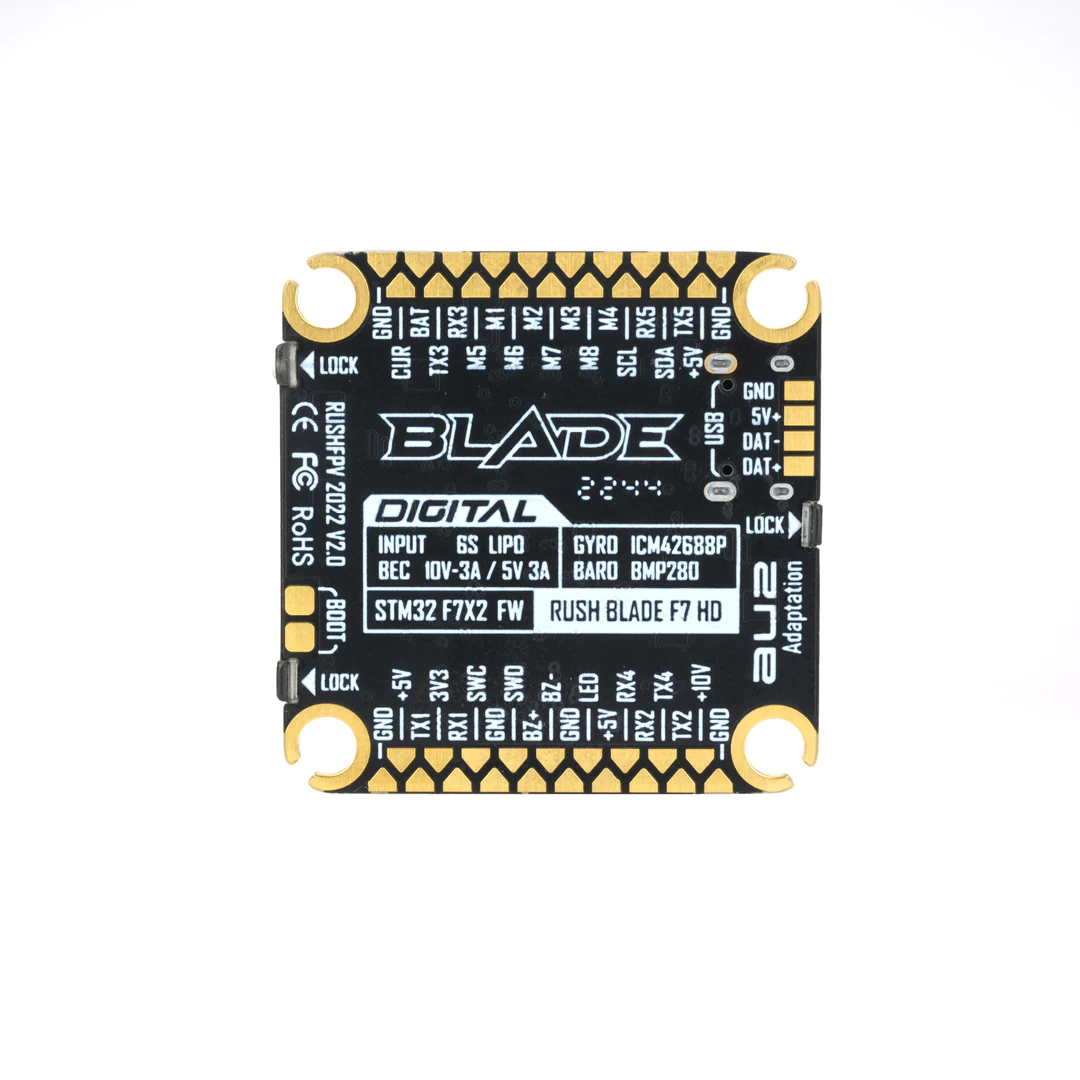

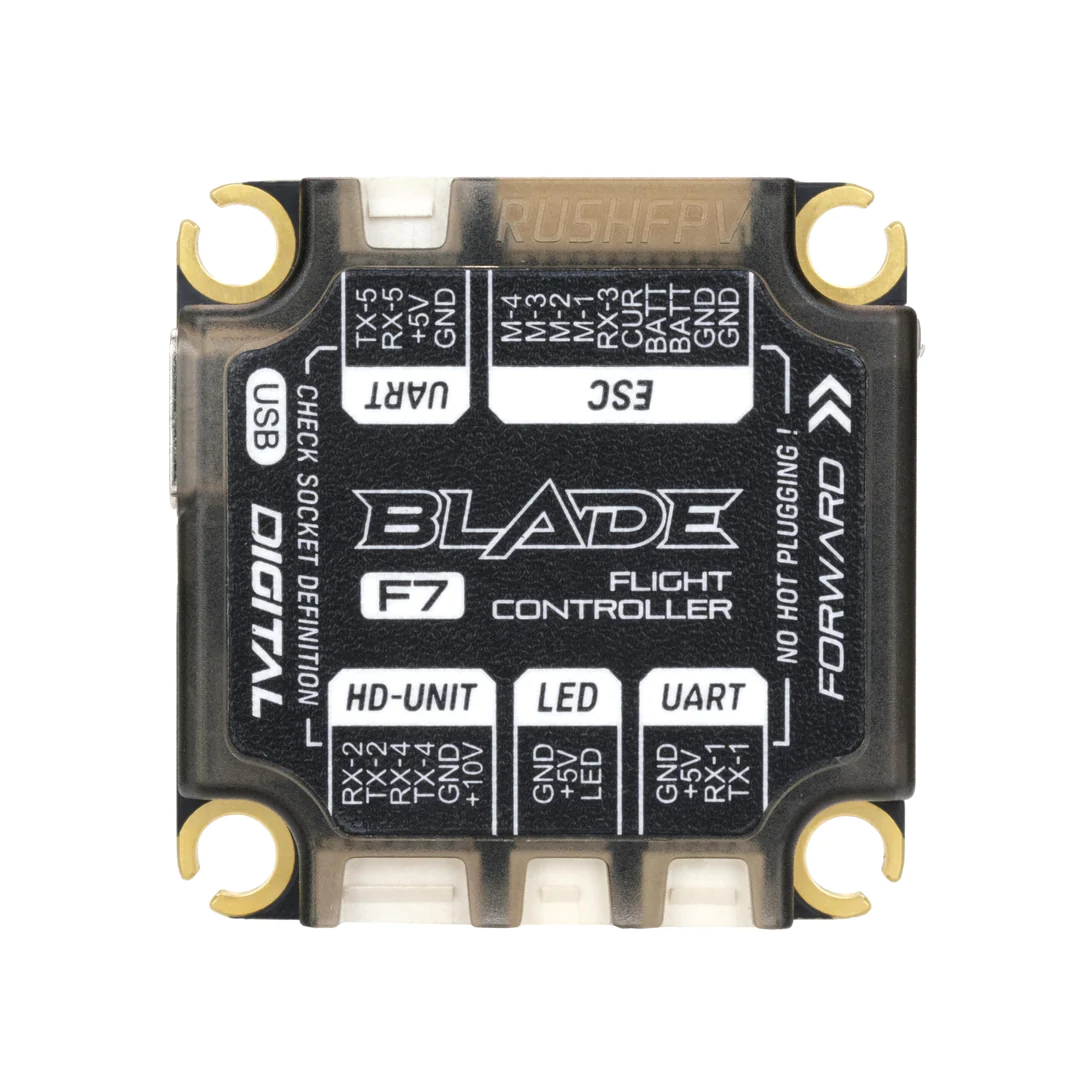

RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital FPV System
- MCU： STM32F722RET6
- GYRO： ICM42688P
- BLACKBOX ：16MB FLASH
- BEC：INPUT 7-36V / 3-6S LIPO，OUTPUT 1 5V 3A，OUTPUT 2 10V 3A
- PORT： 8×PWM 5×UART 1×I2C
- ADC： V-BATT / CURR-ESC
- LED： WS2812 LED STRIP
- SIZE： 36.5mm*37mm*5.2mm
- BARO：BMP280
- MOUNTING HOLES：30.5*30.5mm
- TARGET： RUSH_BLADE_F7_HD WEIGHT 11g(without cable)
RUSHFPV RUSH BLADE 60A 128kHz 3-6S BLHeli_32 4-in-1 ESC – Extreme Edition
- Rated Current: 60A
- Peak Current: 80A
- Input Voltage: 3-6S Lipo
- MCU: F4 @ 200MHz
- PWM FREQ: 24-128KHz
- LED Color: Orange
- Weight：16.5g
- Dimension: 45*36.5*7.5mm
- BL32 FW: RUSH_BLADE_EXTREME
PACKAGE INCLUDES:
- 1 x RUSHFPV RUSH BLADE F722 Digital Flight Controller For DJI Digital V2 Version
- 1 x RUSHFPV RUSH BLADE 60A 3-6S BLHeli_32 4-in-1 ESC – Extreme Edition
