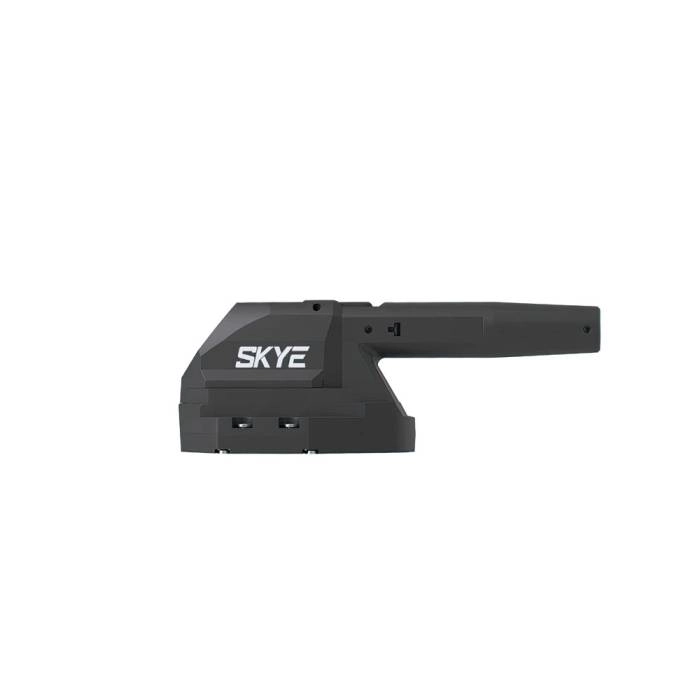

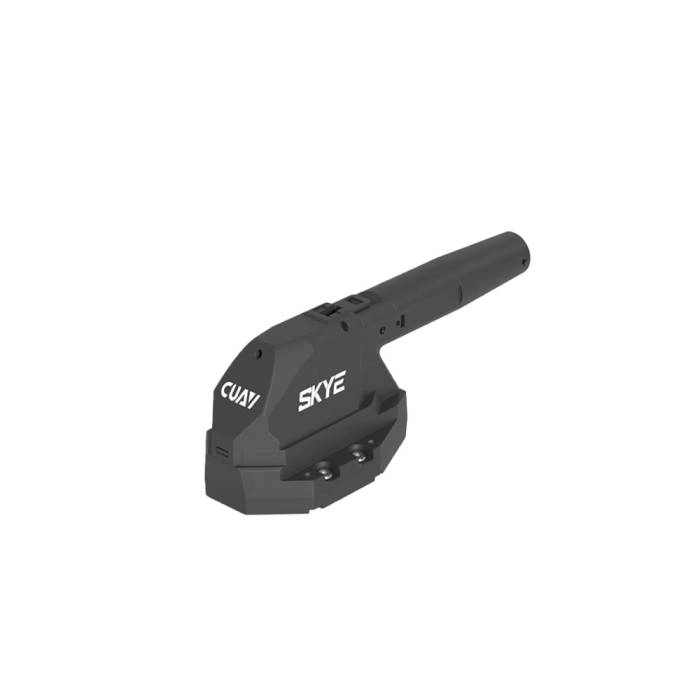

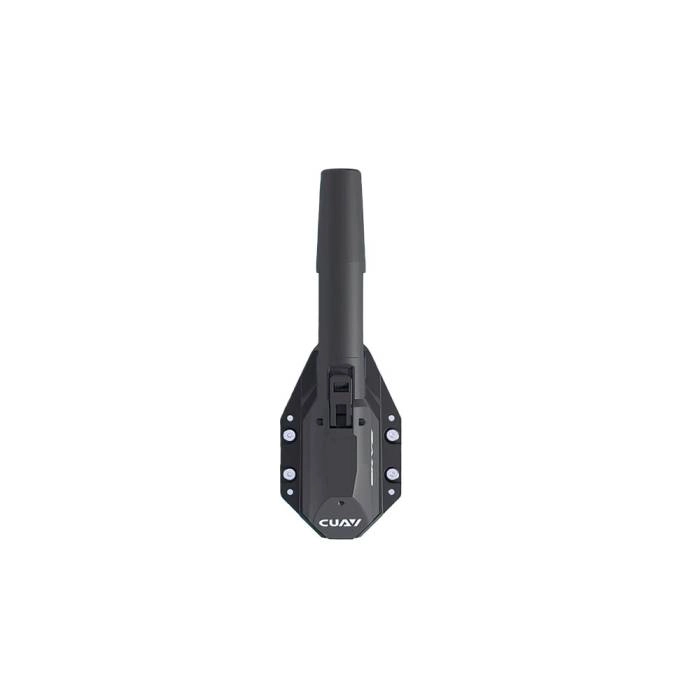

CUAV SKYE DroneCAN Airspeed Sensor

Introducing the CUAV SKYE DroneCAN Airspeed Sensor, a groundbreaking innovation in UAV technology. This all-in-one sensor integrates a pitot tube, airspeed sensor, and temperature, and humidity sensor, along with an ARM M4 processor and dual temperature control system, delivering unparalleled performance in a compact package. Boasting a high-power 32W heating system, the SKYE automatically adjusts the heating to prevent data errors caused by freezing or rain obstruction. At the same time, its rainproof structure ensures reliability in adverse conditions. Powered by the DroneCAN Protocol and featuring an ARM M4 processor, the SKYE offers seamless integration and precise control within your drone network. Experience unmatched versatility and reliability for your aerial missions with the CUAV SKYE DroneCAN Airspeed Sensor.

VIDEO: CUAV SKYE Airspeed Sensor Unboxing

• Temperature and Humidity Sensor to prevent freezing
• Quick-Release Maintenance Structure
• Sensor Temperature Control System
• Pitot Temperature Control System
• Innovative Rainproof Structure
• Support APM/PX4 Firmware
• STM32F4 Processor
• Airspeed Sensor
• Pitot Tube

• Pitot tube temperature control type: Resistance heating
• Airspeed sensor: MS5525
• Processor: STM32F4
• Protocol: DroneCAN

SENSOR PERFORMANCE

• Temperature measurement range: -15℃ to 150℃
• Humidity measurement range: 0% to 100%
• Airspeed measurement range: ±500km/h
• Airspeed accuracy: ±0.69Pa
• Total Error Band: ±2.5%FS

PHYSICAL CHARACTERISTICS

• Operating Temperature: -20℃ to 75℃
• Pitot tube heating power: 35W
• Size: 82.5 x 30.4 x 28.2mm
• DC IN: Default 12-36V
• Weight: 22g

• 1x CUAV SKYE DroneCAN Airspeed Sensor
