DREAMFLY RC

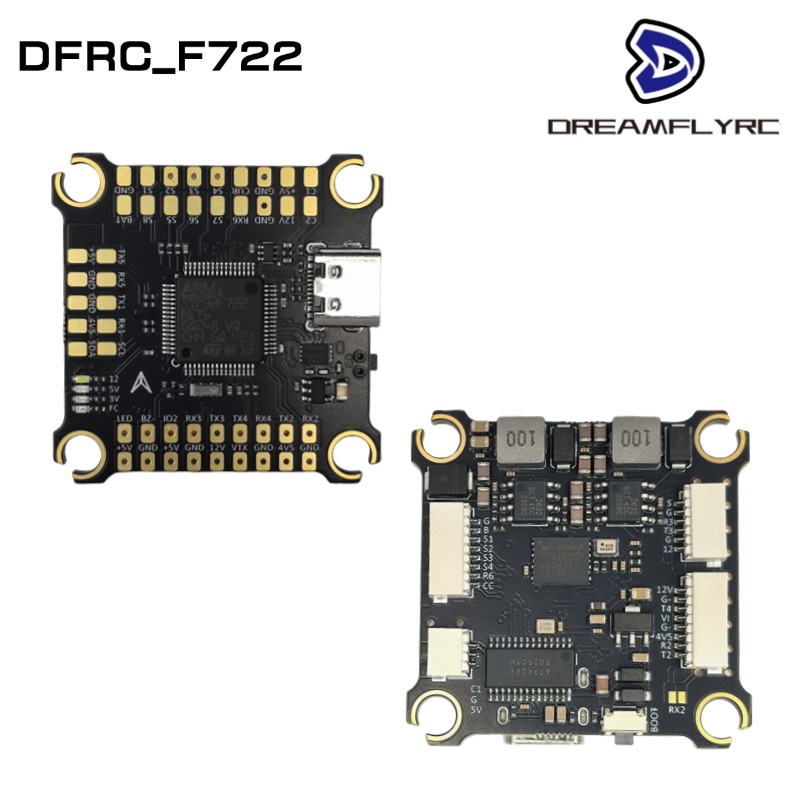

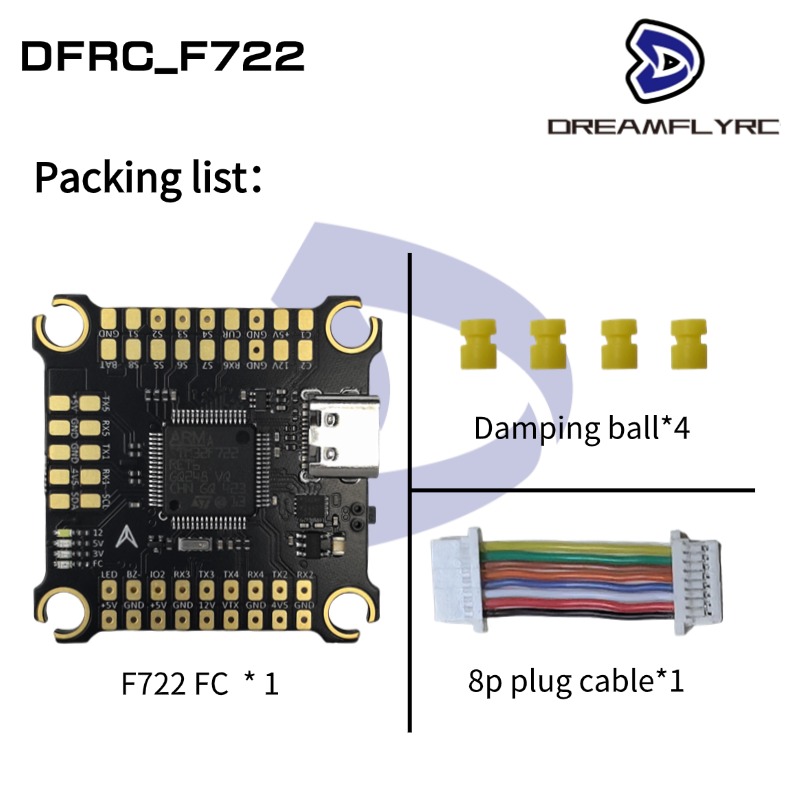

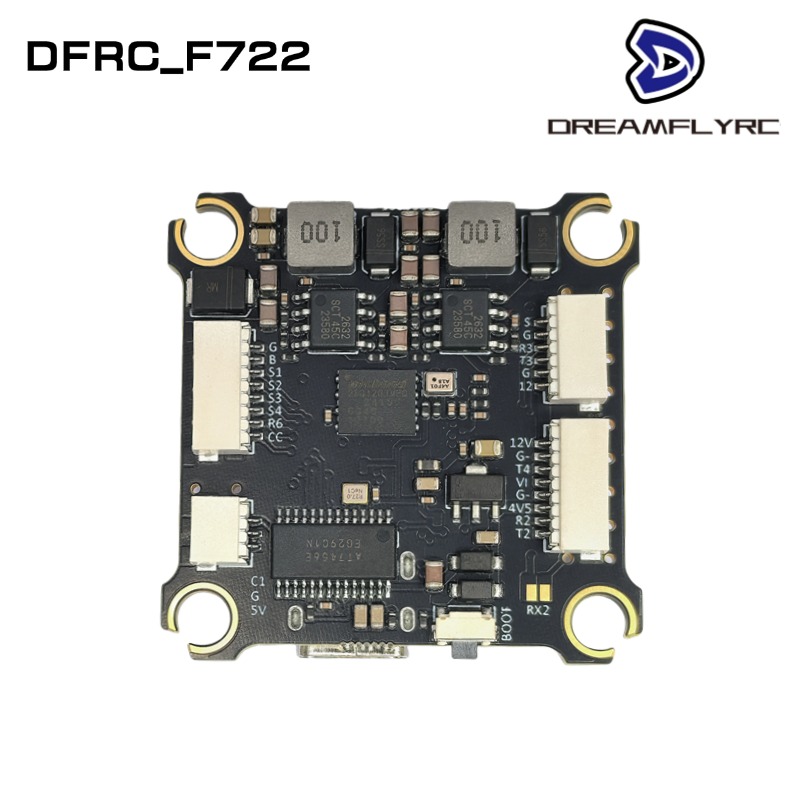

DreamflyRC F722 Flight Controller

₹2,499.00

Only 2 left in stock

Compare
Add to wishlist
SKU: DFR-F72-2FC Categories: ,
Description

Product Introduction：

MCU:STM32F722
IMU:ICM42688
OSD:AT7456E
Baro：DPS310
BlackBox：16MB
INPUT：11-30v
5v-BEC:5V/2.5A
10V-BEC:10V/2A
UART:UART1,2,3,4,5,6
HD:UART1
SIZE:36X41MM

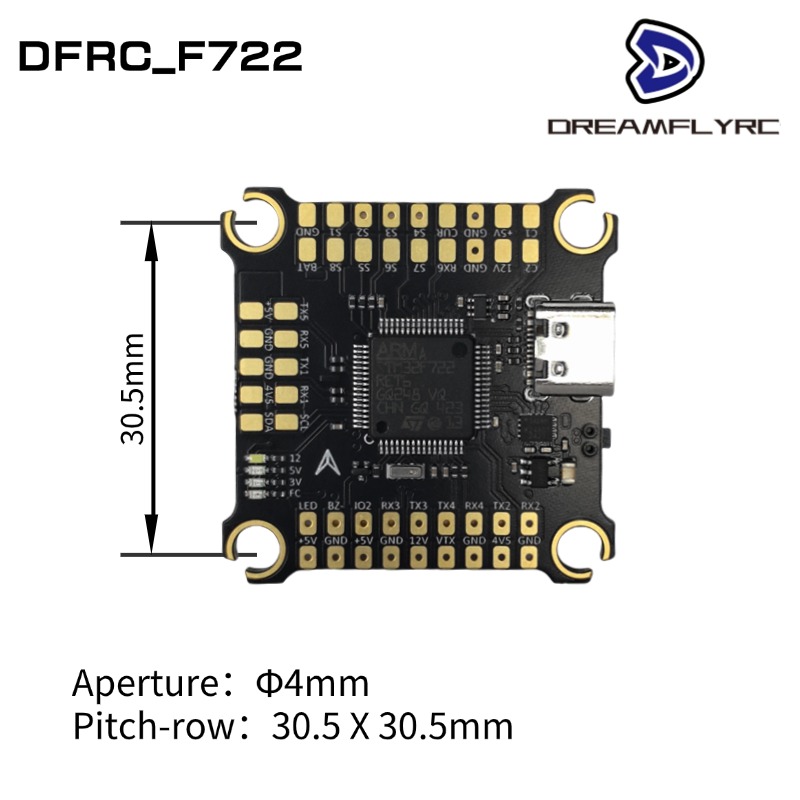

HOLE:30.5X30.5MM

Power input: 3-6S LiPo(11.1V-26V)
Ø Support I2C
be used to switch cameras
Ø Motor signals: 8 PWM signals, S1-4 supports 8pin direct plug
Ø Dual camera: cam1 interface is used by default, and USER1 can
Dreamfly RC-F722
Ø PINIO: I01 is used to switch cameras, and I02 pad is reserved

Additional information
Weight 20 g
Dimensions 13 × 11 × 1 cm
