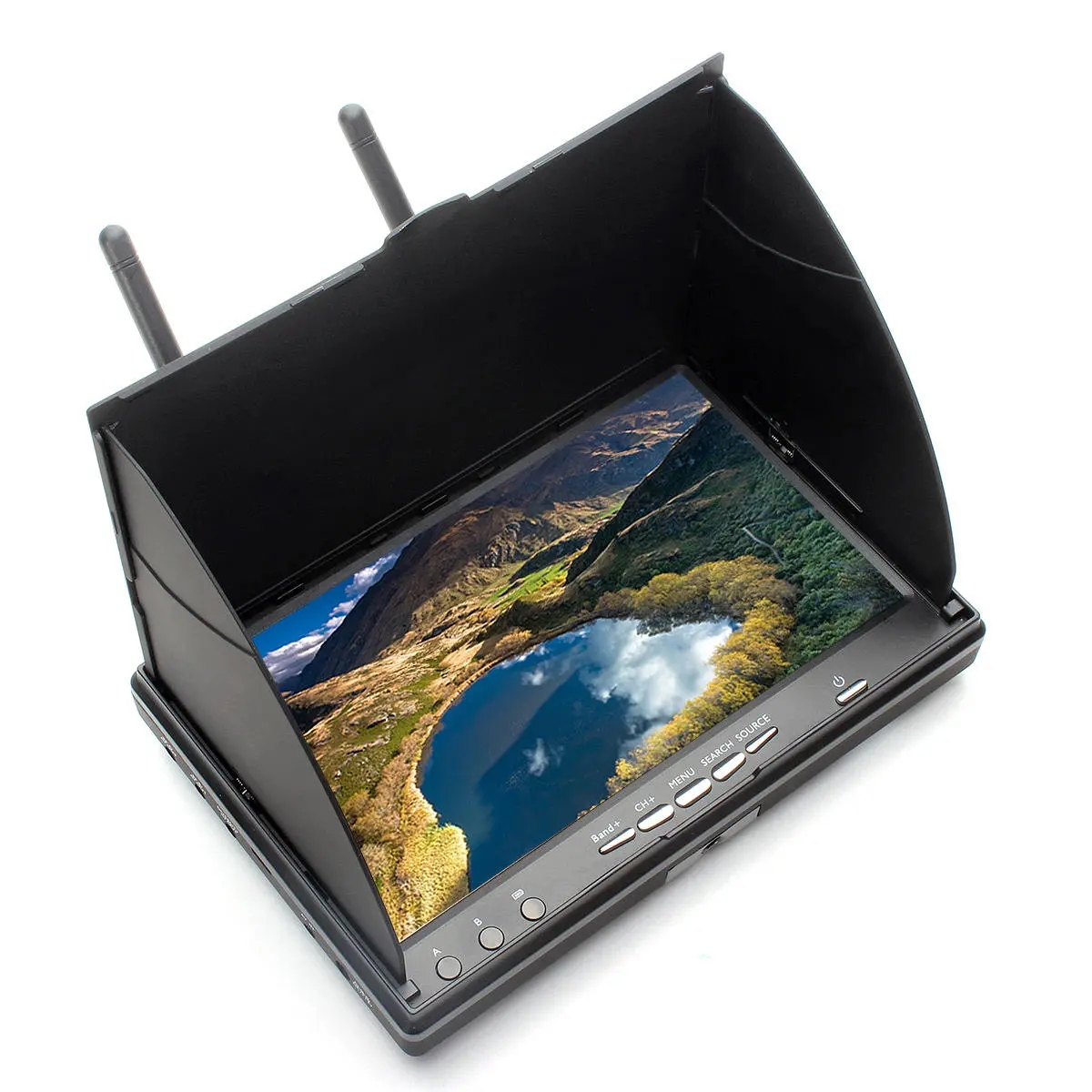

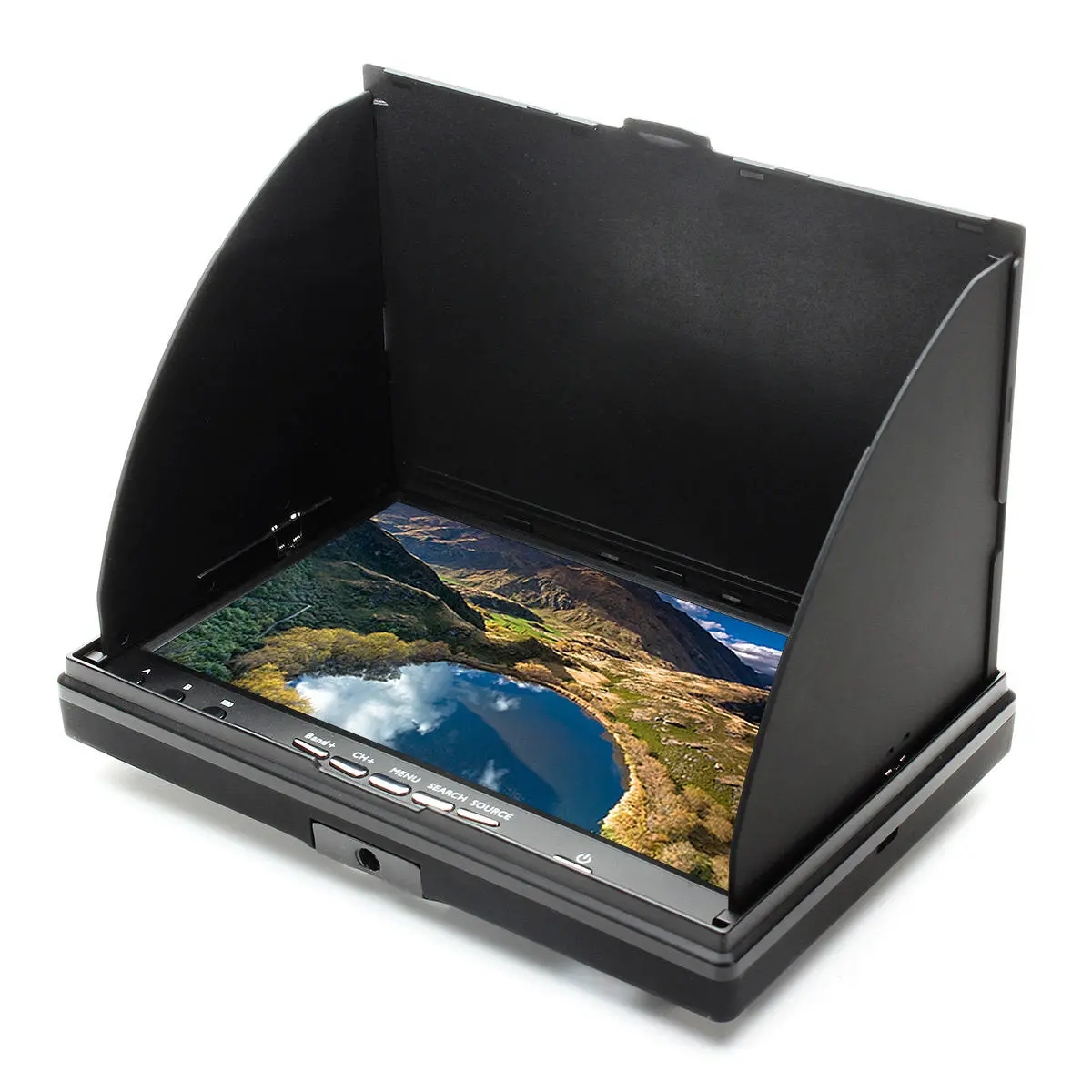

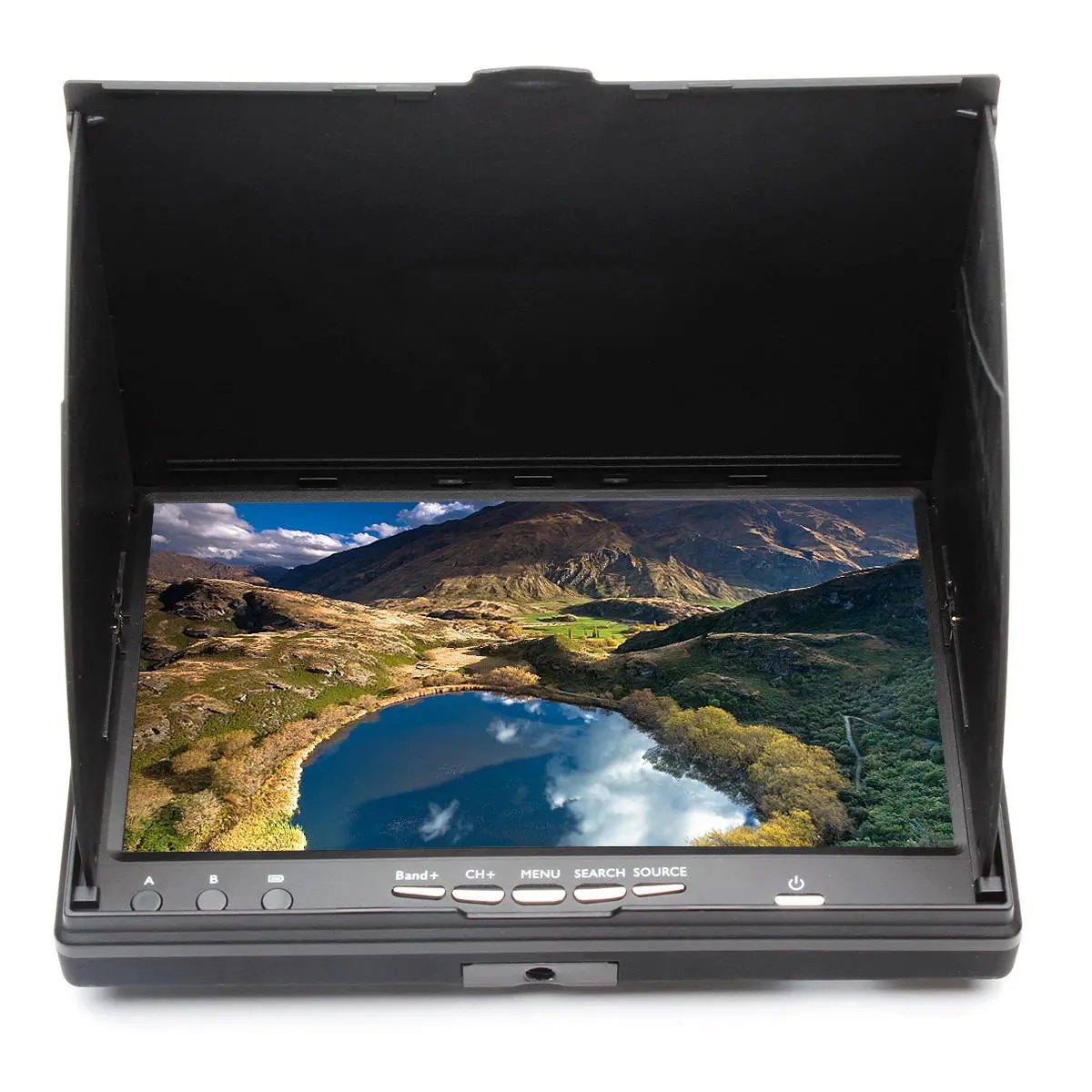

Eachine LCD5802S 5802 40CH Raceband 5.8G 7 Inch Diversity Receiver Monitor with Build-in Battery
Description:
Brand Name: Eachine
Item Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception

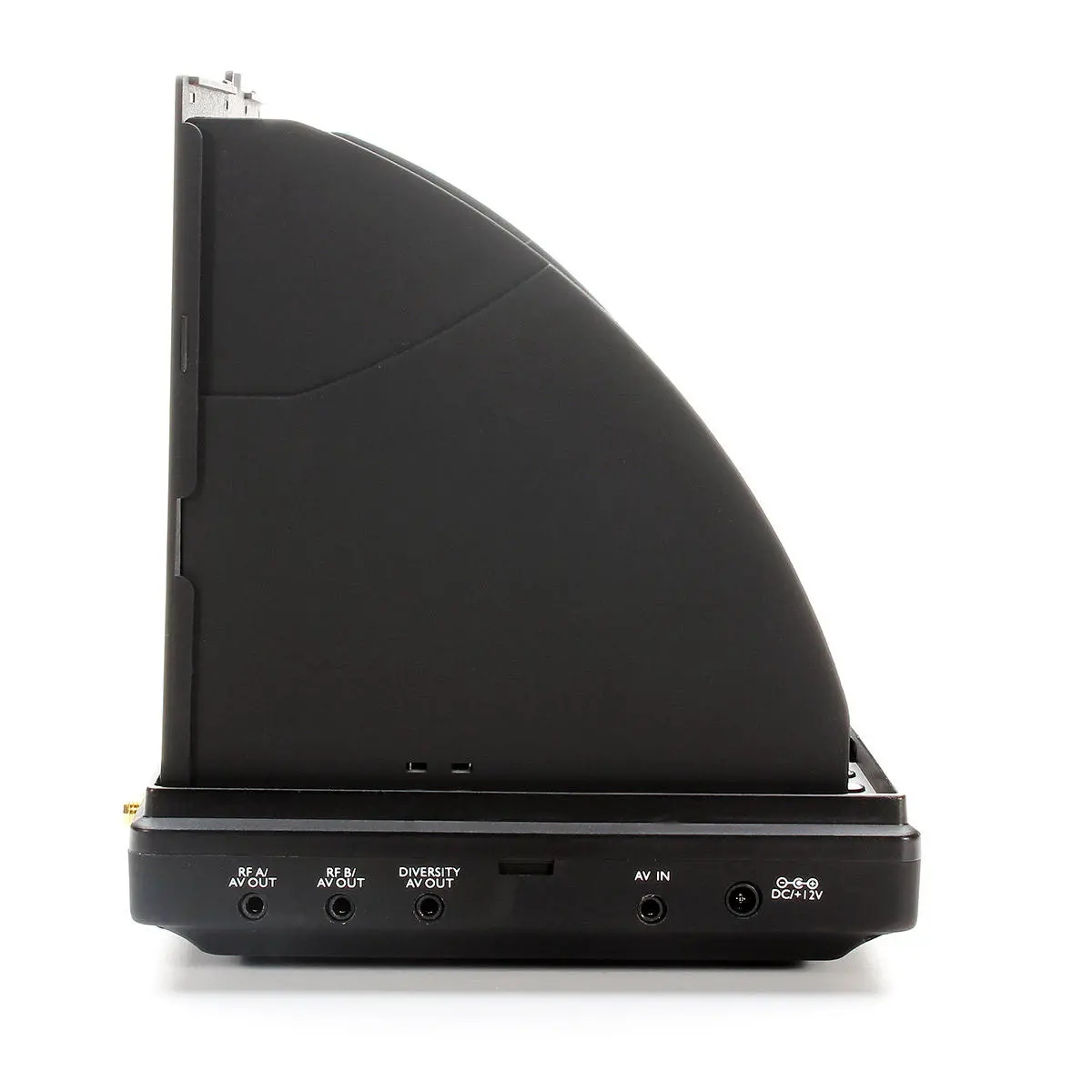

Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery:?2000mAH/7.4V
Work status OSD display?:?RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Sensitivity: -90dBm
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness:?600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage:?DC 7~16V
Power Consumption:?max 650 mA @12V
Battery charging current?:?850mA @12V ( max )
Working temperature:?-10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can’t receive 2 different channels at the same time
Band and Channel selection
| ?????CH????? | CH?1 | CH?2 | CH?3 | CH?4 | CH?5 | CH?6 | CH?7 | CH?8 |
| GROUP | ||||||||
| A | 5865?MHZ | 5845?MHZ | 5825?MHZ | 5805?MHZ | 5785?MHZ | 5765?MHZ | 5745?MHZ | 5725?MHZ |
| B | 5733?MHZ | 5752?MHZ | 5771?MHZ | 5790?MHZ | 5809?MHZ | 5828?MHZ | 5847?MHZ | 5866?MHZ |
| C | 5705?MHZ | 5685?MHZ | 5665?MHZ | 5645?MHZ | 5885?MHZ | 5905?MHZ | 5925?MHZ | 5945?MHZ |
| D | 5740?MHZ | 5760?MHZ | 5780?MHZ | 5800?MHZ | 5820?MHZ | 5840?MHZ | 5860?MHZ | 5880?MHZ |
| R | 5658?MHZ | 5695?MHZ | 5732?MHZ | 5769?MHZ | 5806?MHZ | 5843?MHZ | 5880?MHZ | 5917?MHZ |
Package Included: ?
1 x 7″ LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
