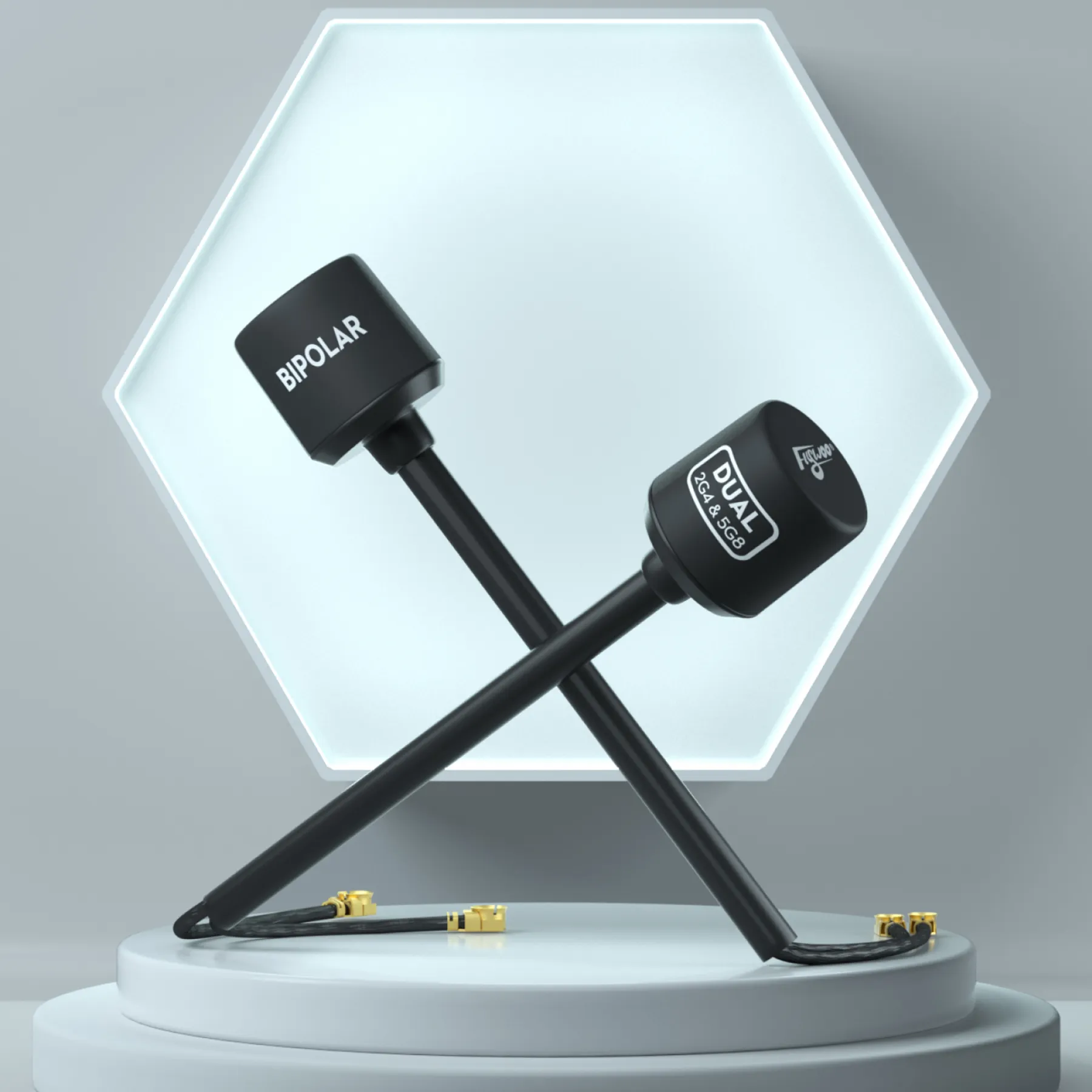

Flywoo Bipolar Dual-Band 5.8Ghz/2.4Ghz UFL Antenna For DJI O3

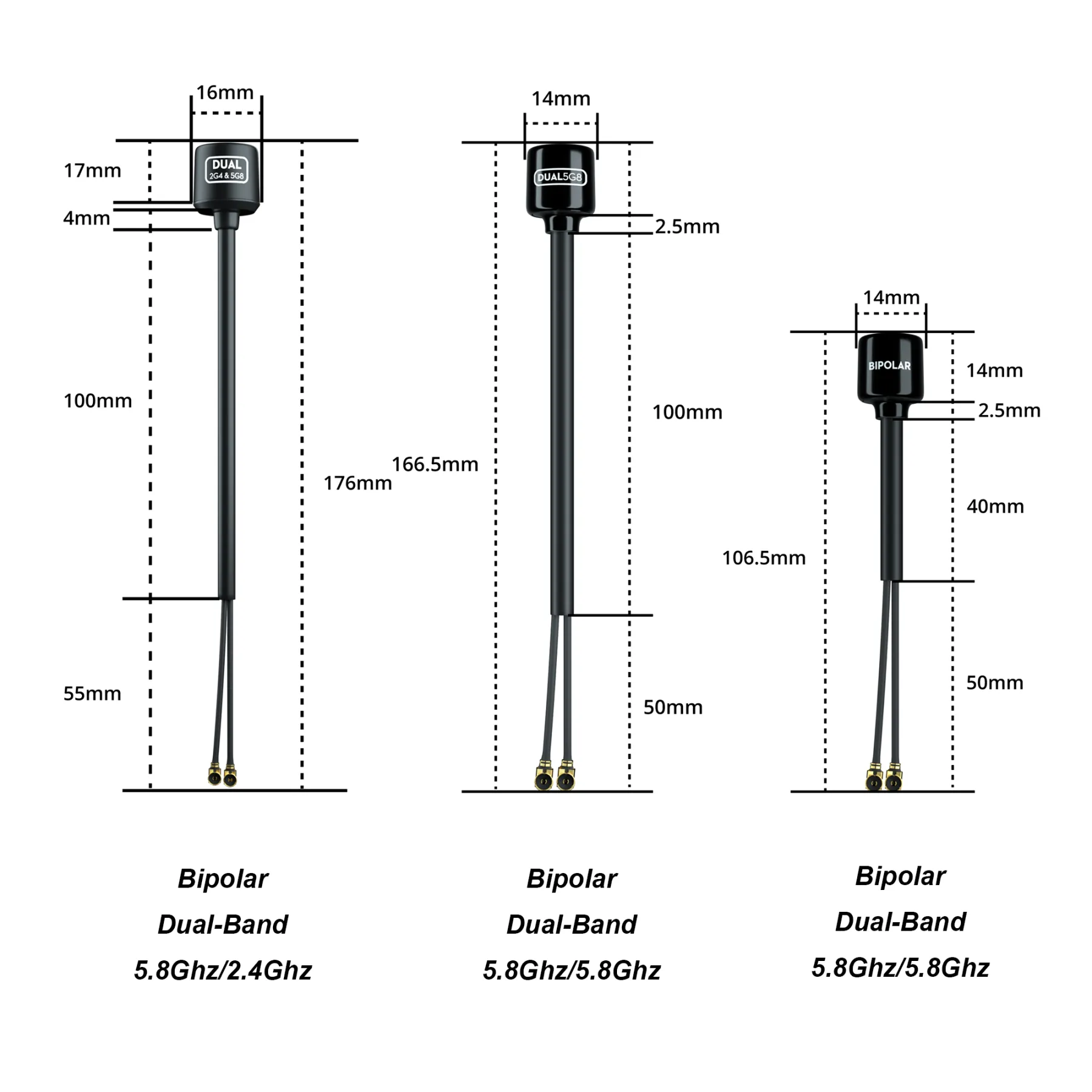

Flywoo Bipolar, its latest Dual-Band series antenna, is meticulously engineered for the O3 air unit. This series, featuring two types of antennas – Dual 5.8GHz/2.4GHz and Dual 5.8GHz, is designed to enhance transmission distance while boasting exceptional interference resistance capabilities.

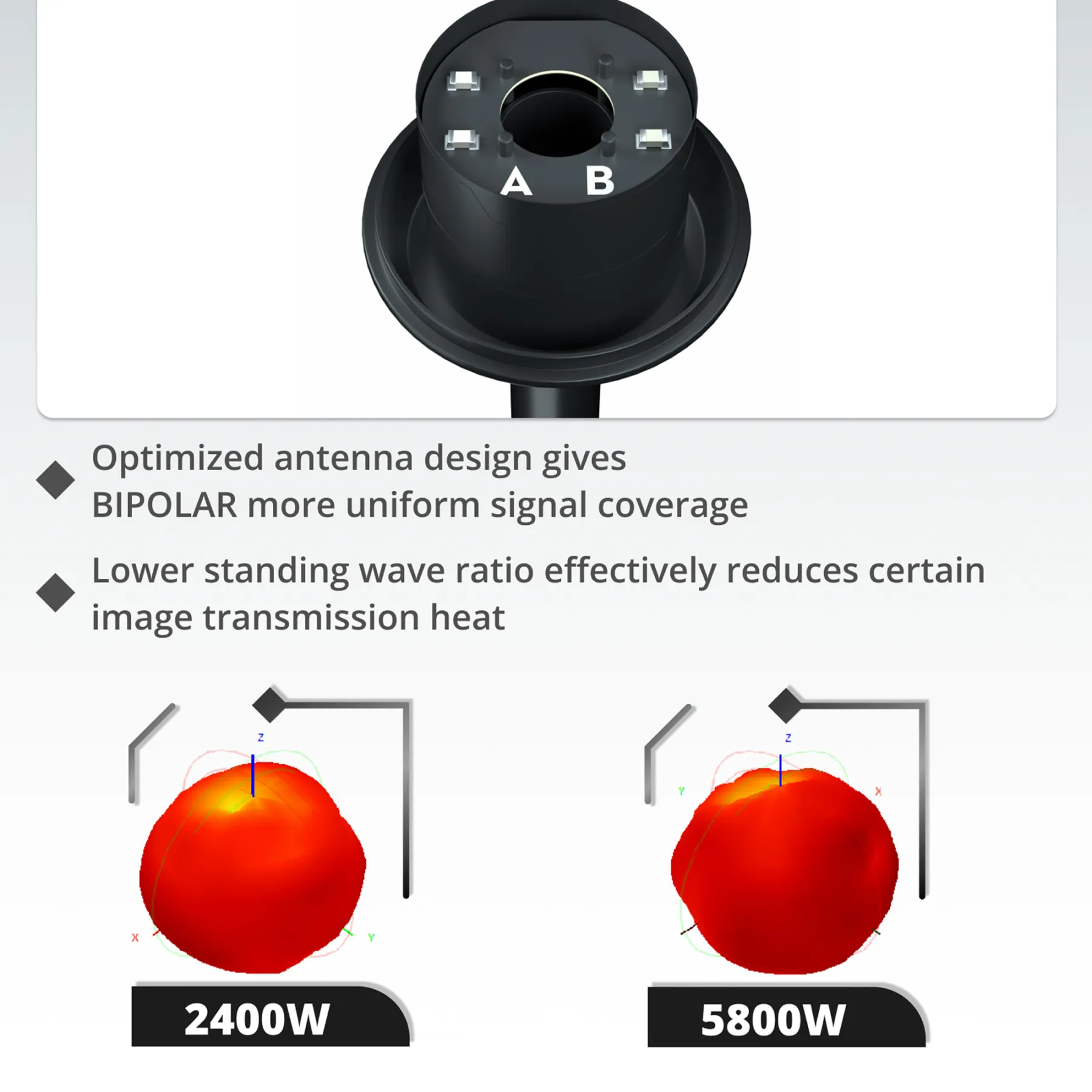

The Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna incorporates cutting-edge dual-band, dual-polarized technology to ensure performance and compatibility that is better than the DJI O3 air unit.

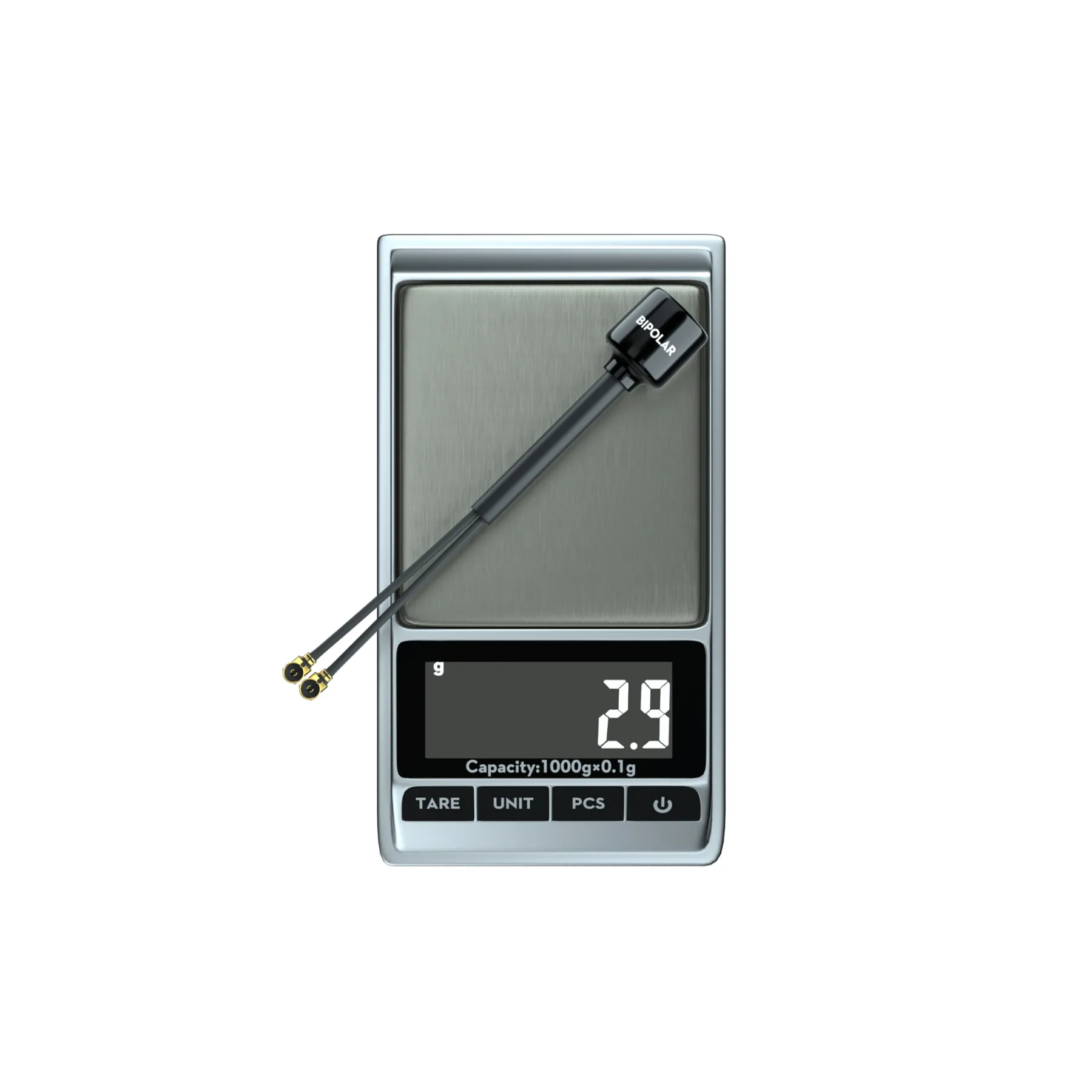

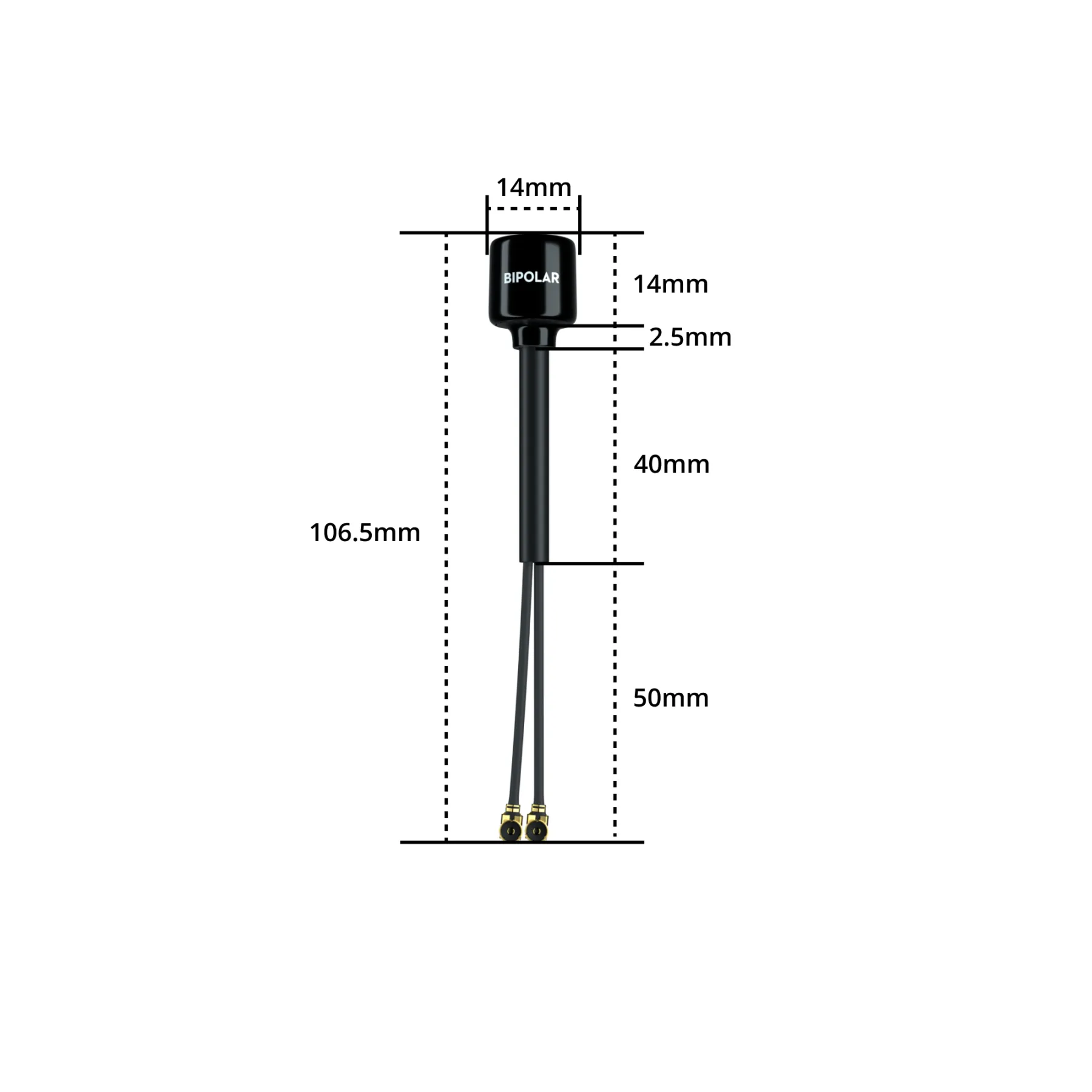

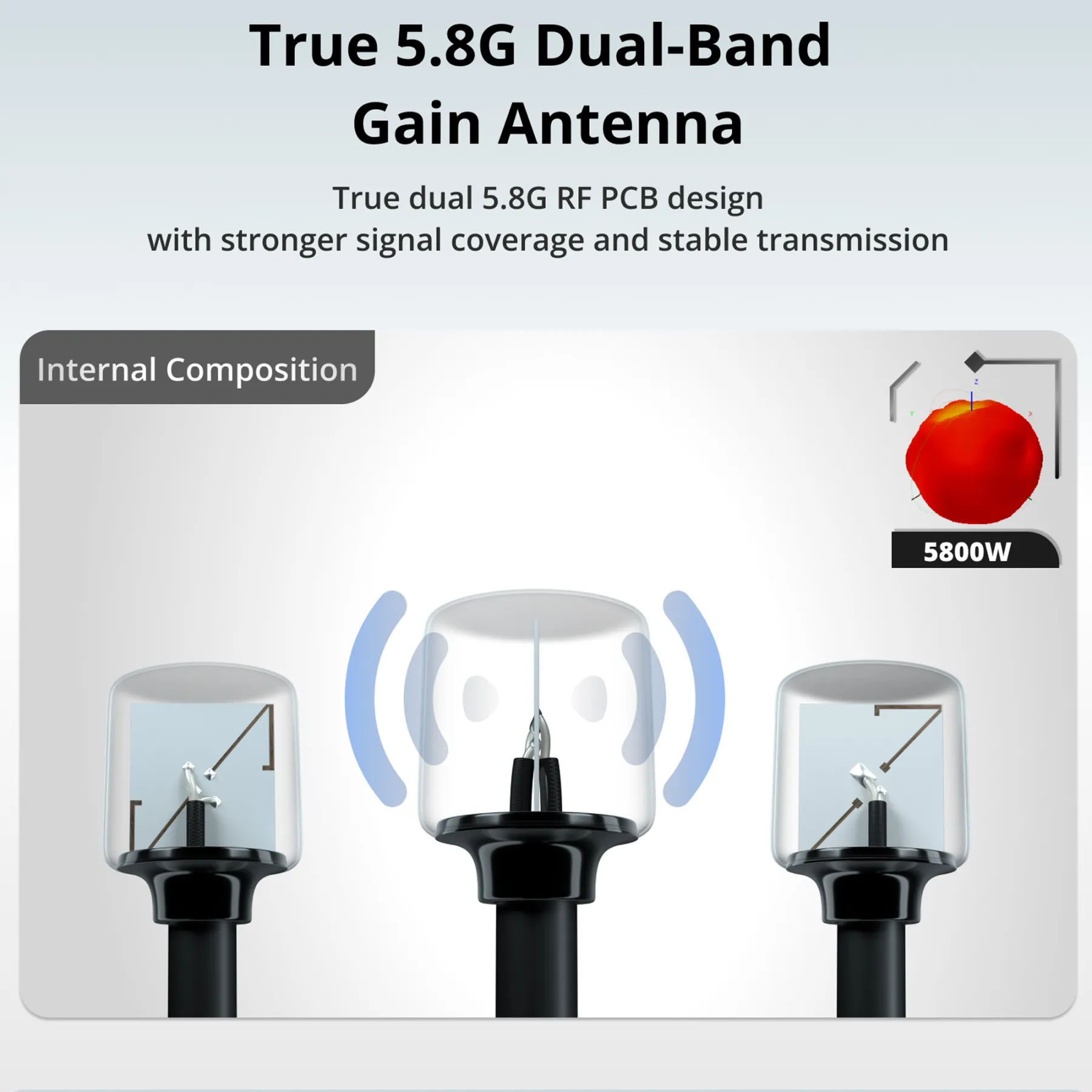

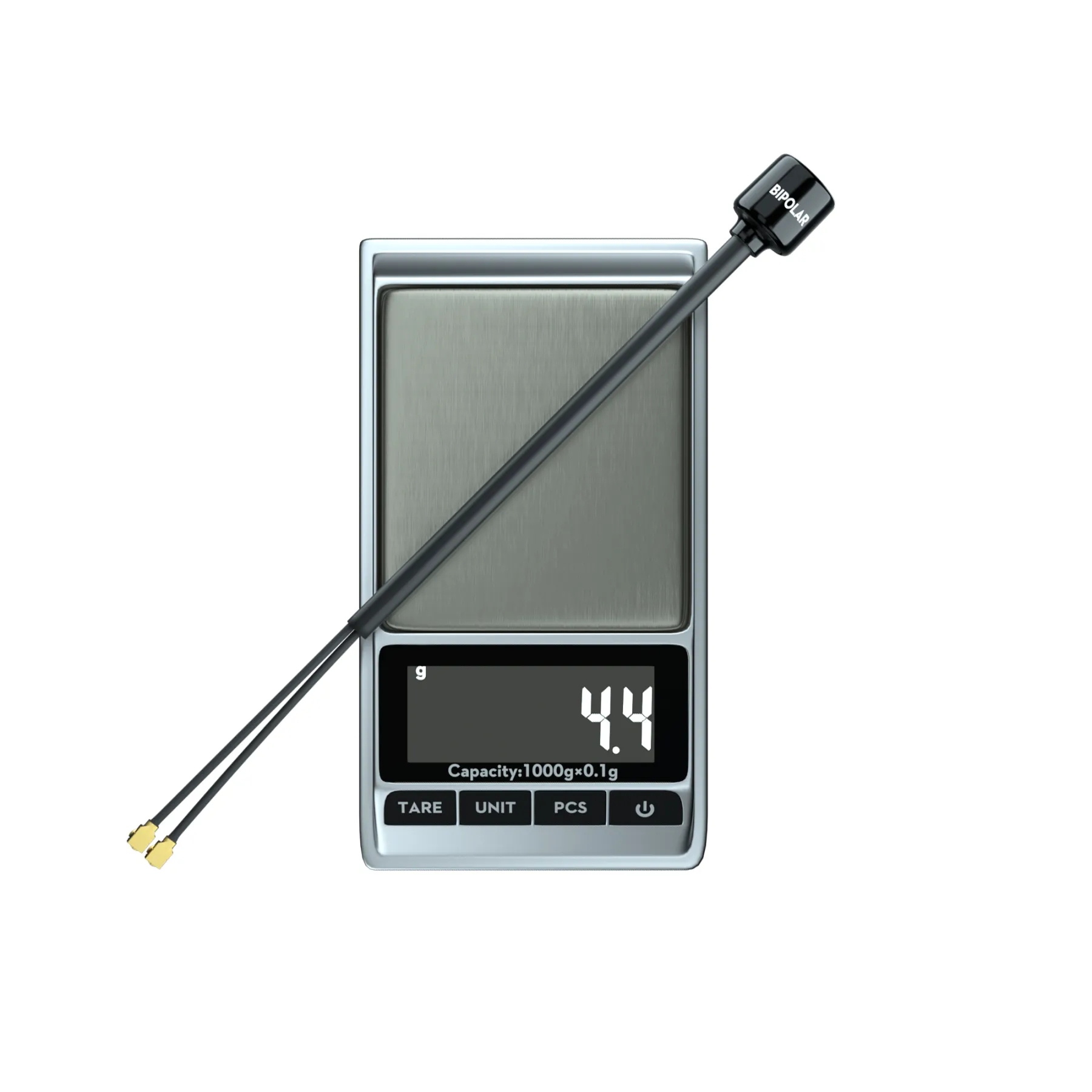

The Flywoo Bipolar Dual 5.8GHz UFL Antenna stands out as a true dual 5.8G antenna. It’s celebrated for its lightweight design and durability, offering stronger signal coverage and stable transmission. The lightest 90mm version weighs in at just 2.9g!

Specifications:

Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna (For usage with RC2 Controller)

• Frequency Range: 2400-2500MHz/5700-5900MHz
• Gain: 2.5dBi/3.8dBi – VSWR≤1.6
• Polarization: Linear
• Impedance: 50Ω
• Connector: 2x U.FL (2x IPEX1)
• Cable: RF1.13

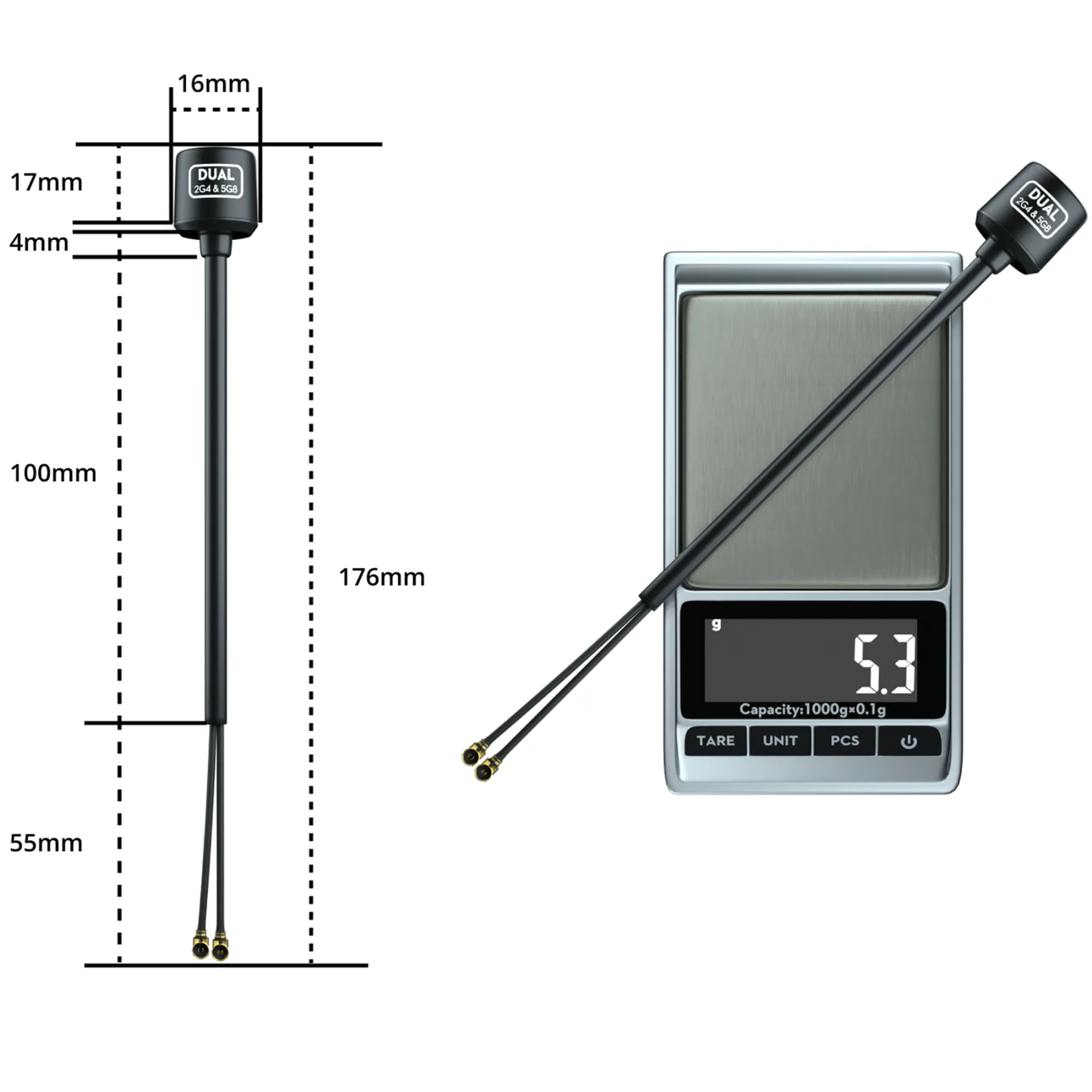

• Weight: 5.3g

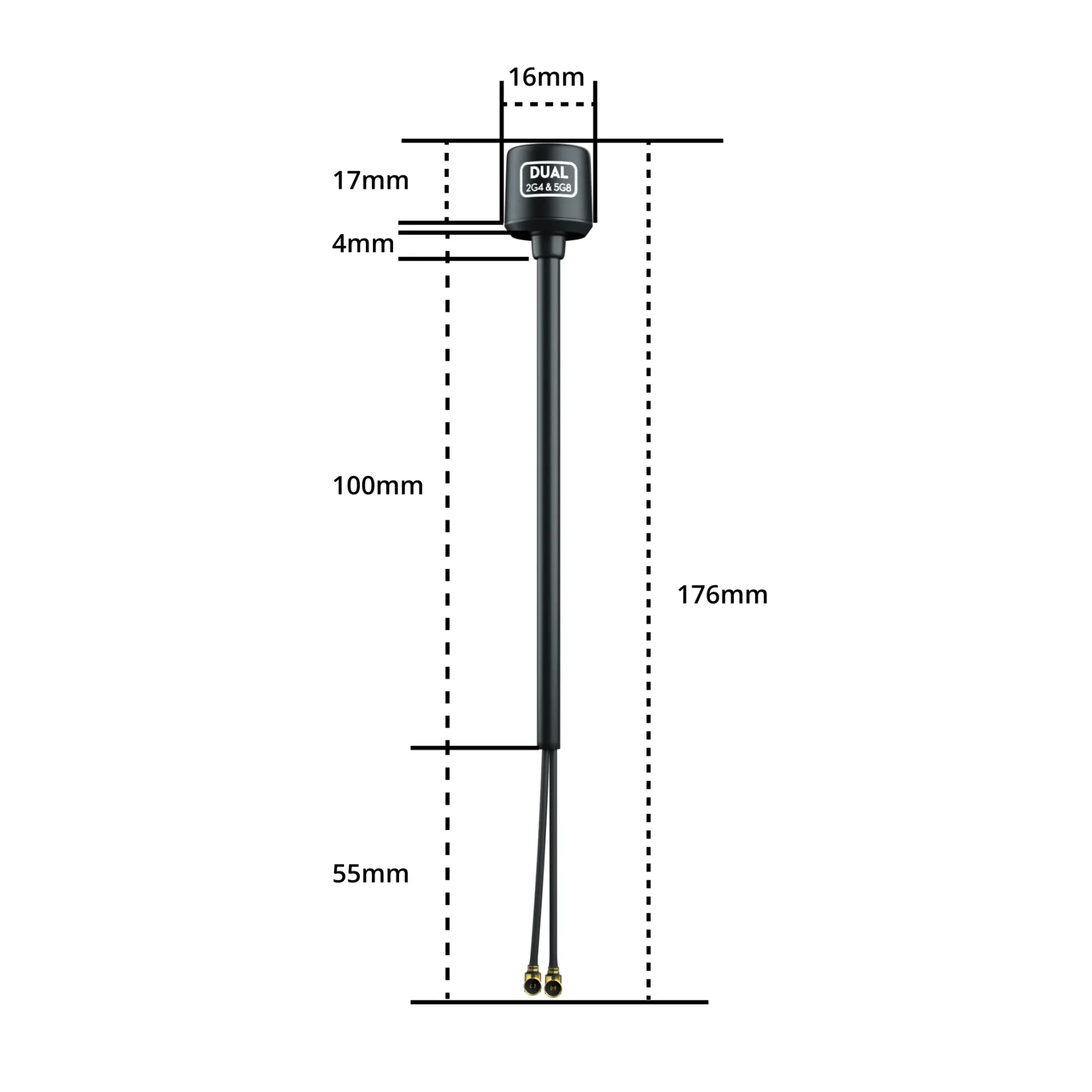

• Size: Φ16x17mm

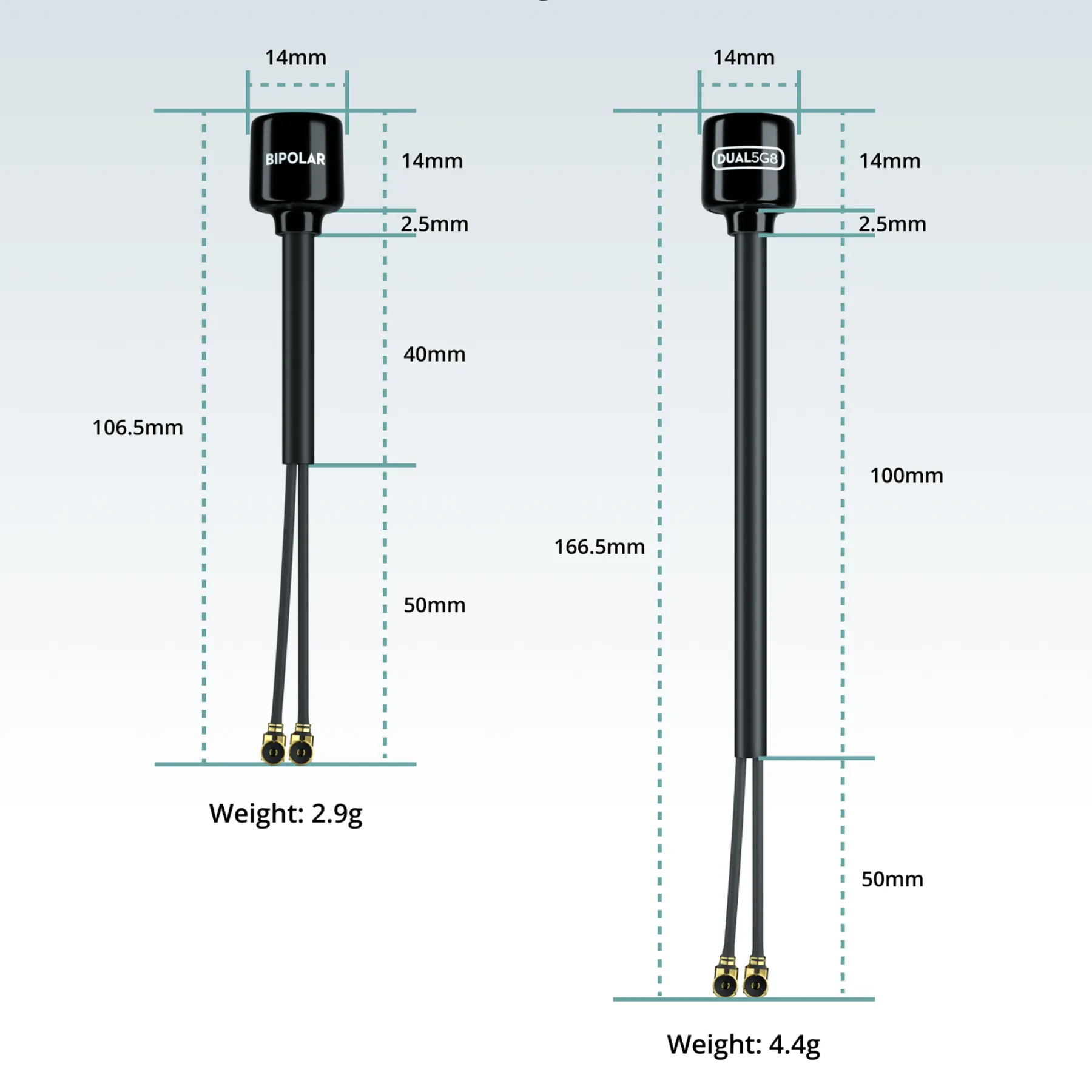

Flywoo Bipolar Dual 5.8GHz UFL Antenna (For usage for any non-RC2 controllers)

• Frequency Range: Dual 5700-5900MHz
• Gain: Dual 2.8dBi
• VSWR≤1.6
• Polarization: Linear
• Impedance: 50Ω
• Connector: 2x U.FL (2x IPEX1)
• Cable: RF1.13
• Weight: 2.9g

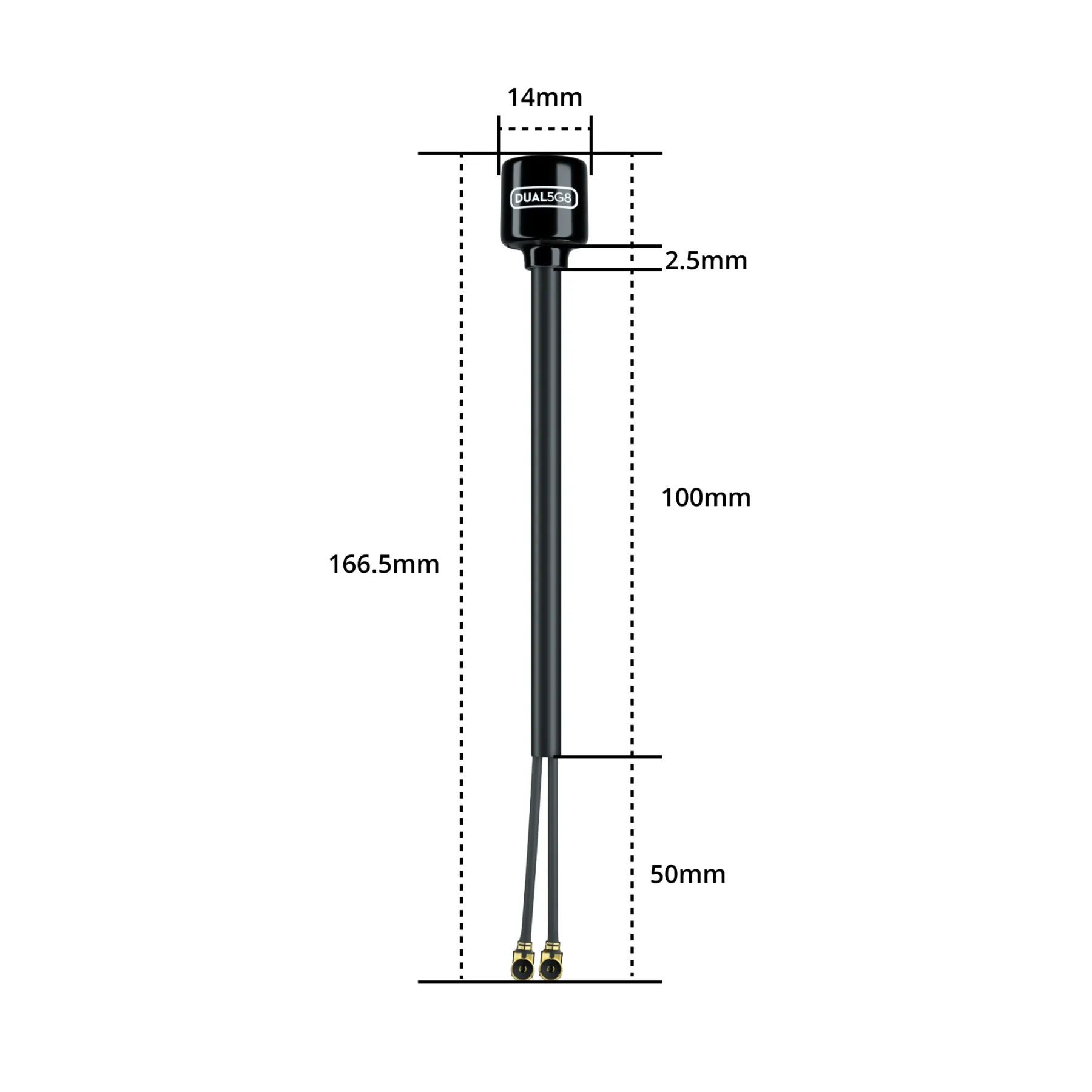

• Size: Φ14x14mm
