FNIRSI DPS-150 Mini DC Adjustable CNC Programmable Regulated Switching Power Supply

₹5,499.00

Highlights

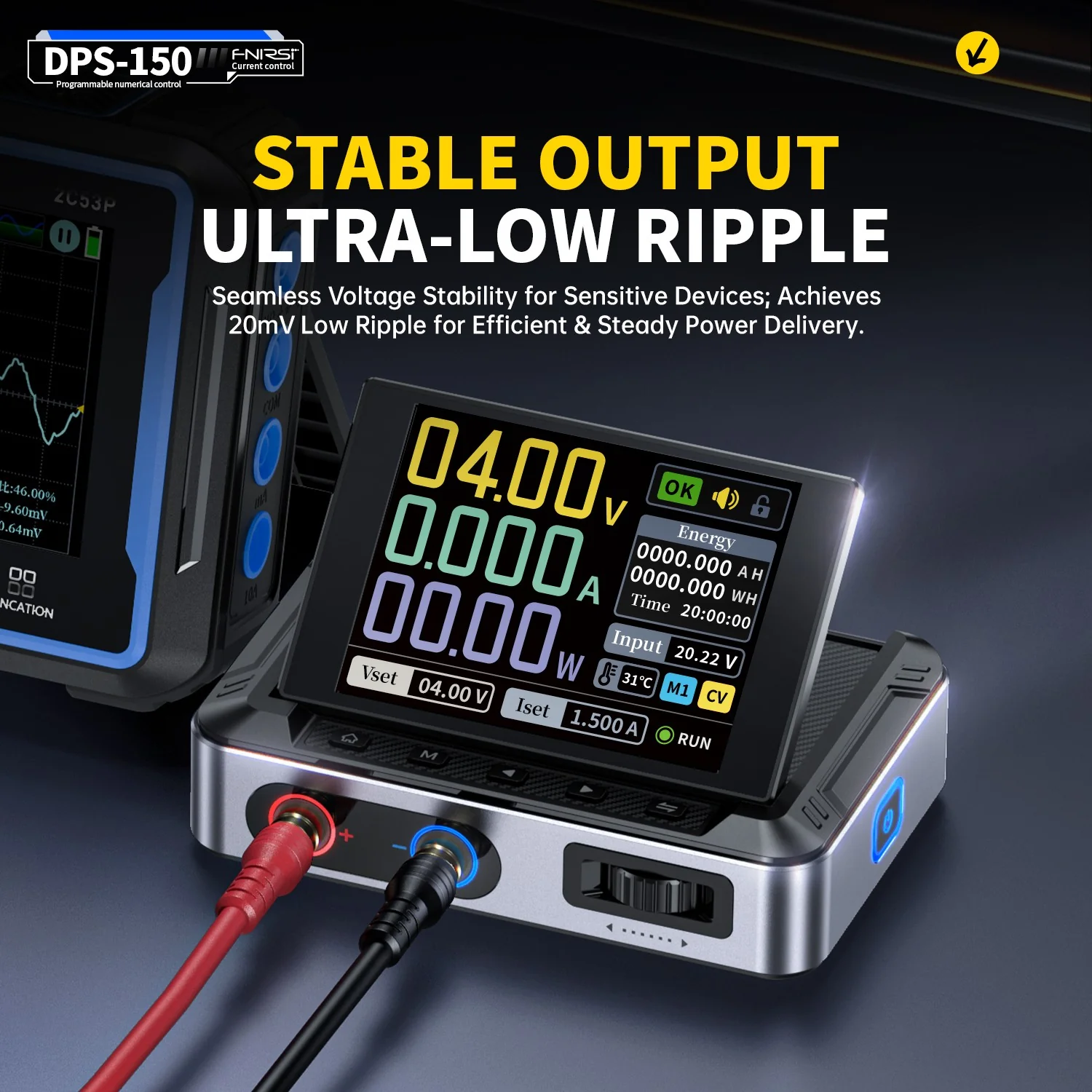

✦ High-Performance Output: 30V, 5A, 150W variable DC power with 0.01V, 0.001A precision, CC/CV modes, and <20mV ripple to protect sensitive electronics.

✦ Upgraded Features: Supports PC, QC, and DC inputs with programmable outputs and 6 preset voltage/current settings.

✦ Versatile Connections: Compatible with 4mm banana plugs, U-shaped terminals, and copper wires for various equipment.

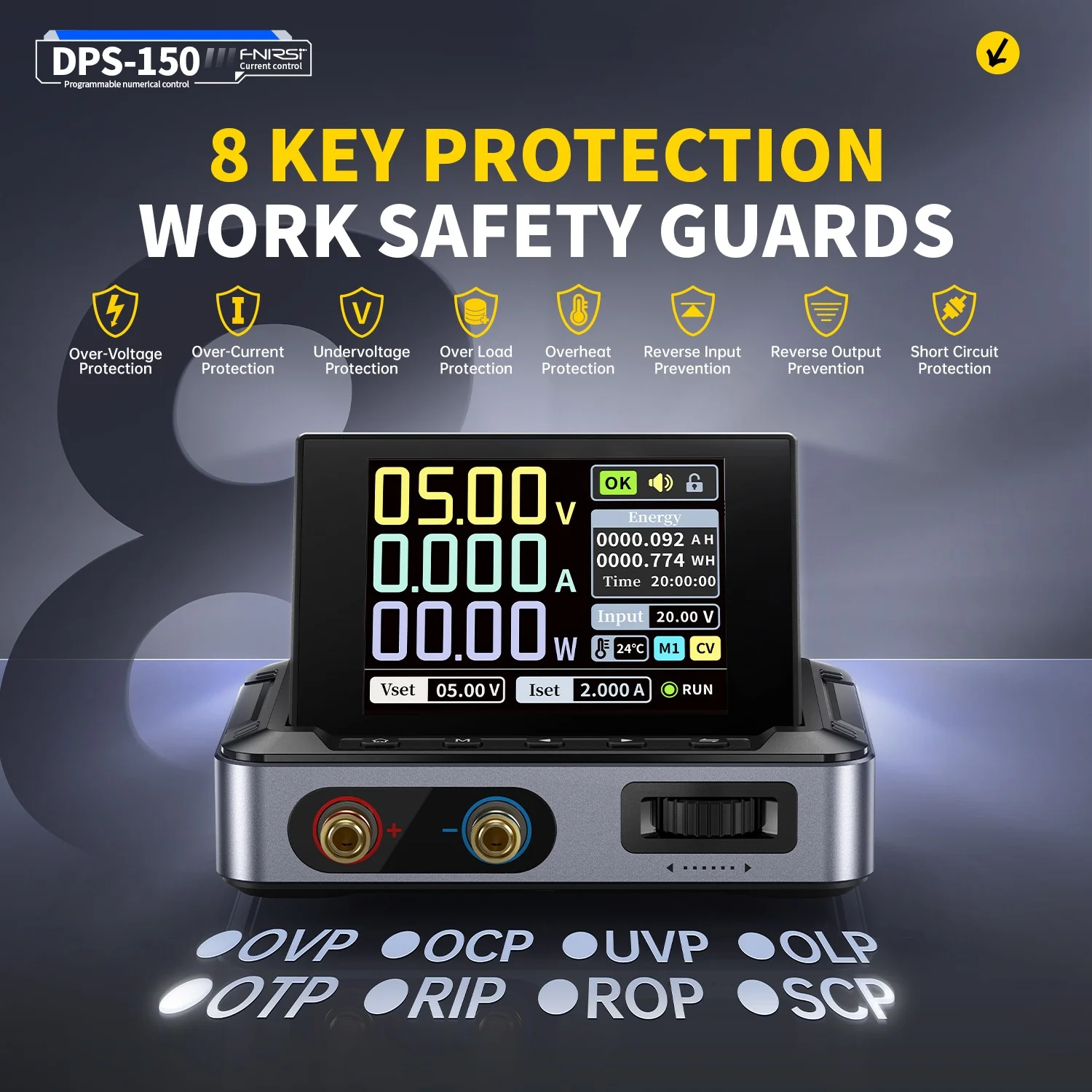

✦ Comprehensive Protection: 8 safety mechanisms including overvoltage, current, short circuit, and overheating protection.

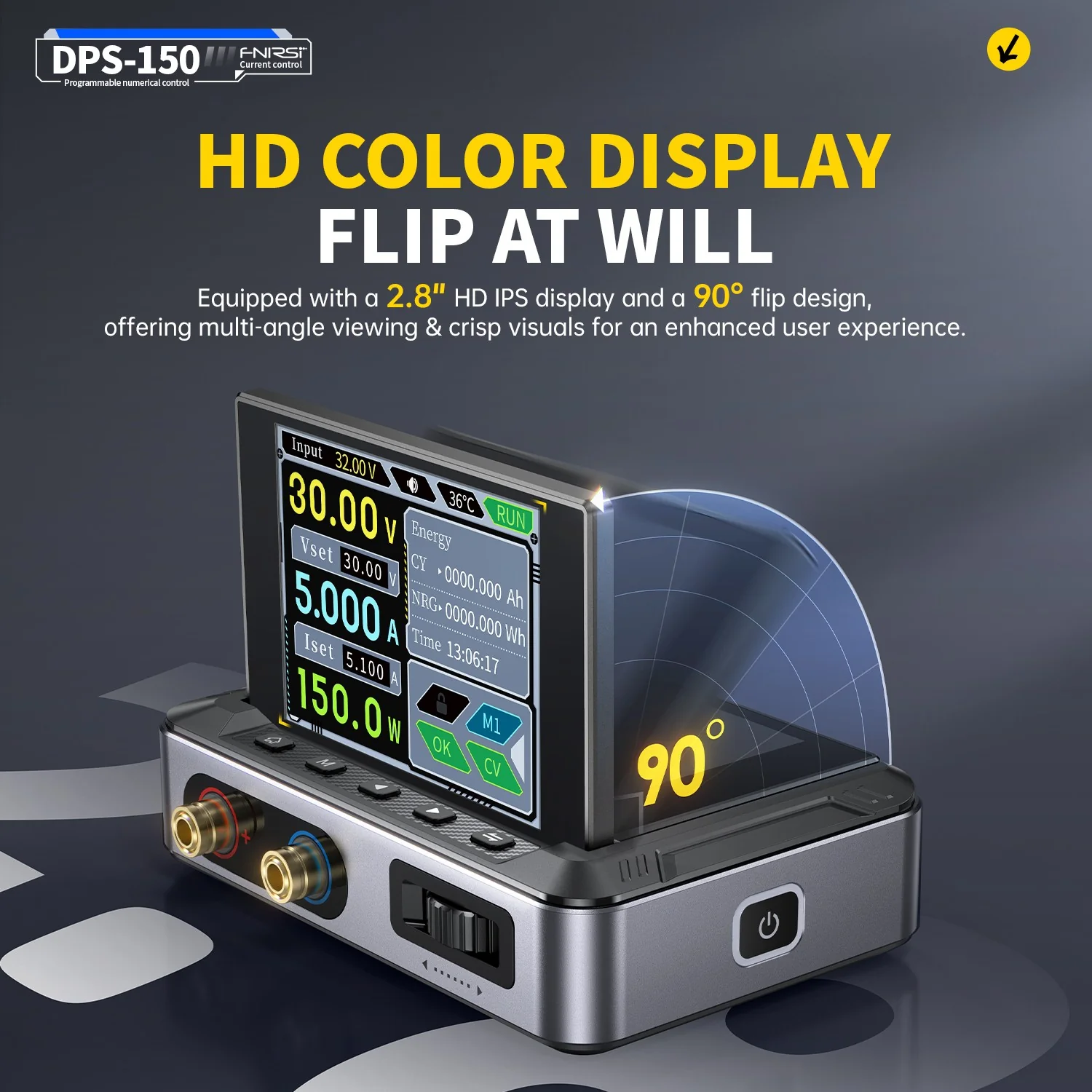

✦ 4-Digit IPS Display : 2.8-inch IPS screen with 90° flip, numerical and curve displays for easy monitoring.

✦ Compact & Portable: Small, space-saving design for use in labs, repairs, and DIY projects.

The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and current (0-5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with high-performance and stable CNC power supply.

Specifications

Brand: FNIRSI

Model: DPS-150

Input Voltage: DC 5.0V~32V

Input Current: 100mA-5A

Input Way: PD fast charger
QC fast charger: Power bank, DC power adapters
Output Voltage: 0~30V

Output Current: 0~5A

Output Power: 0-150W

Operating Environment: 0℃-40℃

Load Regulation: 0.49%

Full Load Efficiency: 96.30%

Screen: 2.8 Inch (320×240)

Weight: about 178g

Dimensions: 106x76x28mm

Overvoltage Protection: Support

Overcurrent Protection: Support

Under voltage Protection: Support

Overpower Protection: Support

Overtemperature Protection: Support

Reverse Input Protection: Support

Reverse Output Protection: Support

Short Circuit Protection: Support

Upper Computer Software: Support

Firmware Upgrade: Support

⚠ Precautions

The product operates in step-down mode, so ensure that the input voltage is higher than the output voltage
The power supply range for this product is Dc 5V~30v. Output will be disabled if the input voltage is lower than 5.0V due to undervoltage lockout, and the device may be damaged if the input voltage exceeds 30V. lt is recommended to use a power supply ranging from 5V to 30V.
When supplying power to inductive and capacitive loads, it is recommended to connect the load before turning on the device output.
When outputting high power, some heat generation is normal. lt is recommended to use the device in a well-ventilated environment.
Please remember not to connect power to both power ports of the device simultaneously, as simultaneous power supply may potentially damage the input source with lower voltage.
When charging batteries, it is strongly recommended to add a reverse current protection module (such as a Schottky diode) to the output end to protect the device from damage.
