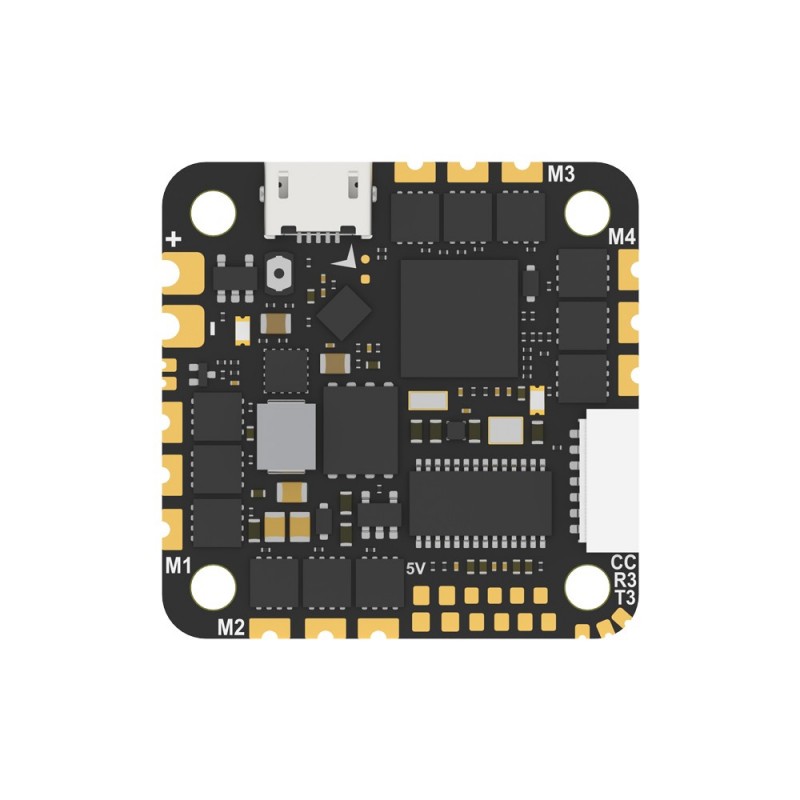

| Model | FOXEER Reaper AIO V3 |
| CPU | STM32F745 |
| Power Supply | 2~6S Lipo(8.4~25.2V) |
| BEC Output | DC5V/2.5A |
| OSD | BF OSD |
| Black Box | 16M Flash Memory |
| UART | 5 Set |
| USB | Micro USB |
| Fireware | BF:FOXE-FOXEERF745V3_AIO; Inav: FOXEERF745AIO V3 |
| DJI/Vista Connector | Supported, 7pin |
| Size | 32.5X32.5mm |
| Mounting Hole | 25.5X25.5mm,Φ3mm/M2 |
| Weight(g) | 8.9g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Package Includes | 1*AIO, Rubbers Columns, XT30 Cable, Vista Cable, Capacity |
| Firmware | Bluejay: G-H-30-96-v0.16/ BLS:G-H-30 16.7 |
| Continuous /Burst Current | 45A x 4/ 50A x 4 |
| Input Voltage | 2~6S Lipo(8.4~25.2V) |
| Telemetry | No |
| ESC Programming | Bluejay(default)/BLHeli-S optional |
| Stick Programming | Supported |
| Current sensor: | Supported |
| Current scale: | 100 |
| Input signal: | Dshot300/600 |
