Summary

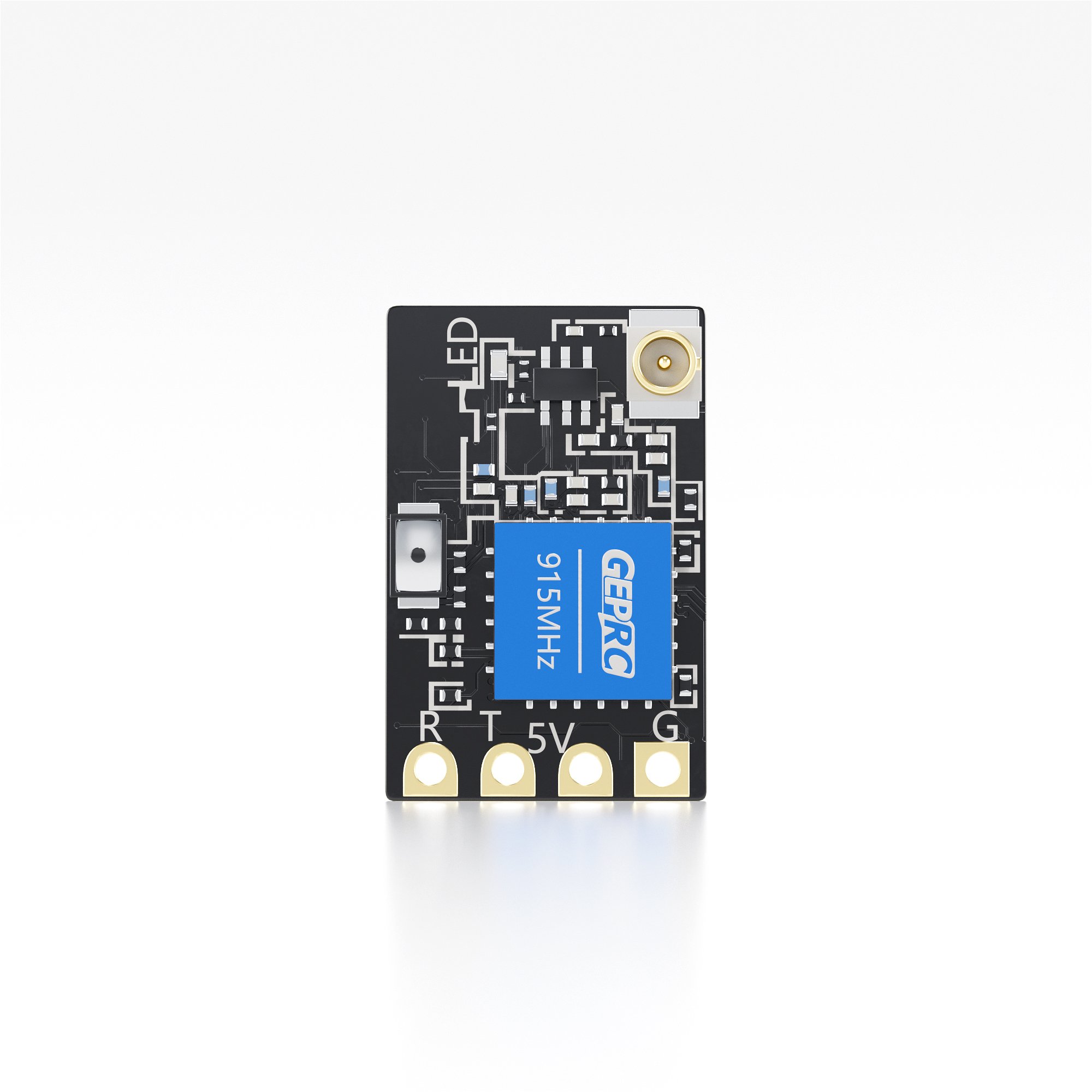

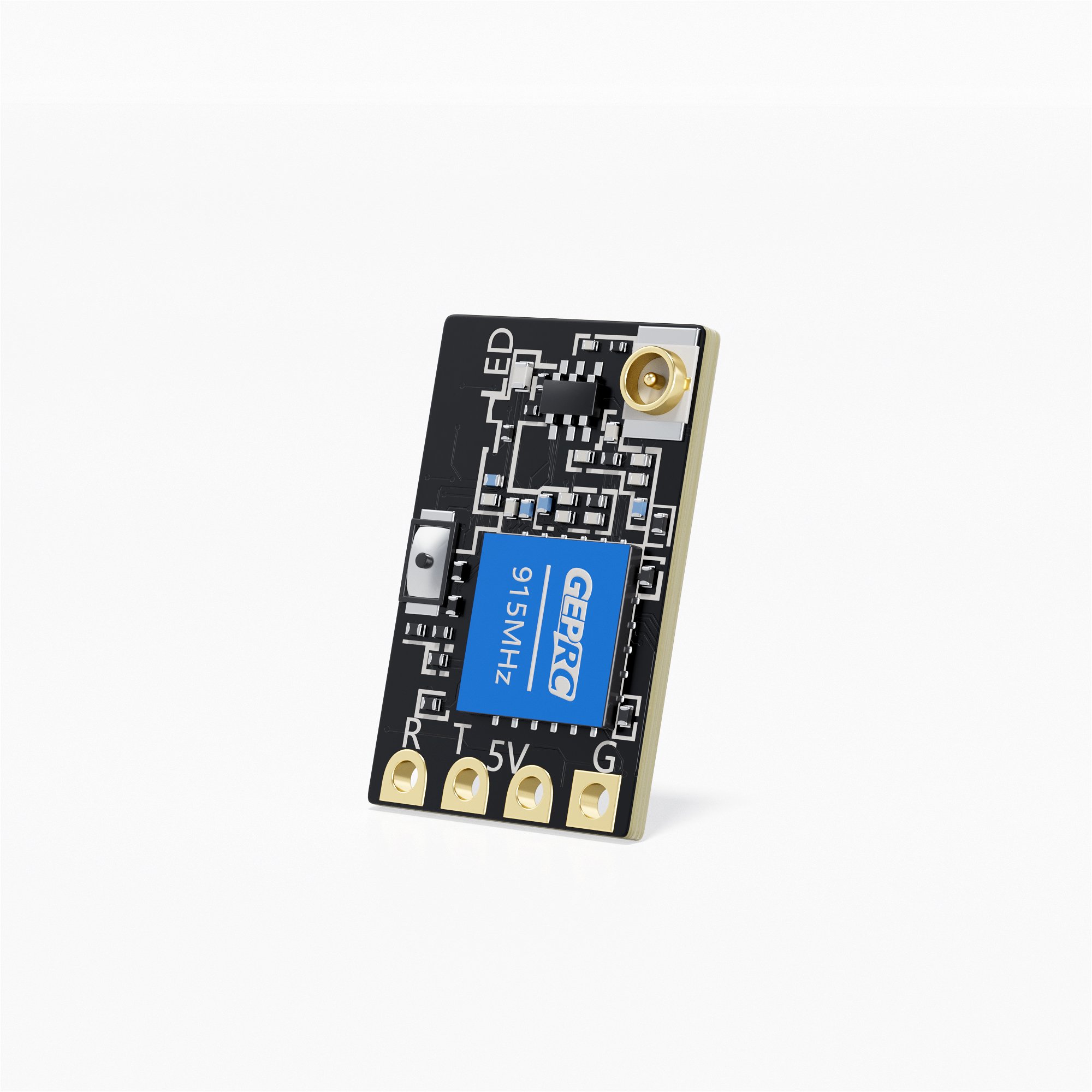

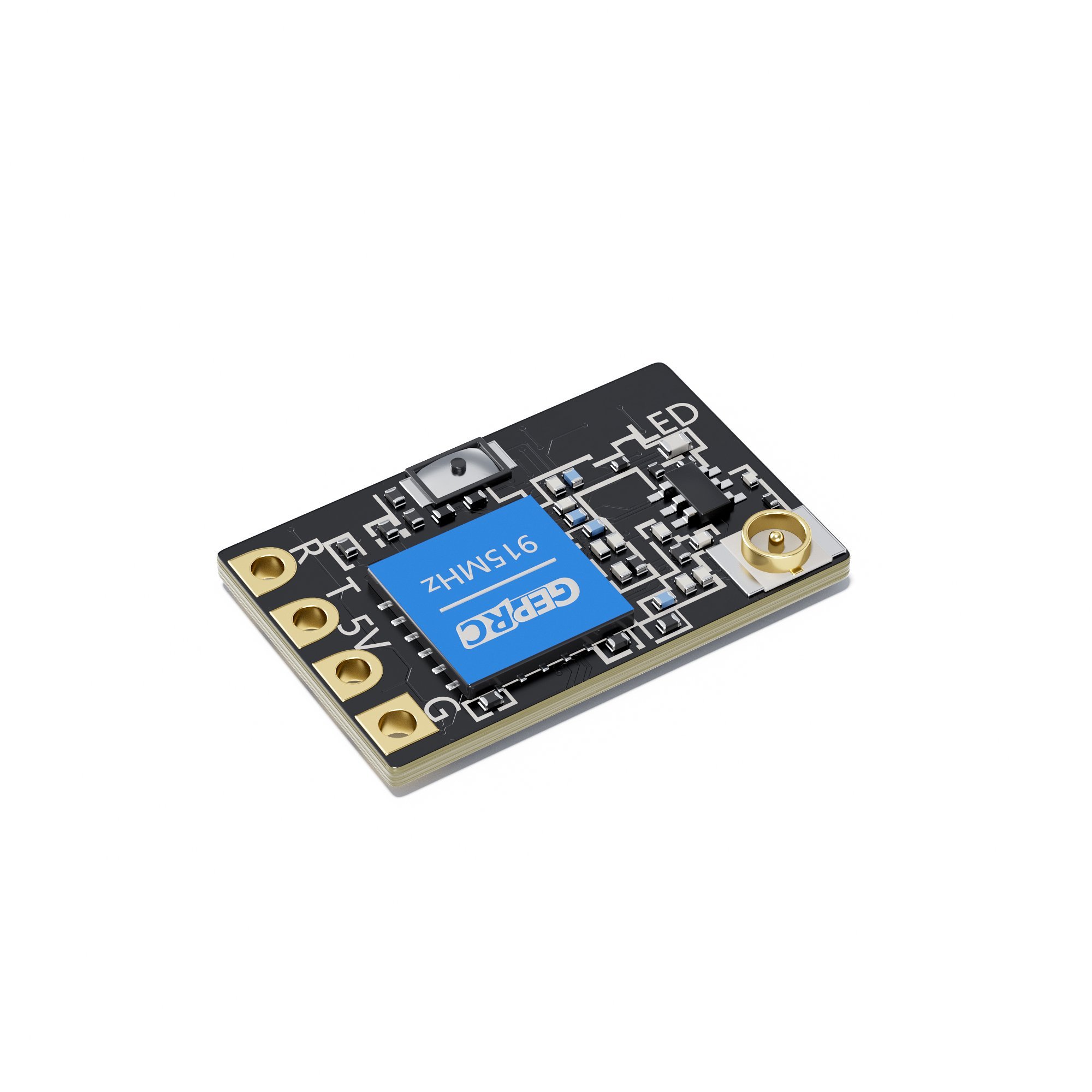

GEPRC ELRS Nano 915M V2 Receiver is a new generation receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, and low price.
The ELRS Nano 915M V2 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;the telemetry power is up to 50mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.
Feature
- 17x11mm Small size
- 0.7g weight
- WIFI Upgrade firmware
- ELRS open source project, remote control
- Maximum refresh rate of 200Hz
- The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
- up to 50mW telemetry power
Specifications
- Size: 17x11mm
- Weight: 0.7g (RX only)

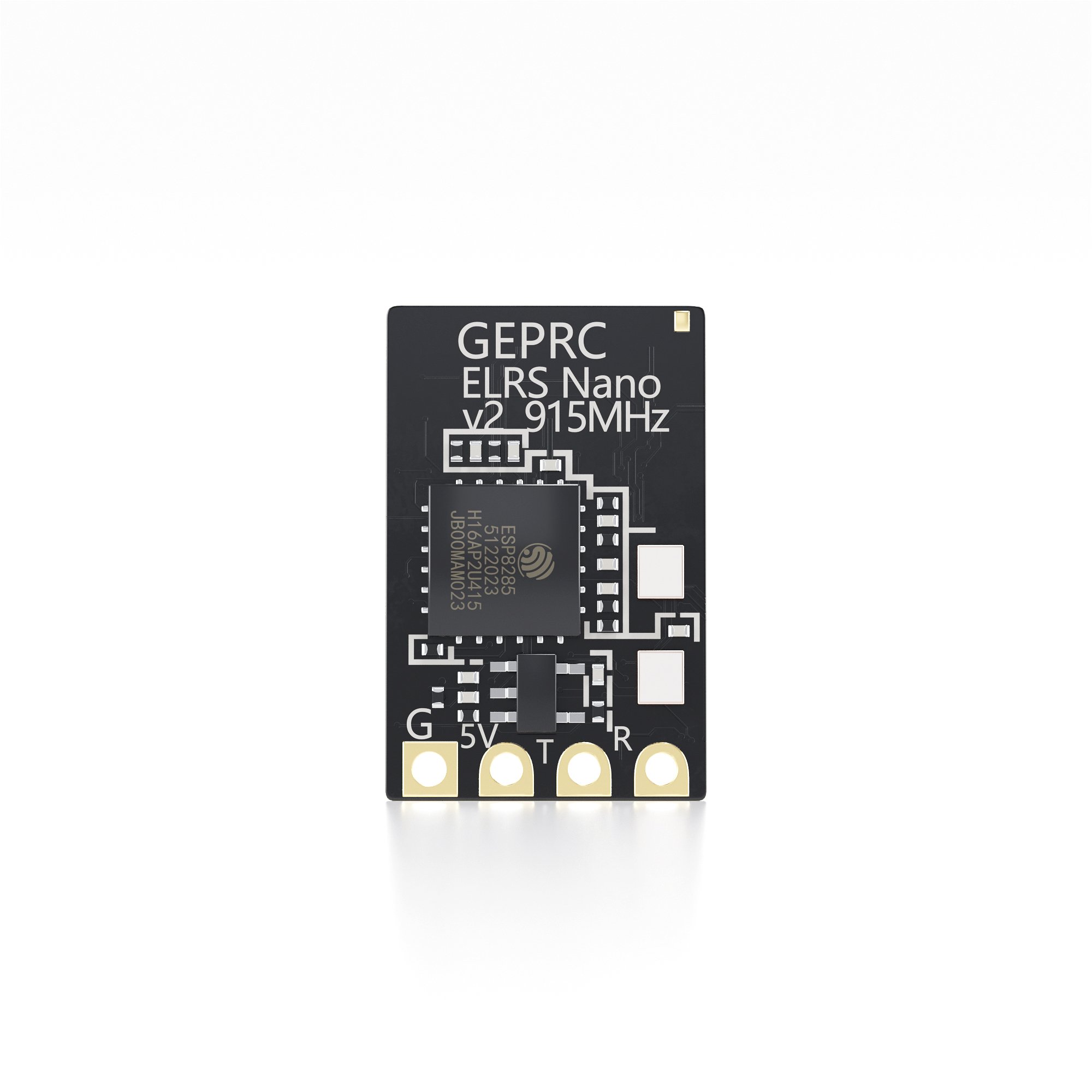

- Chips: ESP8285, SX1276
- Crystal Oscillator: TCXO
- Frequency Band: 915MHz FCC /868MHz EU
- Refresh Rate: 25Hz-200Hz
- Input Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 50mW
- Firmware:GEPRC Nano 900MHz RX
Includes
1 x ELRS Nano 915M V2 Receiver
1 x Antenna
1 x Heat shrink tube
4 x Silicone cable
1 x Pin (4pin)
1 x Instruction manual
![](https://geprc.com/wp-content/uploads/2024/04/1-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/2-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/3-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/4-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/5-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/6-1.jpg)
![](https://geprc.com/wp-content/uploads/2024/04/7-1.jpg)
