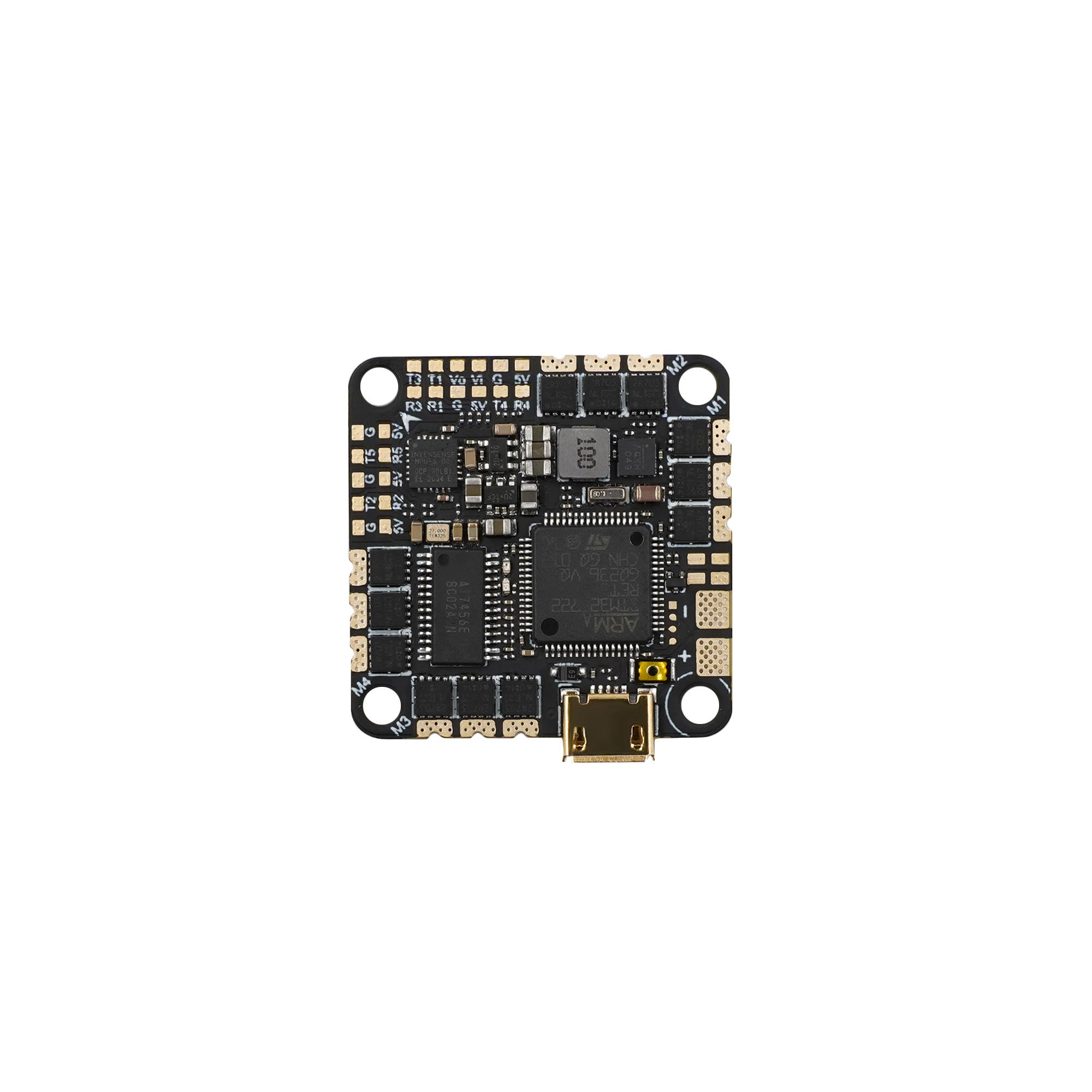

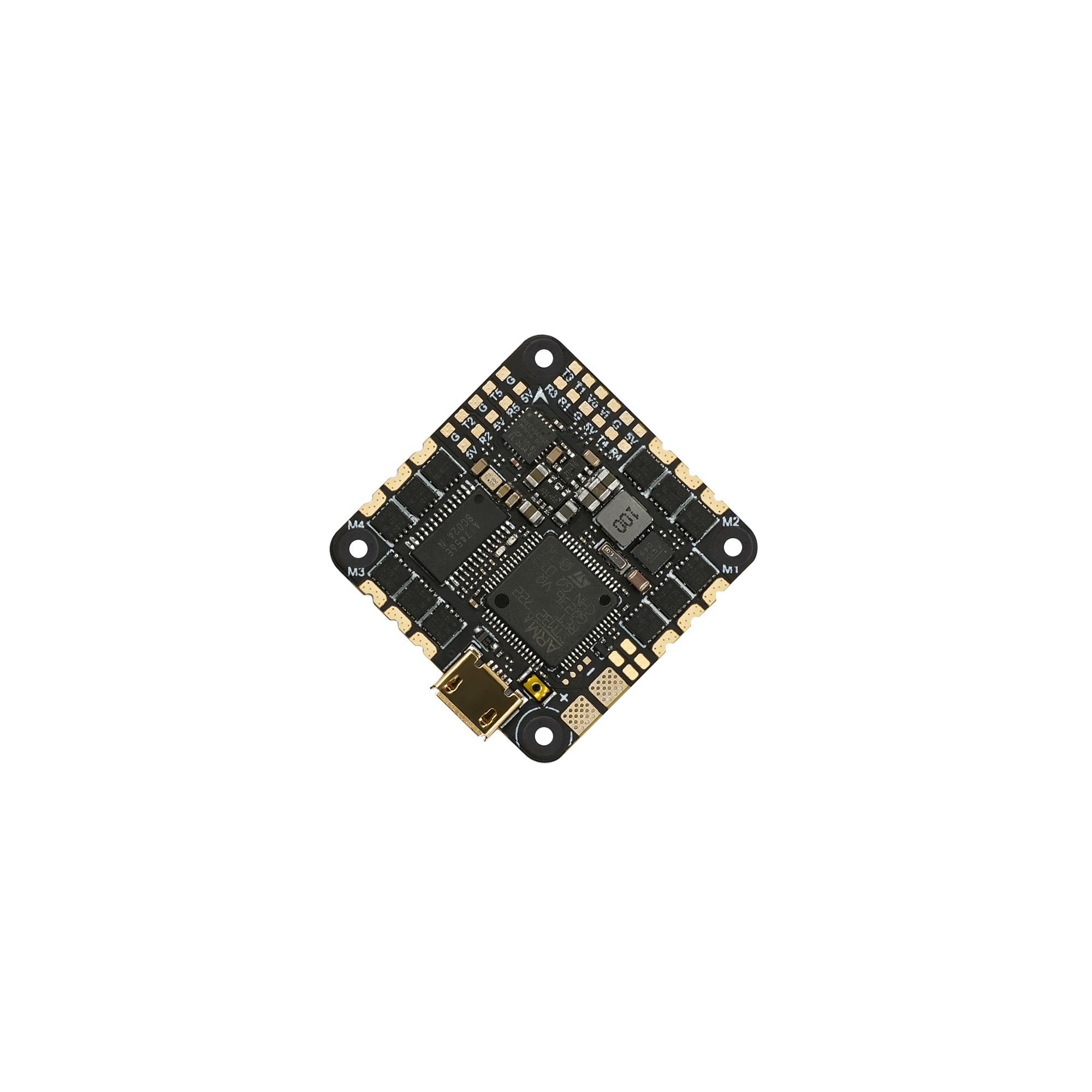

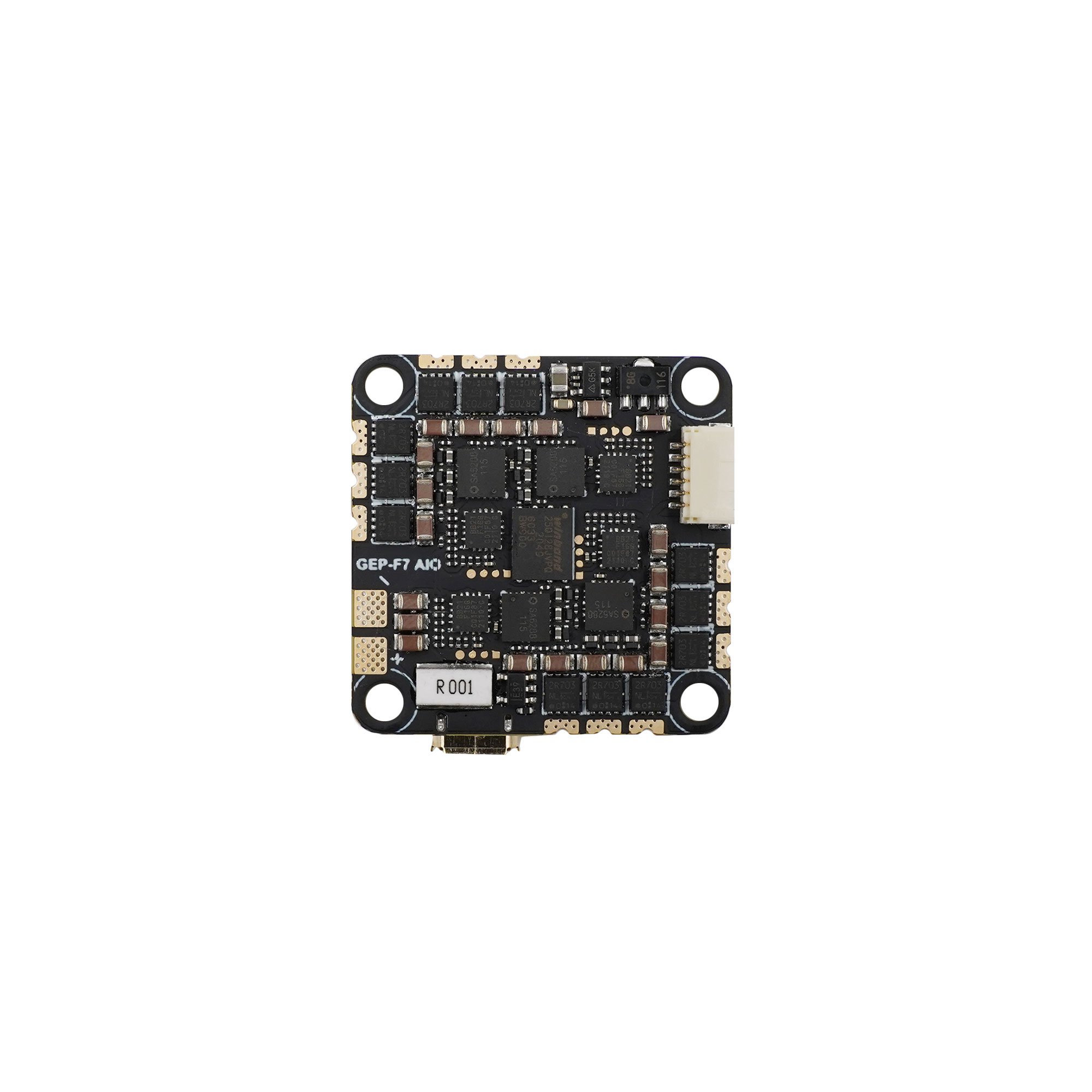

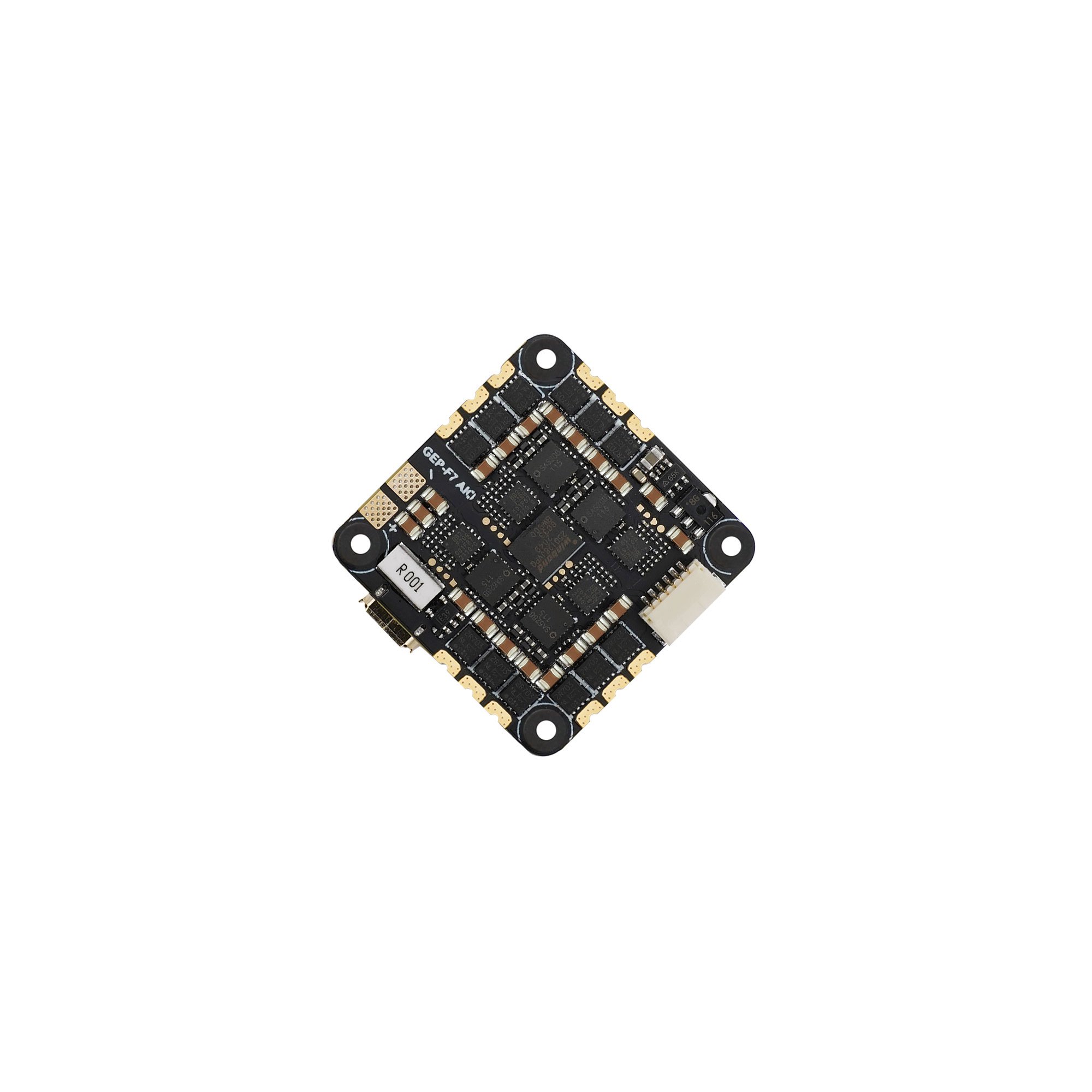

GEPRC GEP-F722-35A AIO

Summary：

I am gald to introduce a new member of GEPRC FC AIO,GEP-F7-35A,it is released now.

GEP-F7-35A adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

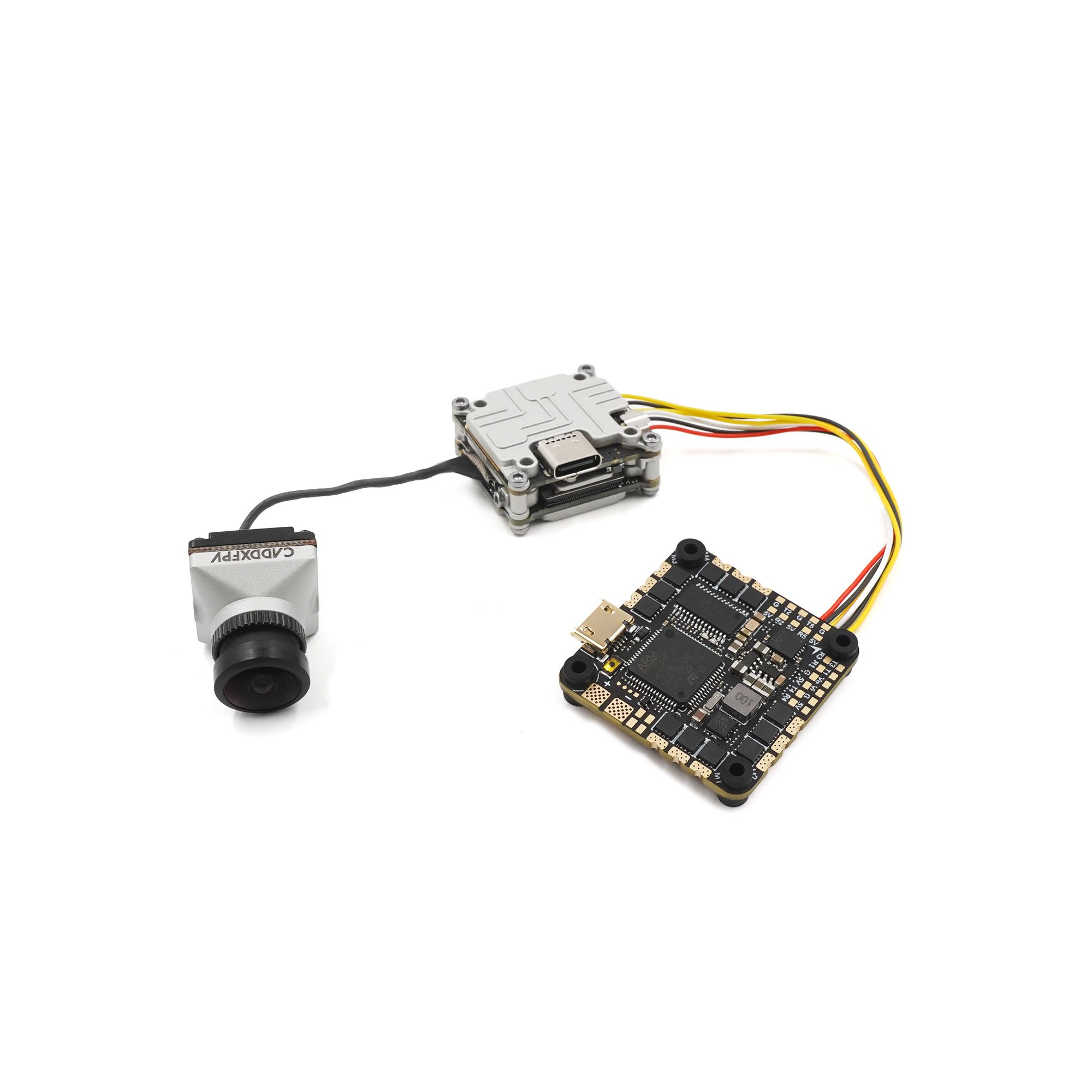

We designed a 6-pin connector for DJI AIR UNIT MODULE,just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance of FC.

Changelog:

June 14th,2022: Gyro updated to BMI270/42688.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification：

• Model Name:GEP-F722-35A AIO
• MCU:STM32F722
• IMU:BMI270/42688 gyro/accelerometer(SPI)
• Firmware target:GEPRC_F722_AIO
• OSD:Betaflight OSD w/ AT7456Ev
• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper:YES
• LED:YES
• USB:Micro USB
• BEC output:5V@1A
• Intergrated LC Filter
• ESC MCU:8BB21F16G
• Continuous current:35A
• MAX current:40A (10s)
• Input:2~6S
• Supports:Dshot600,Oneshot,Multishot
• BlackBox: 16Mb
• Traget:G_H_30
• Size:32x32mm Board
• Mounting Hole:25.5×25.5mm

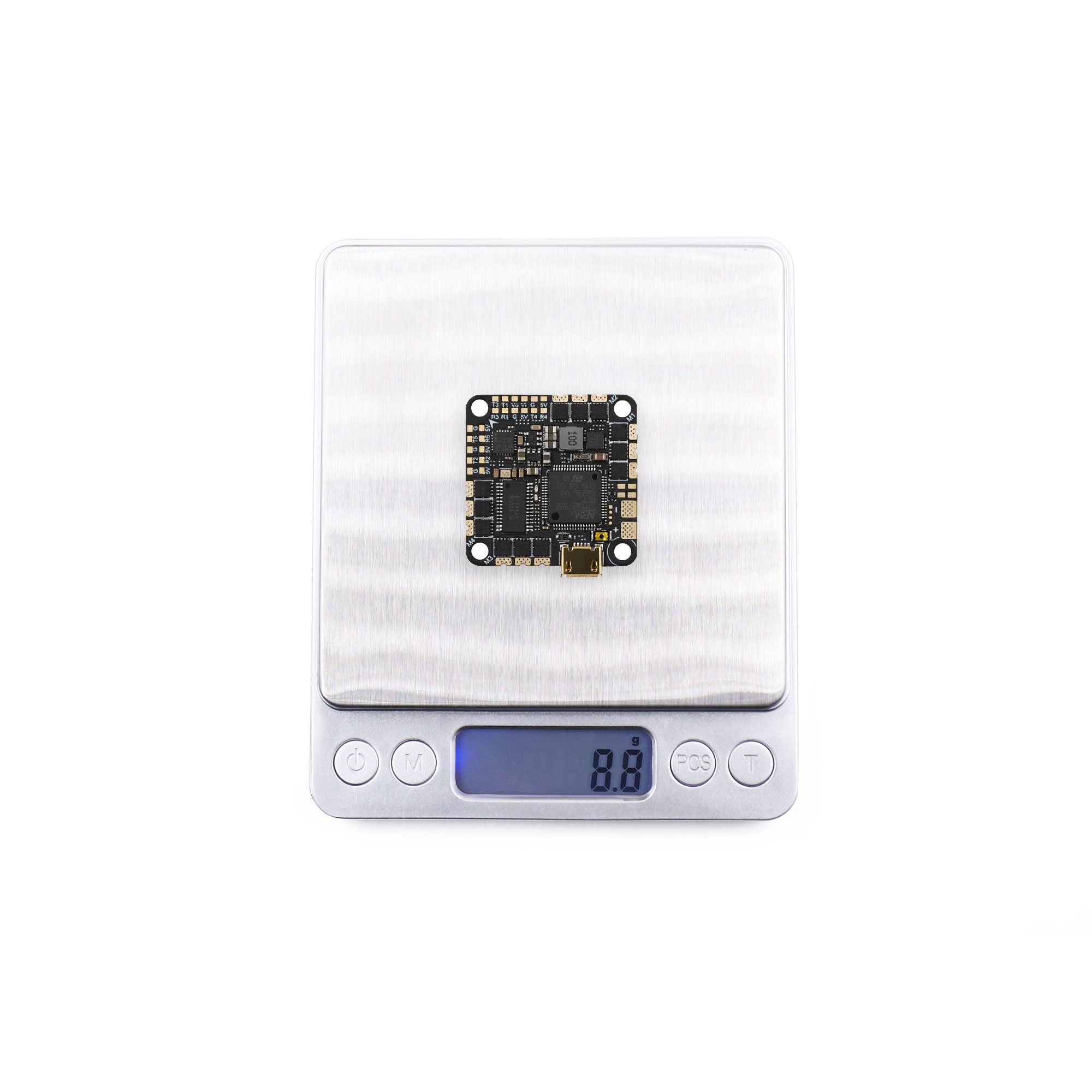

• Weight:8.8g

Features:

• MCU:STM32F722,with strong performance and higher computing speed.
• It has 5 full UART ports, which connect more external devices
• 3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
• The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
• Support OSD parameter adjustment, buzzer, led and other functions.
• 8.8g ultra light weight
• 25.5mm * 25.5mm mounting hole, suitable for most frames

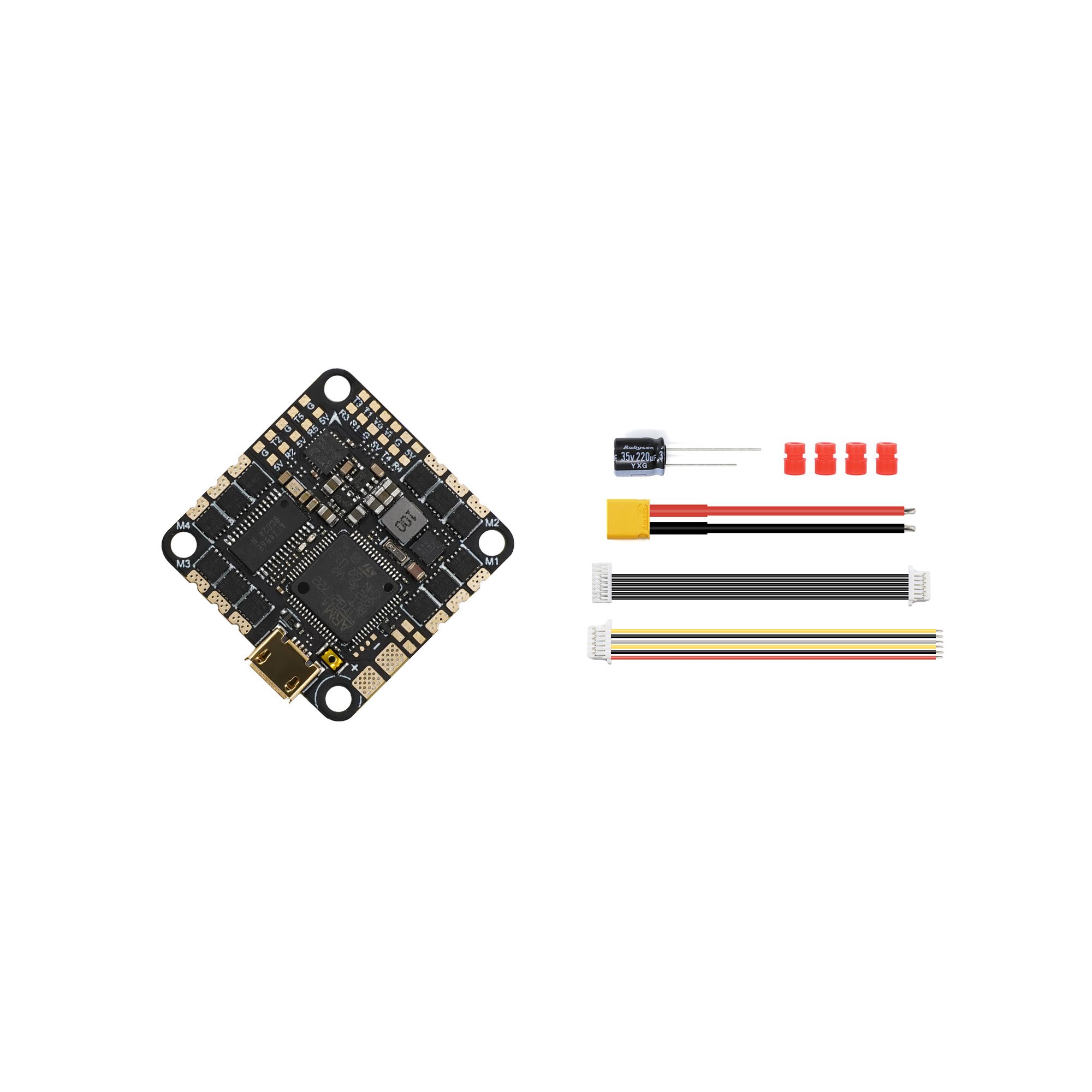

Include:

• 1 x GEP-F7-35A AIO
• 1 x XT30-7CM-18AWG Power cables
• 1 x 35V220UF capacitance
• 1 x SH1.0-6Pin to GH1.25-8Pin cables
• 8 x M2*6.5mm Damping rings

Manual:

• F722-35A AIO USER MANUAL.pdf
