GEPRC SPEEDX2 2806.5 1350KV/1760KV Motor

Summary

The SPEEDX2 2806.5 brushless motor is the second generation motor of GEPRC,featuring a new design elements and a lighter structure.

The SPEEDX2 2806.5 motor has good heat dissipation, light weight, enough power, good stability and is made of customized high-quality materials. With linear and delicate throttle control and excellent magnetic circuit design.SPEEDX2 2806.5 has a super smooth flying experience with superb power, high durability and crash resistance.

SPEEDX2 2806.5 motor is perfect for 6-7 inch long range and cinematic FPV.

We are pursuing lighter weight,  more responsive, more efficient and more powerful brushless motors.

Features

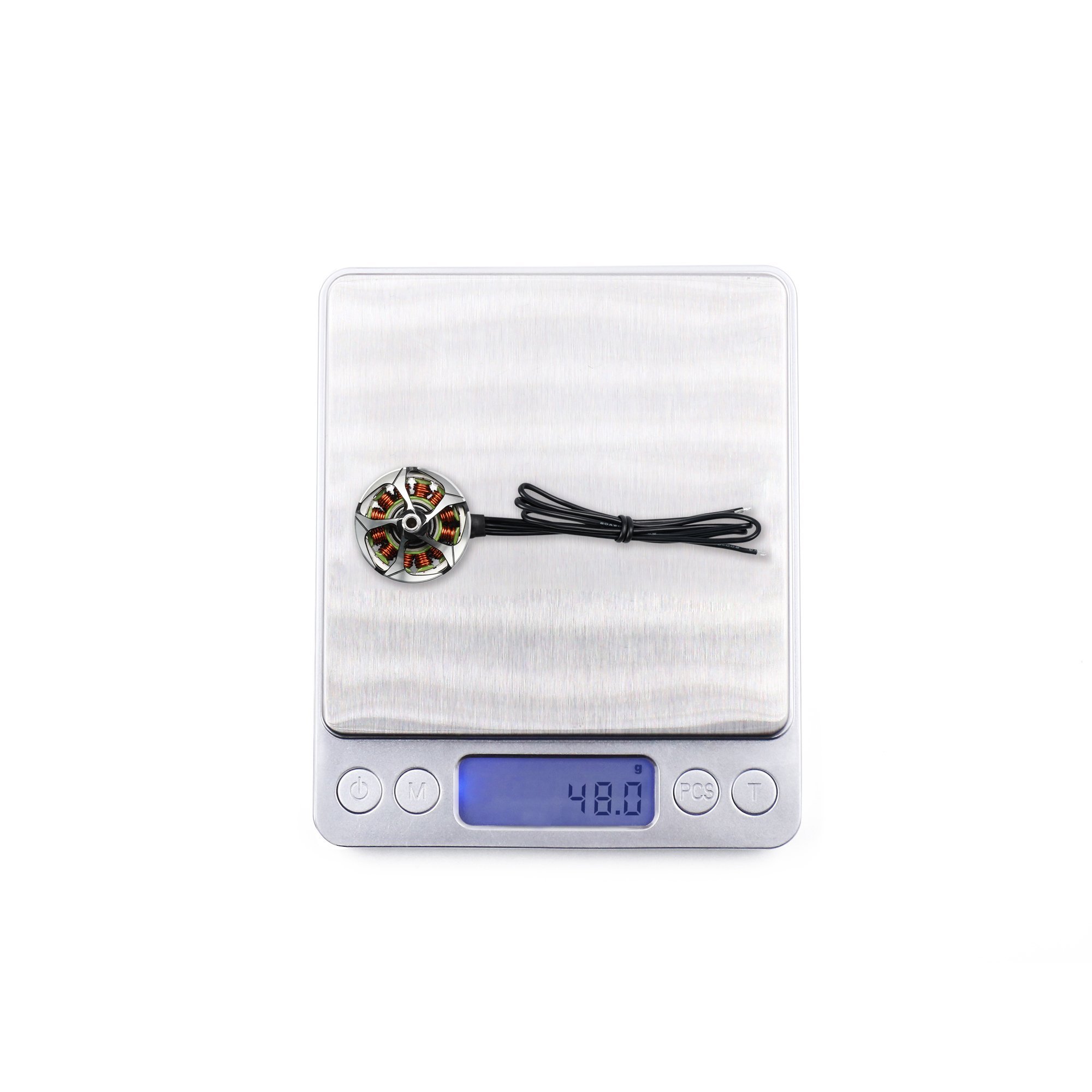

1. Ultra-light weight, only 48.0g.

2. Excellent magnetic design, stable power output.

3. Strong power and prompt response speed.

4. Delicate and precise throttle control, smooth flight experience.

5. Good structural design with high strength shell and excellent heat dissipation efficiency.

6. New optimized design for 6-7 inch propellers, perfectly suitable for 6-7 inch long range FPV models.

Specification

Model:SPEEDX2 2806.5-1350KV

• KV: 1350KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Stator Diameter: 28mm
• Stator Length: 6.5mm
• Shaft Diameter: Φ4.0mm

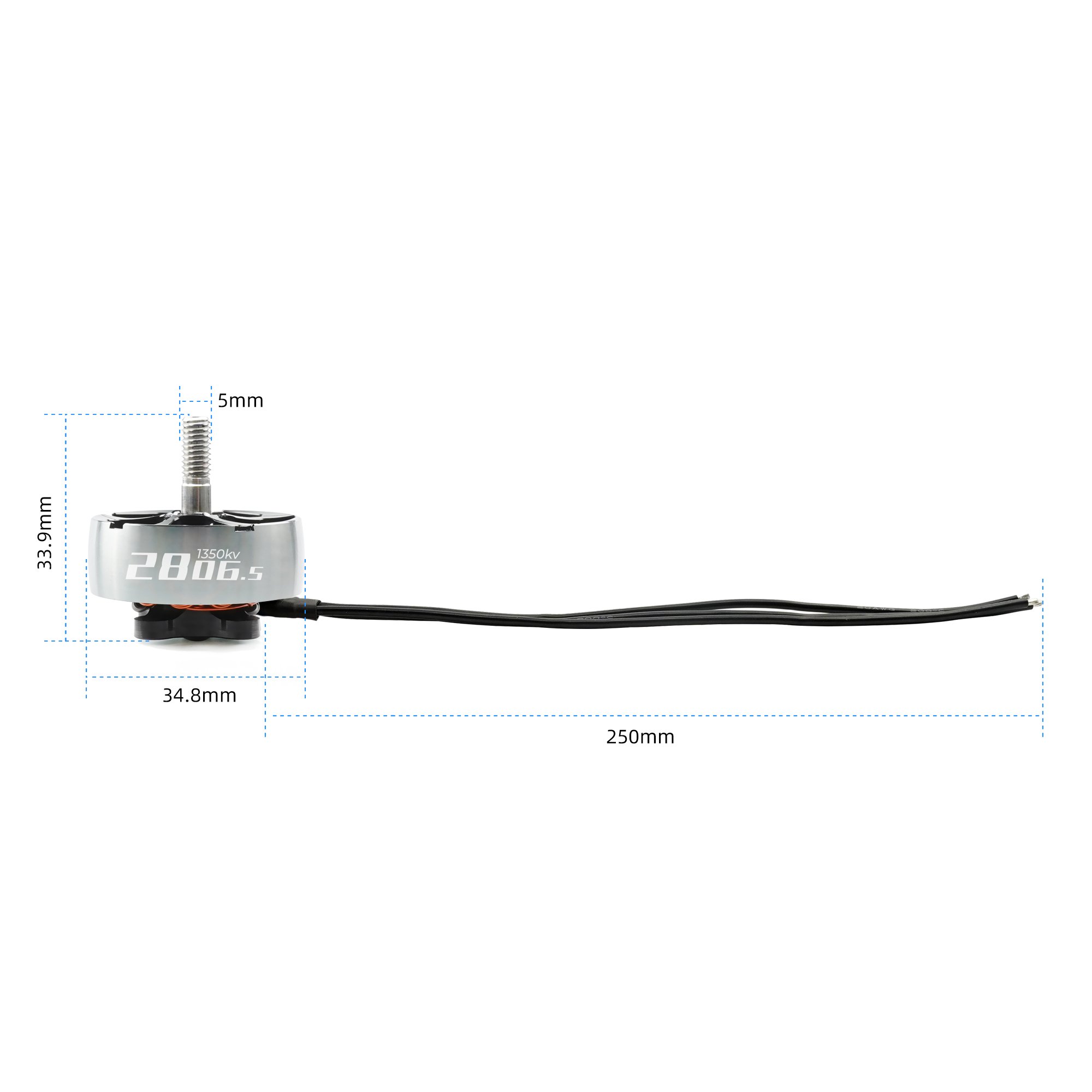

• Dimension: Φ34.8mm*33.9mm
• Lead wire size: 20#AWG 250mm
• Idle current (10V) : 1.25A
• No. of Cells (LiPo) : 4-6S
• Max Continuous Power(W) (5S): 960
• Max Current (5S) : 40A
• Internal Resistance: 58mΩ

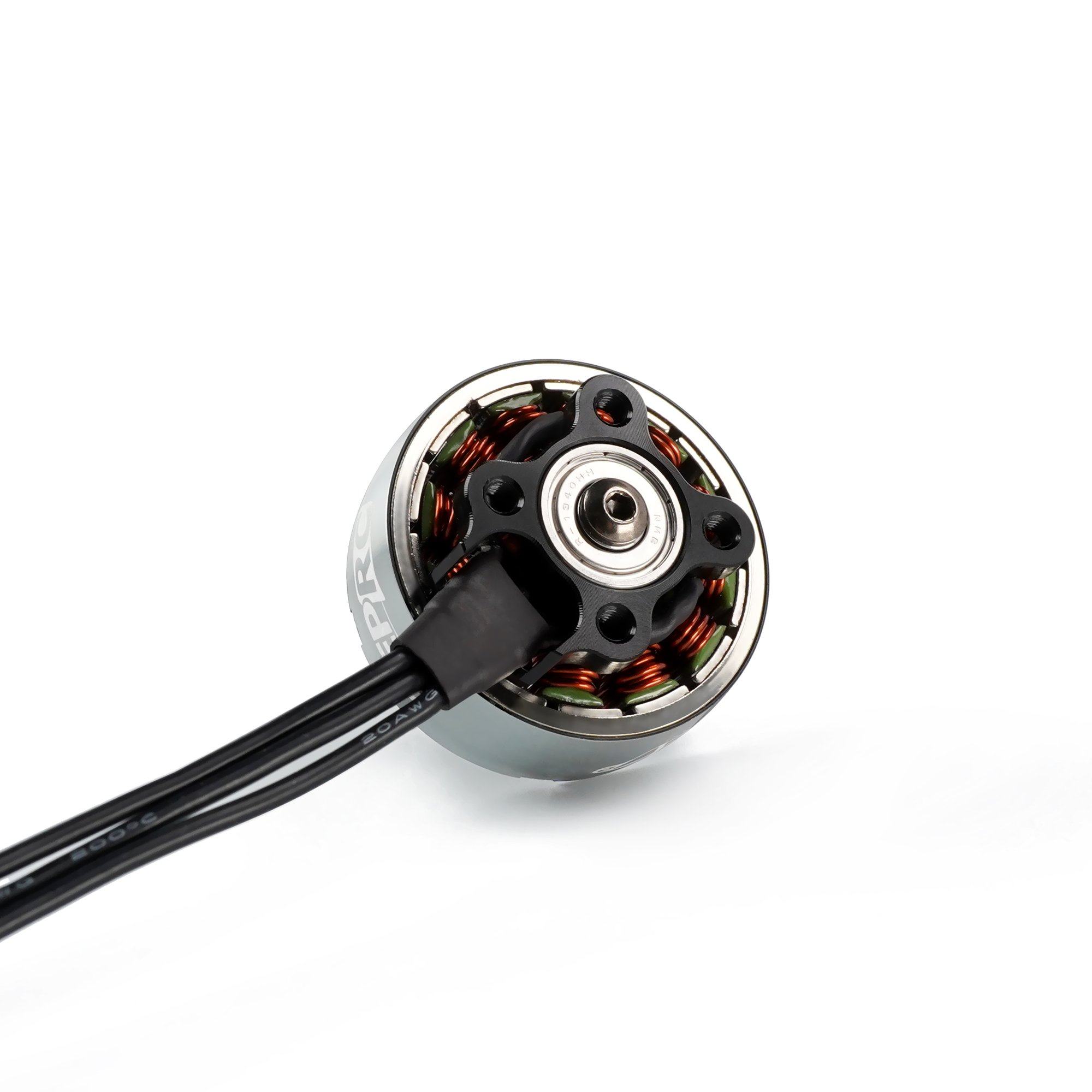

• Mounting Holes: 19x19mm
• Weight: 48.0g
• Suitable for: 6-7″ Long Range Quadcopter

Model:SPEEDX2 2806.5-1760KV

• KV: 1760KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Stator Diameter: 28mm
• Stator Lenght: 6.5mm
• Shaft Diameter: Φ4.0mm
• Dimension: Φ34.8mm*33.9mm
• Lead wire Size: 20#AWG 250mm
• Idle Current(10V): 1.7A
• No. of Cells (LiPo): 4-6S
• Max Continuous Power(W) (5S): 1200
• Max Current (5S)：50A
• Internal Resistance: 47mΩ
• Mounting Holes: 19x19mm
• Weight: 48.0g
• Suitable Quadcopter: 6-7″ Long Range Quadcopter

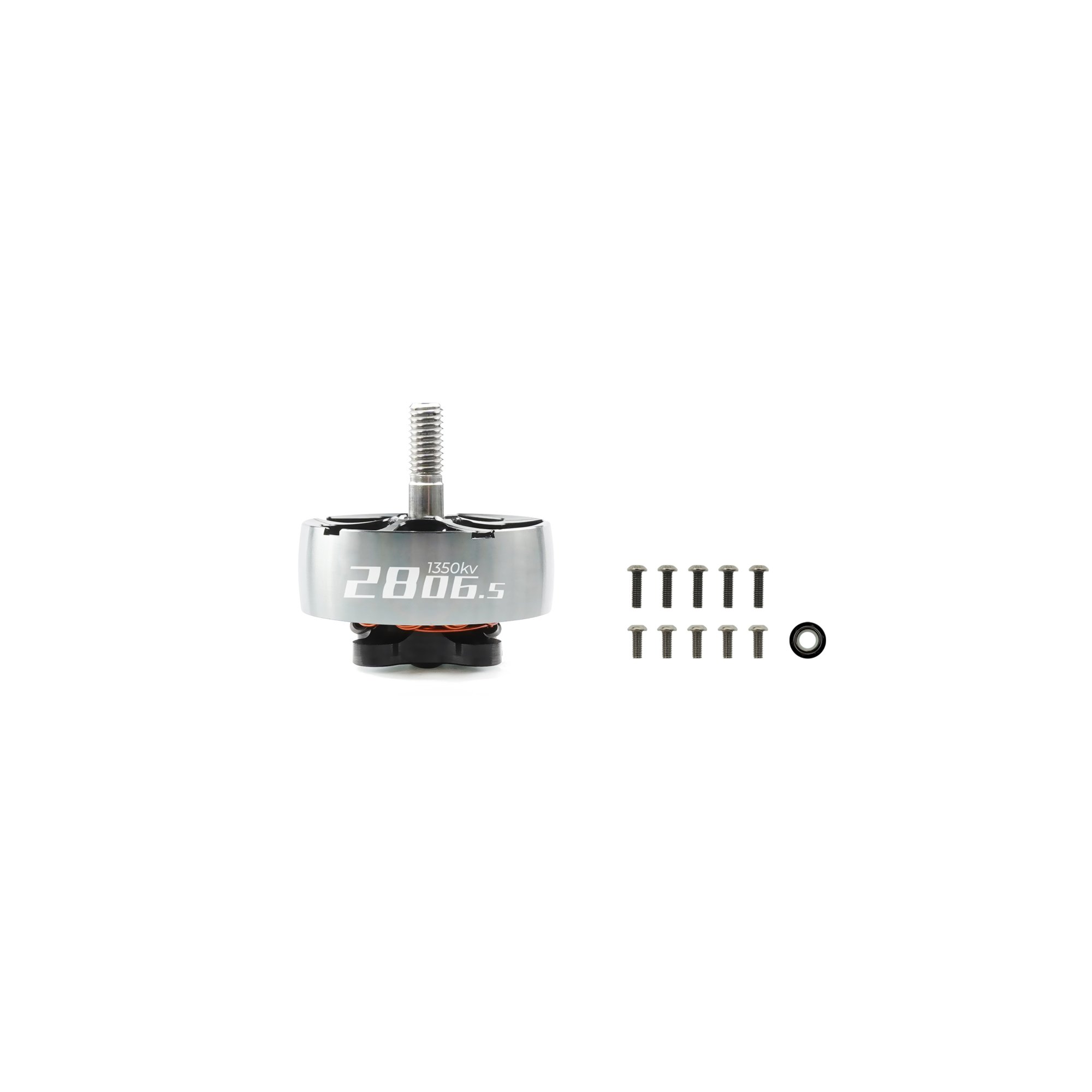

Include

1  x  SPEEDX2 2806.5 Motor

5  x  M3*8mm Screws

5  x  M3*10mm Screws

1  x  M5 Flange Nut
