This is a micro flysky compatible receiver that is estimated to give you at around 500m range making it one of the best flysky compatible receivers to use on your FPV quadcopter. This receiver uses the AFHDS-2A and is fully compatible with betaflight/iNav. The diversity antennas give you great range and this receiver also outputs RSSI on channel 14, allowing you to keep an eye on your signal to avoid a out of range failsafe.
Key Features
- – Customized for Betaflight
- – RSSI Display Via OSD without any hack compatible with all Flysky AFHDS-2A protocol transmitter
- – Telemetry output: RSSI & RX Battery
- – Support RSSI Via Channel14(Aux10 in Betaflight)
- – Best for FPV Racing drone
- – Compatible with FS-i4, FS-i6, FS-I6X, FS-i6S, FS-i10, FS-iT4S, Eachine I6, Turnigy I6S, Turnigy Evolution
Specifications
- Item Name: Fli14+ RX
- Channel: 14
- Protocol: AFHDS-2A
- 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
- Antenna Length: 70mm (Dual Antennas)
- Input Power: 4.0-6.5V DC

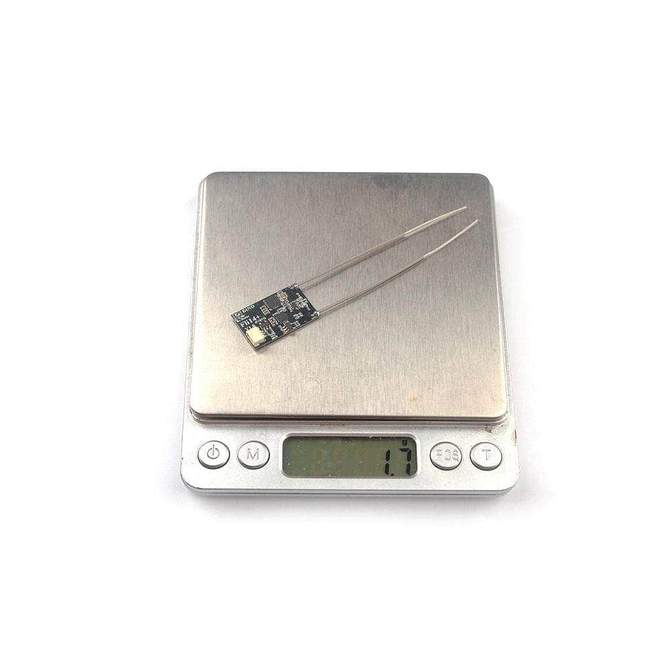

- Weight: Only 1.7g
- Size: 25mm*15mm*5mm
- Color: Black

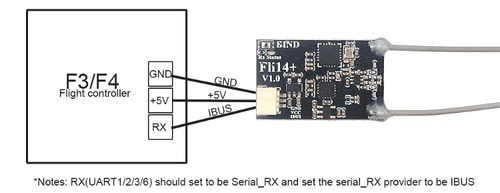

- Signal Output: IBUS
- RSSI Output: Channel14
- No ground interference ( Transmitting and receiving 1 m from the ground): >500m
How to Bind
1. Power for the Fli14 Receiver while press and holding the bind button
2. The LED will blinking fast , this indicates the receiver is in binding mode
3. Get the Flysky transmitter into binding mode , the LED on the receiver will getting to be solid and this indicates binding successfully
Includes

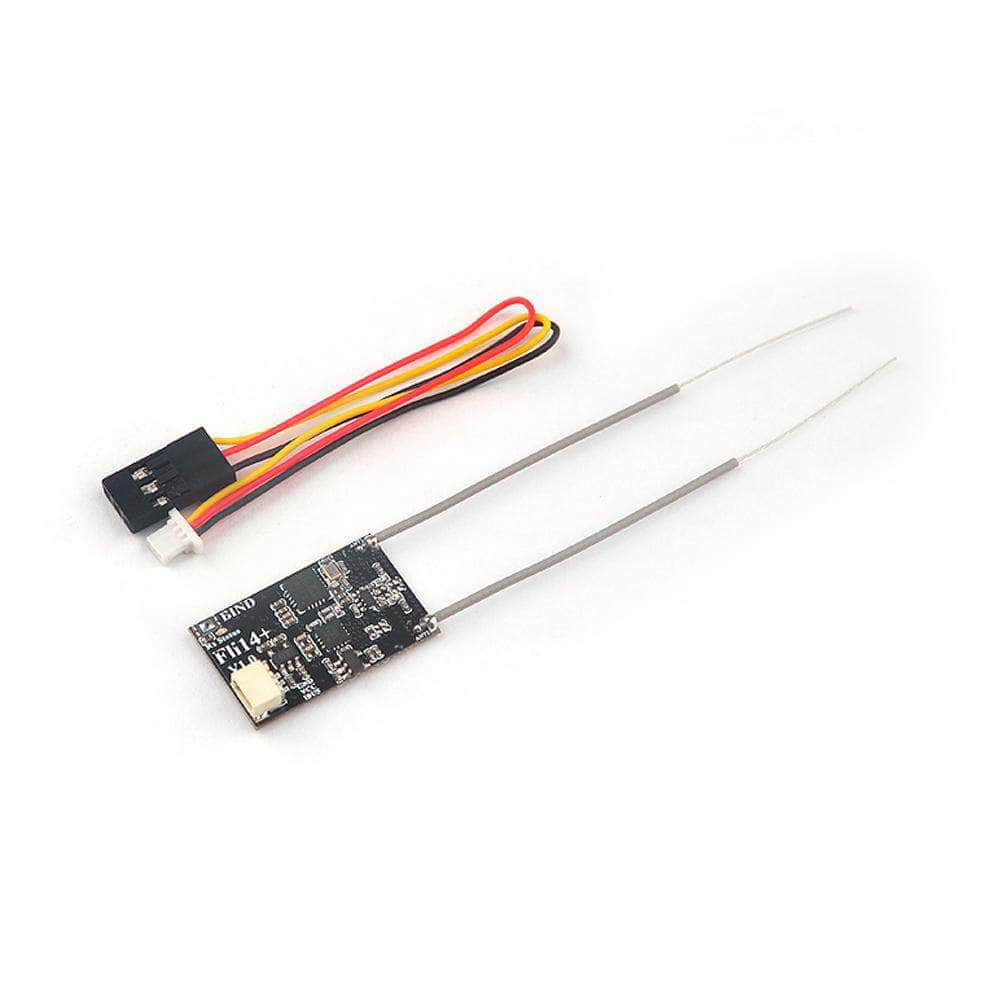

- 1x HappyModel FLI14 Plus FlySky Compatible Receiver
