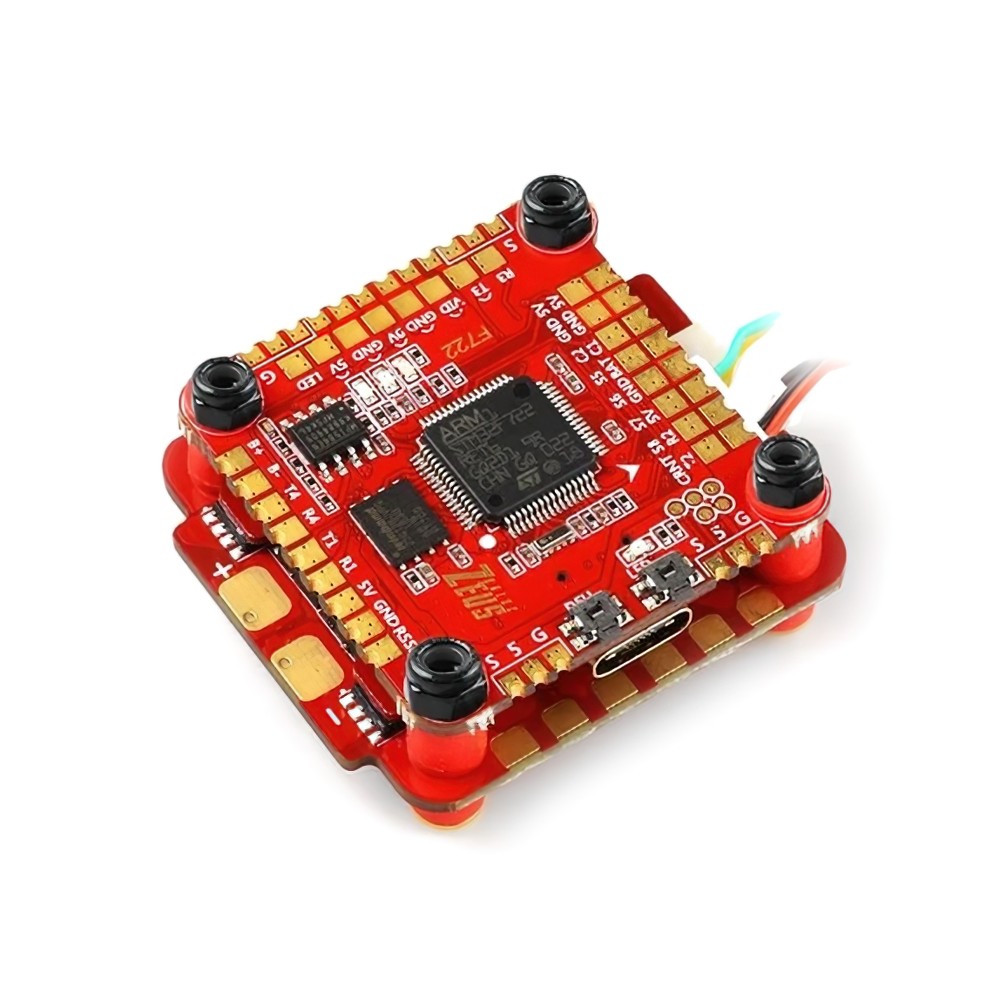

The HGLRC Zeus F748 Stack has an F722 Flight controller combined with a 48A ESC. This stack has a 30.5×30.5 mounting pattern and an F7 Flight Controller that houses an MPU6000 gyro and 3-6S direct lipo support. Comes with an integrated barometer, 16M black box, and integrated DJI, LED, and GPS connector.
VIDEO: MOTHER OF ALL F7 Flight Controllers
Features
- An Integrated LED controller allows quick programming of LEDs with the push of a button.
- Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
- Quickly connect DJI and LED and GPS via socket
- Maximum BEC 9V/2A and BEC 5V/3A output
- Integrated barometer and 16M black box.
- Reserved Soldering Pad
- Enlarged Soldering Pad
- High-Speed Blackbox
- Ammeter Built-in
- Current Sensor
- TVS Diode
Specifications
- FC Firmware: BF HGLRCF722(HGLR)
- Usage: for 100mm-450mm Frame Kit
- Mounting Hole: 30.5X30.5mm. M3
- Weight: 26.5g

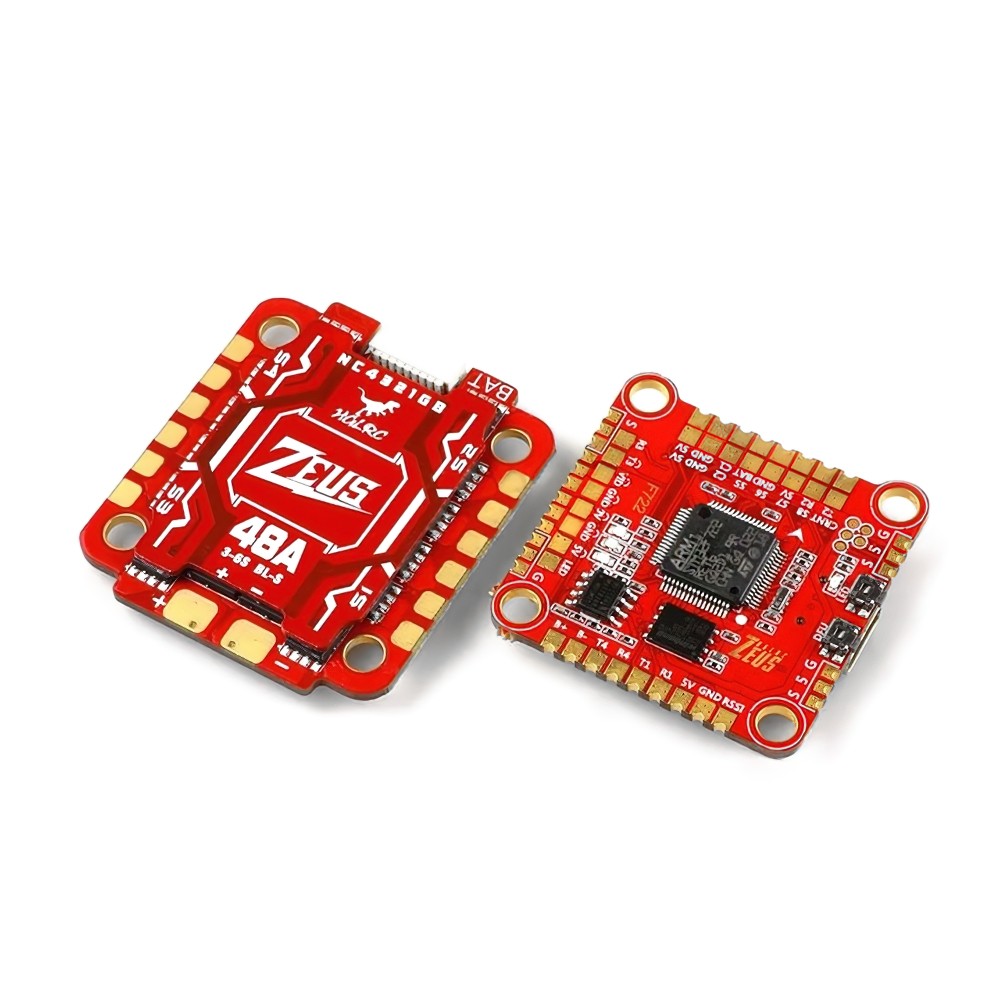

F722 FC
- Item Name: Zeus F722 Flight Controller
- FC Firmware:BF HGLRCF722(HGLR)
- Usage:for 100mm-450mm Frame Kit
- Built-in Betaflight OSD to adjust PID
- Mounting Hole:30.5X30.5mm.M3
- Barometer: BMP280(I2C)
- CPU:STM32F722 RET6
- LED Control: BF/Button
- Input Voltage:3-6S Lipo
- Built-in LED controller
- Size:37.3×37.3mm
- MPU: MPU6000
- BlackBox:16M
- BEC Output:
- 9V2A
- 5V/3A
- Weight:8.1g
- UARTS:5
48A 4-in-1 ESC
- Support Damped Mode: DShot600/300/150/Oneshot125/42, MultiShot
- Mounting Hole: 30.5×30.5mm, M3
- Peak Current: 55A (10s)
- Input Voltage: 3-6S Lipo
- Constant Current: 48A
- Size: 45x40mm
- Weight: 18.3g
Manual

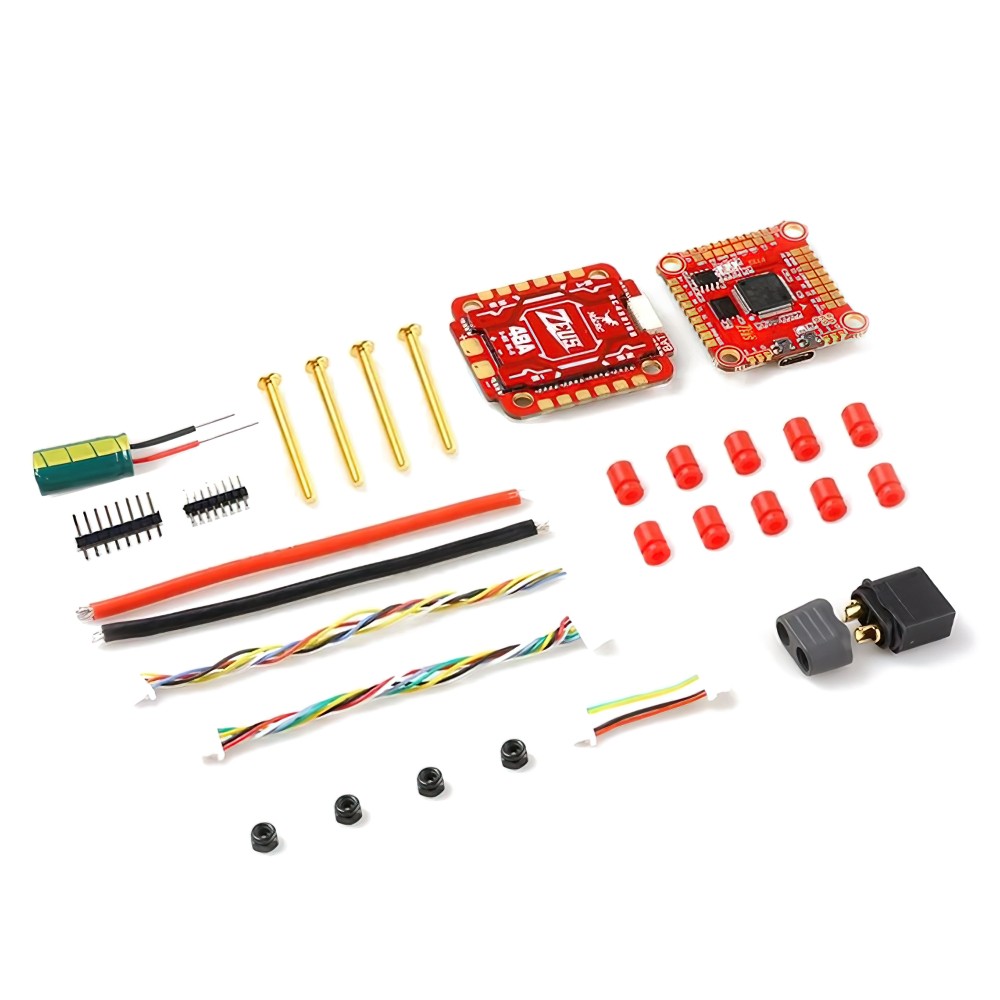

Includes
- 1x HGLRC Zeus F748 Stack – F722 FC + 48A 3-6S 4-in-1 BLHeli_S ESC
- 1x DJI AIR UNIT PORT CABLE 90mm
- 8x M3 Shock Absorption (Red)
- 1x SH1.0 8PIN Cable 60mm
- 1x Connecting Wire
- 1x Hardware Set
- 1x Capacitor
