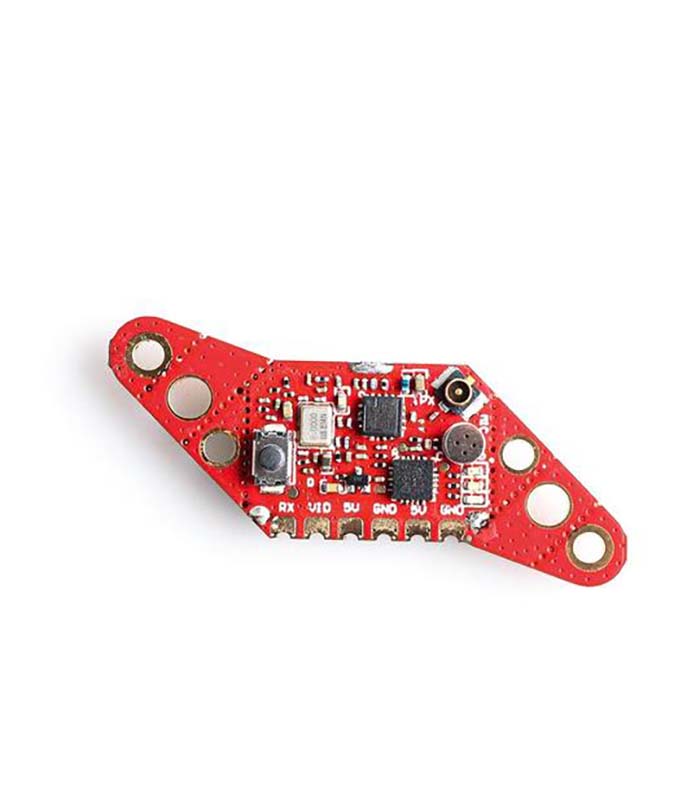

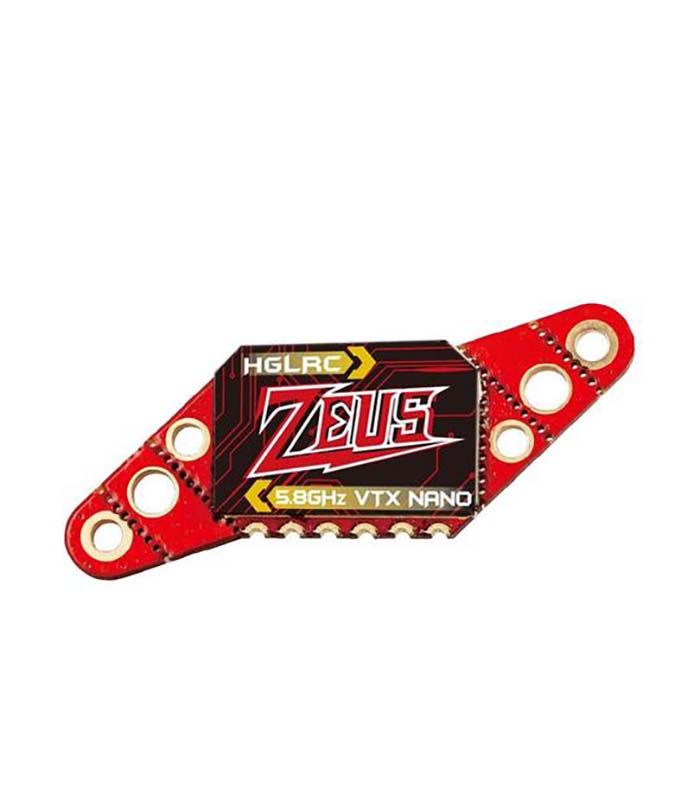

The HGLRC Zeus NANO Video Transmitter is ultralight and has multiple mounting patterns… including 16mm, 20mm, and 25.5mm. With a built-in microphone and slim boomerang shape, this VTX brings real-time audio transmission and a wider scope of application.
Check out Oscar Liang’s review on this product!
Specifications of HGLRC Zeus Nano

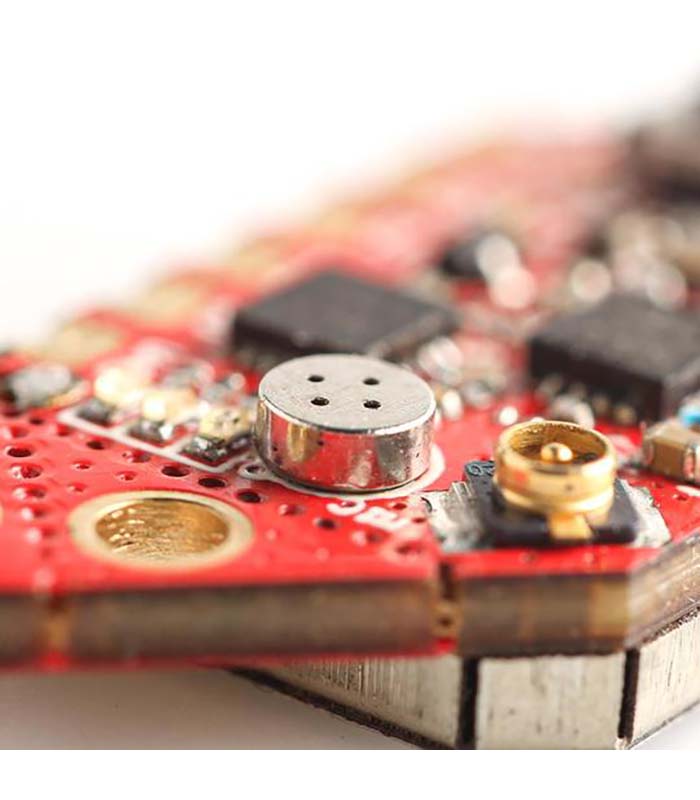

- Built-in Microphone
- Input voltage:DC 5V
- PIT@75mA
- 25mW@180mA/16dBm
- 100mW@280mA/21.5dBm
- 200mW@330mA/24.5dBm
- 350mW@400mA/27.5dBm
- Antenna interface:ipex
- Output power:PIT/25/100/200/350mW
- Standard 40 channels. A/B/E/F/R frequency group

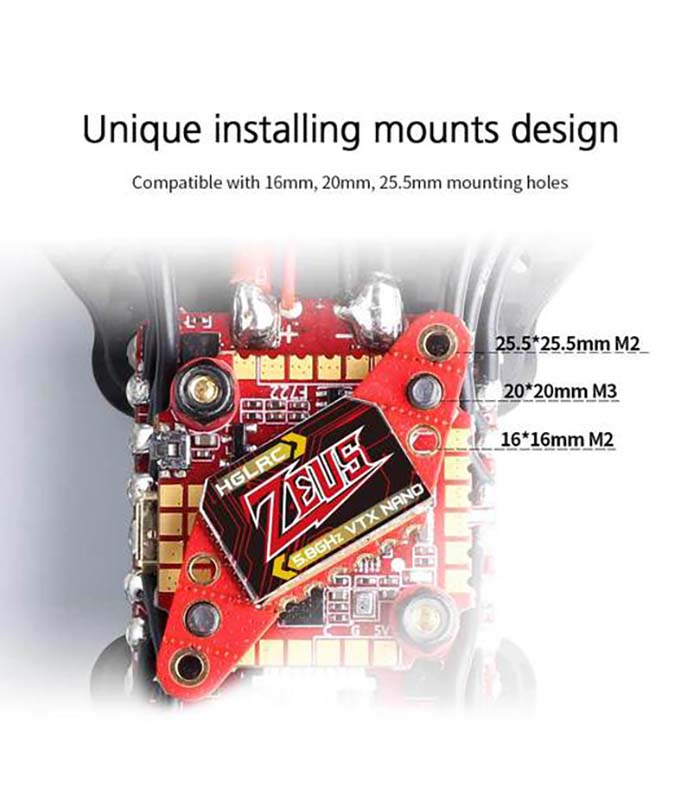

- Installing Hole:16X16/25.5X25.5mm.M2
- 20X20mm.M3

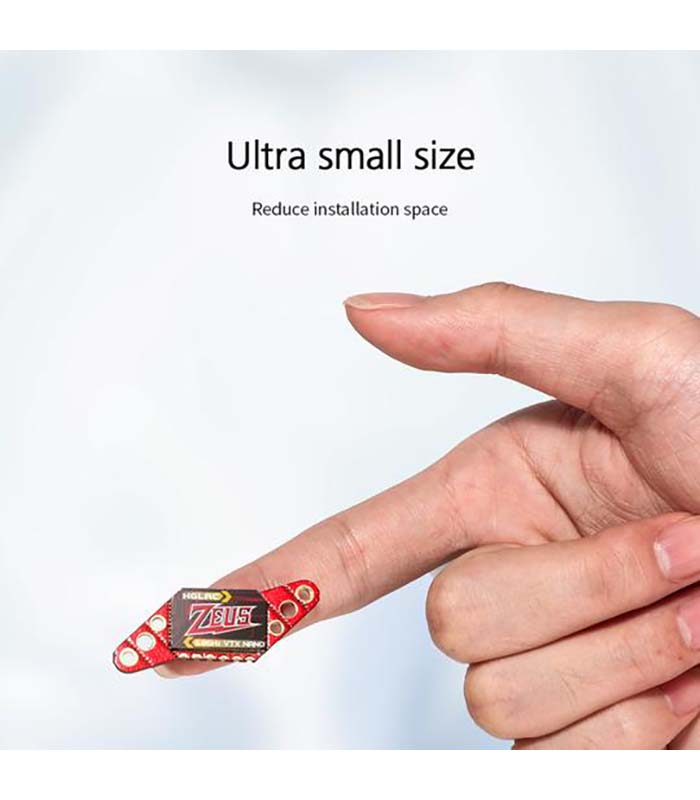

- Size:18.6mm x 13.6mm x 6mm

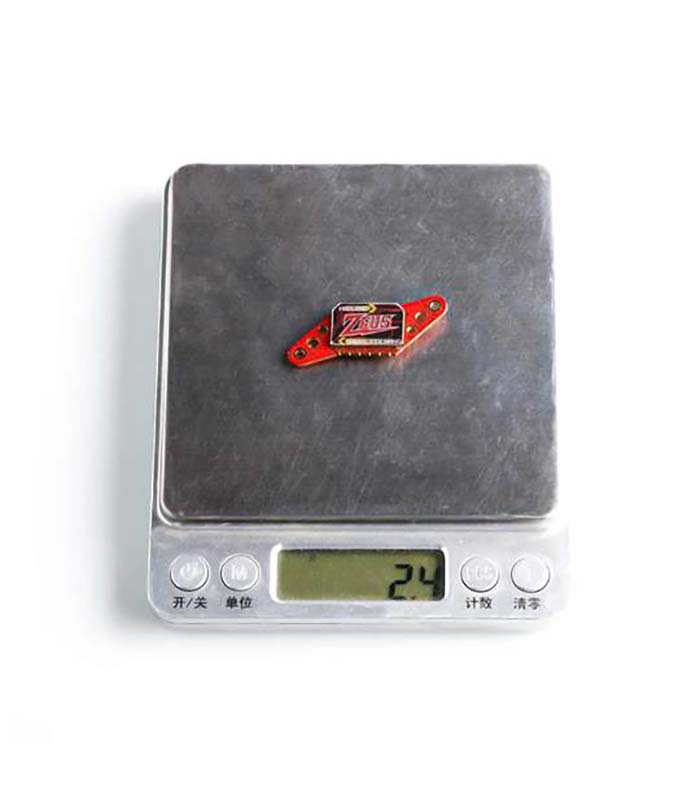

- Weight:2.4g
Includes:
1 x Zeus Nano VTX
1 x ipex Linear Brass Antenna
1 x ipex to SMA Adapter Cable
6 x VTX Cable
Get more information regarding this product from HGLRC
