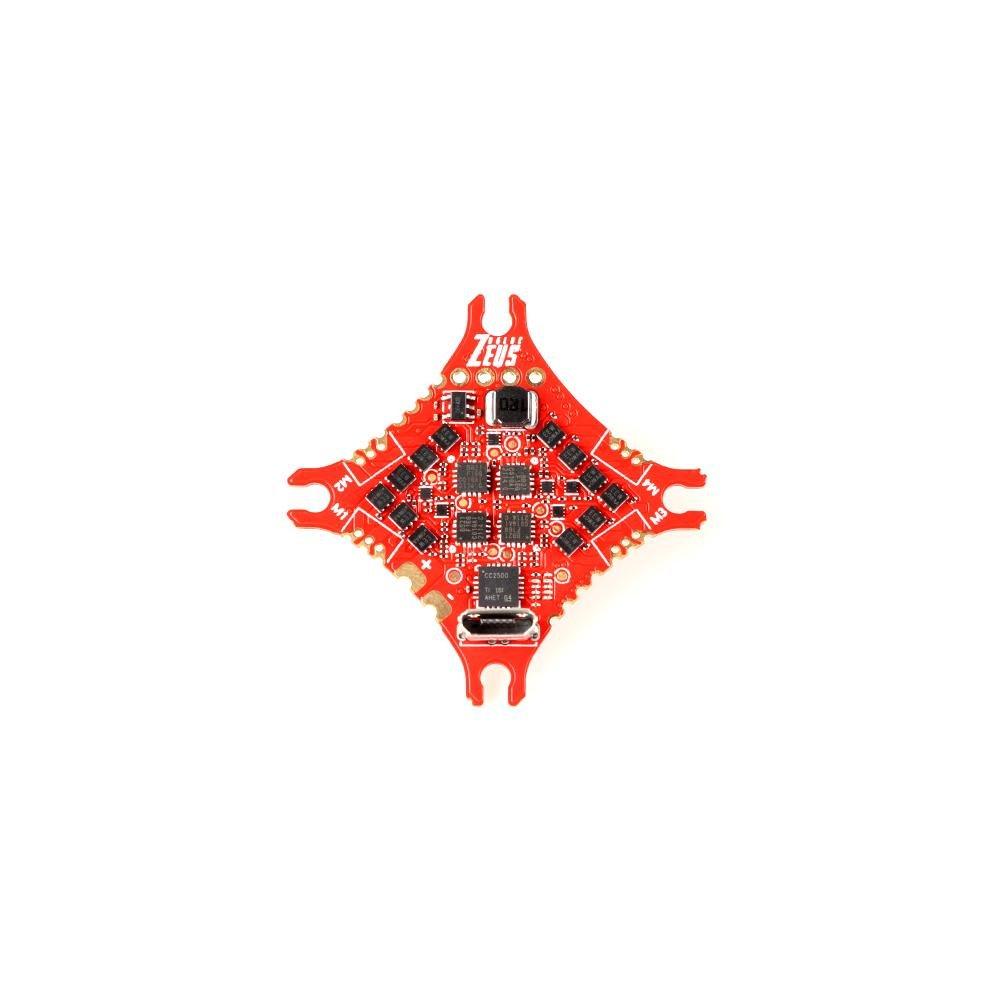

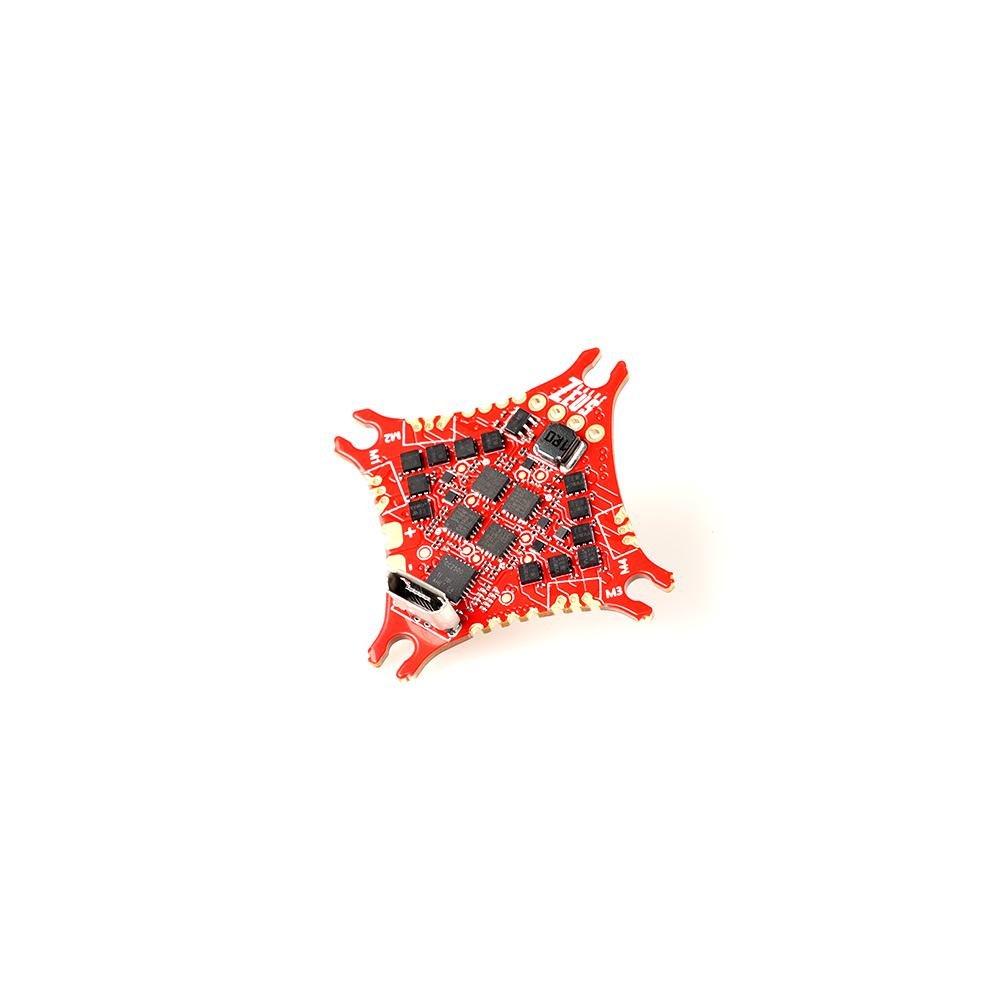

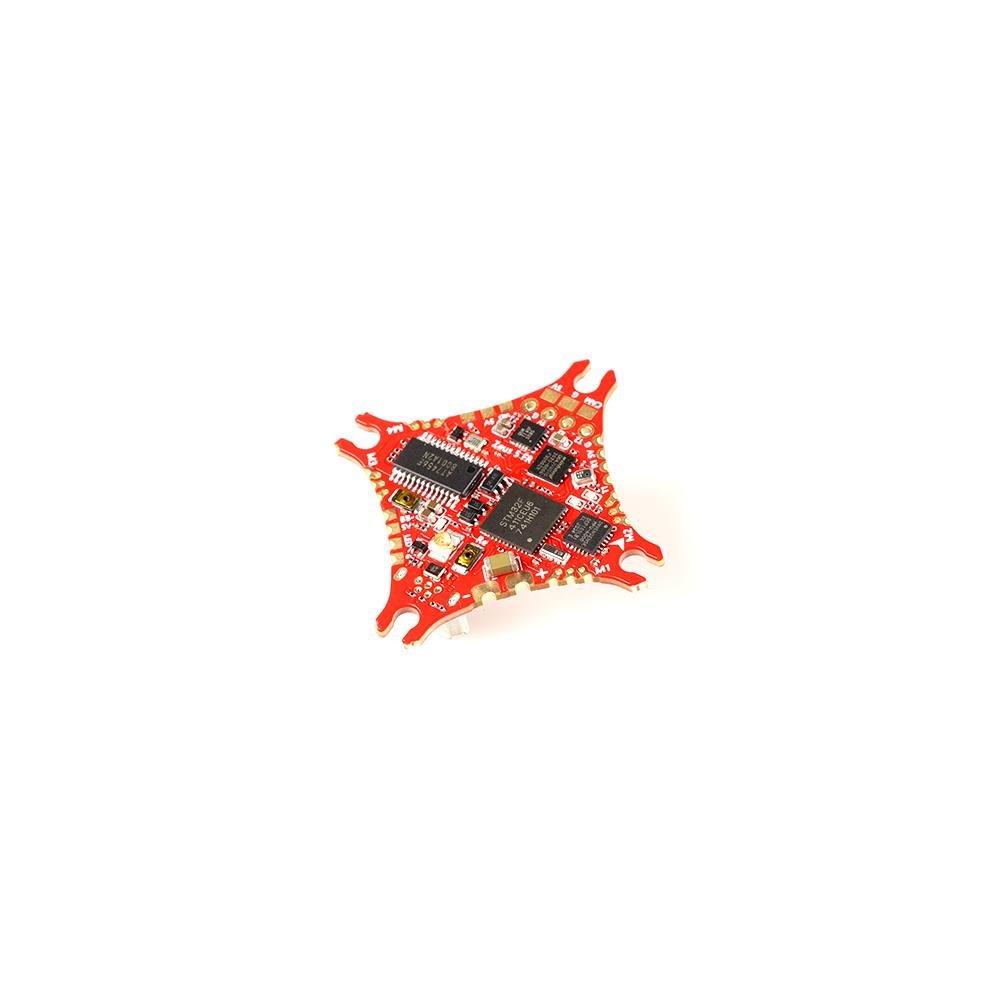

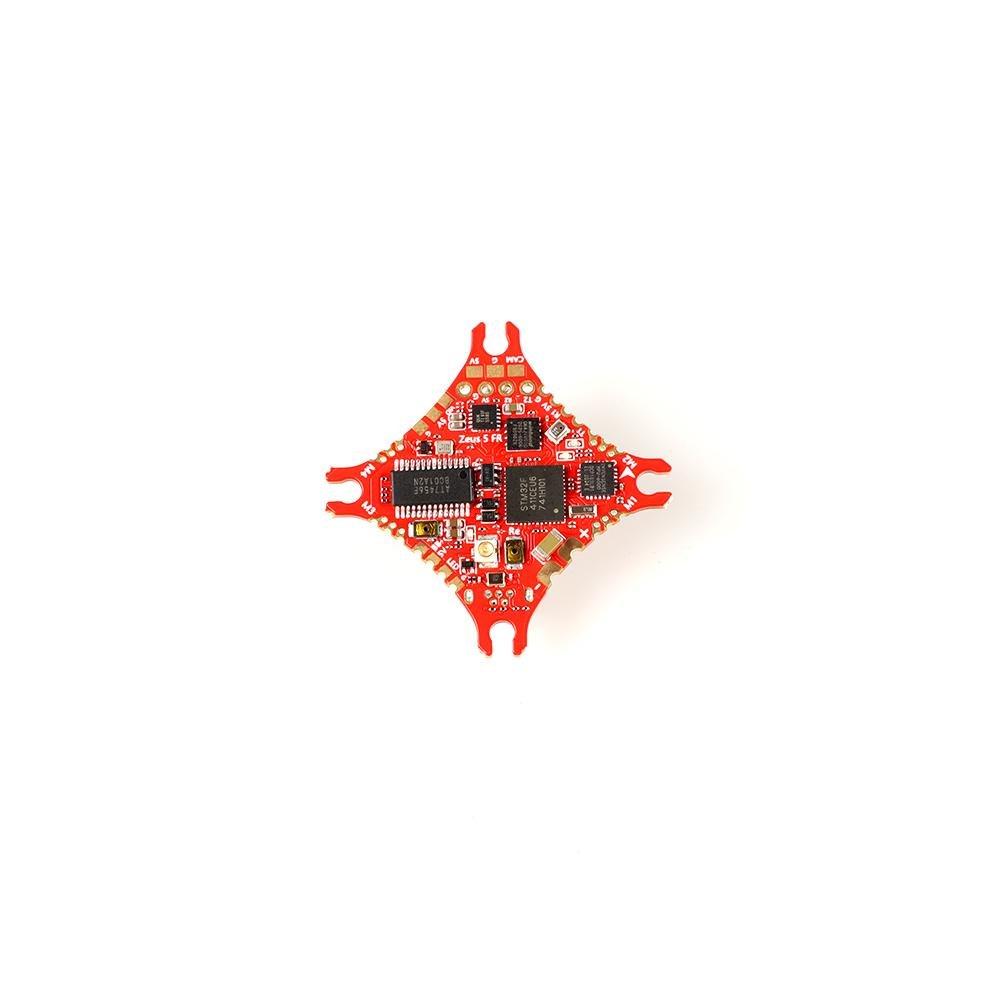

HGLRC Zeus5 FR AIO 1-2S F411 Flight Controller 5A BL_S 4in1 ESC Frsky SPI RX

HGLRC Zeus5 FR AIO 1-2S F411 Flight Controller 5A BL_S 4in1 ESC Frsky SPI RX

Features:
1. Integrated SPI receiver / supports external receiver with CRSF protocol
2. Motors can be plugged on the FC directly or soldered on the pads
3. Comes with 8M black box and barometer, perfect to be used with a GPS for FPV drones

Brand name:HGLRC
Item Name:ZEUS5 FR AIO
Input Voltage:1-2S Lipo
Usage:for 65mm-150mm Frame
Installing Hole:25.5X25.5mm.M2
Size:41.5×41.5mm

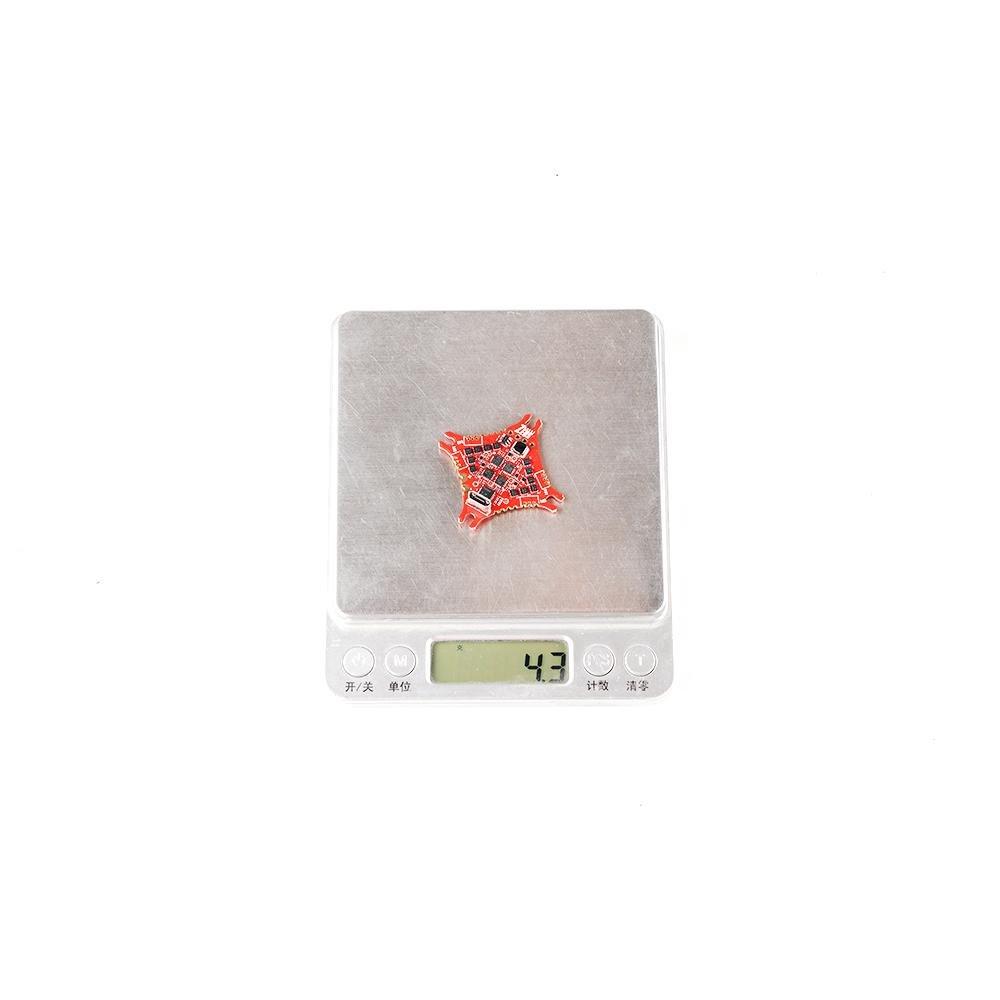

Weight:4.3g

F411 Flight Controller
FC Firmware:ZEUSF4 FR
CPU:STM32F411
MPU:MPU6000
BEC Output:5V1A
UARTS:2
OSD:Support
BlackBox:8M
Barometer:BMP280

Frsky SPI Receiver
Protocol:FRSKY_D / Frsky D16
FRSKY_X / Frsky D8

5A BL_S 4in1 ESC
ESC Firmware:S-H-90
Constant Current:5A
Peak Current:6A（5 Sec）
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot

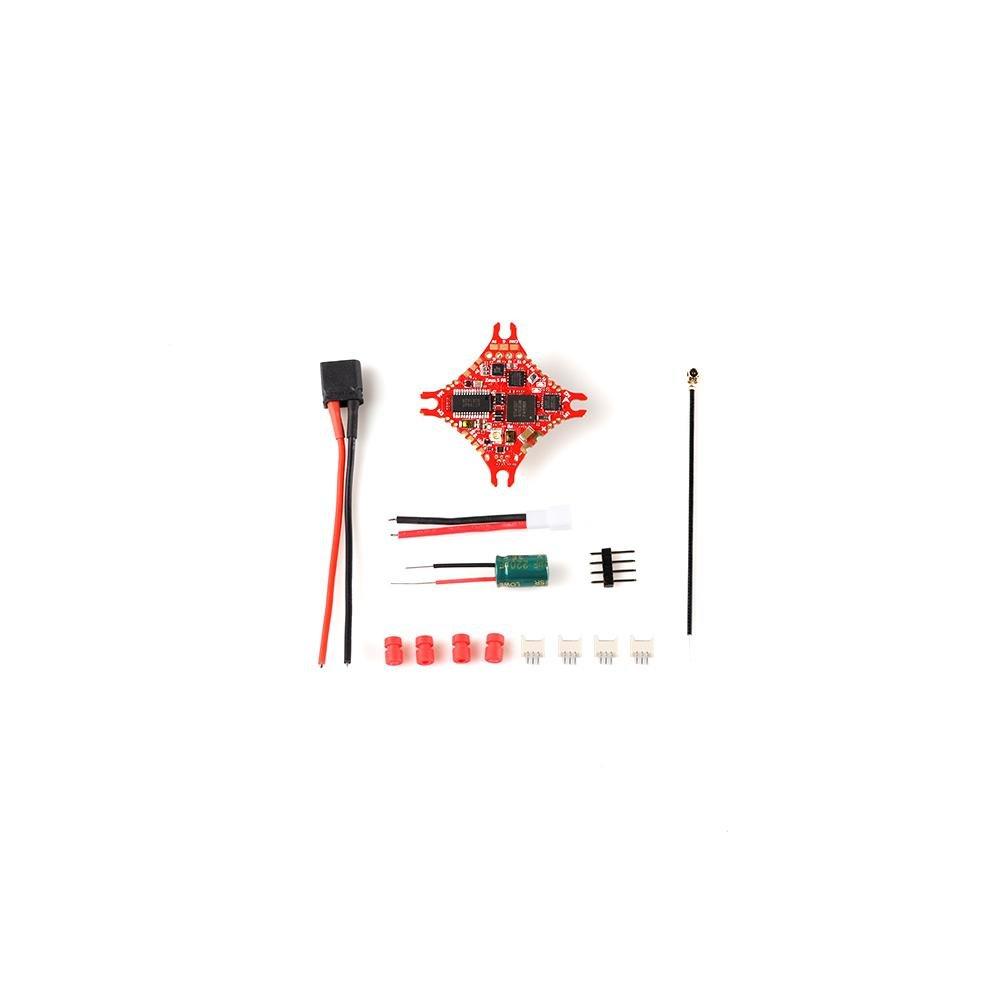

Package Includes:
1x ZEUS5 FR AIO
1x Accessory bag
