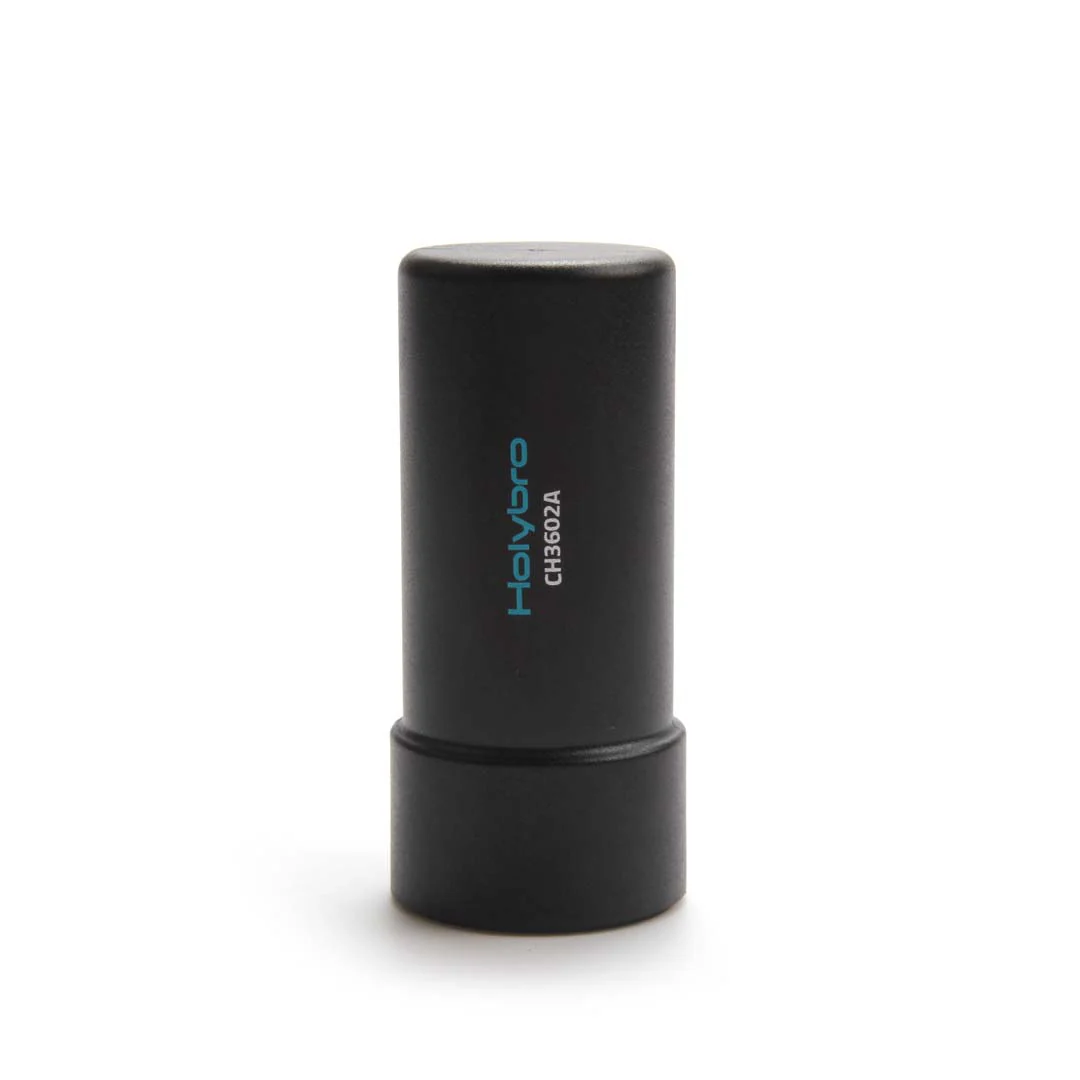

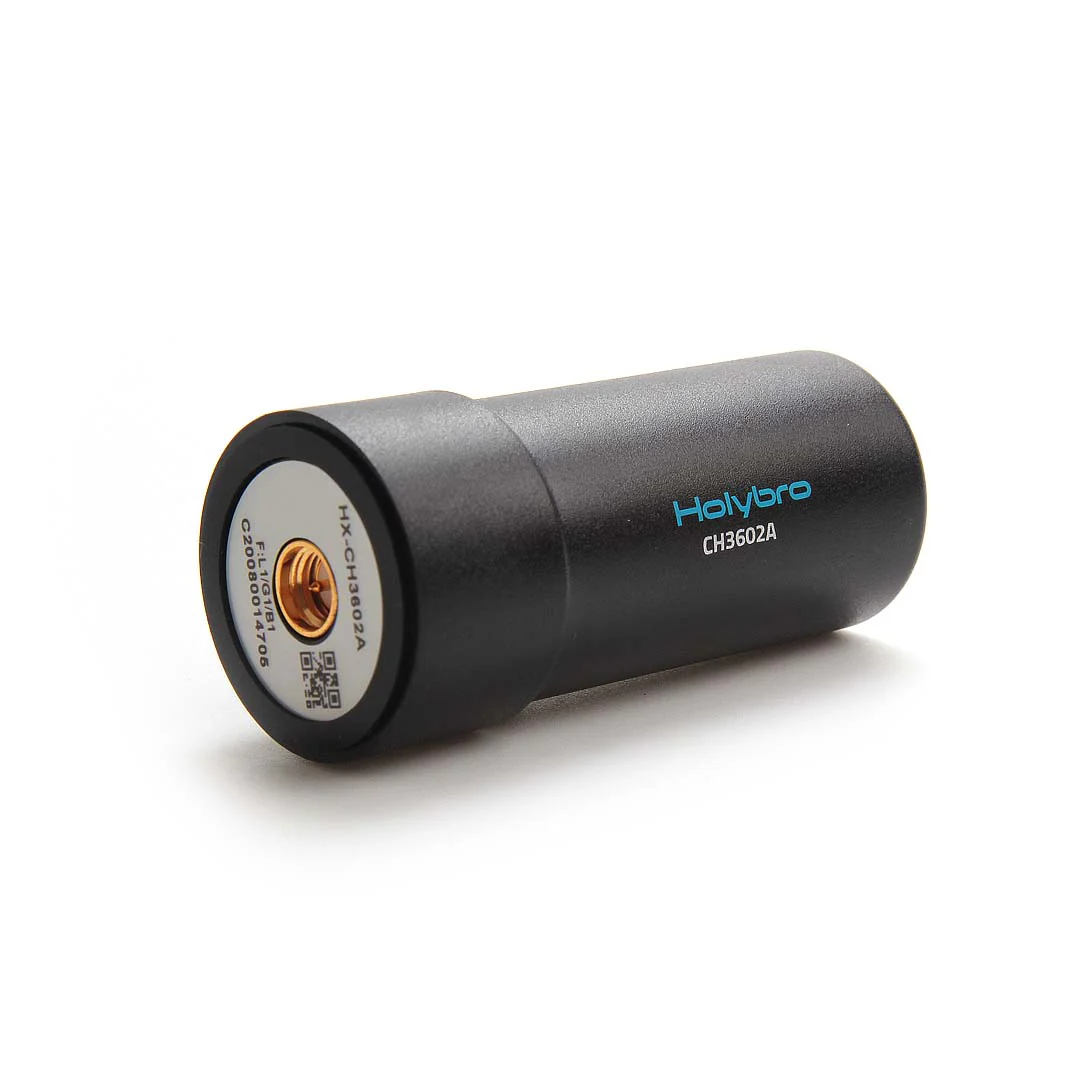

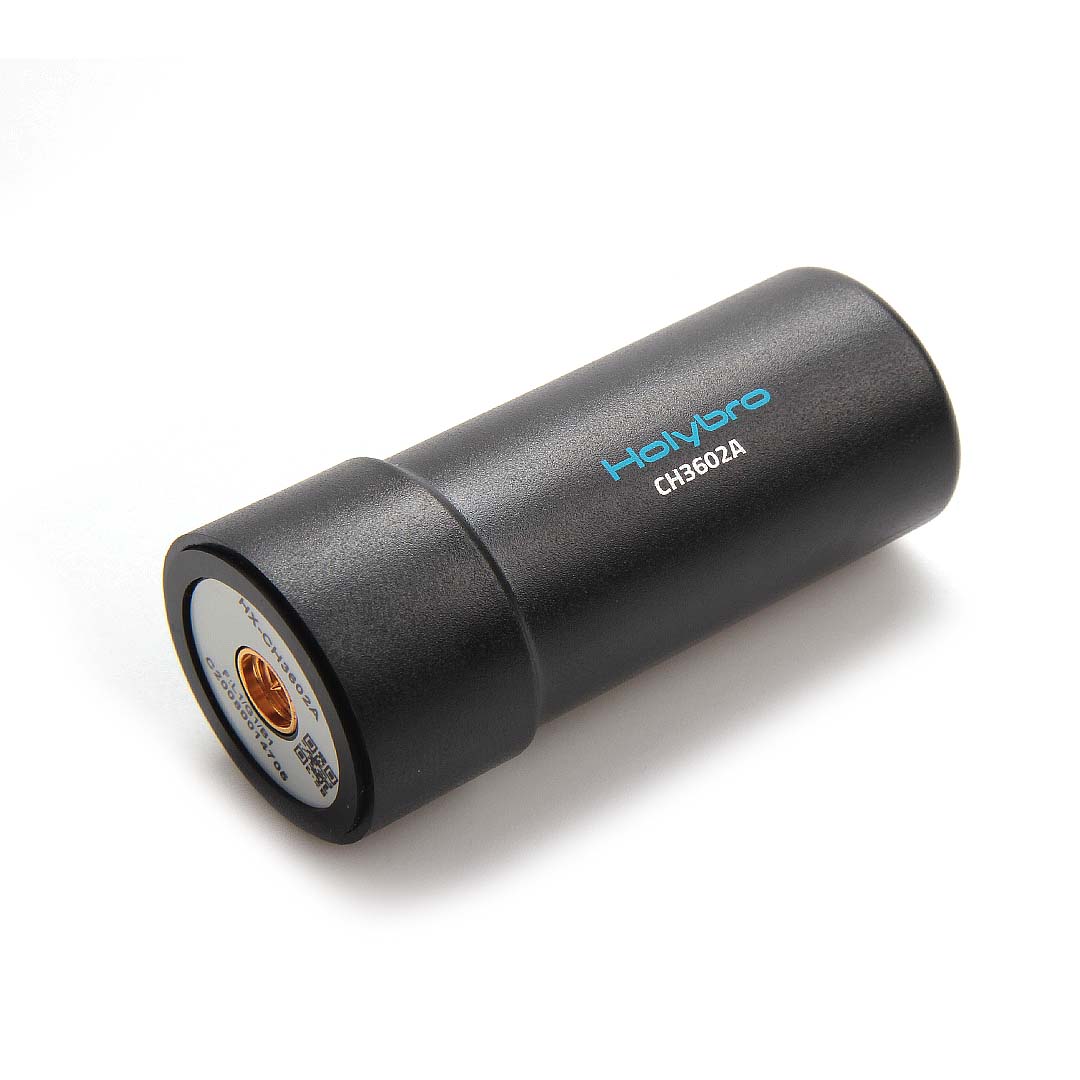

SKU8082 GNSS Antenna-CH3602A
![](https://i0.wp.com/cdn.shopifycdn.net/s/files/1/0604/5905/7341/files/8082_0_240x240.jpg?ssl=1)
KEY FEATURES
- Supports 3 frequency bands
- Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
- Stable phase center guarantees the accuracy of positioning within millimeter level
- Strong anti-interference ability to endure the harsh operating environments
- 25g light weight for lower power consumption
- IP67 ruggedized protection

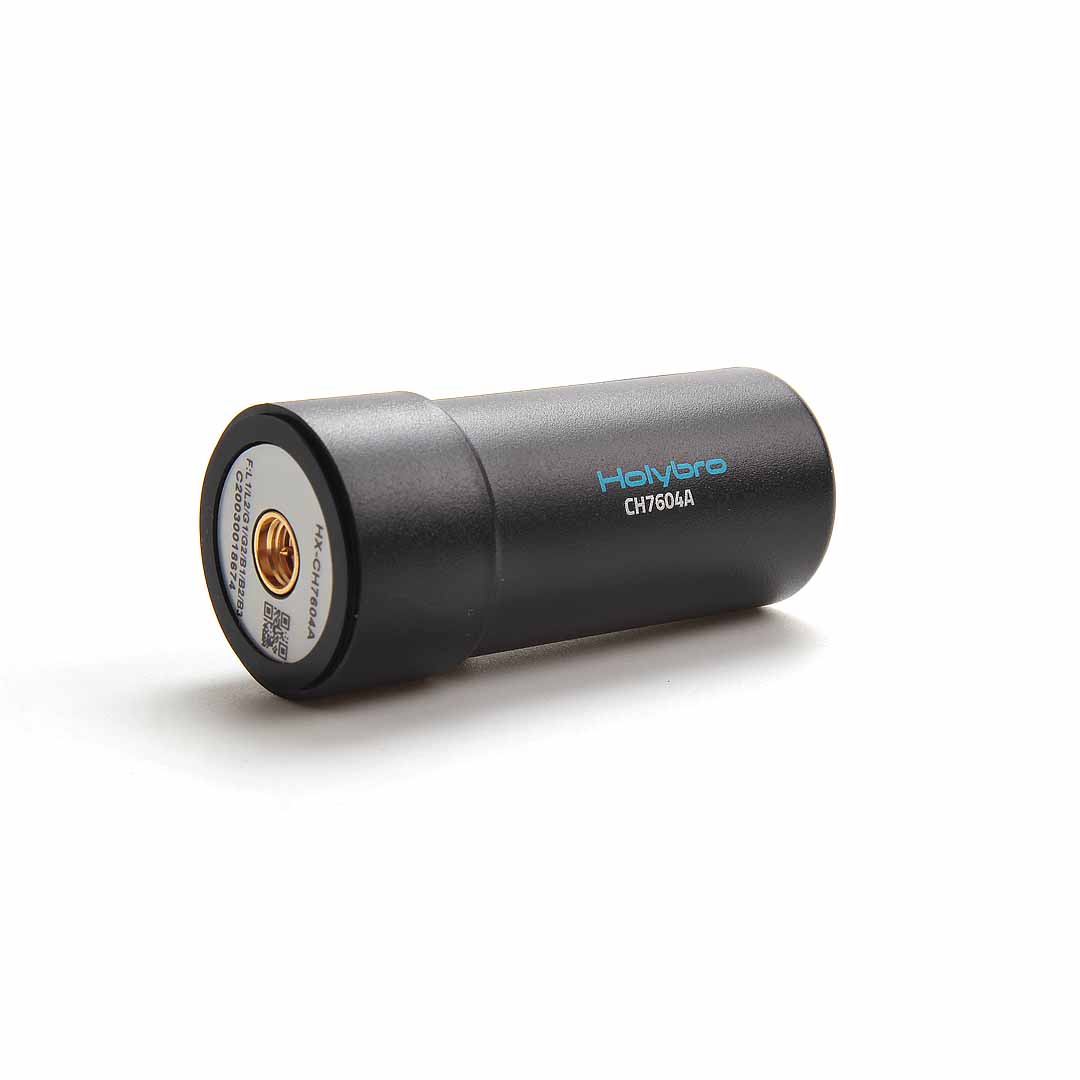

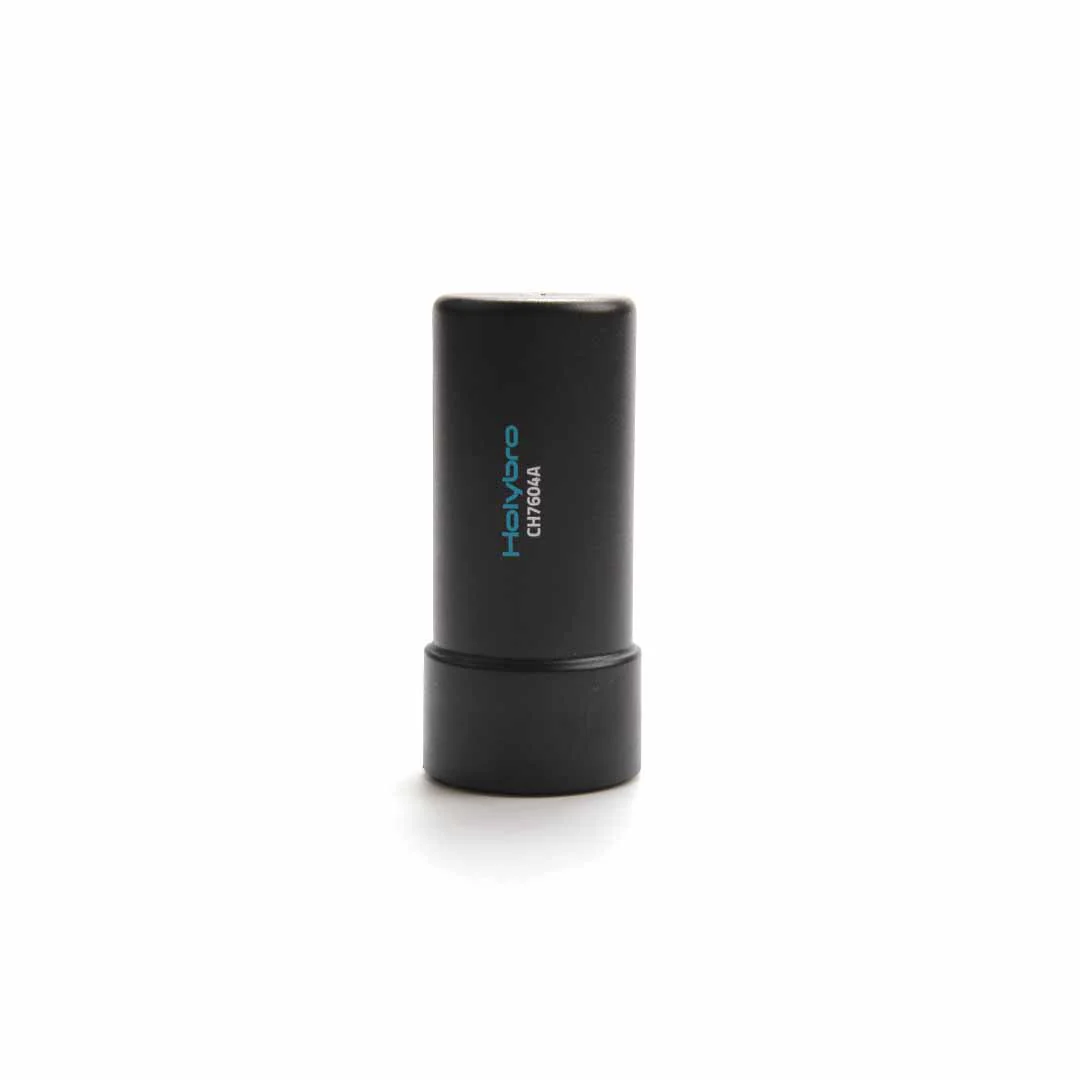

SKU8086 GNSS Antenna-CH7604A
![](https://i0.wp.com/cdn.shopifycdn.net/s/files/1/0604/5905/7341/files/8086_2_240x240.jpg?resize=238%2C242&ssl=1)
KEY FEATURES:
- Supports 3 frequency bands
- Support GPS, Glonass, Galileo, Beidou,QZSS, and SBAS signal reception
- Stable phase center guarantees the accuracy of positioning within millimeter level
- D-QHA technology ensures multi-system satellite tracking
- 25g weight, low power consumption ,55 mA@3.3VDC only
- IP67 ruggedized protection

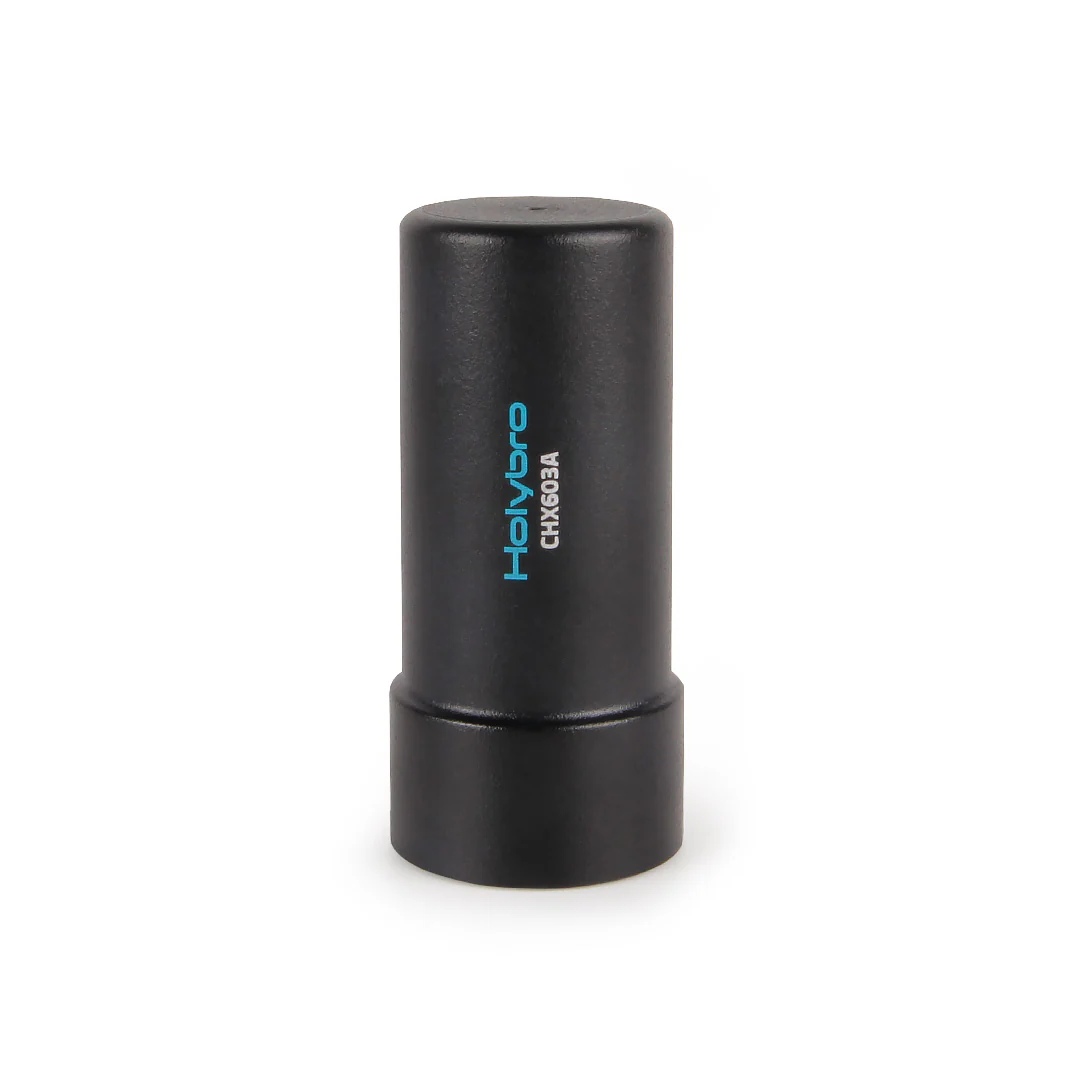

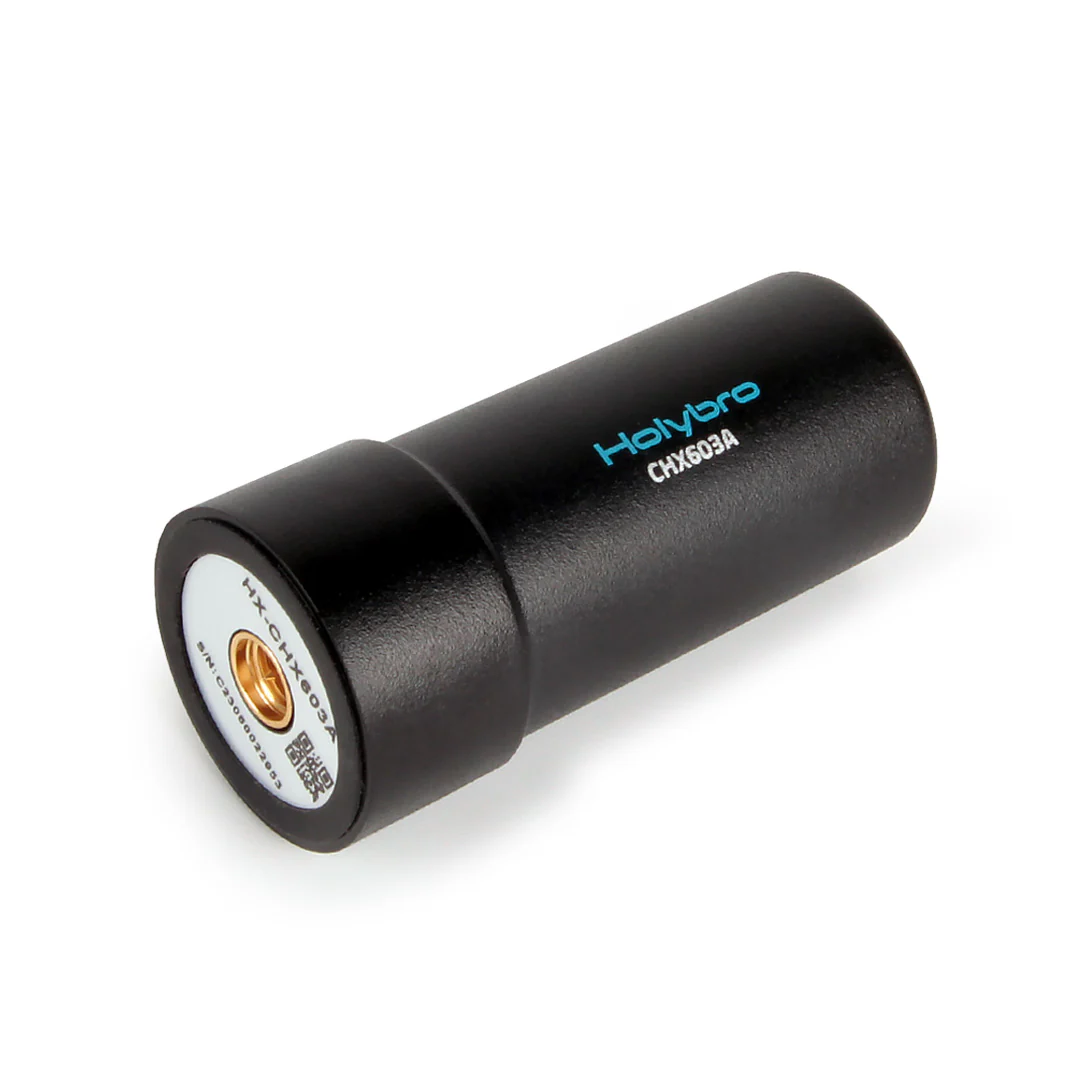

SKU8143 GNSS Antenna-CHX603A
![](https://i0.wp.com/cdn.shopifycdn.net/s/files/1/0604/5905/7341/products/CS603A_1_240x240.jpg?ssl=1)
- Supports 4 frequency bands
- Support GPS L1/L2/L5 ,BDS
B1/B2/B3 ,GLONASS L1/L2/L3, Galileo E1/E5a/E5b - Stable phase center guarantees the accuracy of positioning within millimeter level
- D-QHA technology ensures multi-system satellite tracking
- 25g weight, low power consumption ,55 mA@3.3VDC only
- IP67 ruggedized protection

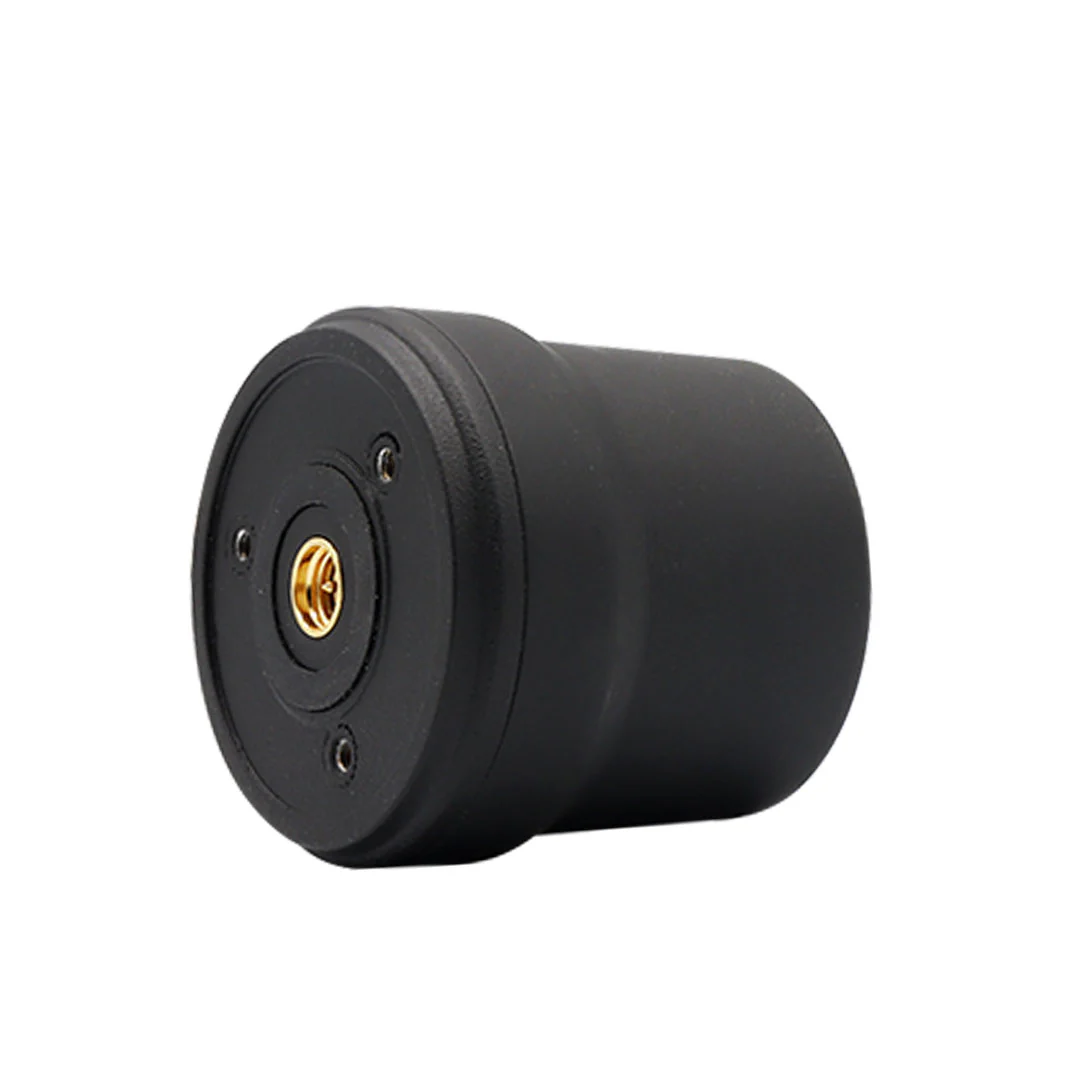

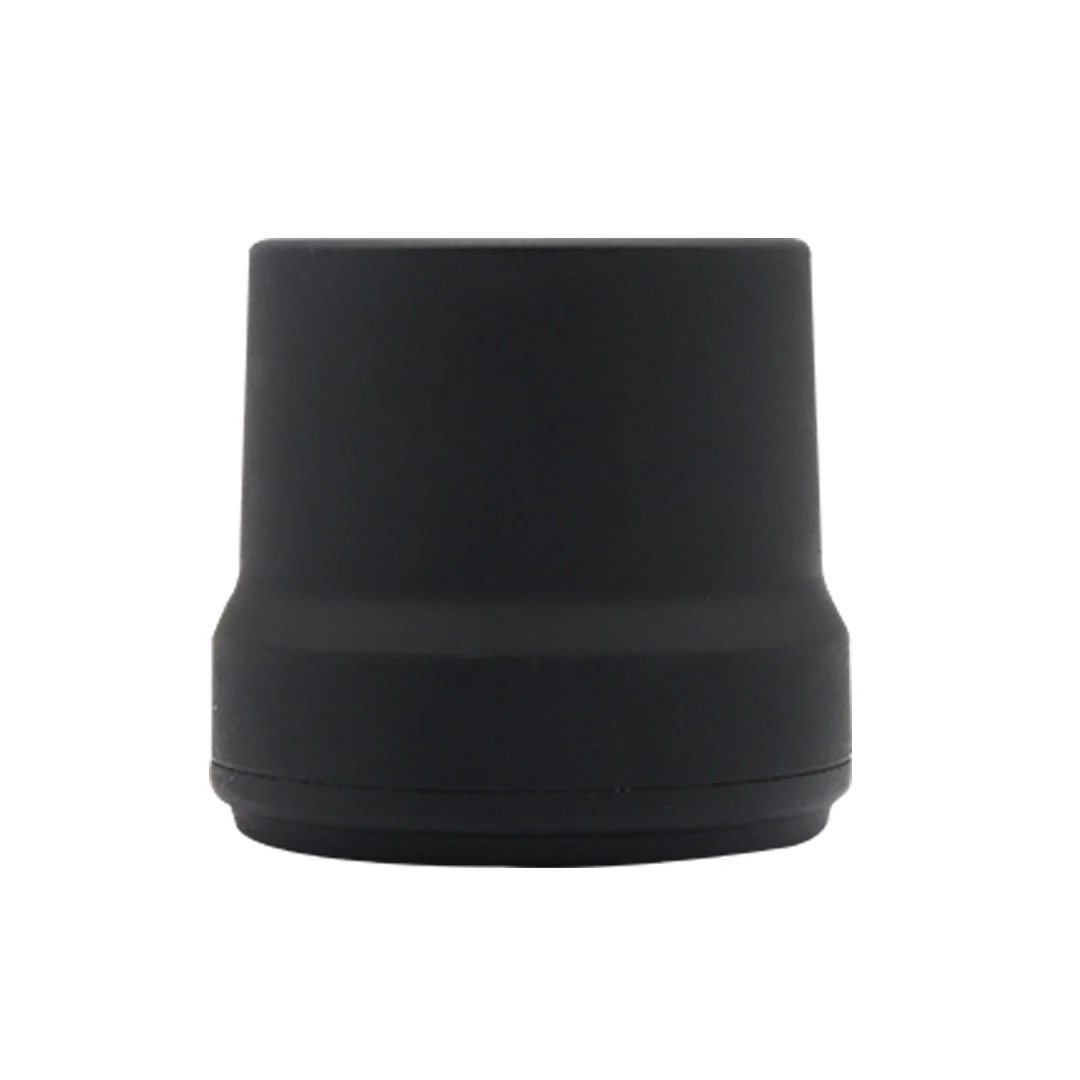

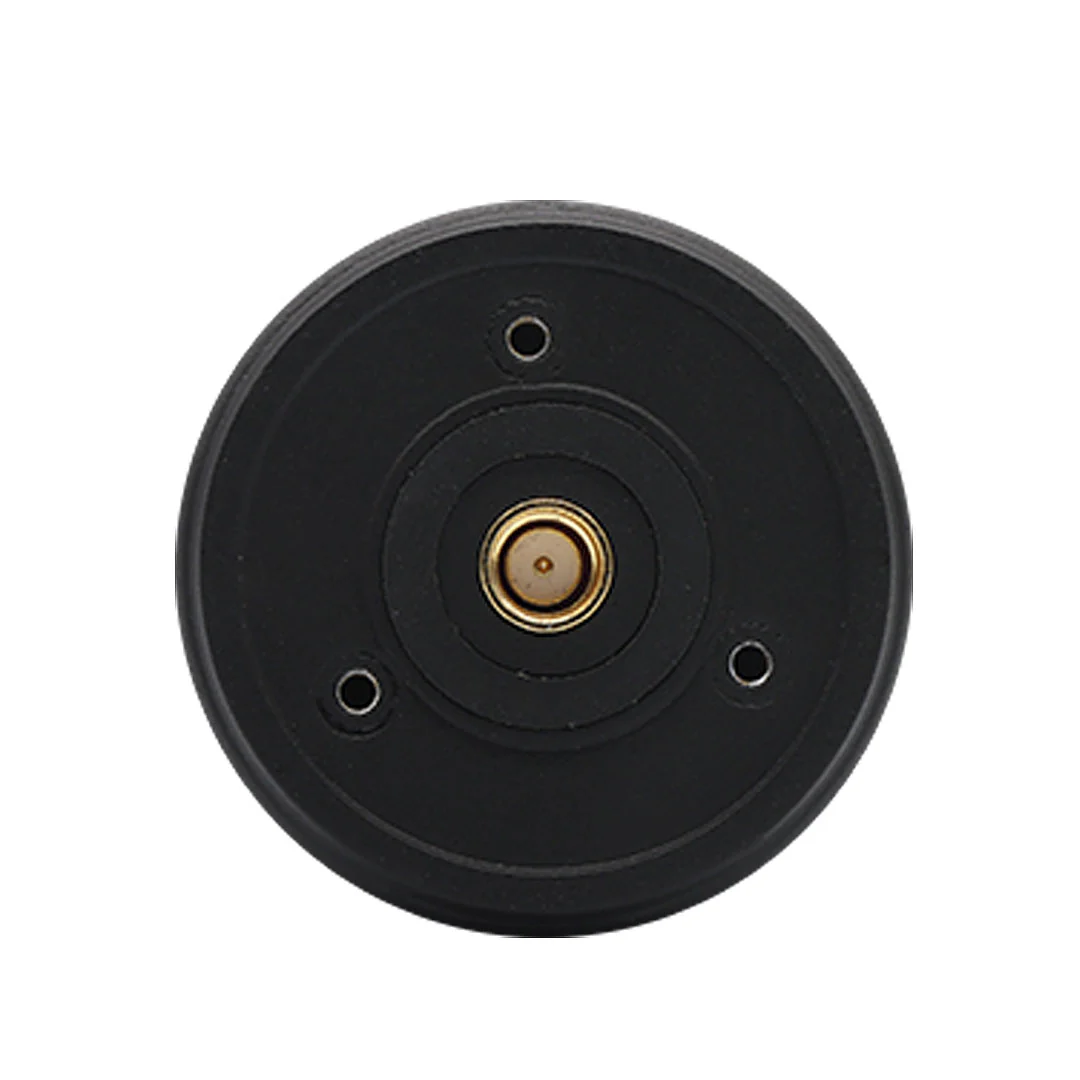

SKU8136 GNSS Antenna-CH7609A
![](https://i0.wp.com/cdn.shopify.com/s/files/1/0604/5905/7341/files/8136_1_1800x1800_2749a1b1-6cbe-4897-a198-6b25c87bc81e_240x240.webp?ssl=1)
- Supports 4 frequency bands
- Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou, as well as L-Band correction service
- Centimeter phase center repeatability, high gain at low elevation
- Improved signal filtering and excellent multipath rejection
- lightweight, low profile facilitates easier integration
- Dimensions ¢43.6*40.8mm ≤30.5g

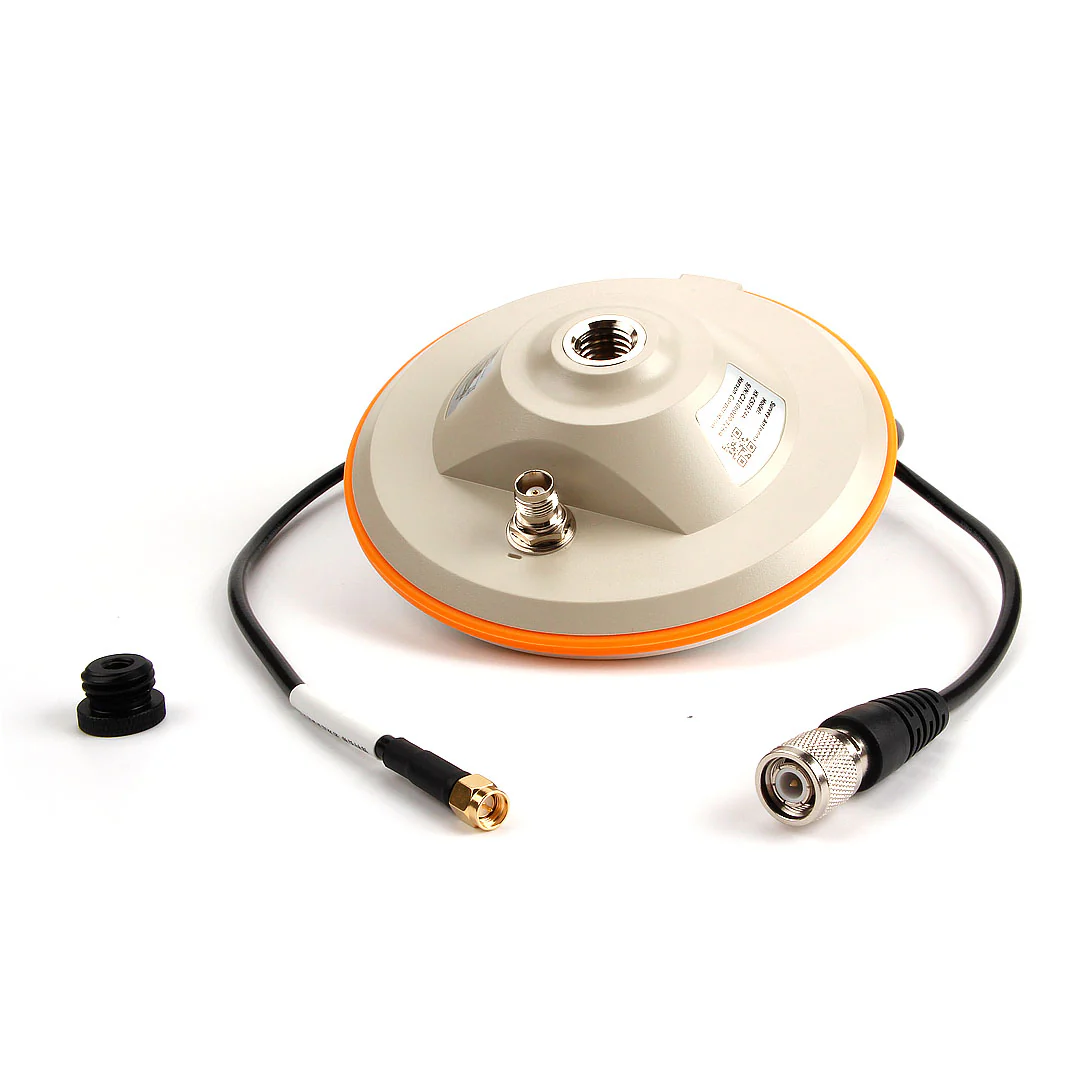

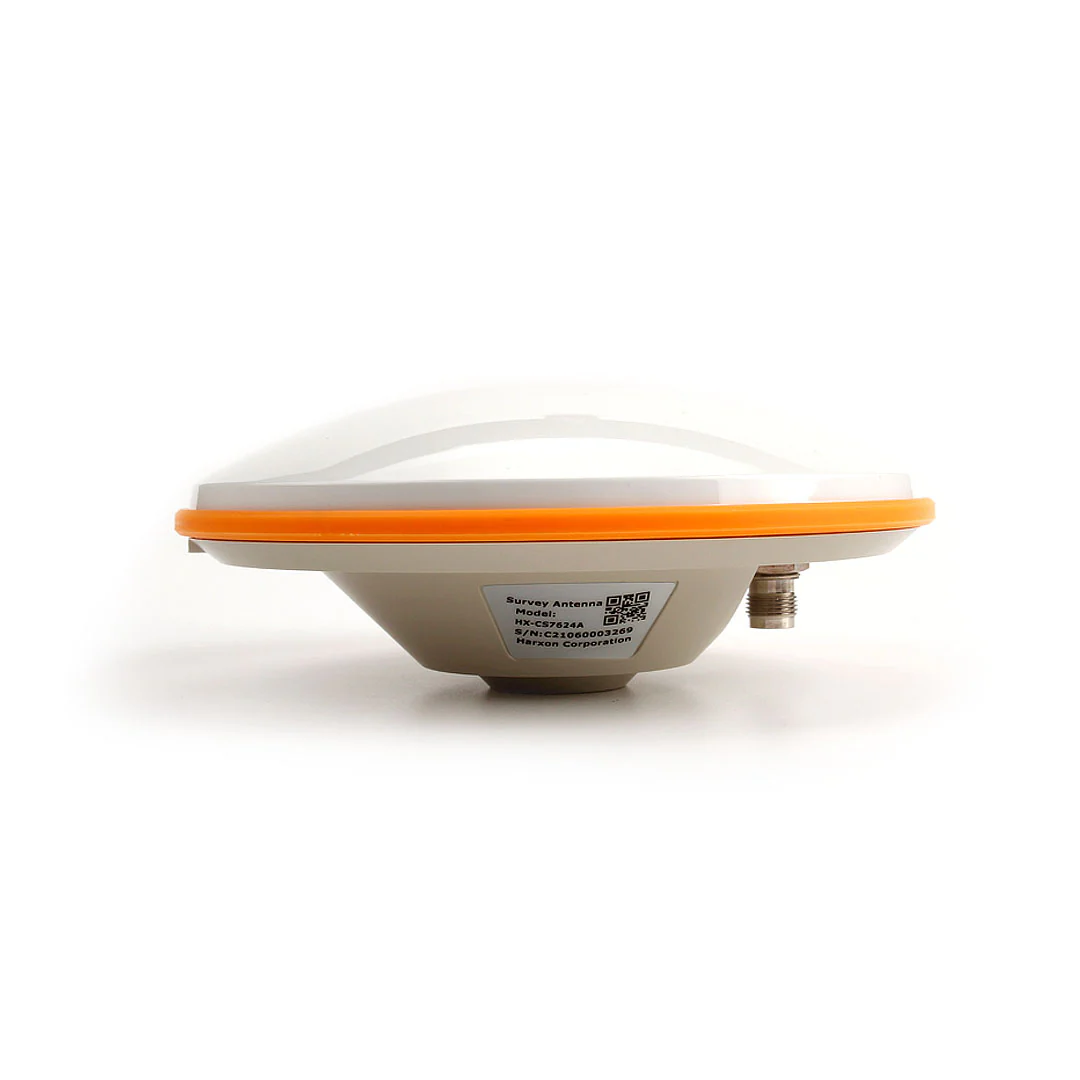

SKU8118 GNSS Antenna-CSX627A
![](https://i0.wp.com/cdn.shopify.com/s/files/1/0604/5905/7341/files/8106CS7624A_1_1800x1800_8b26c1d1-beb6-493e-9e1d-7c9a6084c93d_240x240.webp?ssl=1)
- Supports 4 frequency bands
- Support GPS, Glonass, Galileo, Beidou, QZSS and SBAS signal reception
- Stable phase center guarantees the accuracy of positioning within millimeter-level
- Strong anti-interference ability to endure the harshest operating environments
- IP67 ruggedized protection
- Connector: TNC female
- Mounting: BSW5/8”-11 screw,Depth:12-14mm
- Weight : 440g
- Comes with cable as per picture

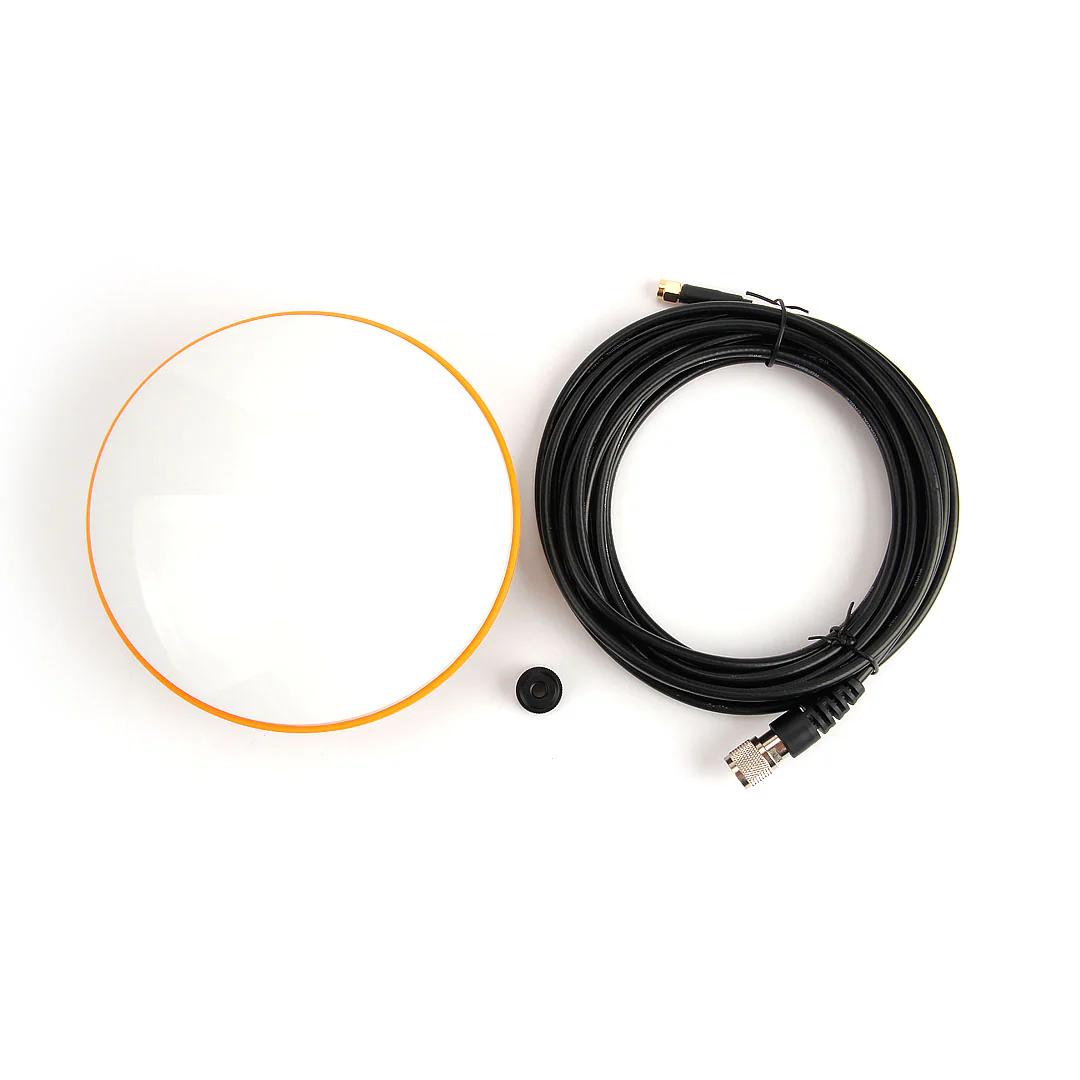

Package Includes:
-
- High Precision GNSS Antenna(CSX627A) *1
- Male-male SMA-TNC cable(length: 5m) *1
- 1/4” Female to 5/8” -11 Male Adapter *1
Download
GNSS Antenna CH3602A_Spec
GNSS Antenna CH7604A_Spec
GNSS Antenna CSX627A_Spec
GNSS Antenna CHX603A_Spec
GNSS Antenna CH7609A_Spec
