Description:
The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.
The Kakute F4 V2.4 is DJI HD ready. It has an easy plug-and-play port with an on-board 9V/A regulator designed to power your HD video transmitter like DJI O3 Air Unit & Caddx Vista while supporting analog system. It has 5x dedicated UART ports with built-in inversion for peripherals. It is also ready for autonomous flight with the on-board barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers
![](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/KakuteF4_v2.4_Overview_Diagram_2673bafa-6151-455a-9159-22c9034c7374_2048x2048.jpg?v=1710318541)
![](https://cdn.shopify.com/s/files/1/0604/5905/7341/files/KakuteF4_v2.4_Wiring_Diagram.jpg?v=1688093584)
Specification:
- MCU – STM32F405
- IMU – MPU6000
- Barometer – BMP280
- OSD – AT7456E
- 5x UARTs (1,3,4,4,6,7)
- 128 Mbit Dataflash chip
- Battery input voltage: 2S-8S
- BEC 9V/3A – Optimized for DJI O3 Air unit
- BEC 5V/2A
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).

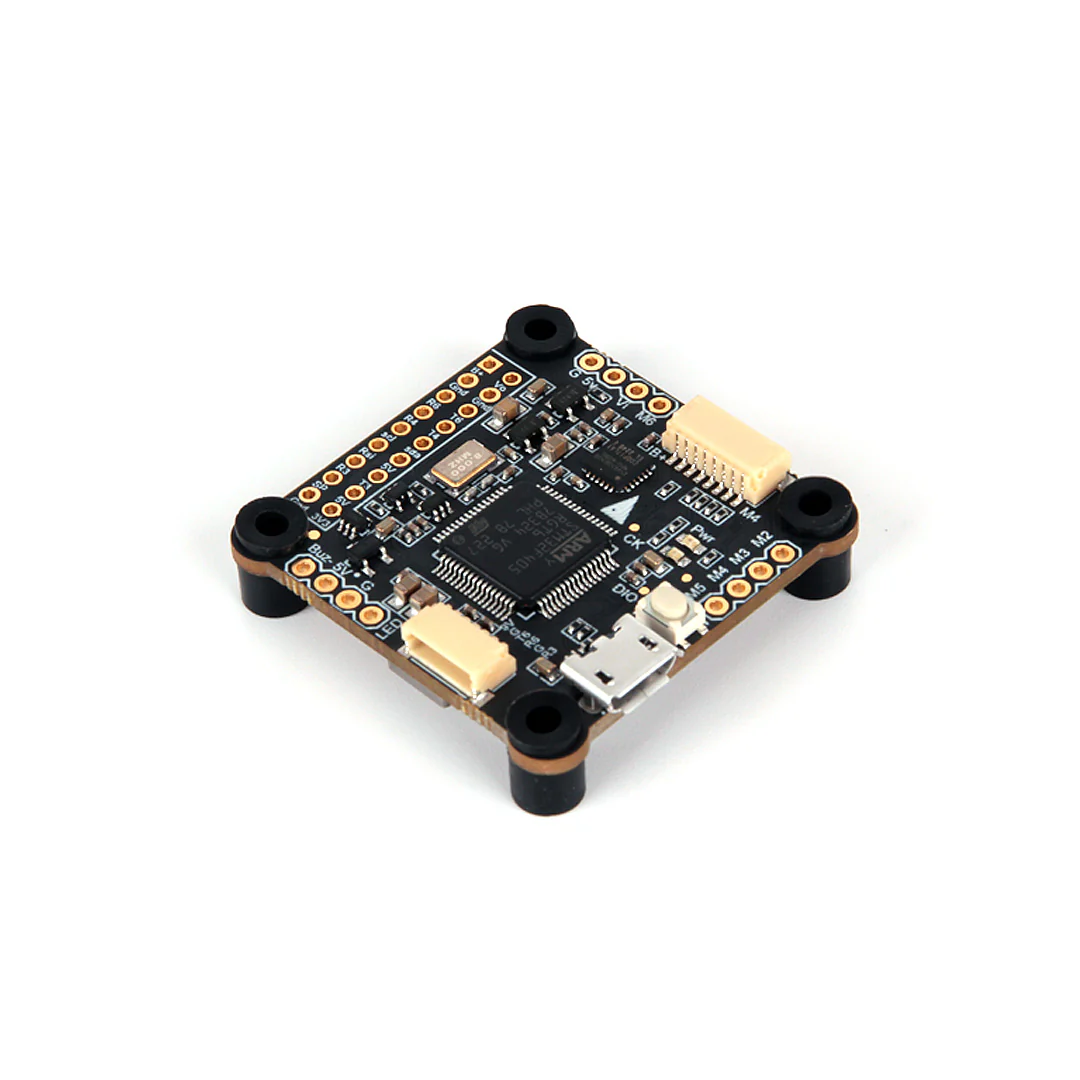

- Mounting – 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension – 37x37mm

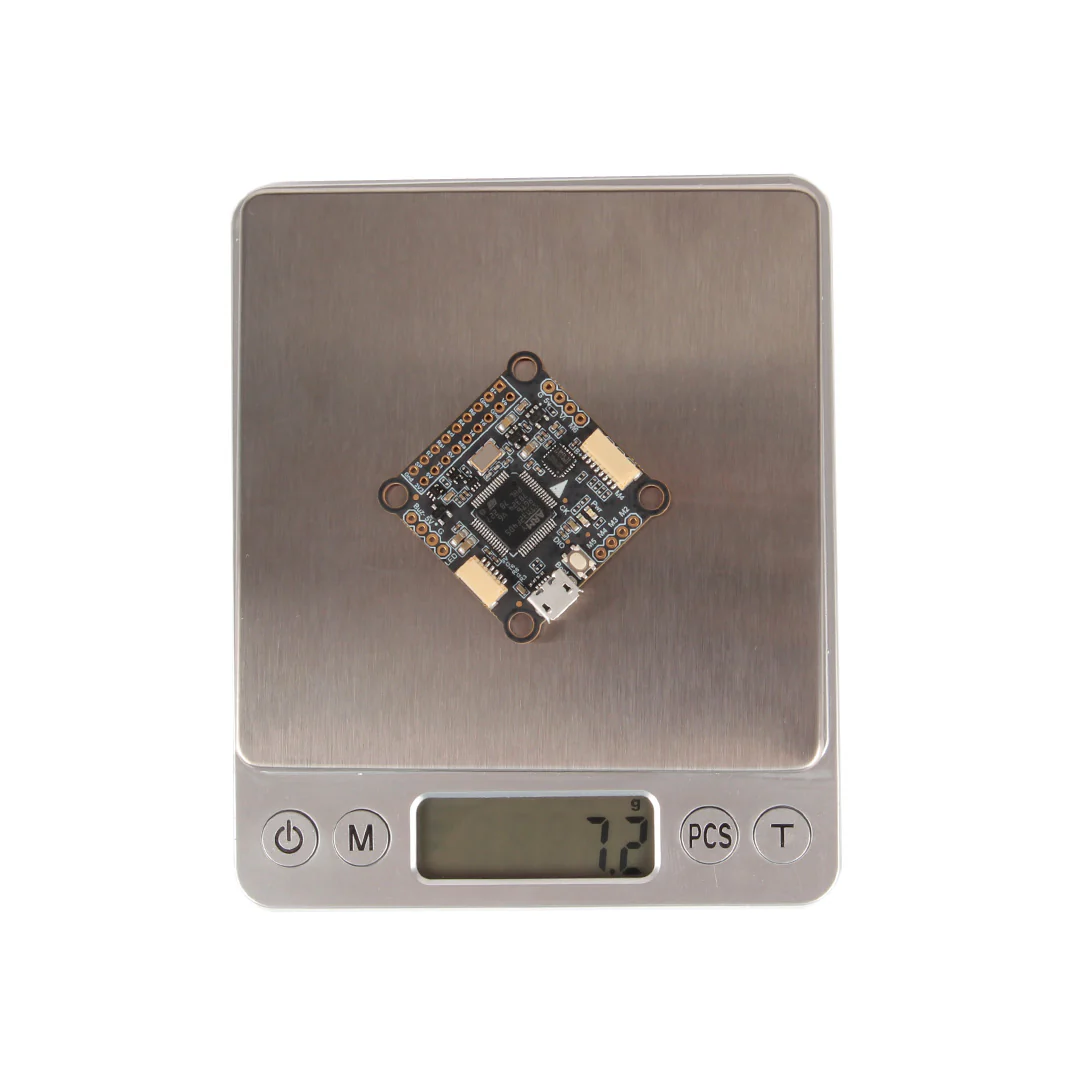

- Weight – 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

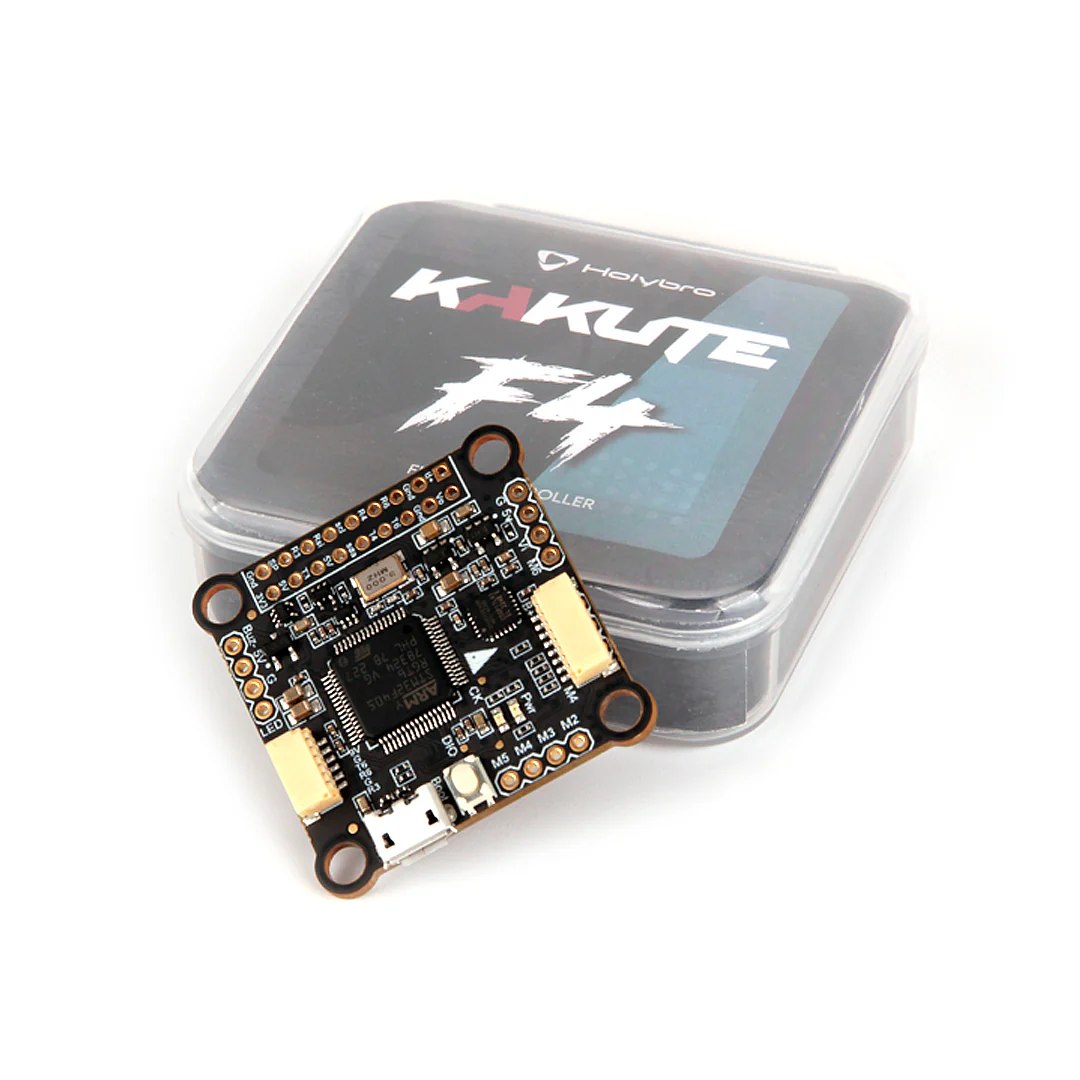

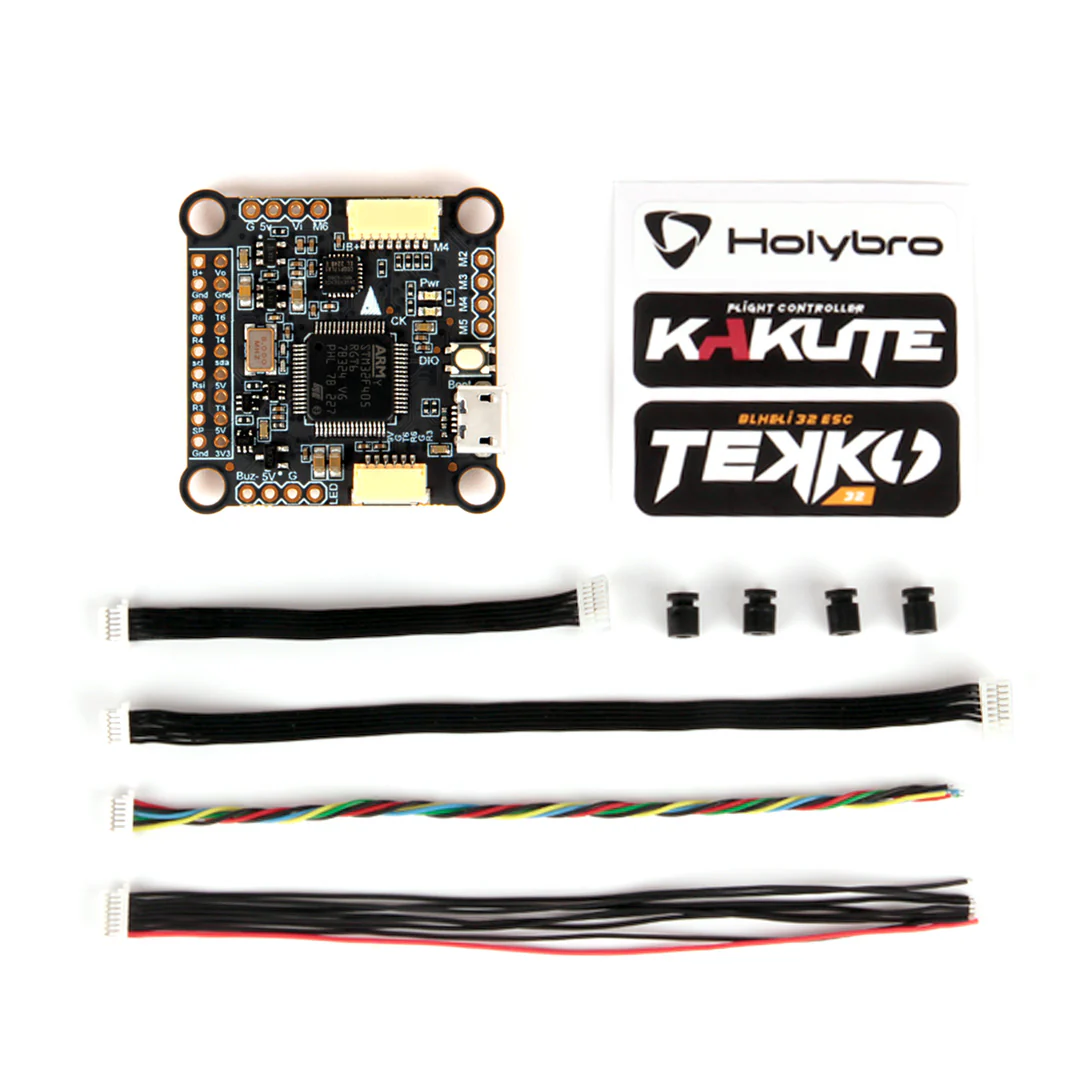

Package Includes:
- 1x Kakute F4 V2
- 4x Anti-Vibration Silicone Grommet Insert *4
- 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
- 1x JST SH 6pin 100mm cable(for Caddx HD Systems)
- 1x JST SH 8pin 100mm cable(for ESCs)
