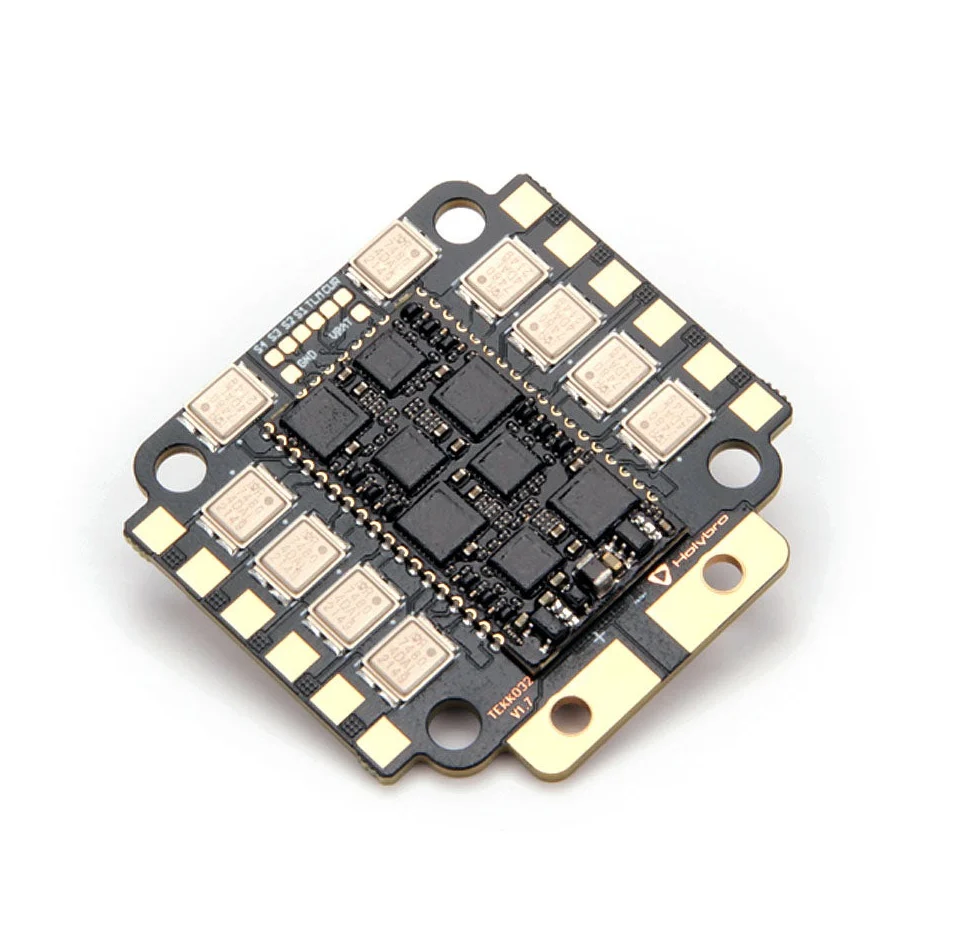

Holybro Tekko32 F4 Metal 4in1 65A ESC

F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output up to 96K / 4~6S / BLHELI32
The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt the fast F4 MCU.
Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response.

Features:

1. New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
2. PWM output up to 96K (default 48K)
3. Metal-cased MOSFET for excellent heat dissipation

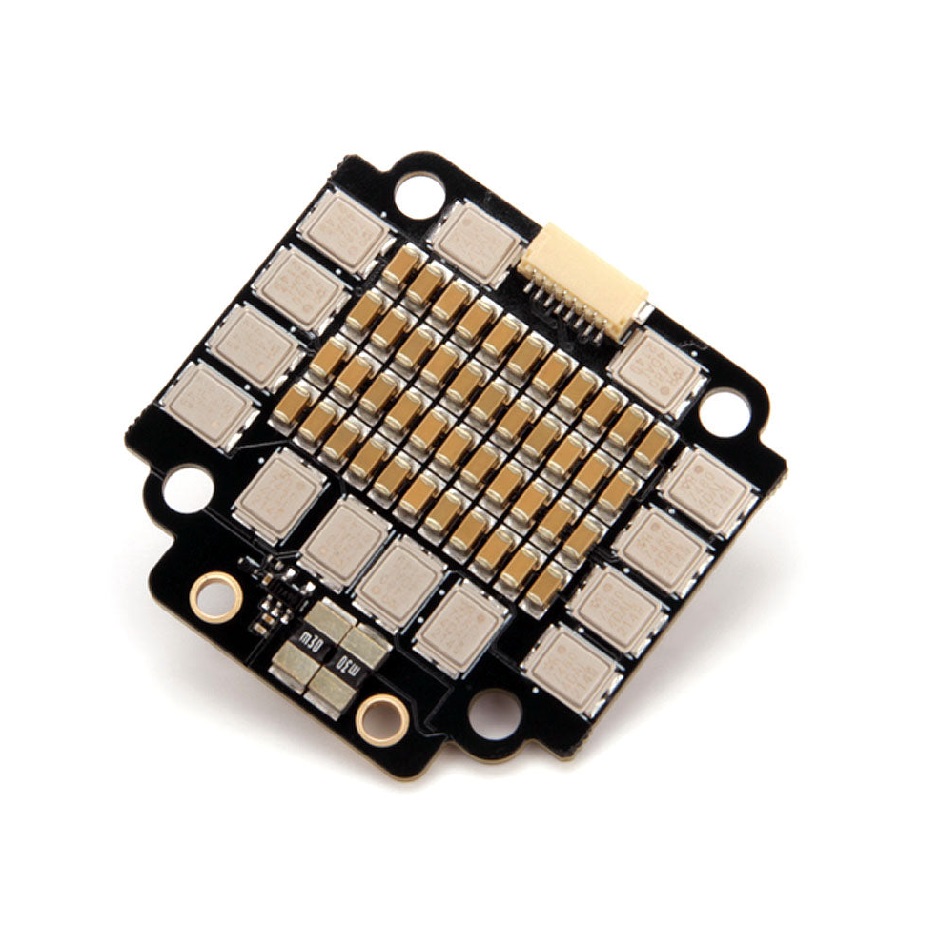

4. Massive on-board capacitance for noise filtering at 2068uf
5. 3 oz copper PCB design to allow bigger current and better heat dissipation
6. Separate drive & control circuit, this broadens the current capability of the drive
7. circuit while reducing the electrical interference to the control circuit.

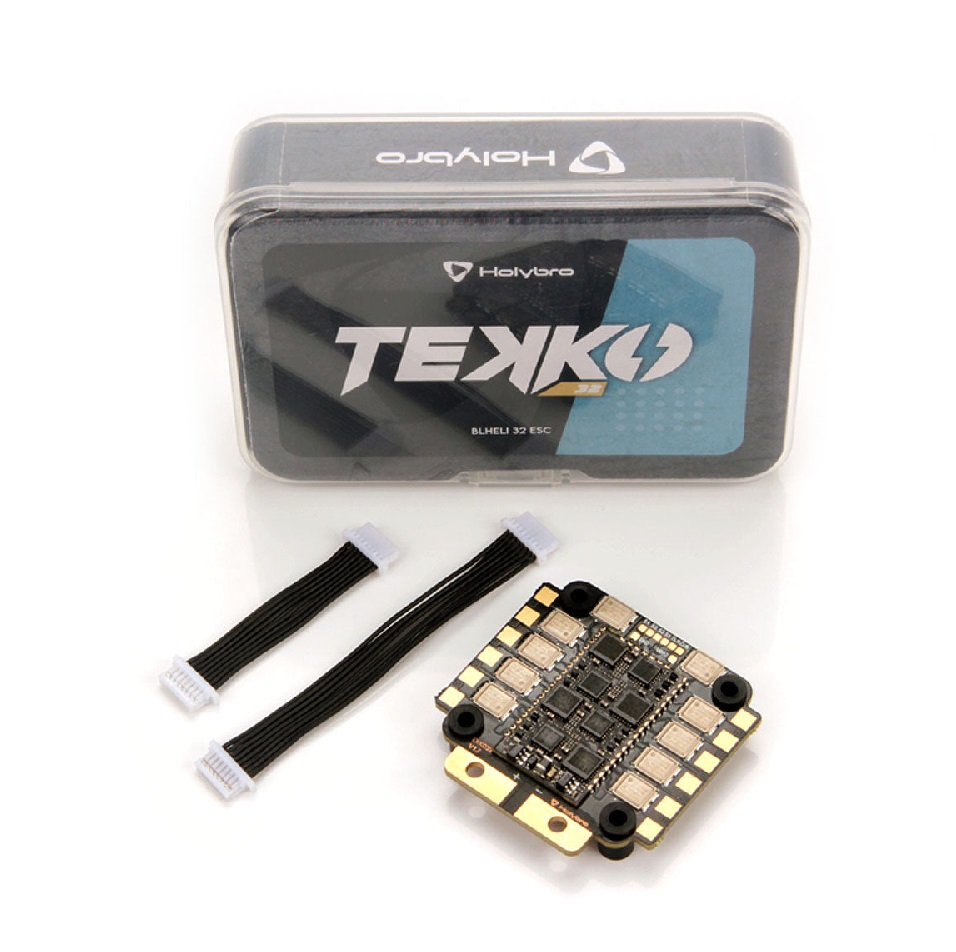

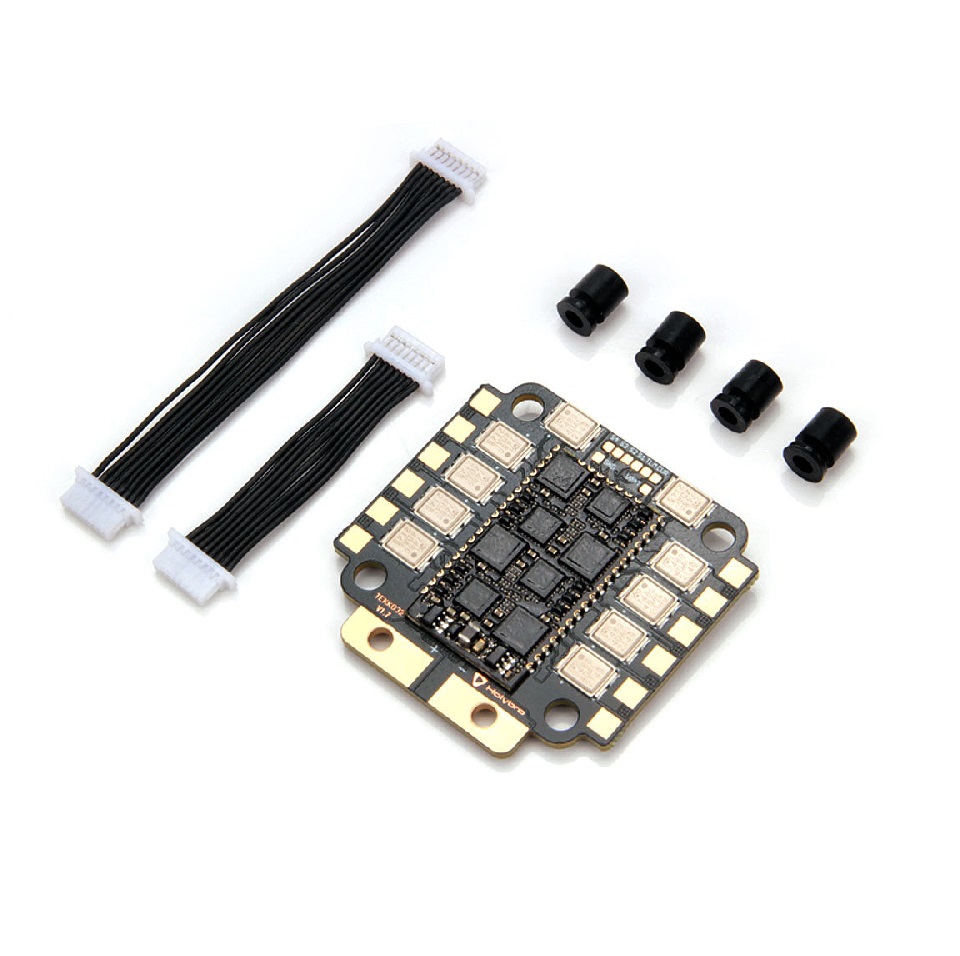

Package Includes:

1 x Tekko32 F4 Metal 4in1 65A ESC
4 x M3 Anti-Vibration Silicone Grommet Insert
1 x Electrolytic capacitor: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm pitch 25mm cable

Note:

Air flow for the ESC is very important if you want to run this 4in1 in high current.
The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

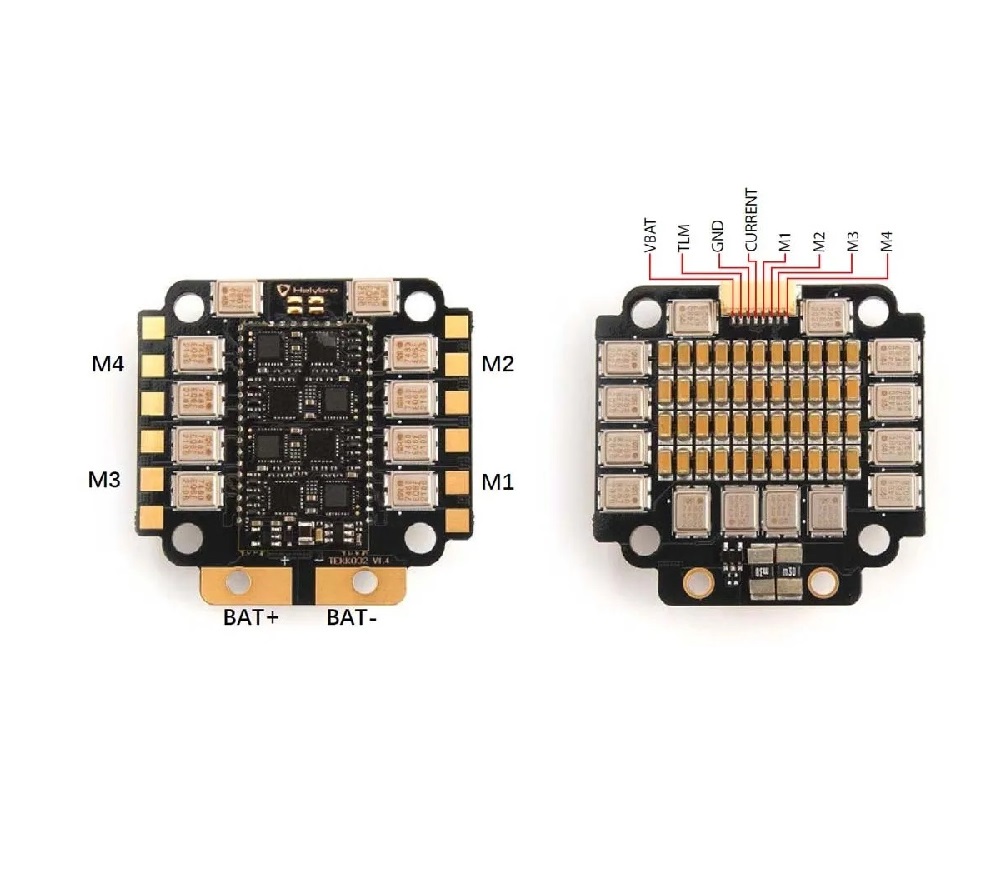

PIN MAP

Package included:

Tekko32 F4 Metal 4in1 65A ESC *1
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1

Downloads:

Tekko32 F4 Metal 4in1 ESC(65A) SPEC v1.7

Some Tips:

ESC Current Sensor Scale

BLHeli_32 ESC Firmware Overview
