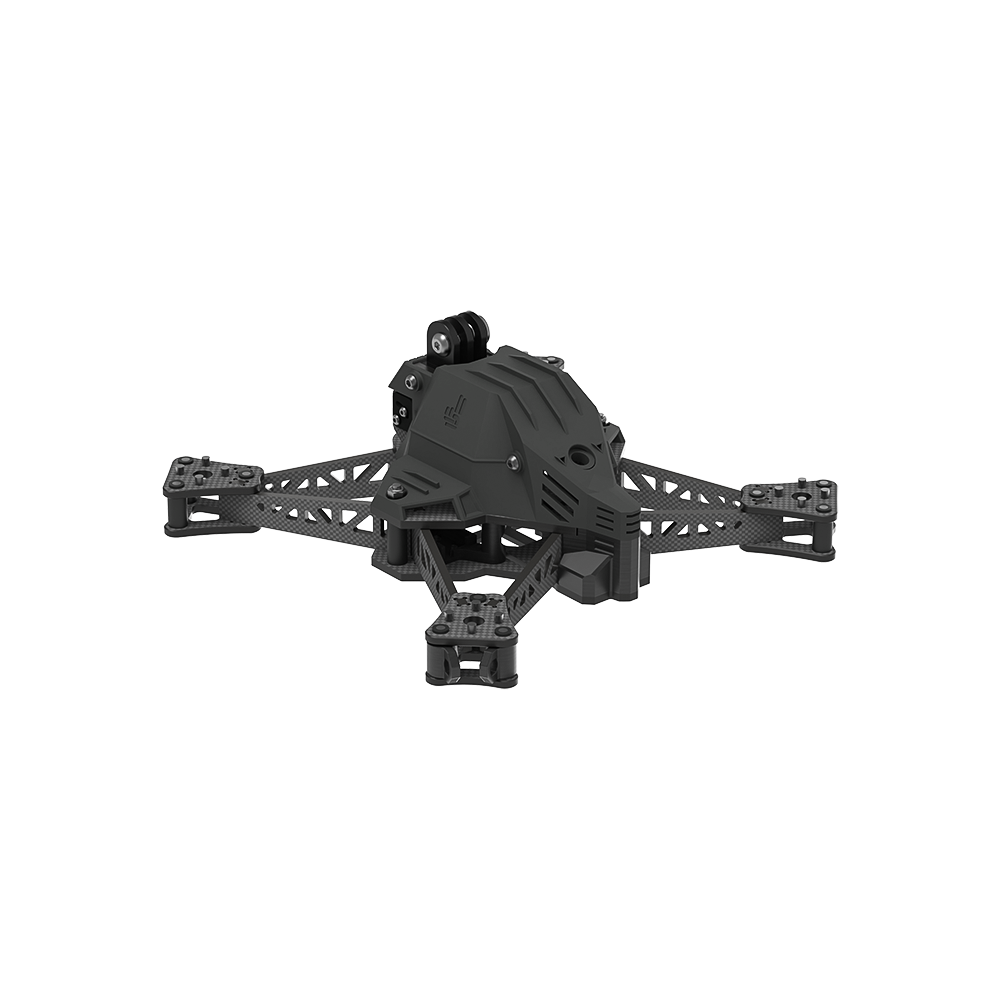

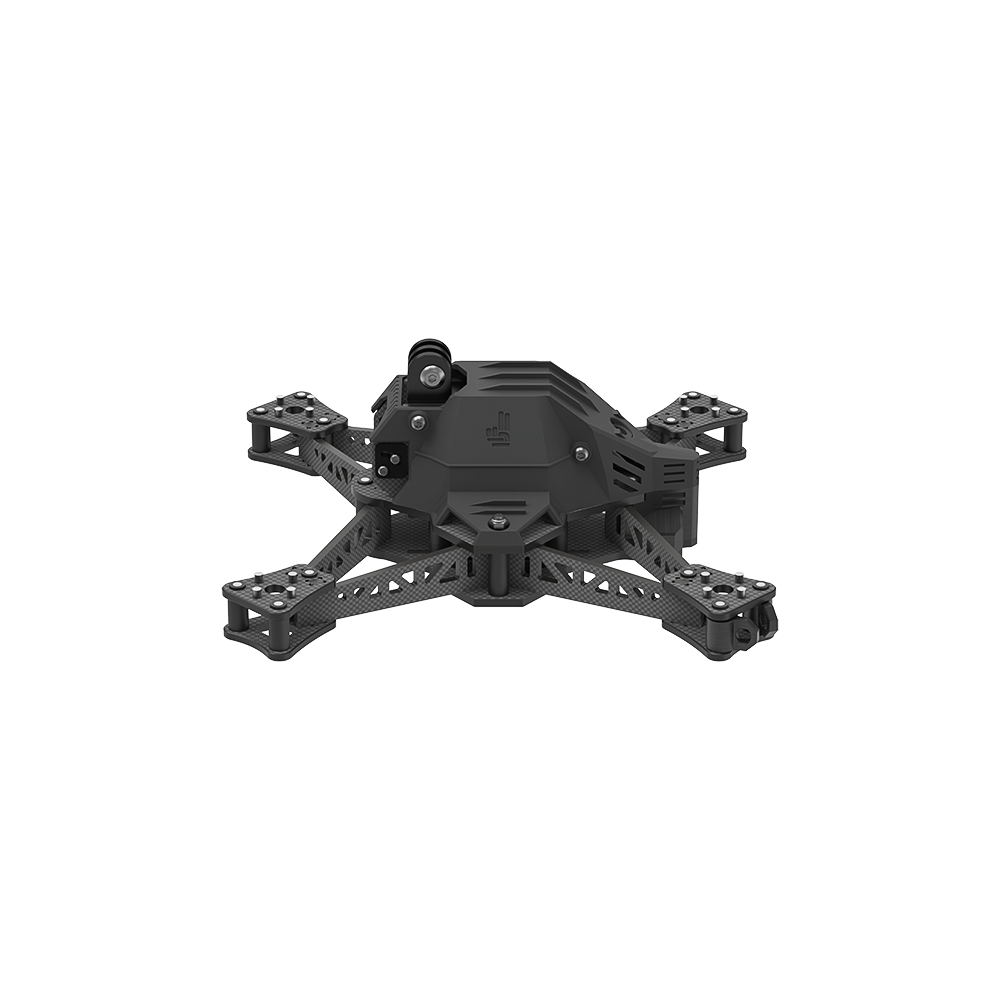

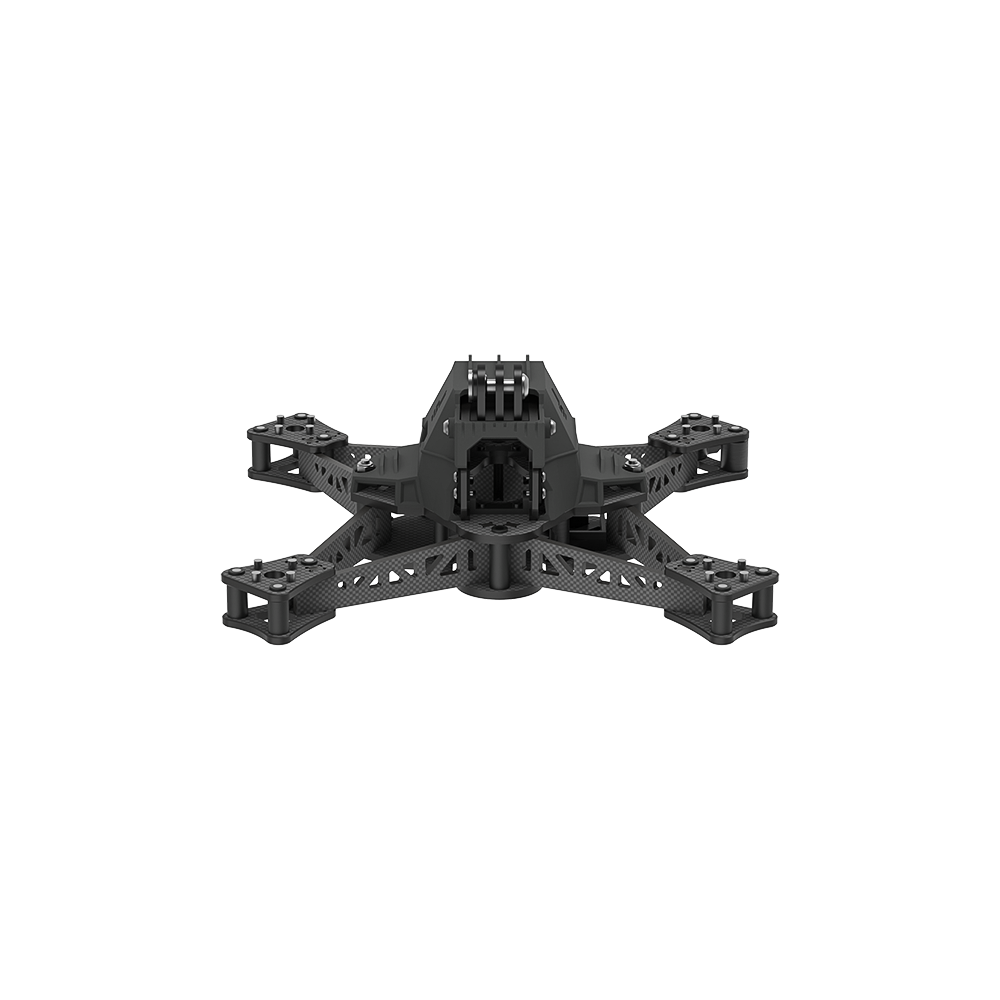

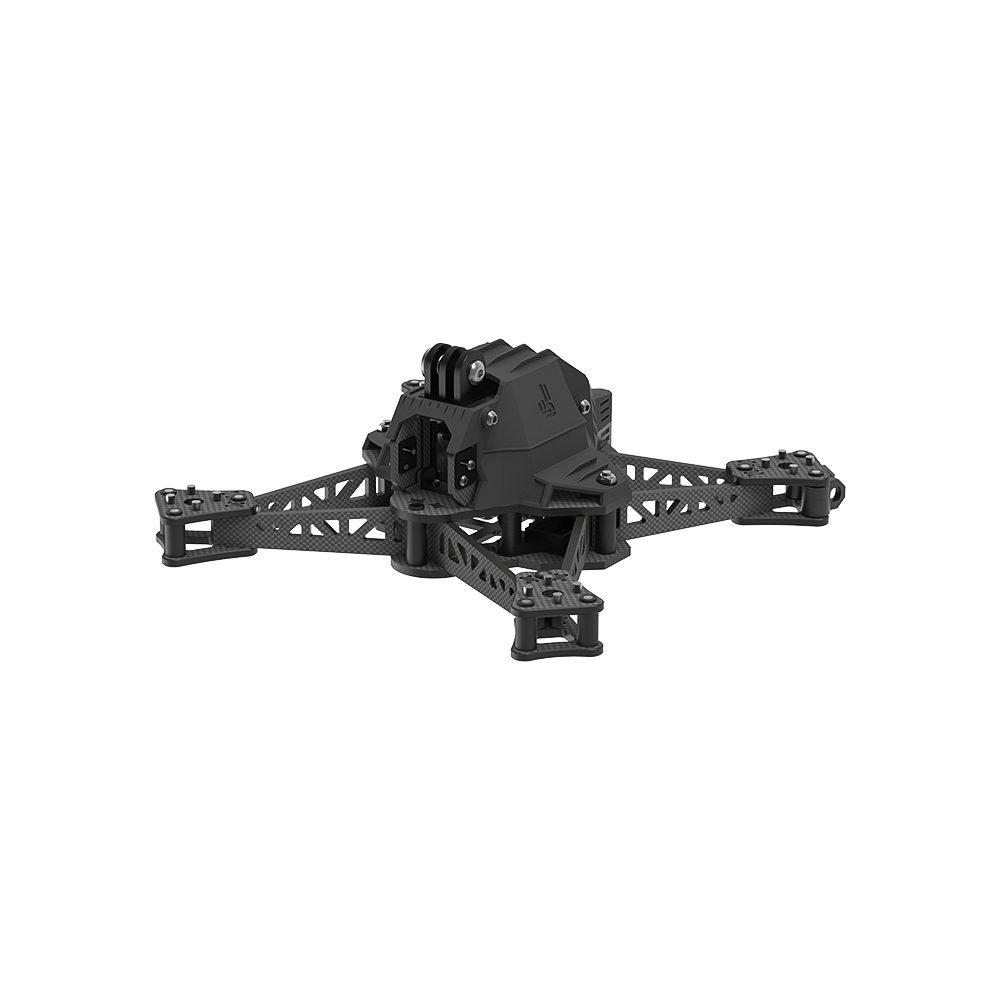

iFlight Afterburner 5 Frame Kit 2RAW

Afterburner – The Performance 5inch by 2RAW and iFlight

Afterburner is designed for professional pilots who use their FPV drones for cinematic work, this frame kit is not designed around being crashed into concrete and coming out fine. The frame kit is designed around aerodynamics and balance.

Smallest Footprint

Afterburner has a 20% smaller footprint than traditional 5inch freestyle frames, this allows for easier transportation as well as increased agility and less drag – meaning better all round performance.

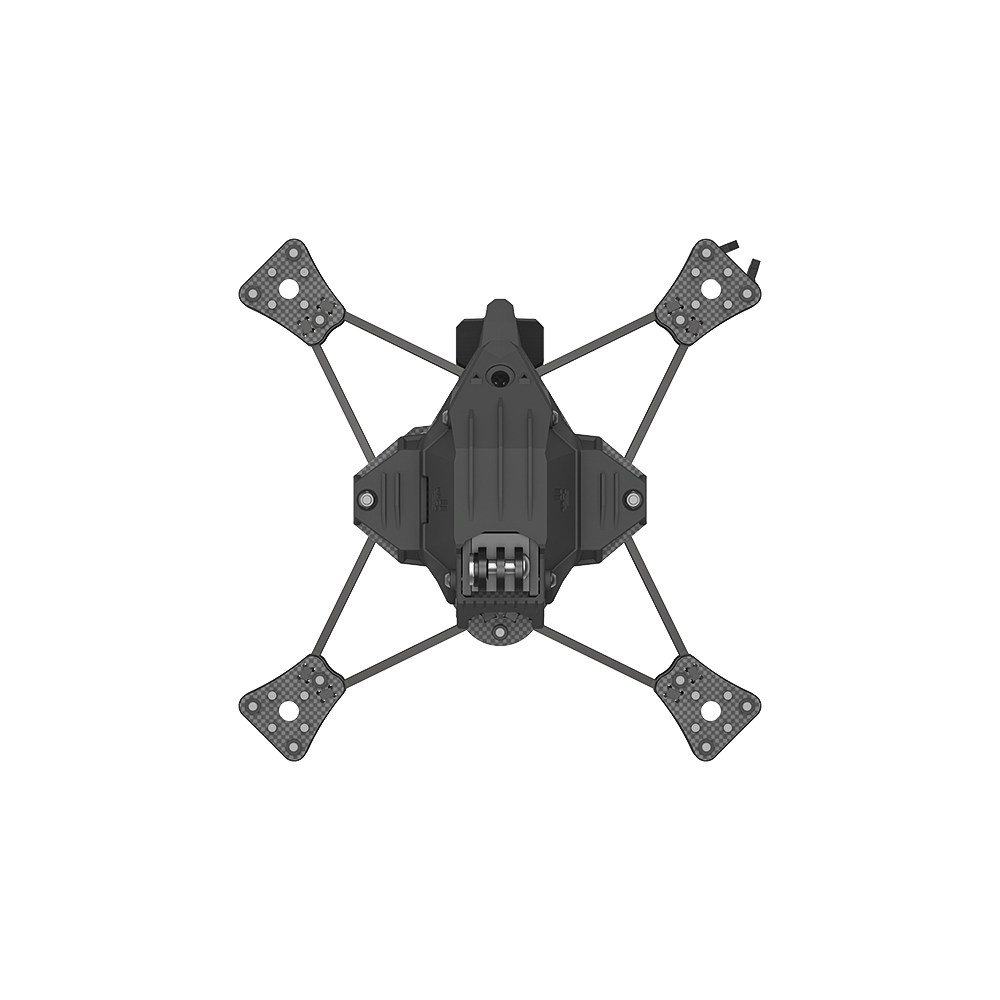

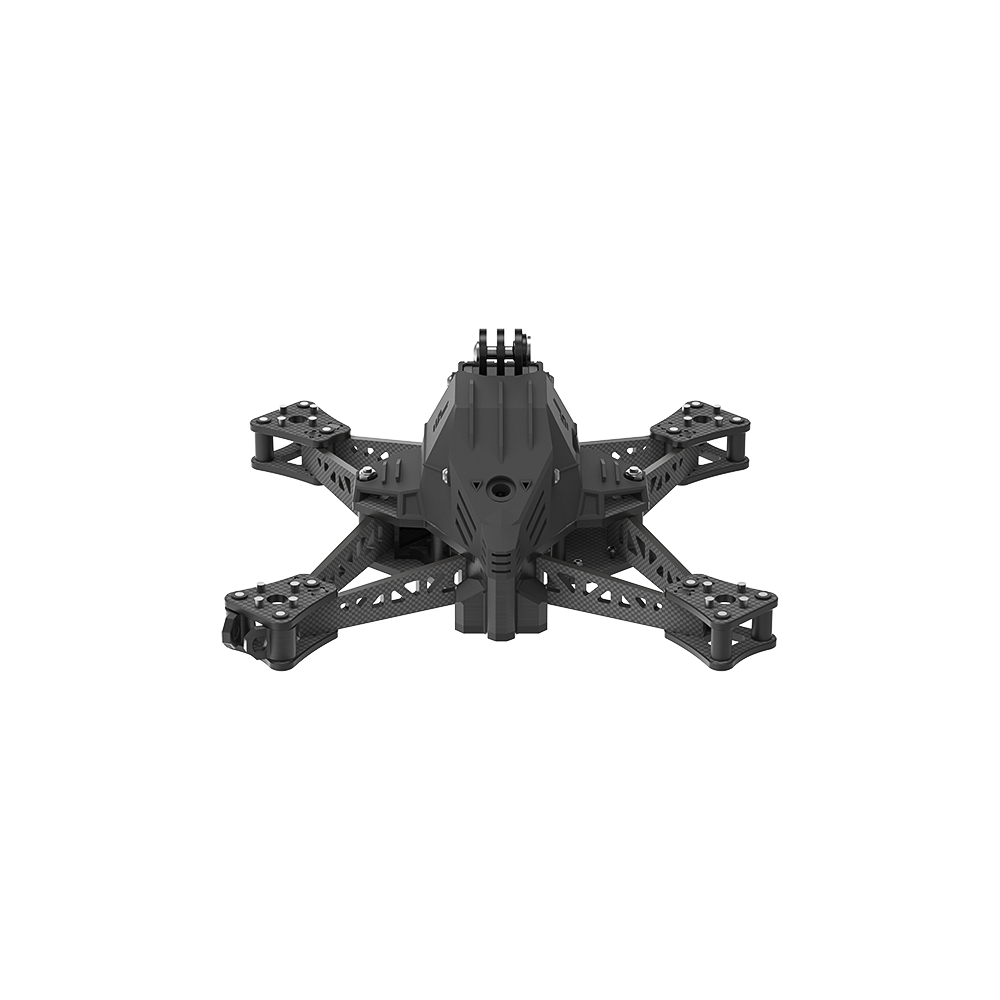

Aero Shell

The aeroshell controls the airflow around the body and within the drone.  As the speed of the drone increases the aero shell acts as an air divider, preventing air from hitting the flat top plate. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.

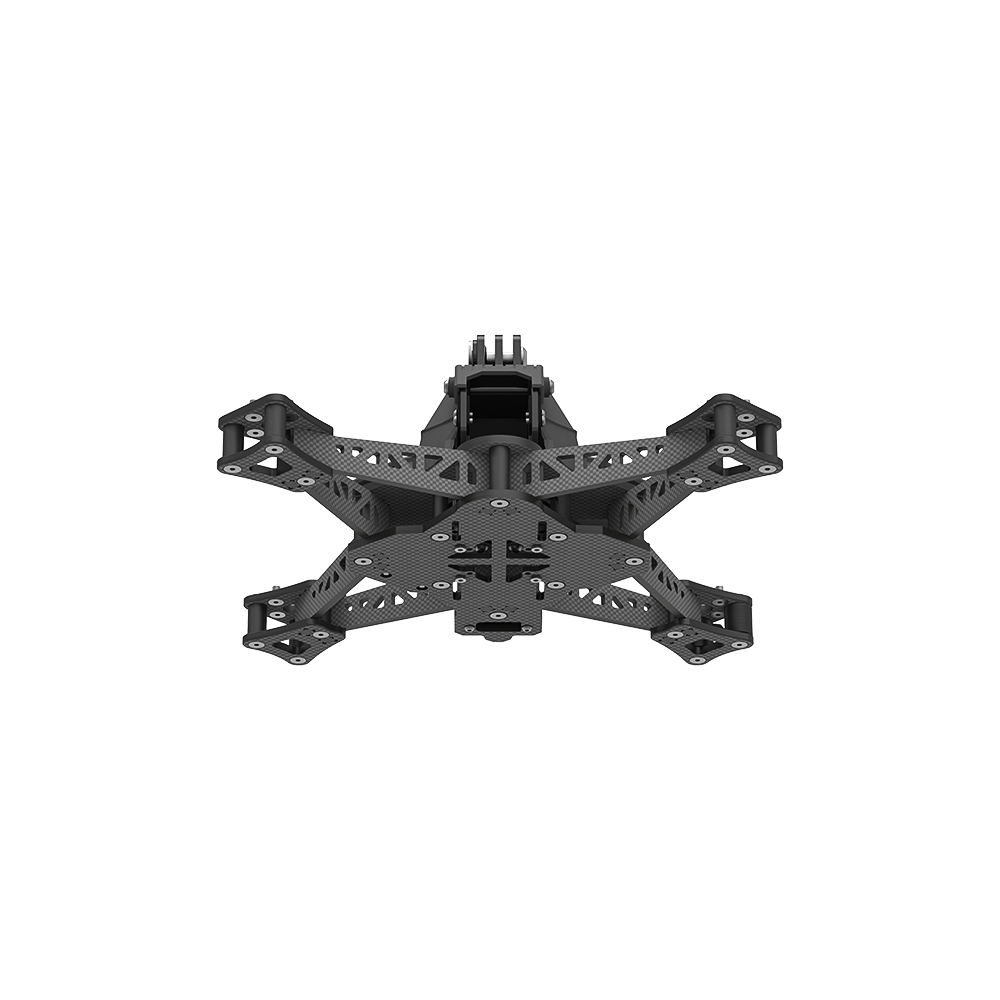

Advanced Truss Arms

The star design combined with the trusses ensures great stiffness while keeping the weight down, and perfect balance, delivering exceptional results when it comes to filming with buttery footage.

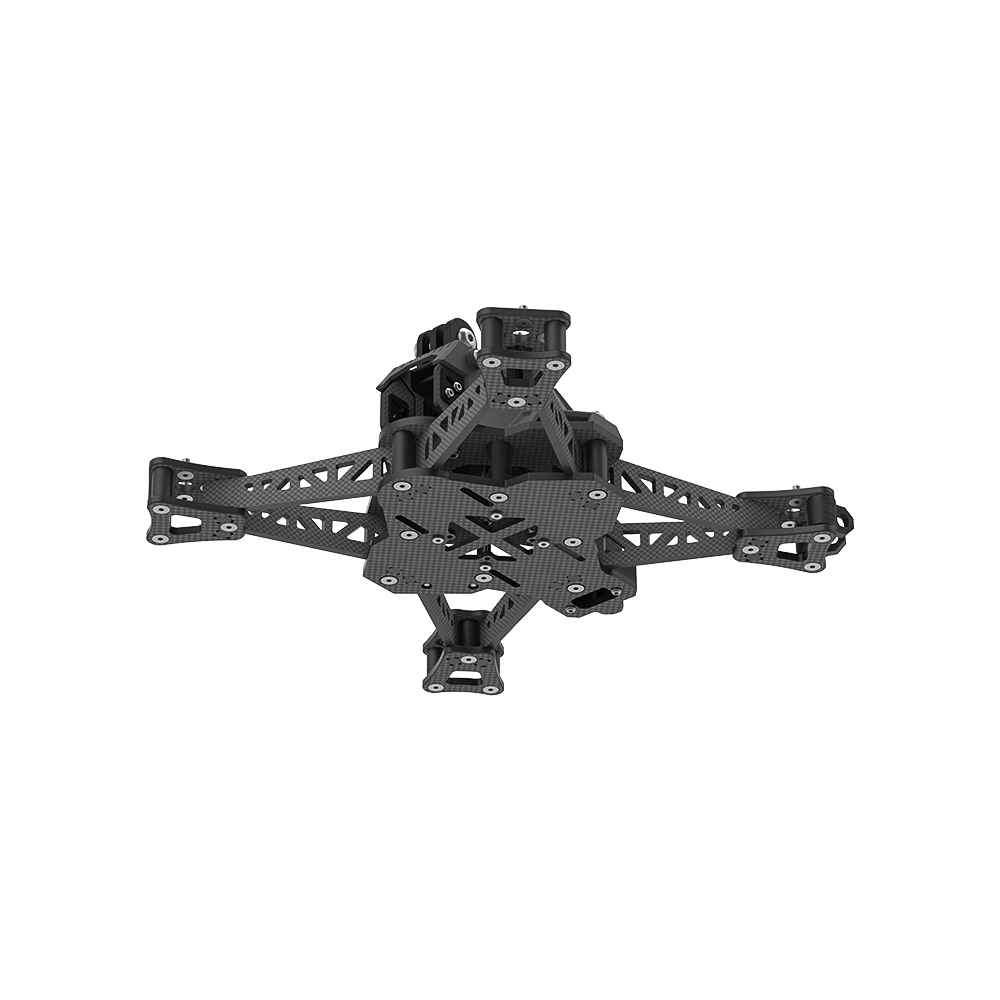

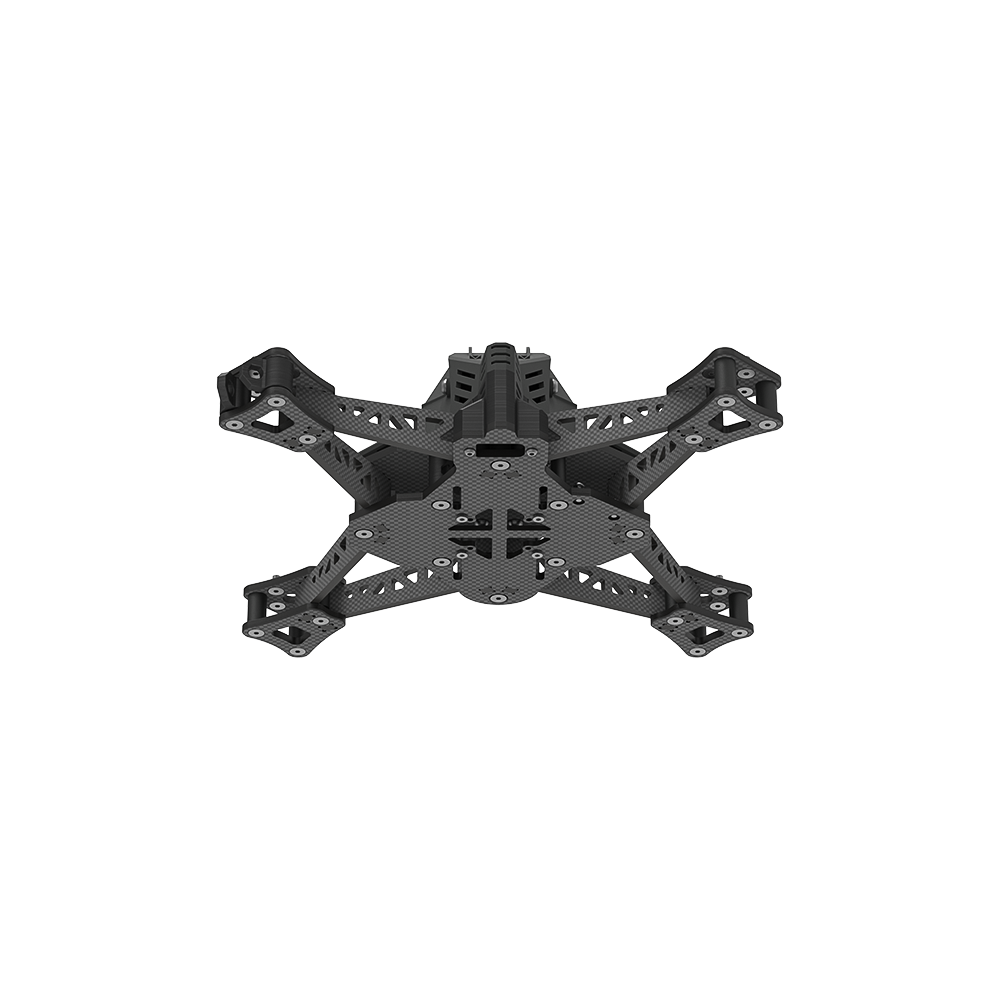

Bottom Mount Battery

Inspired from FPV racers, we took a bottom mount battery approach, this allows the battery to cause minimal drag possible and completely clears the top of the drone to allow for the Gopro mounting as well as clear line of sight for the GPS. Afterburner was built for the cinema pilot! The central battery also allows the CG to remain close to the middle of the body allowing for improved agility in the air.

No Prop in view with Gopro

In 16:9 the GoPro has no props in the view from 5 degrees all the way to 60 degrees.

Product Name: Afterburner 5 5inch Frame Kit

Geometry: True-X

Frame wheelbase: 210mm

Frame Dimension: L148*W148*H64 mm

Frame Body Dimension: 64mm

Arm Thickness: 3mm

Top Plate Thickness: 3mm

Bottom Plate Thickness: 3mm

Max Flight Stack Height: 13.5mm

Max VTX Height: 17mm

Flight Stack Mounting: 30.5*30.5/Φ3mm

VTX Mounting: 25.5*25.5/Φ1.6mm

Motor Mounting: 16*16 -φ3mm

Weight: 273g

1 x Afterburner 5 Frame Kit

1 x TPU Set

4 x Motor Wire Shield Tube

2 x Battery Anti-Slip Pad

2 x Battery Strap (15*250mm)

1 x Screw Bag
