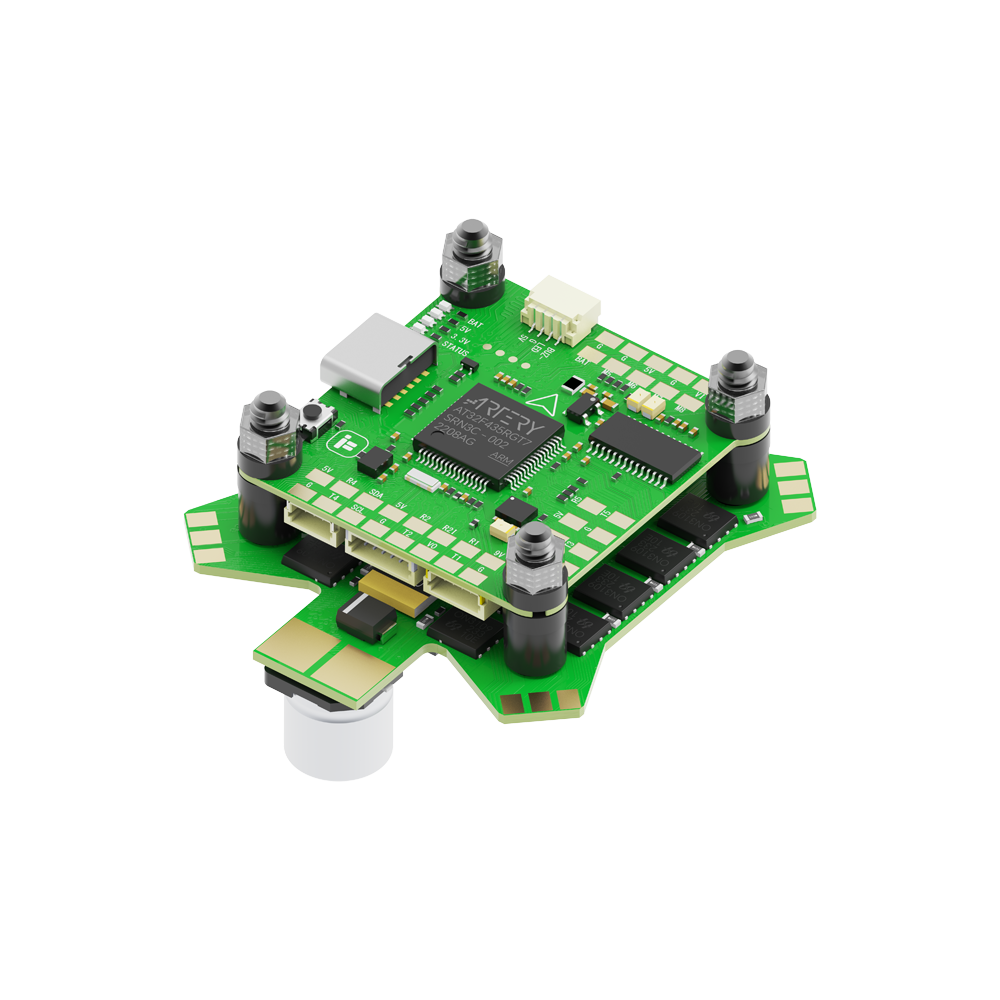

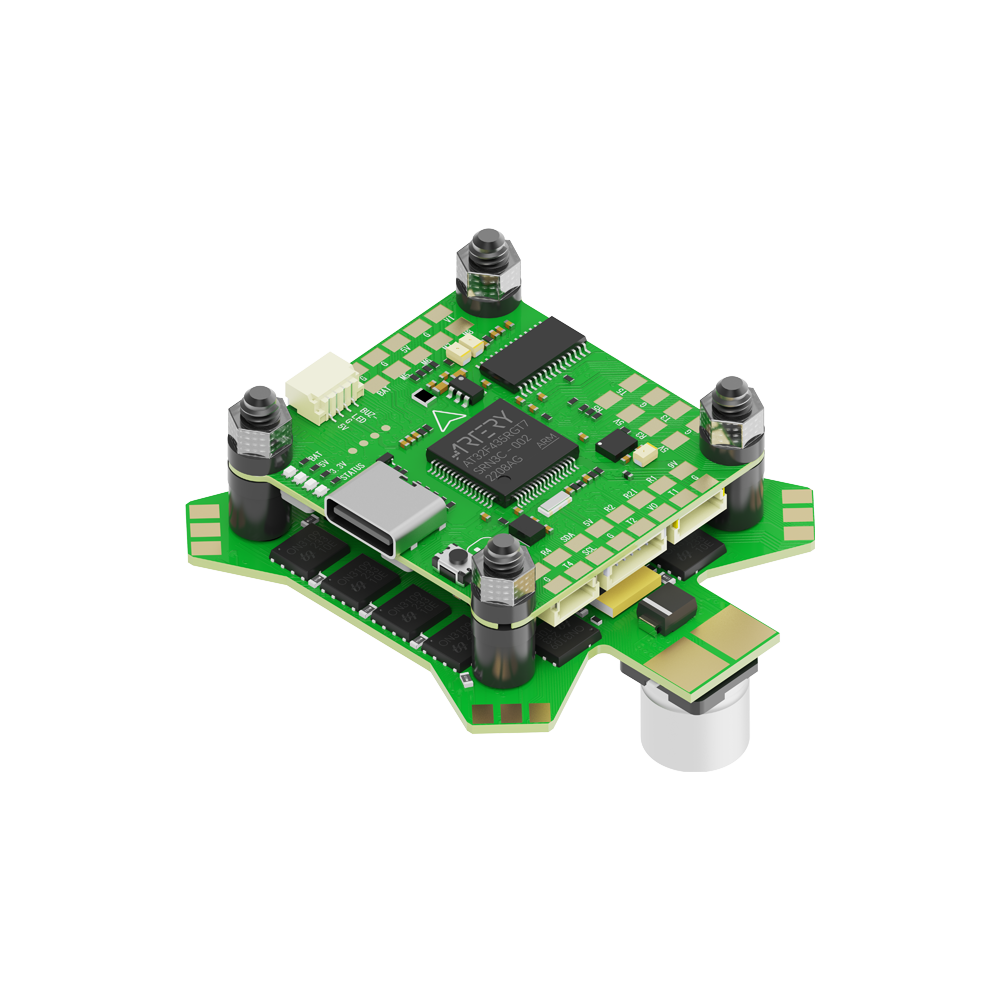

iFlight BLITZ ATF435 Stack (E55S 4-IN-1 ESC)

MCU: AT32F435CGU7

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

November 6, 2023: The flight control Gyro was changed from BMI270 to ICM42688.

Mounting Holes: 30.5*30.5mm/Φ4mm

Weight: 14.7g

Supports 2-6S lipo input

MCU: BB21

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

Target:   Q-H-25 16.7(BlheliS) / Bluejay Q-H-25 (Bluejay)

1 x BLITZ  ATF435 Flight Controller

1 x BLITZ E55S 4-IN-1 2-6S ESC
