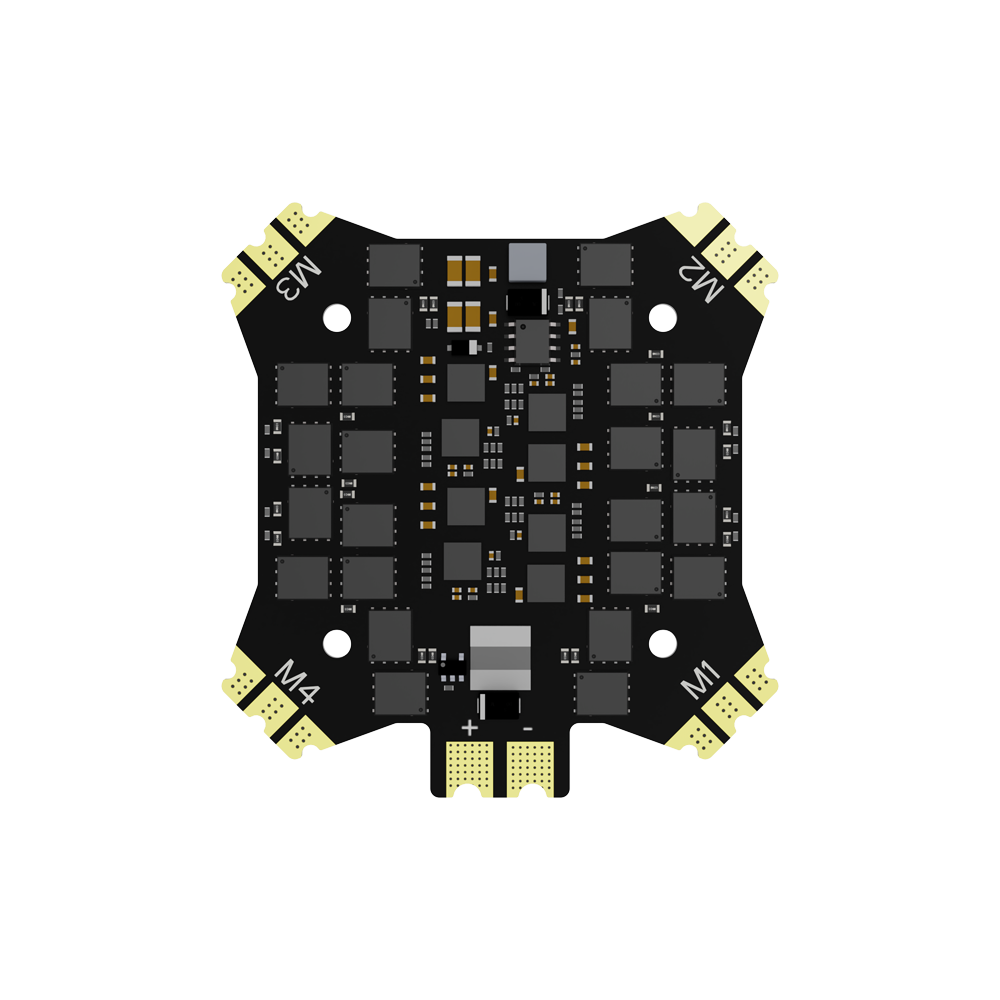

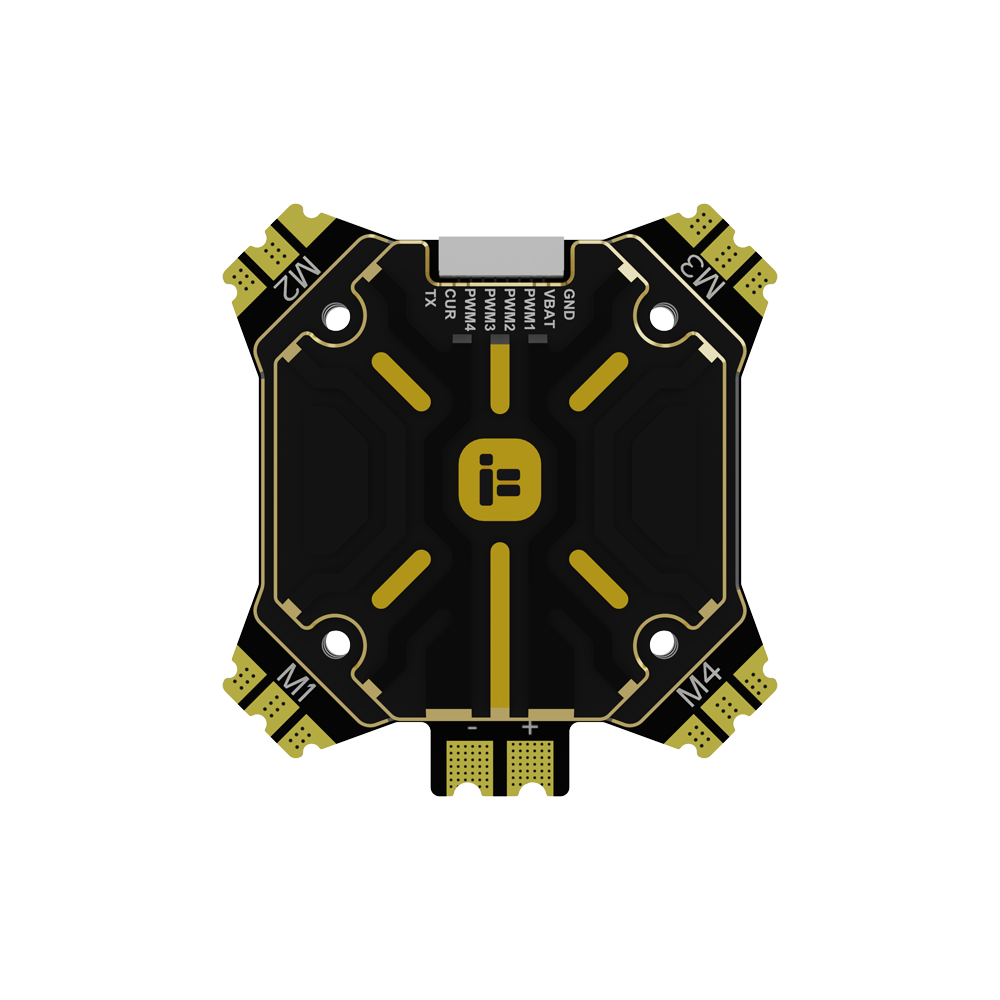

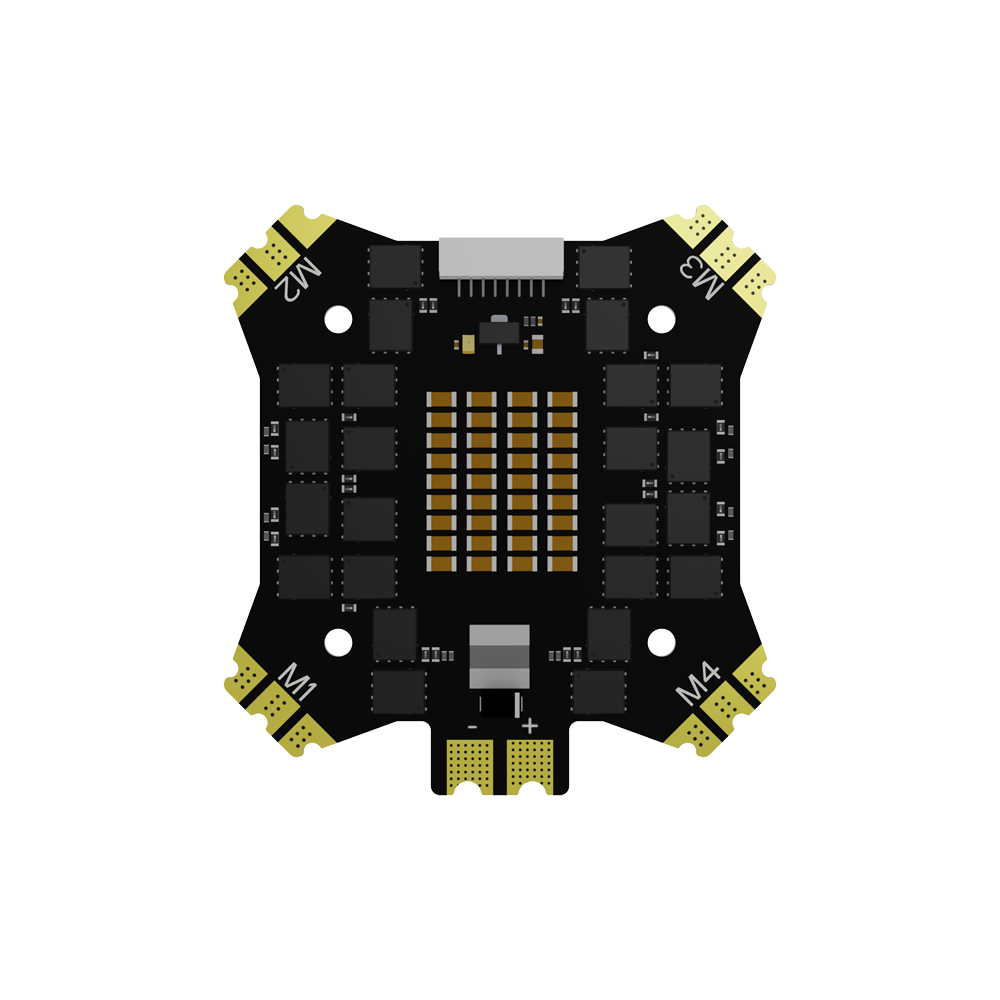

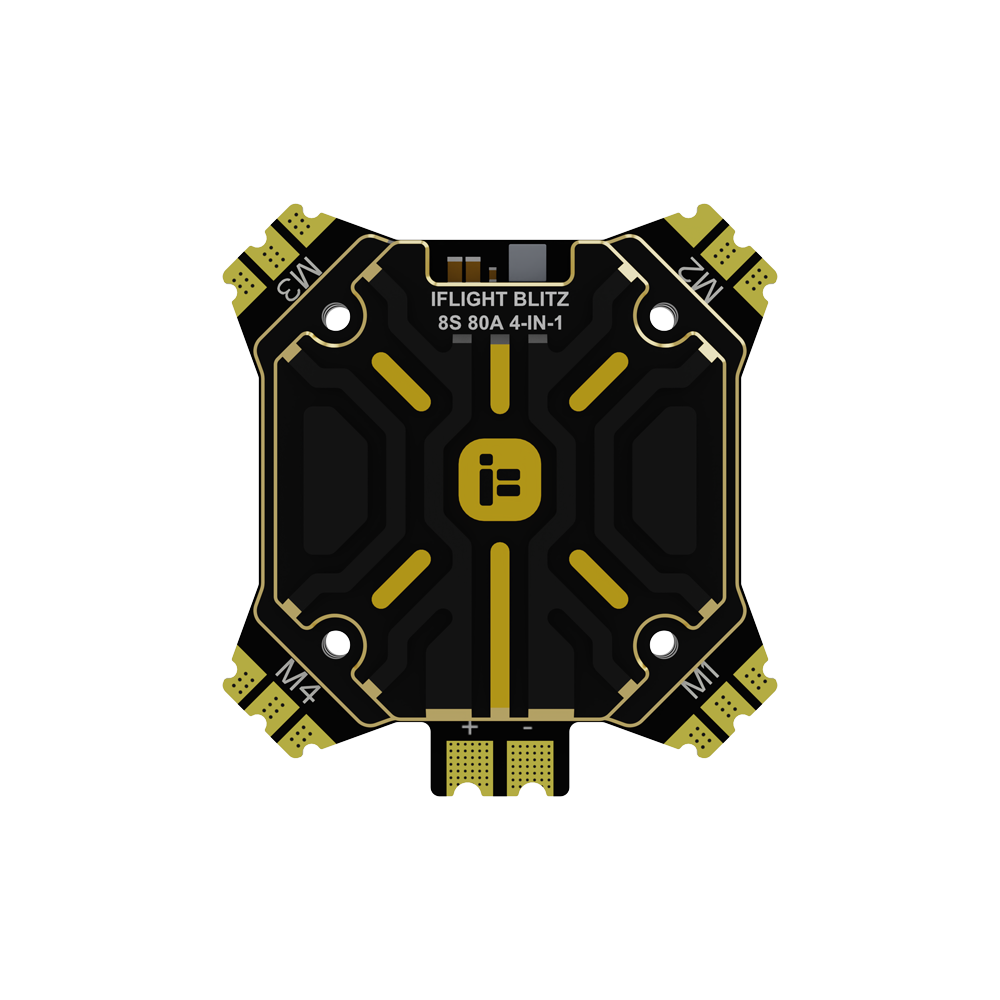

iFlight BLITZ E80 Pro 4-IN-1 ESC

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a

maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier

chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output

under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz,

combined with a three-in-one driver IC, achieves a faster running speed!

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

G071 MCU, 48mHz maximum clock speed;

TDK MLCC Low ESR ceramic capacitors;

Top grade PSMN1R0-40YLD MOSFET;

8 layers double-sided PCB board

Product Name: BLITZ E80 4-IN-1 ESC

Input Voltage: 2-8S

Max. Continuous Current: 80A

Max. Burst Current: 100A

MCU: G071

BEC: No

Firmware: BLHeli32

Current Sensor: Yes

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2

Mounting Dimensions: 35x35mm/Φ4mm

Dimensions: 35x42mm

Weight: 65g(±10)

Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

1 x BLITZ E80 4-IN-1 Pro ESC (G2）

1 x Wiring set

BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

If you want to use it for Taurus X8 V3, please select “Without CNC”.
