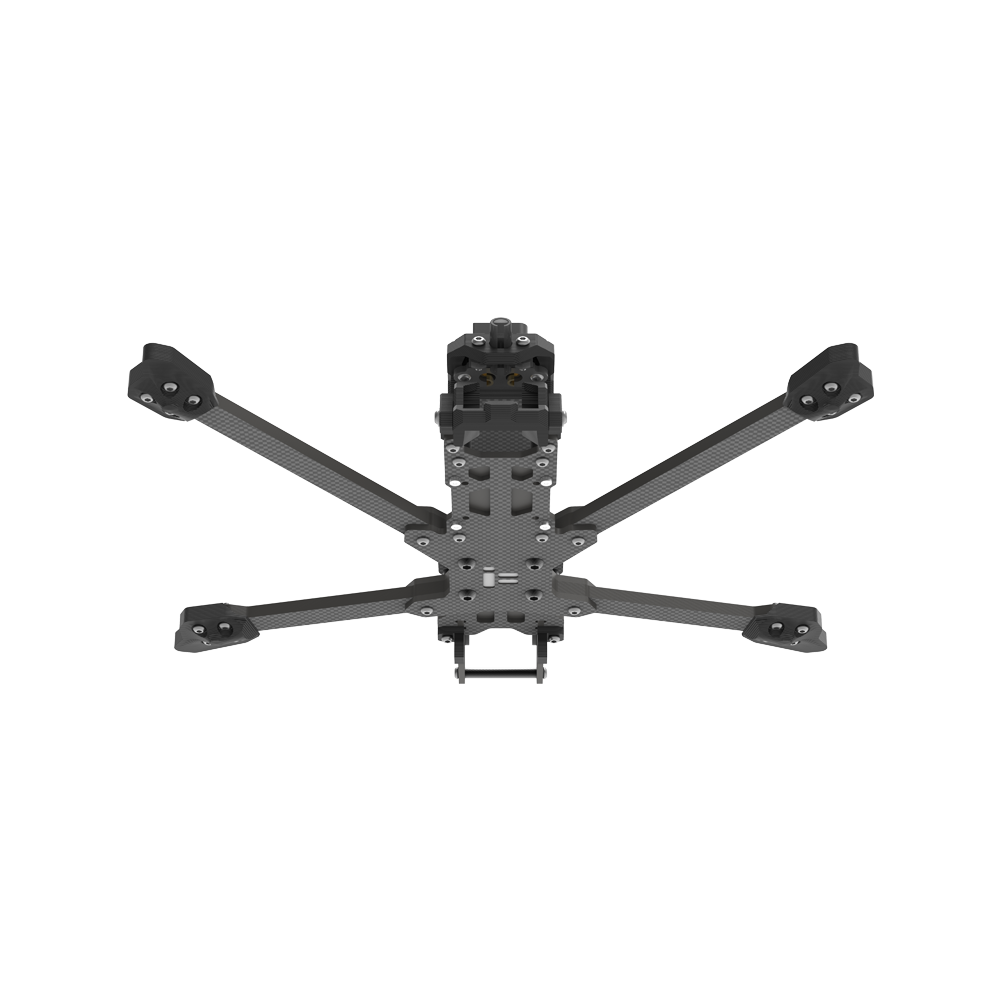

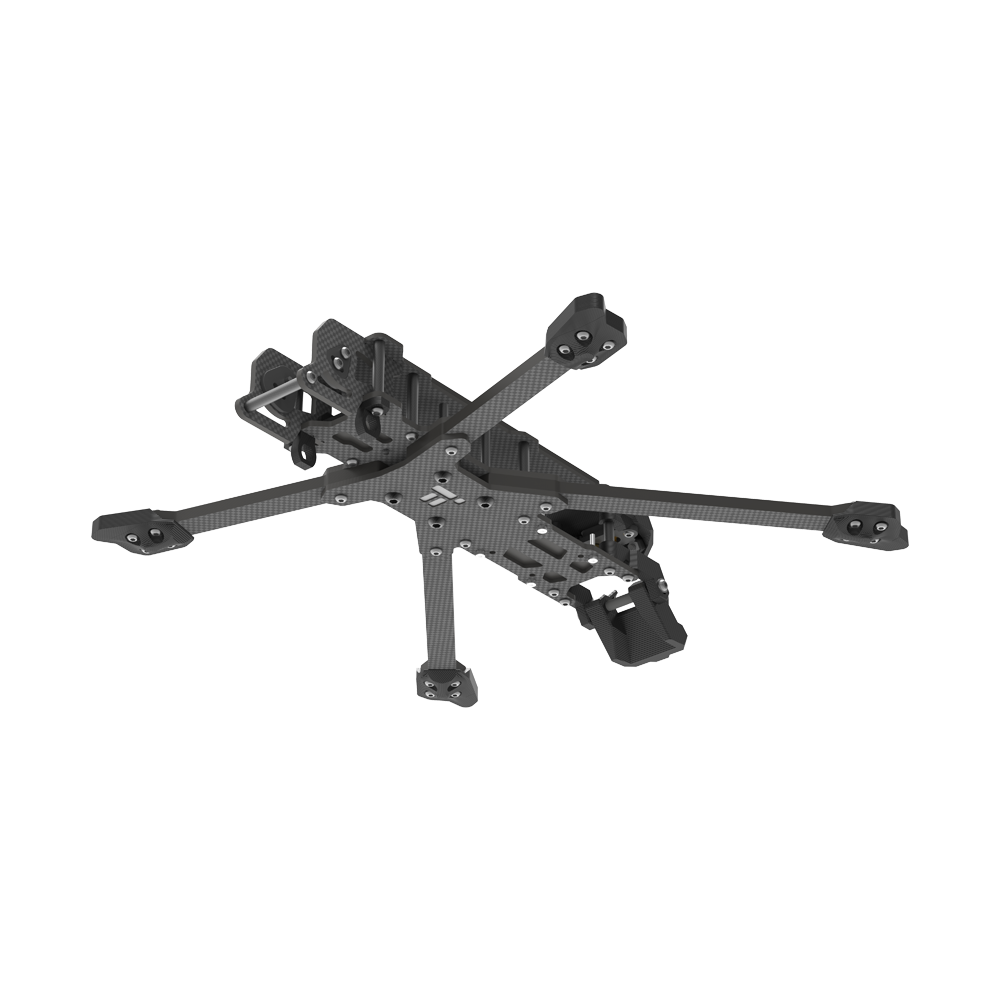

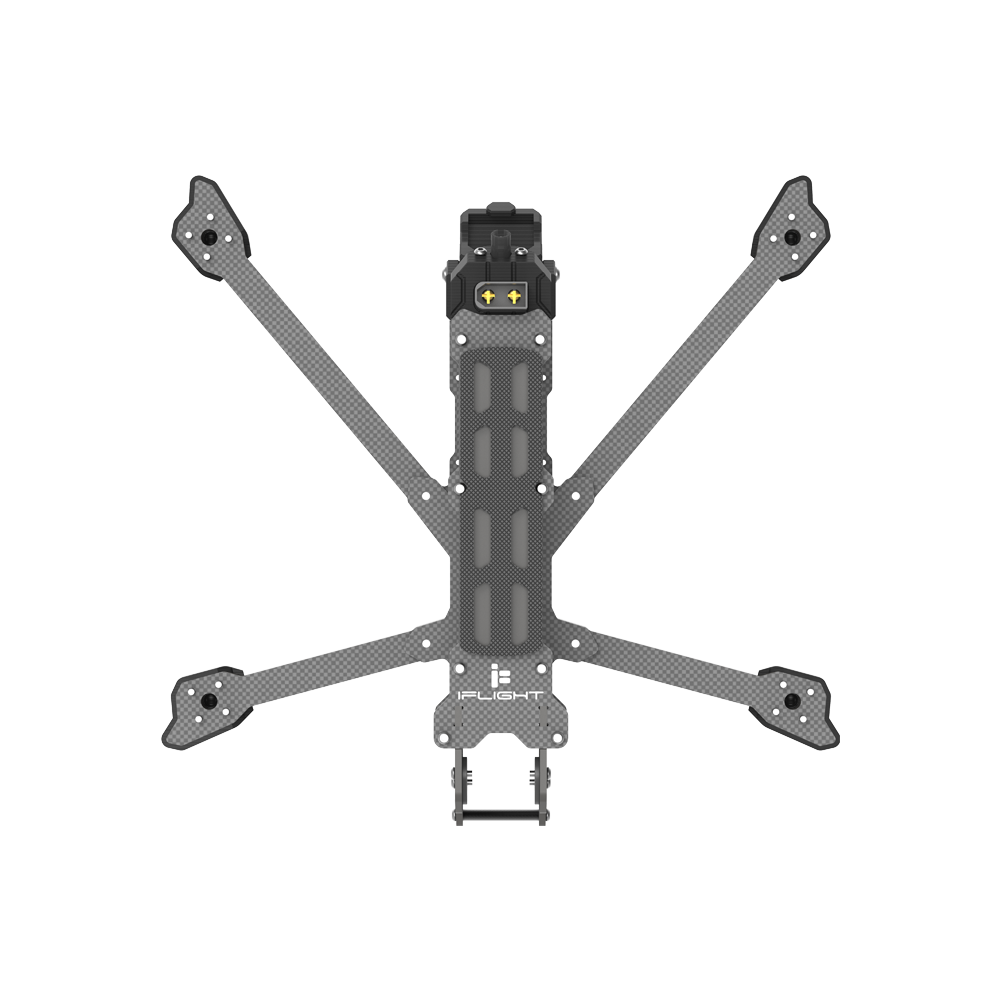

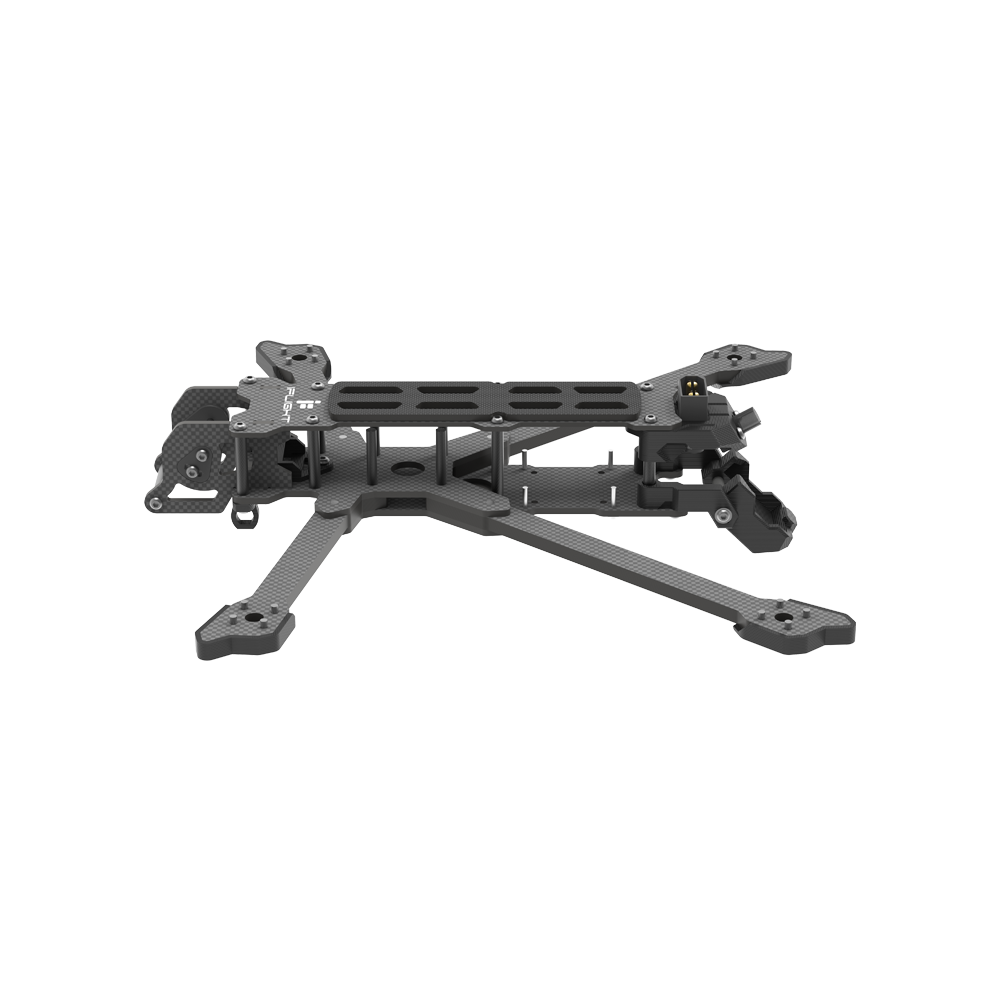

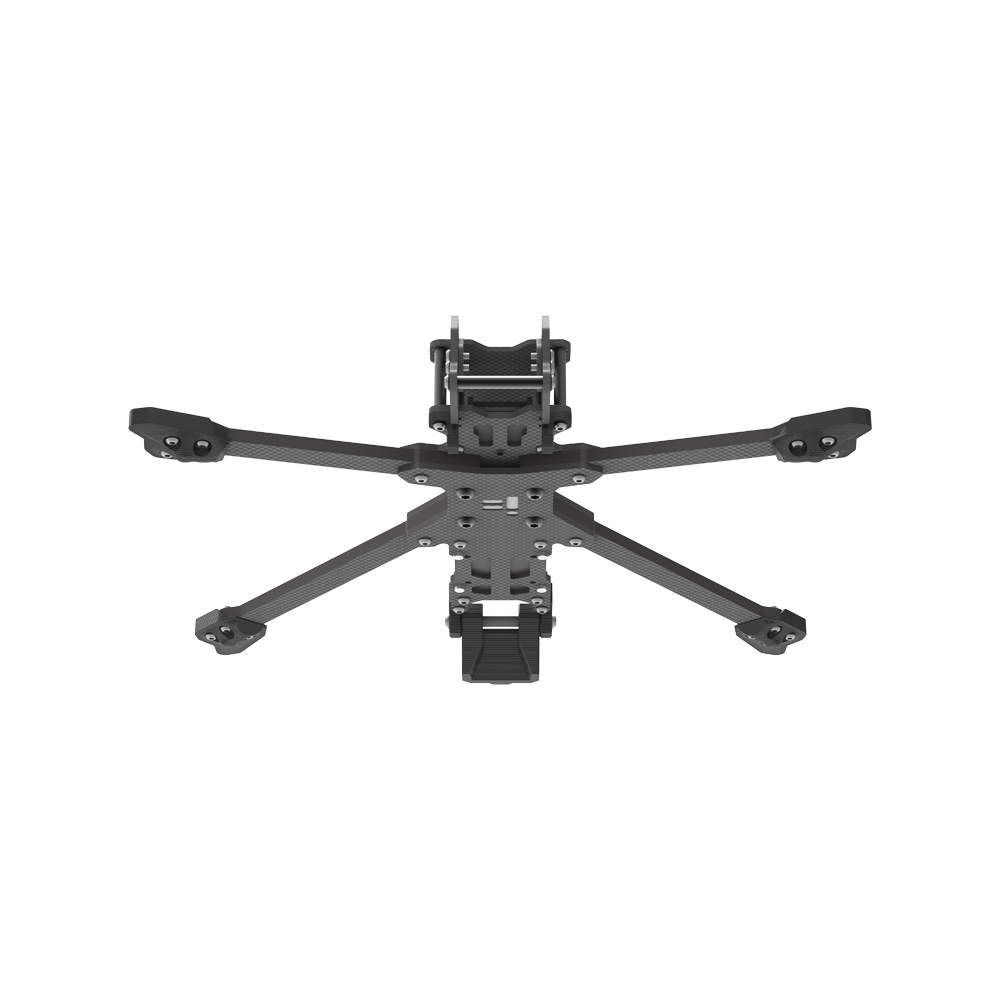

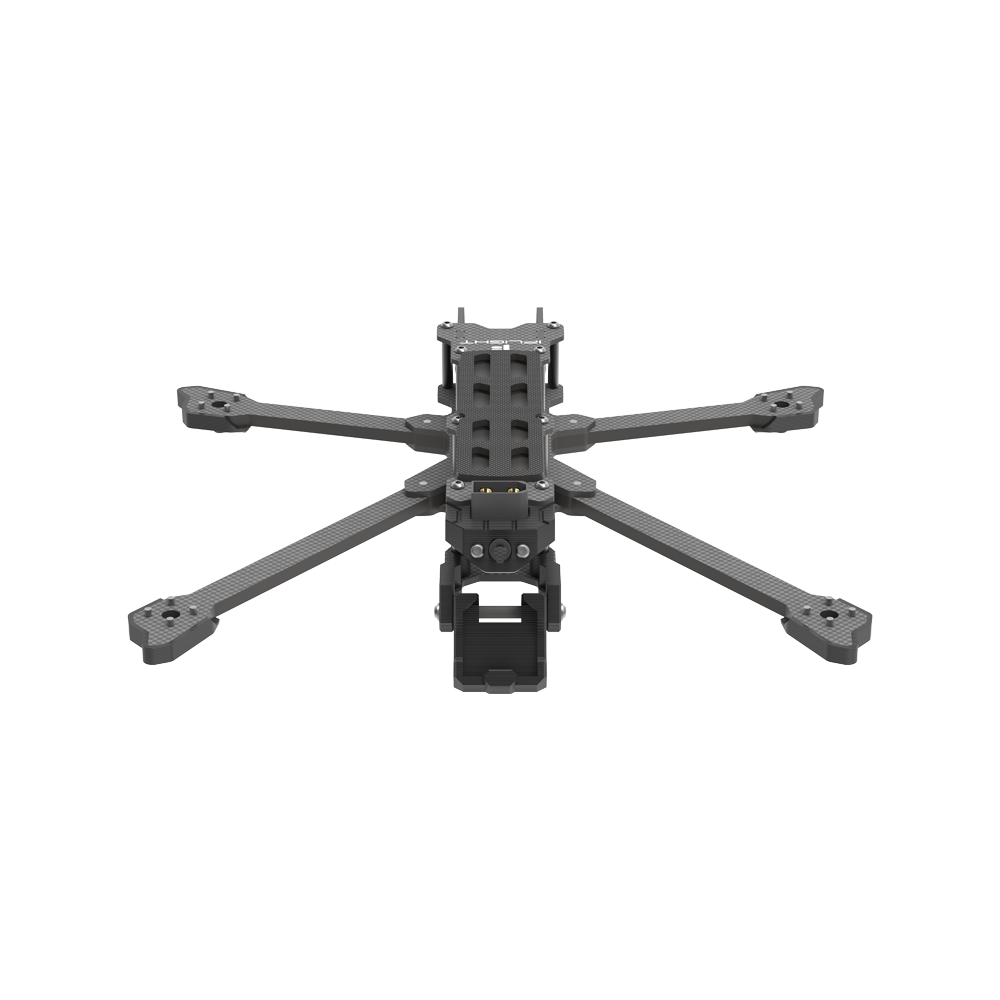

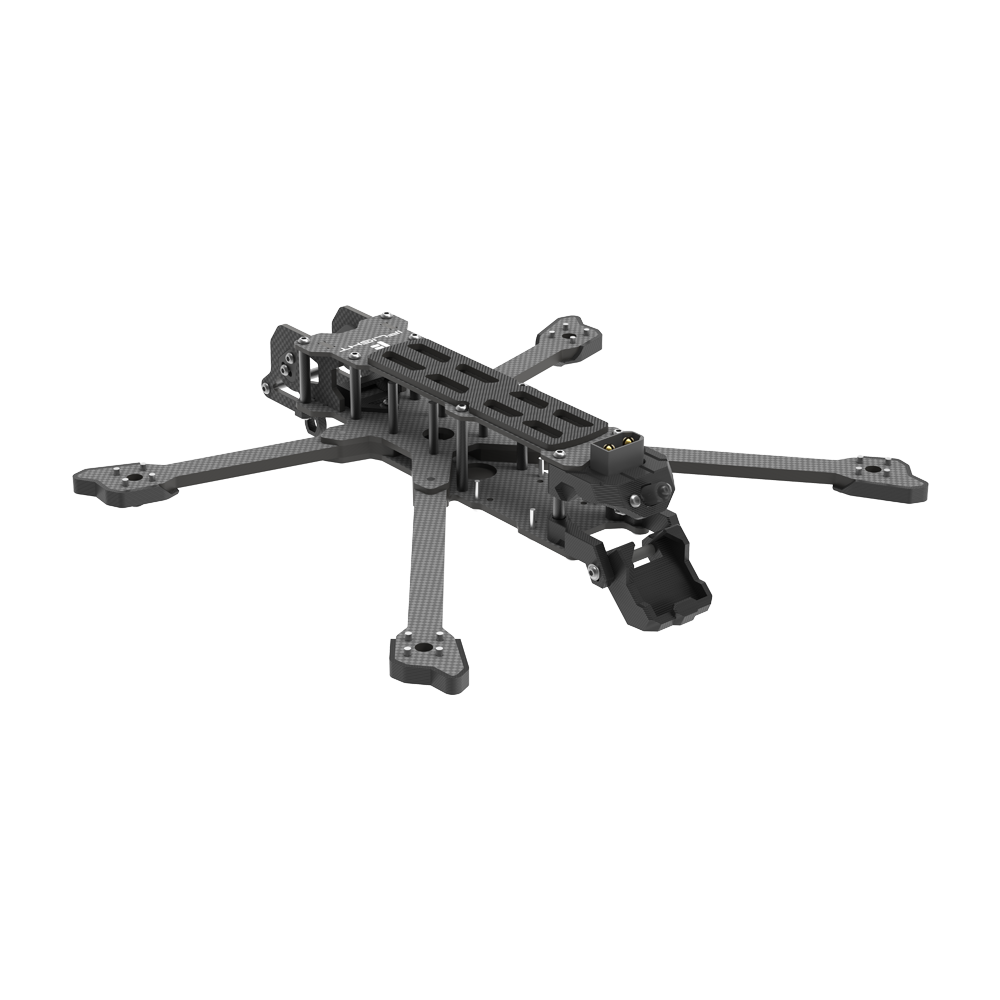

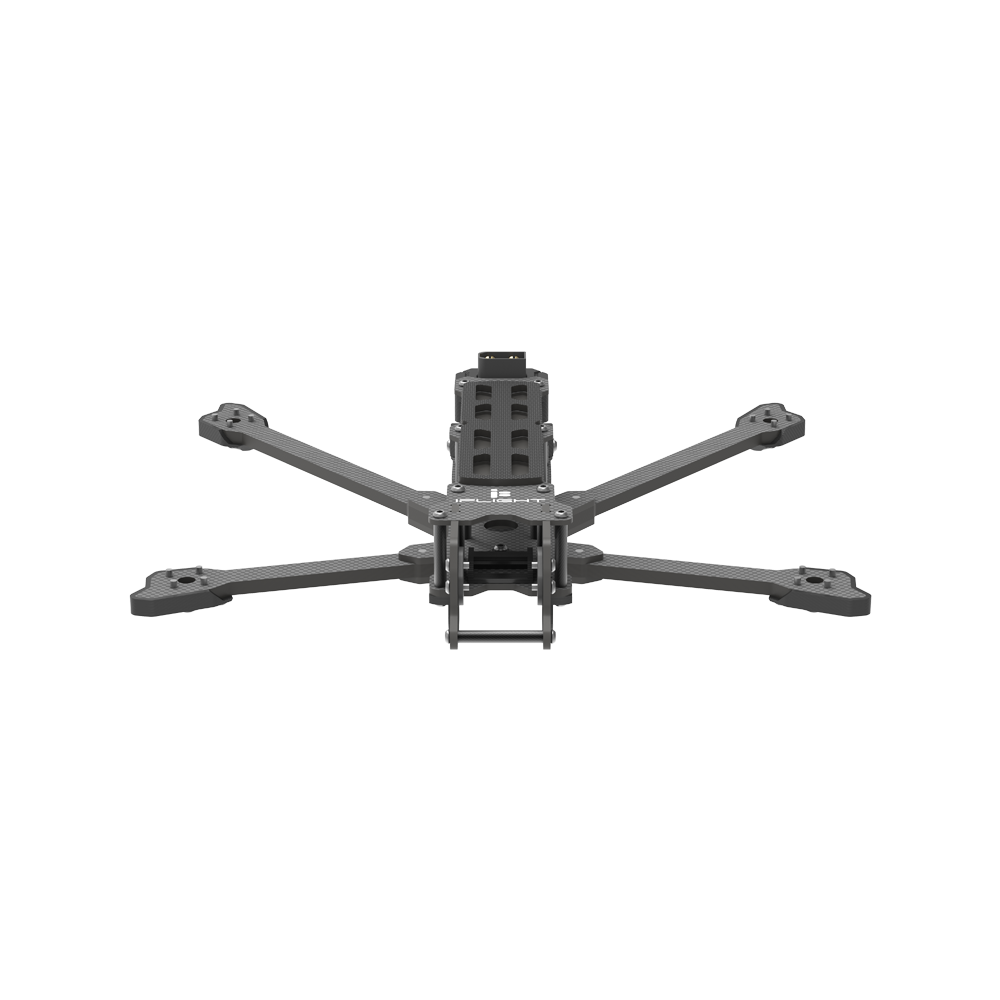

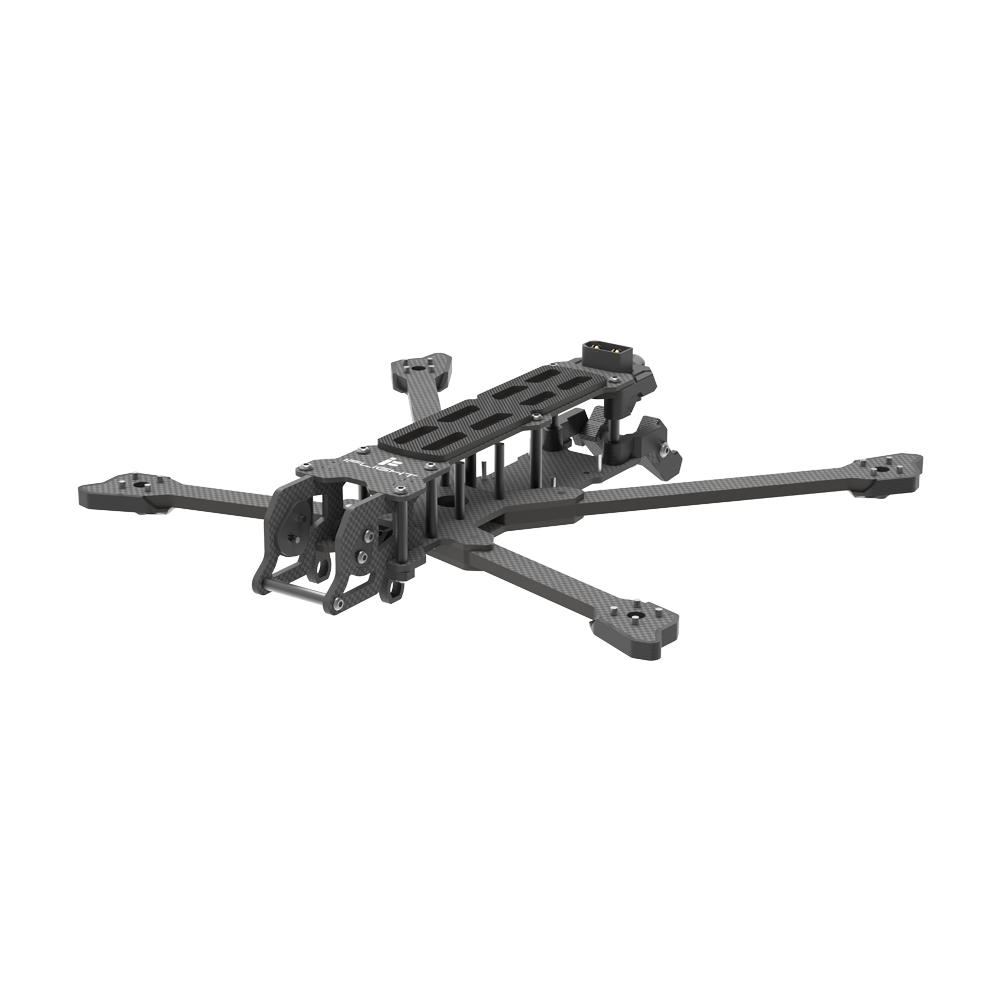

iFlight Chimera5 Pro V2 Frame Kit

Introducing our ultra-light Long Range 5 inch Frame kit for every terrain and beyond. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go.

The latest version of this frame has updated camera side plates to support the DJI O3 Air Unit and other 19-20mm FPV cameras.

New Camera Side Plate to perfectly fit the O3 Air Unit

Secured Integrated XT60 Battery Plug

New GPS Mount, easy to disassemble

Product Name：Chimera5 Pro V2 Frame Kit

Wheelbase: 225mm

Frame Dimension: L140*W176*H28.5 mm

Frame Body Dimension: 28.5mm

Arm Thickness: 4mm

Bottom Plate Thickness: 2mm

Top Plate Thickness: 1.5mm

Upper Plate Thickness: 2mm

Motor Mounting: 12x12mm/φ2mm

Max Flight Stack Height: 19mm

Max VTX Height: 25mm

Flight Stack Mounting: 20*20/φ3mm

VTX Mounting: 25*25 φ1.6mm / 20*20 φ2mm

Weight: 135g

Please note that due to manufacturing processes, the product may have a standard manufacturing tolerance of ±2mm.

1 x Chimera5 Pro V2 Frame Kit

1 x TPU Set

1 x Screw Bag

1 x Anti-Slip Battery Pad

2 x Battery Strap
