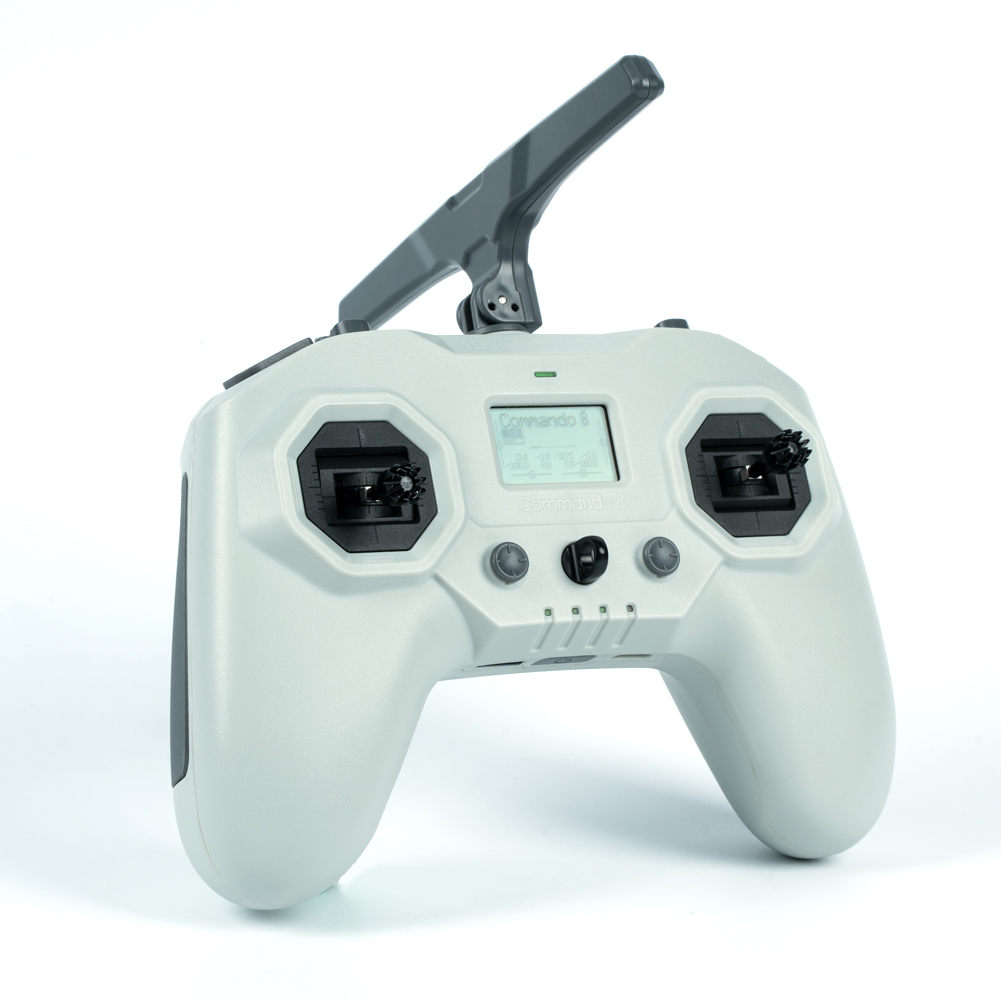

iFlight Commando 8 Radio Transmitter – ELRS

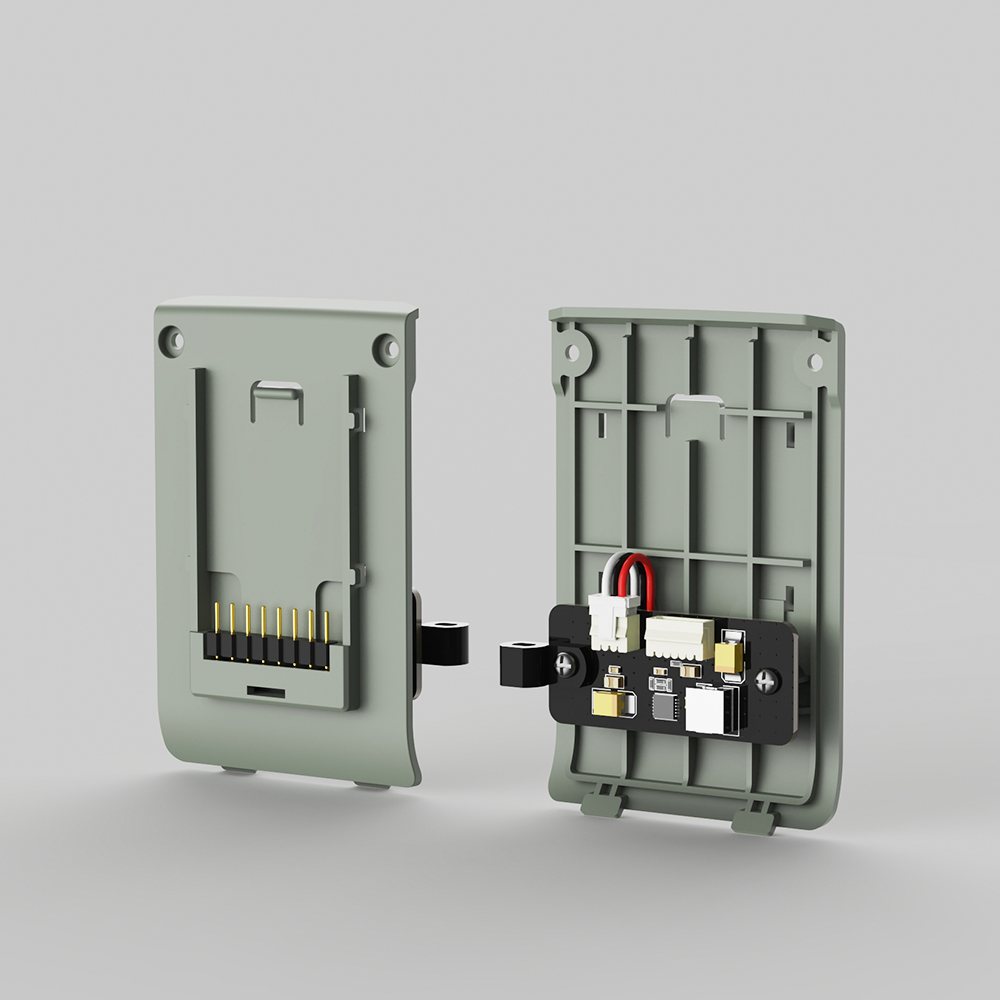

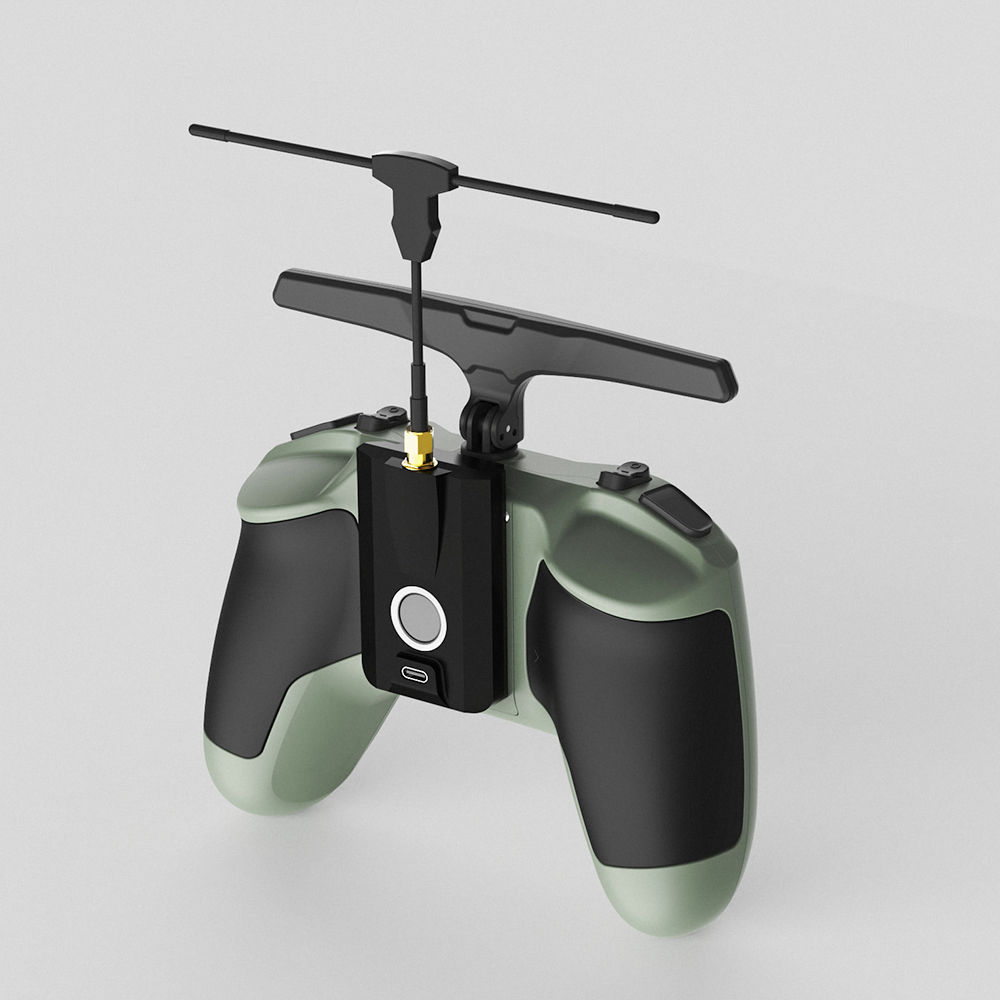

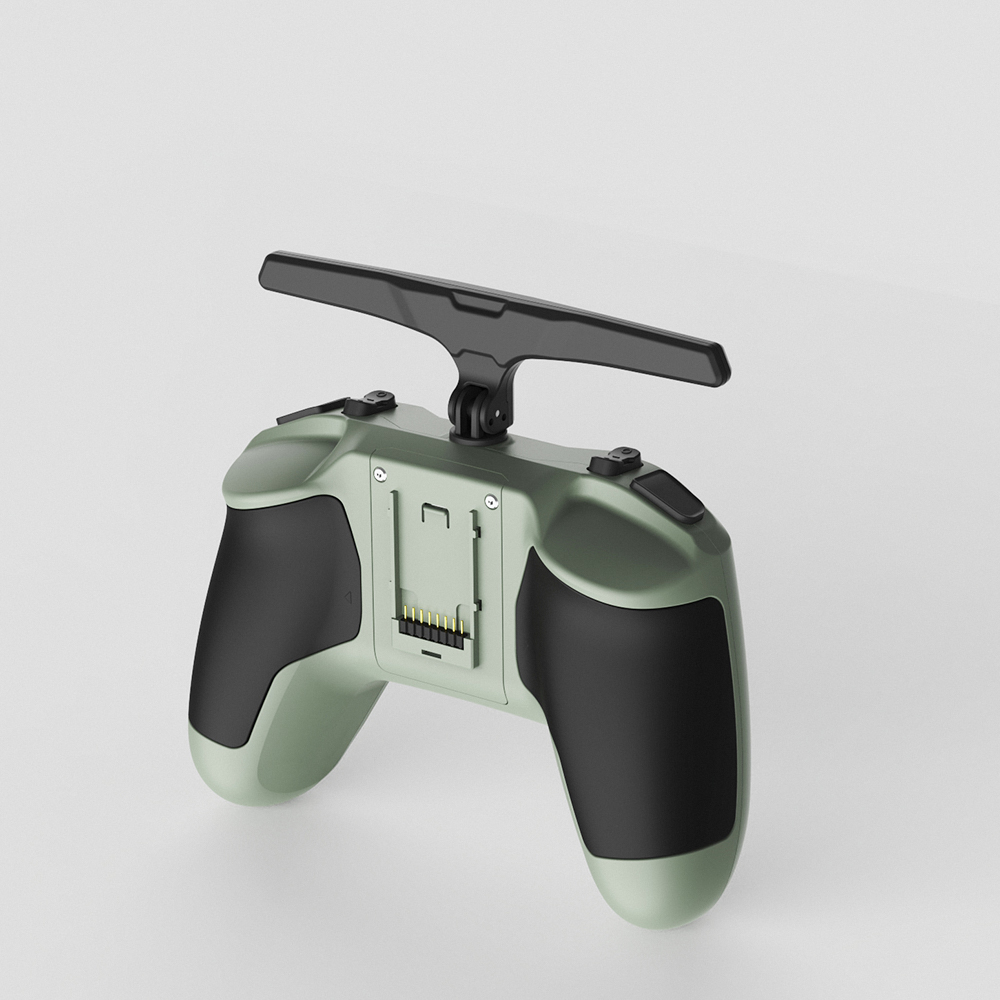

It’s finally here, the iFlight Commando 8 with fully integrated iFlight ExpressLRS hardware! No additional external module necessary to run ELRS. If you’re planning to run another TX module, please checkout the optional add-on external module bay.

ExpressLRS TX modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.

Checkout the official ExpressLRS website: https://www.expresslrs.org

Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/

Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating: https://opencollective.com/expresslrs

HIGHLIGHTS

– Internal iFlight ExpressLRS (ELRS) transmitter (additional fan for cooling)

– Market’s lowest crystal frequency deviation (low packet loss, high frequency stability)

– Highest quality digital hall sensor gimbals for maximum precision

– High-performance PCB Single and Dual Band (900/2400MHz) radio antenna

– Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)

– Stock EdgeTX firmware with pre-installed Lua scripts

– Several Gimbal Stick Ends available (stock 18mm)

PERFORMANCE AND COMPATIBILITY

Please use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation (only 11KHz in total at 51.99976MHz on the crystal). Please checkout this article for further information https://github.com/ExpressLRS/ExpressLRS/wiki/Crystal-Oscillator-(XO)-Frequency-Error

BAND OPTIONS

The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities. If you’re not sure what to get, please checkout the official ELRS Long Range Competition to see what has been achieved. https://www.expresslrs.org/2.0/info/long-range/

What can I expect? Due to local regulations, the 915MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.

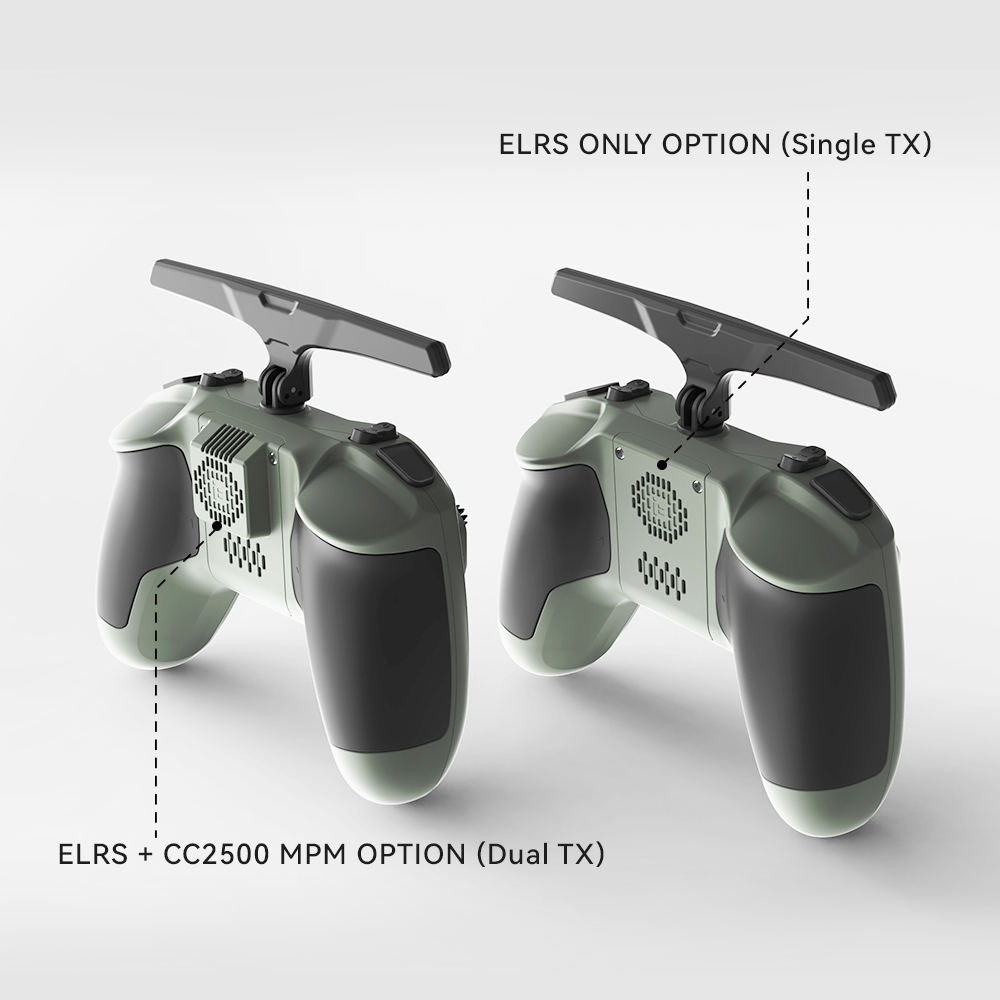

ELRS ONLY OPTION (Single TX)

Single ELRS option includes 1x ELRS TX module (please select band) pre-installed in the back of the radio

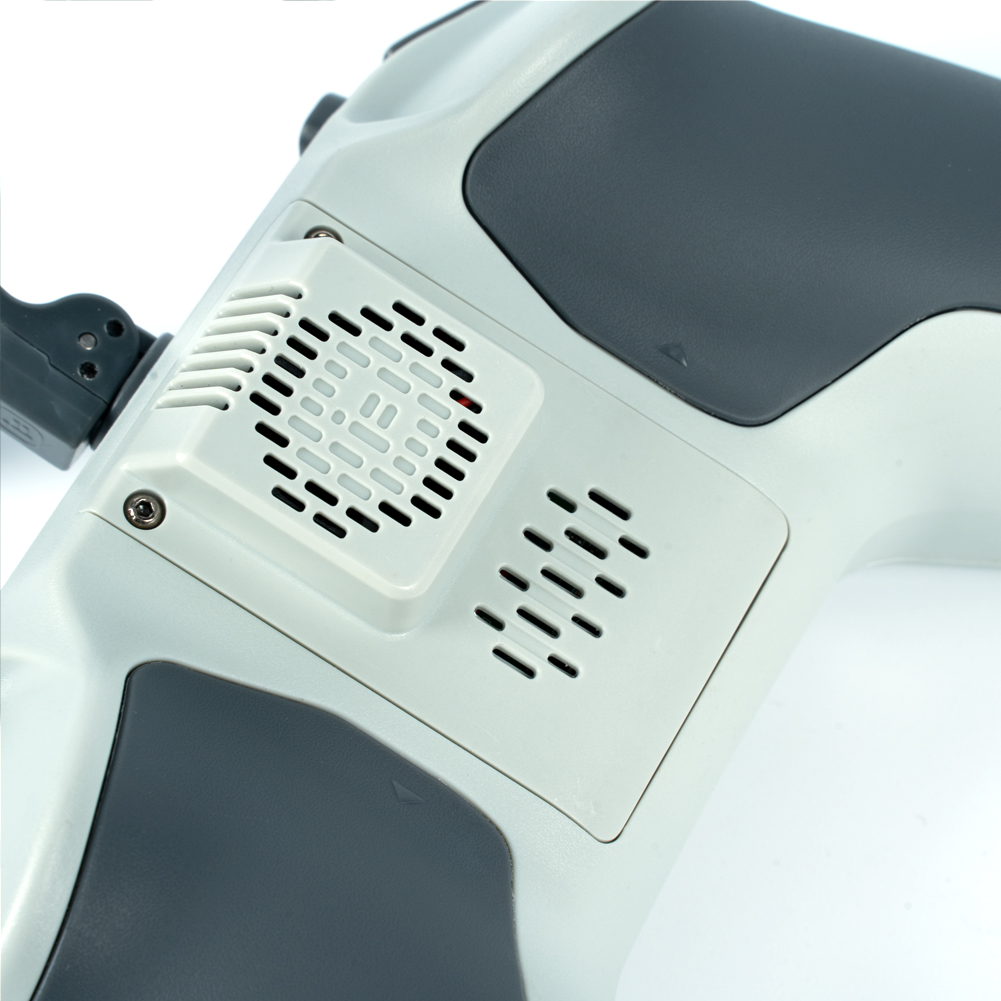

Cooling fan is inside the flat back cover

Single Band or Dual Band antenna option (for future upgrades or module changes)

Dual Band antenna option for convenient multi band use without changing the antenna

Antenna Options:

– Dual-Band (868/915MHz+2.4GHz)

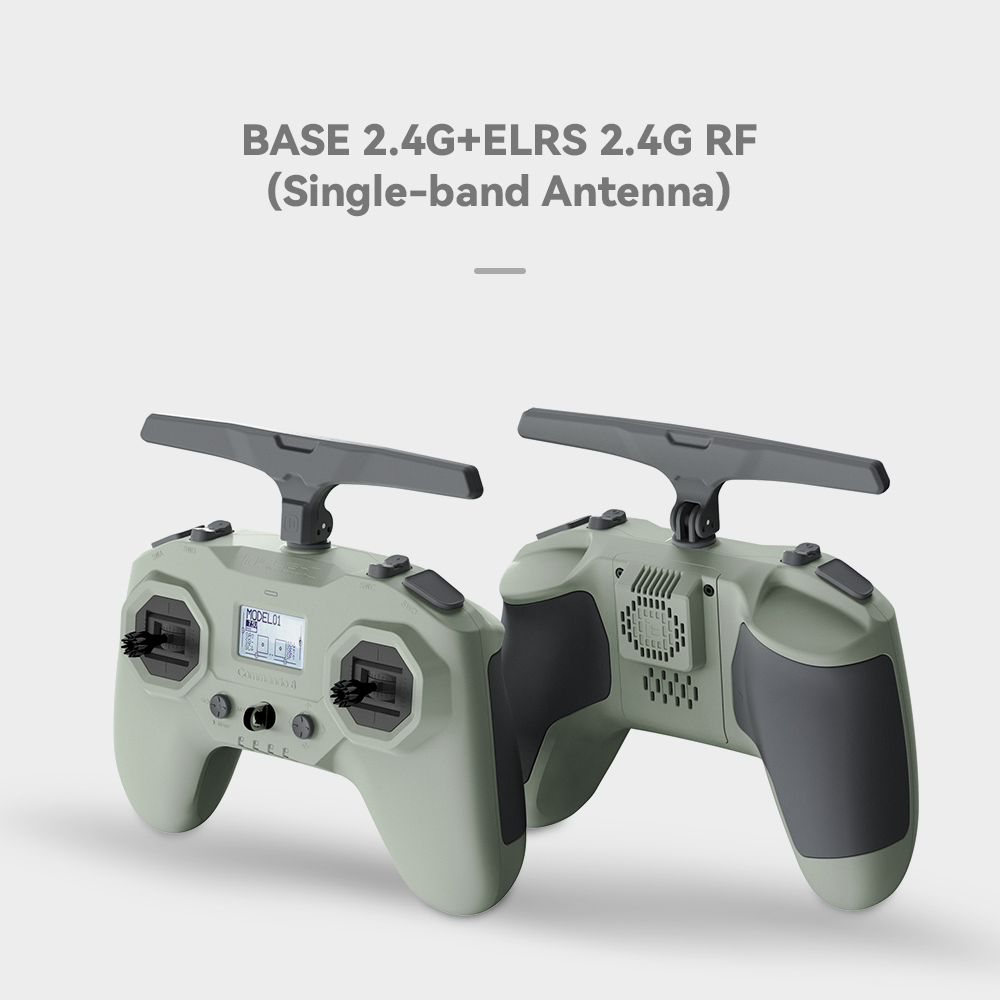

– Single-Band (2.4GHz)

– Single-Band (868/915MHz)

Button Functionality:

– 2x 5-axis menu buttons for full OpenTX or EdgeTX control

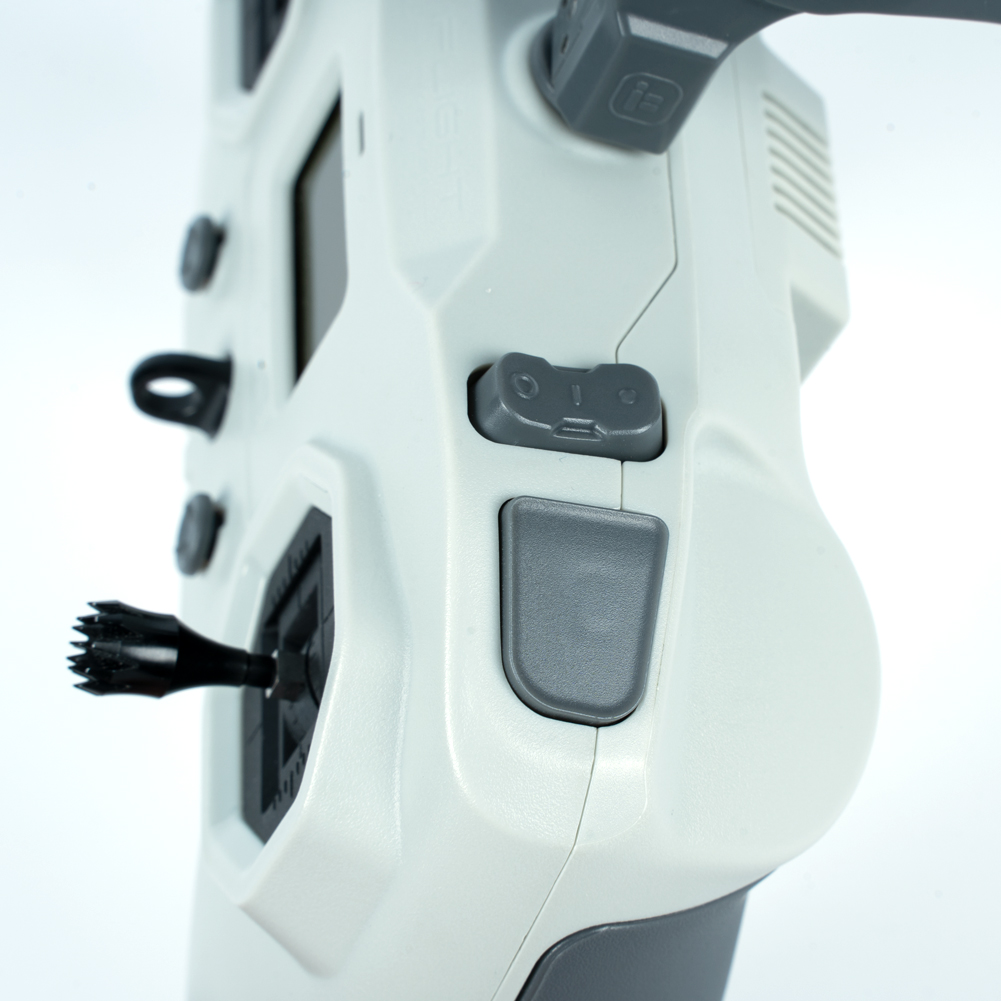

– 2x 2-position switches (can be used for arming; not momentary)

– 2x 3-position switches

RF Power:

– 2.4GHz system: SX1280

– 868/915MHz system: SX1276

– ExpressLRS 2.4GHz // Max Output 500mW

– ExpressLRS 868/915MHz // Max Output 1000mW

– BASE CC2500 2.4GHz Multiprotocol // Max Output 100mW

– Radio Channels: 8

– Input: Mini High Precision Digital Hall Gimbals with NMB bearings

– Gimbal Stick Ends: Stock length 18mm

– Charging: Type-C 20W Quick Charge

– Battery: Built-in 4000mAh 1S2P 18650 Battery

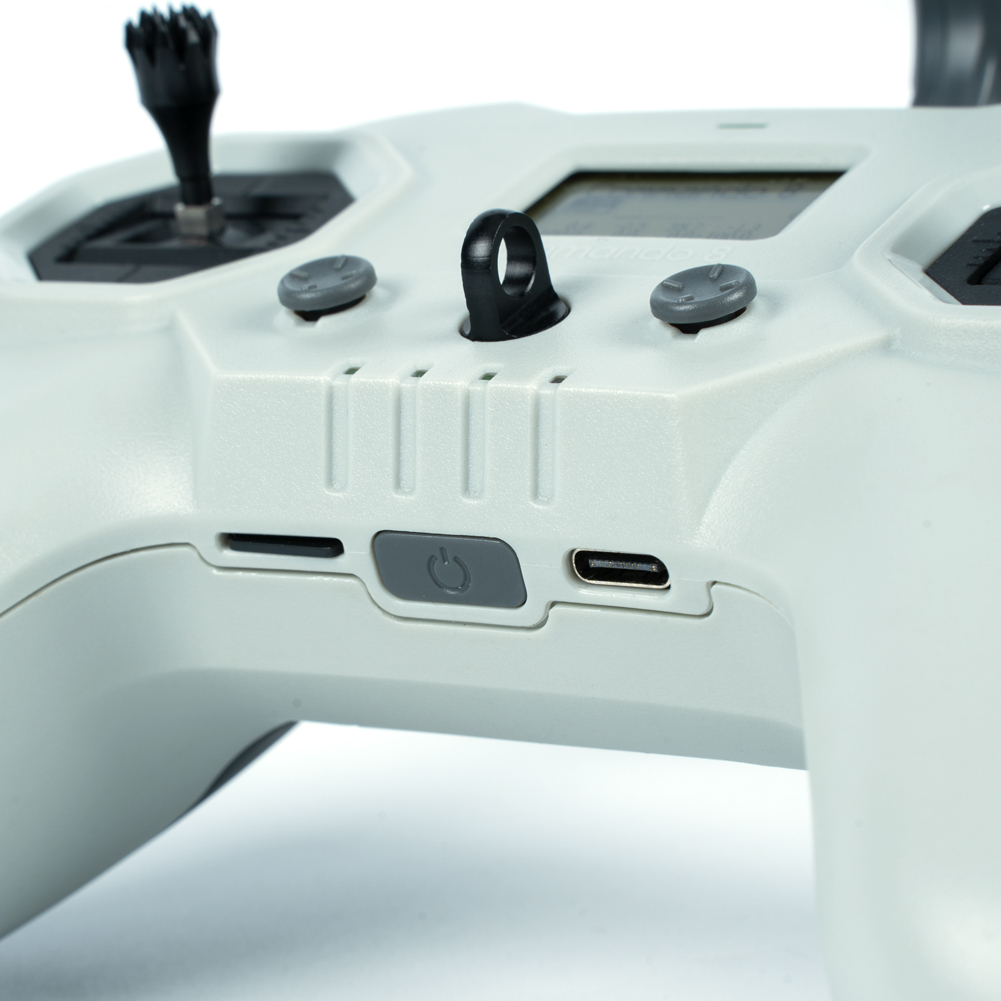

– Charging Connector: Type-C

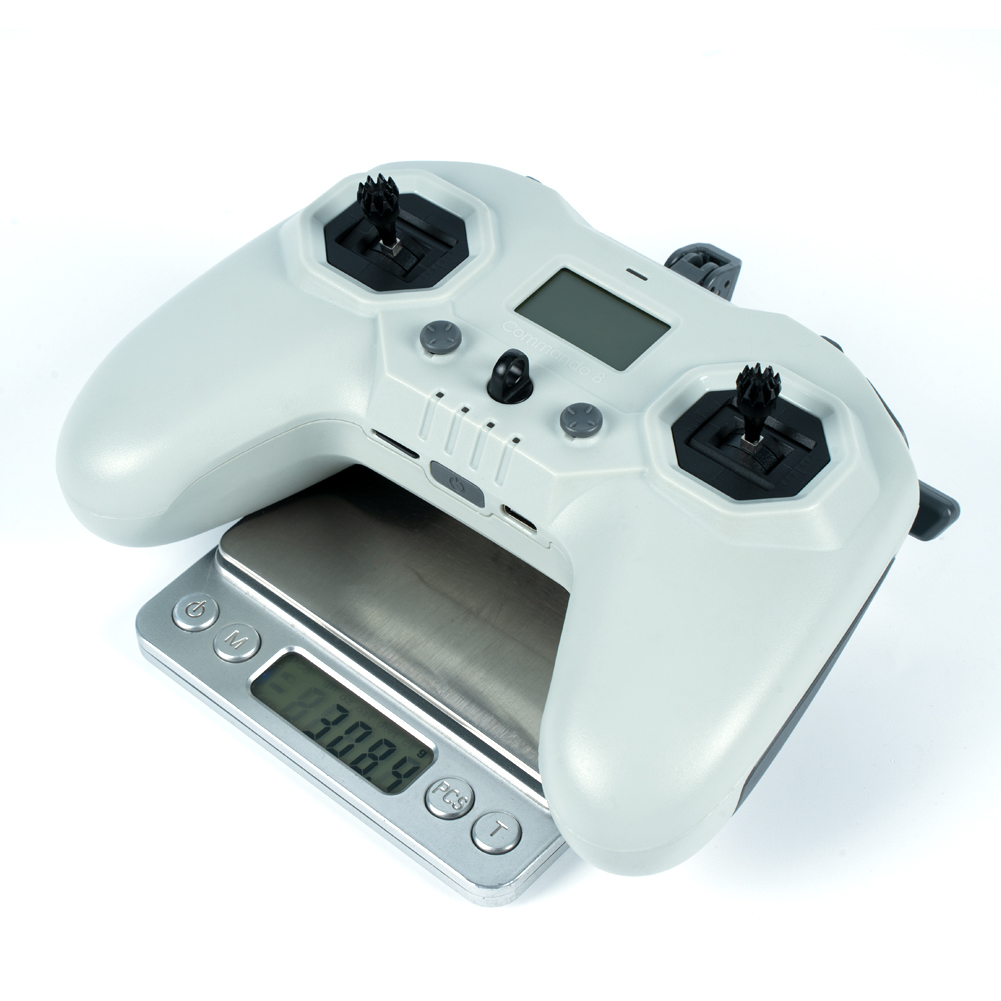

– Weight: 310g
