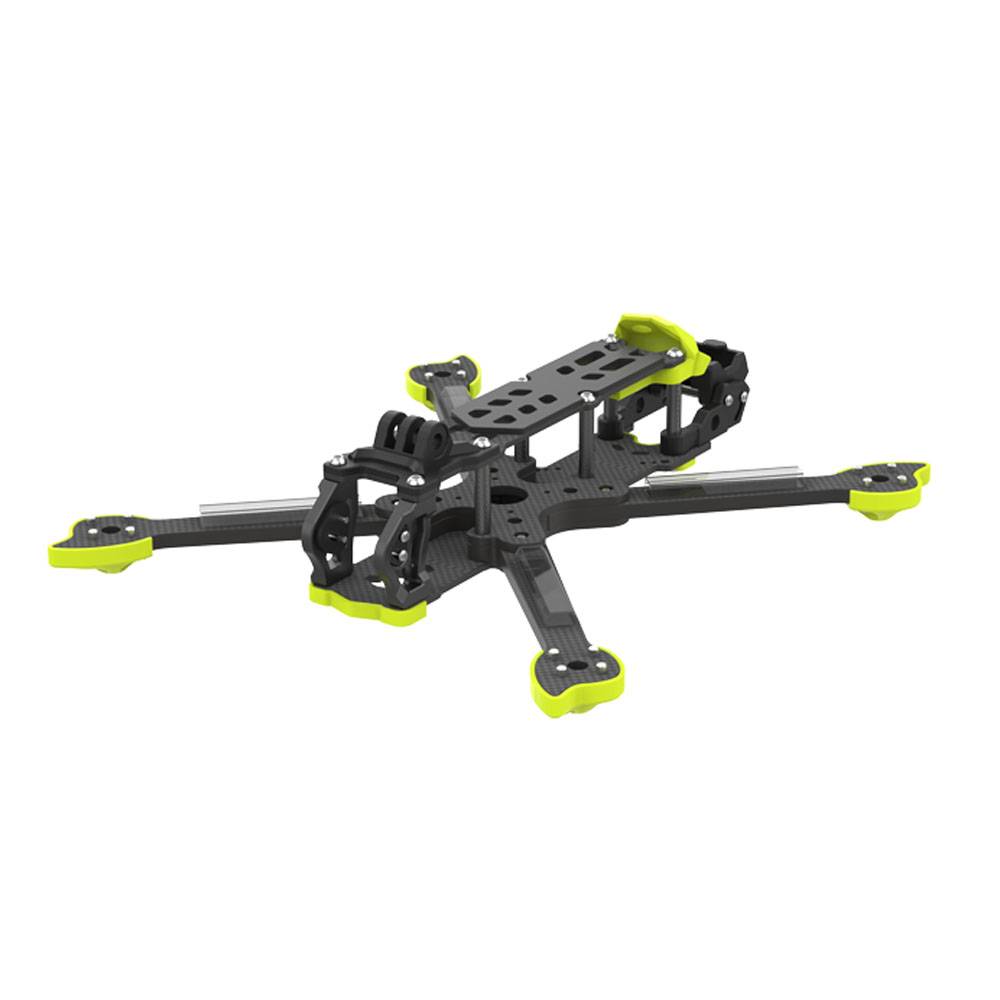

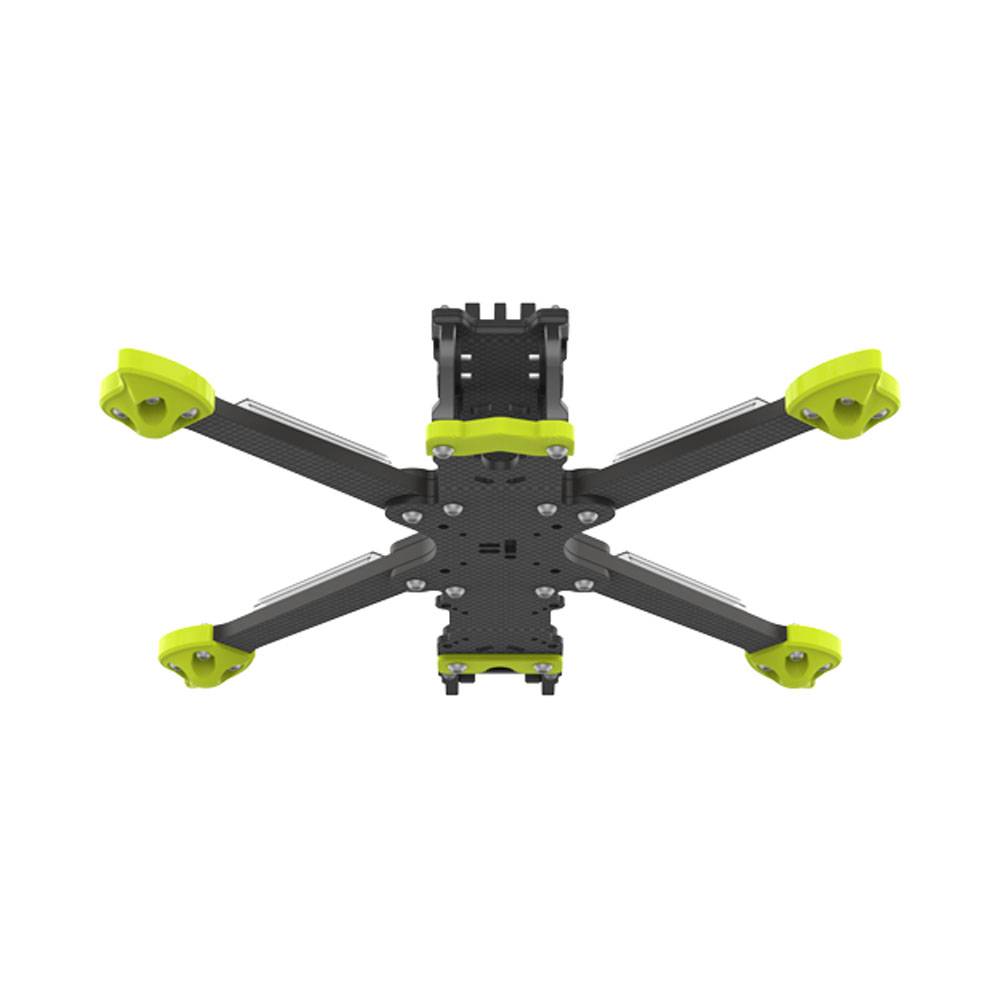

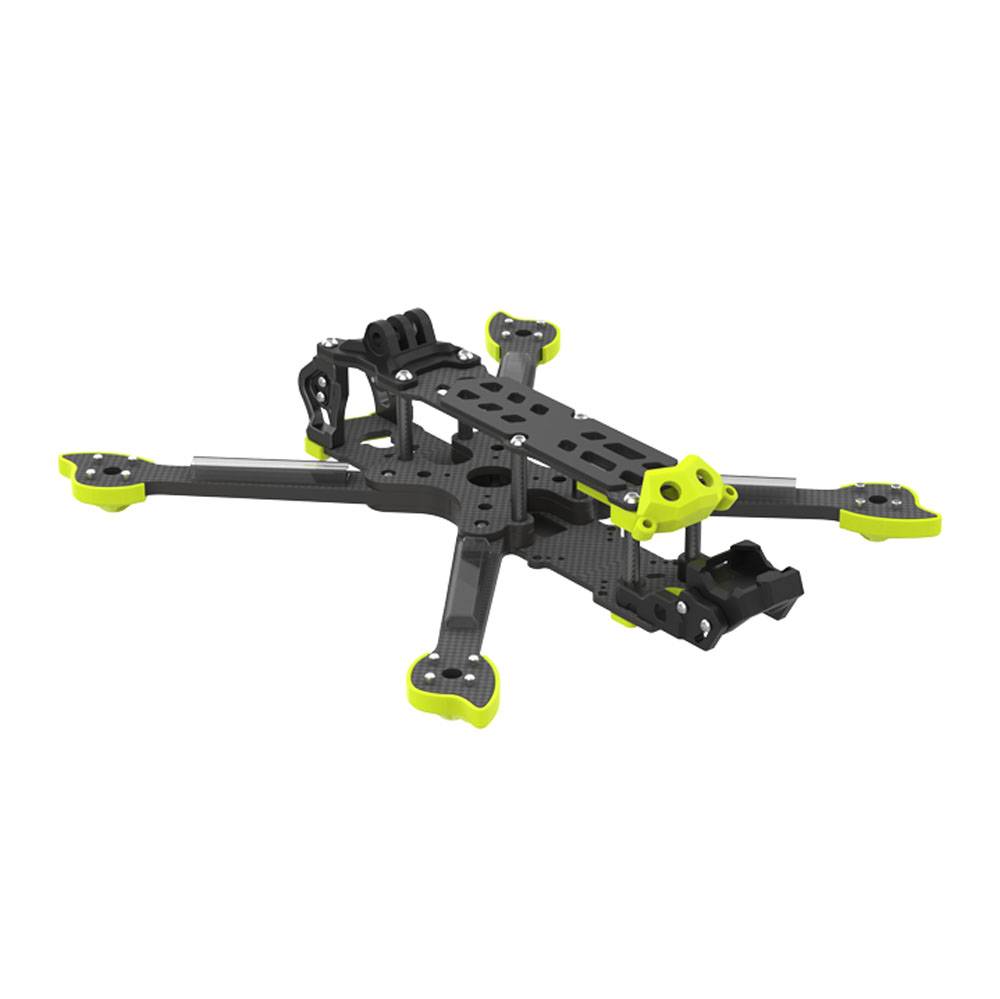

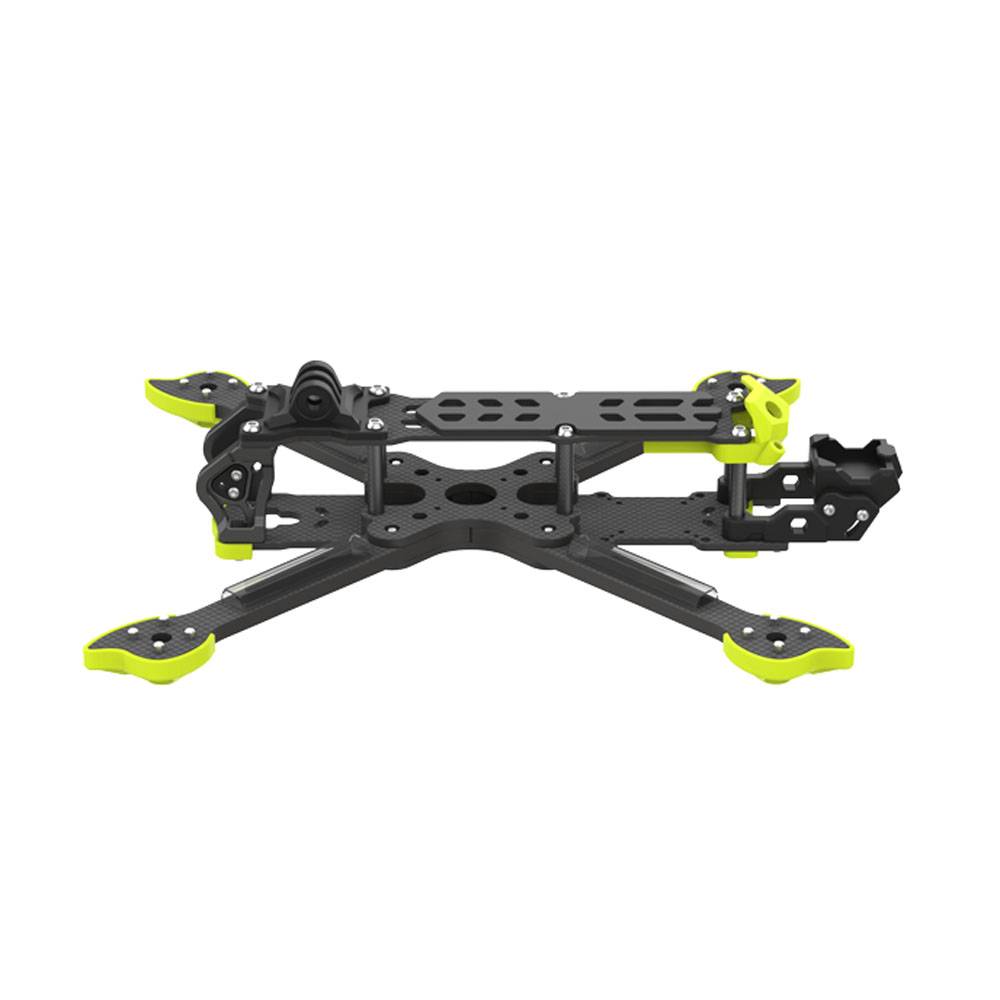

iFlight Nazgul5 V3 Frame Kit

The iFlight Nazgul5 V3 frame is a 5″ freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5″ prop control.

• 5″ version also fits 5.1″ style propellers
• Fits both 30.5×30.5 and 20×20 stacks
• Compatible with DJI O3 HD System
• 5mm arm design for more durability
• Popular True-X configuration
• LED illuminated Logo
• TPU crash-guards
• Easy-Swap arms

• Wheelbase: 245mm
• Frame Dimension: L173*W173*H36.5 mm
• Frame Body Dimension: 36.5mm
• Arm Thickness: 5mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2.5mm
• Upper Plate Thickness: 3mm
• Camera Plate Thickness: 3mm
• Motor Mounting：16x16mm
• VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
• Weight: 130grams (Included no TPU Parts)

• 1 x Nazgul5 V3 Frame Kit
• 1 x GoPro TPU Base Mount
• 1 x Screw Bag
• 4 x TPU Armguard
• 1 x Bottom Plate Front Protection TPU
• 1 x Bottom Plate Rear Protection TPU
• 1 x Anti-slip Battery Pad
• 4 x Motor Wire Shield Tube
• 2 x Battery Strap(20*250mm)
