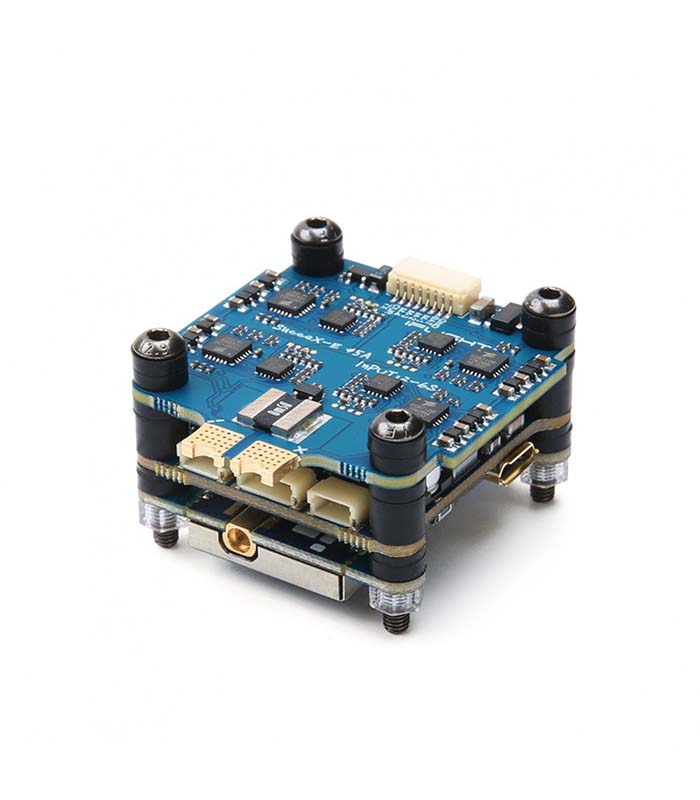

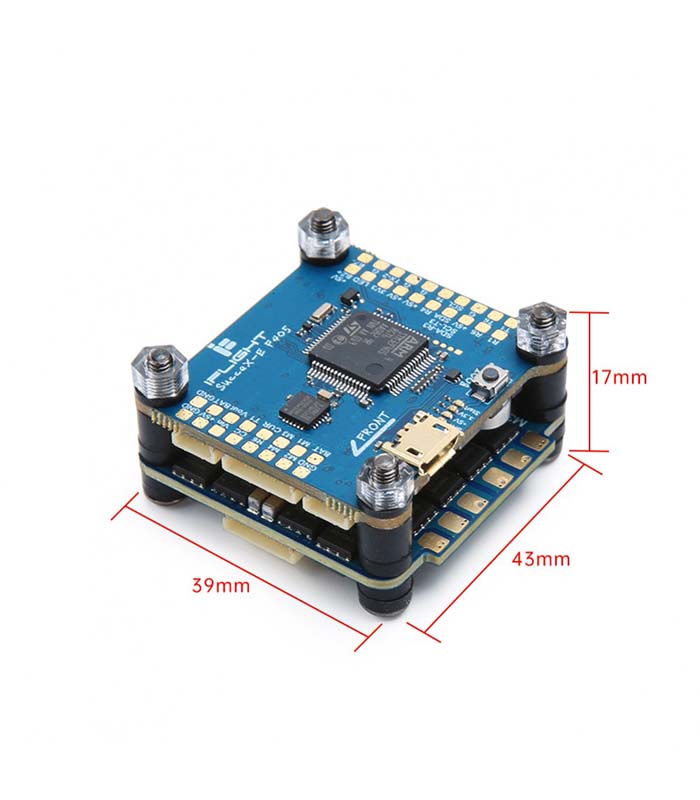

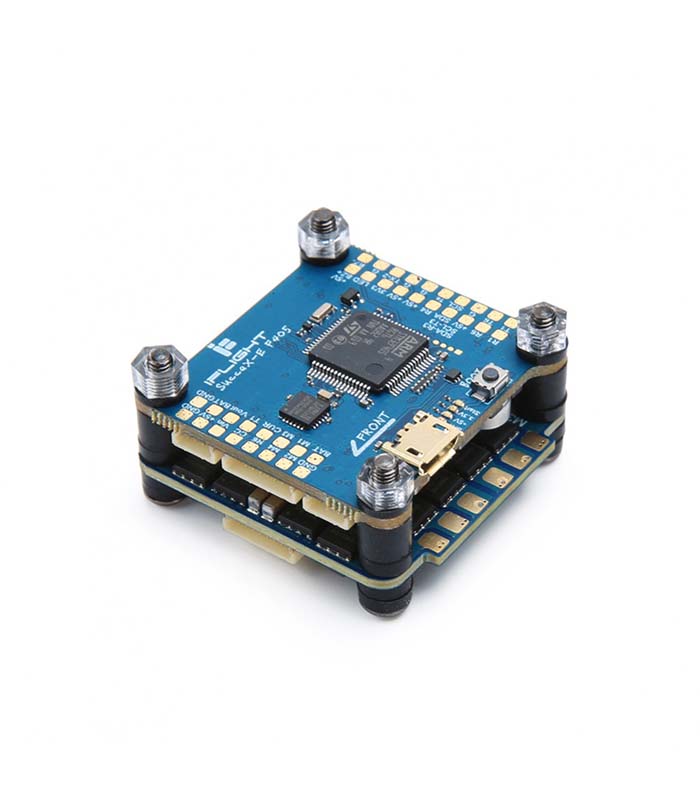

iFLIGHT SucceX-E F4 V2.1 45A 2-6S Flight Stack (MPU6000)

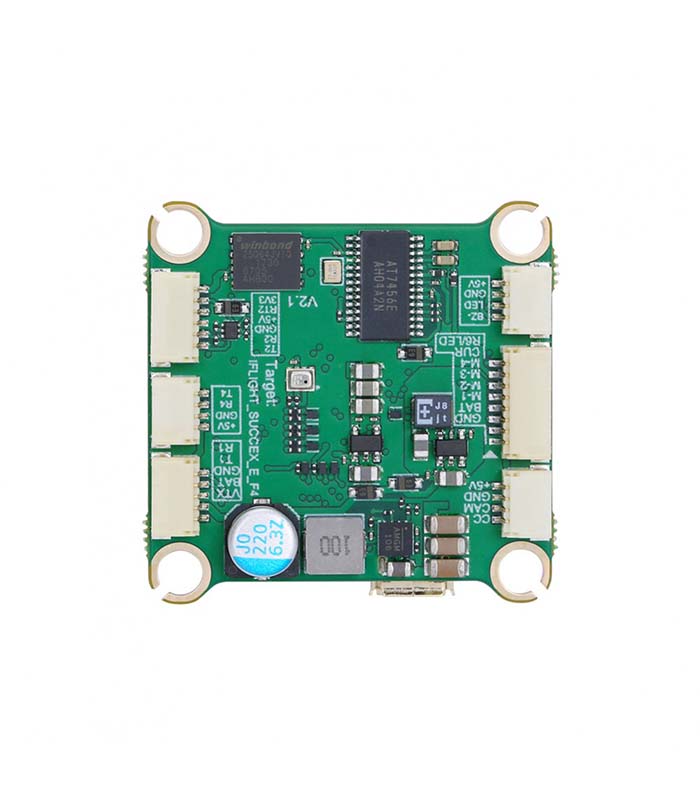

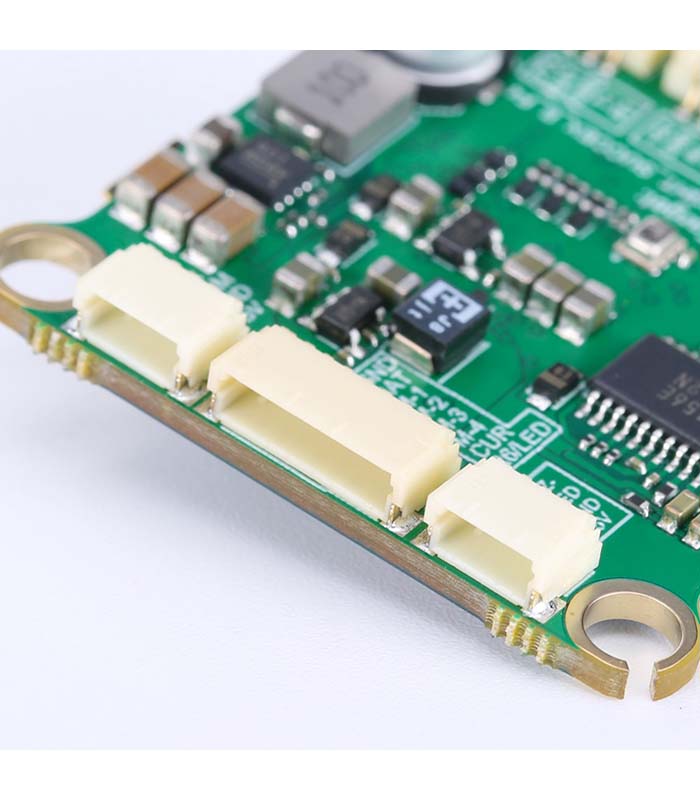

FC // SucceX-E F4 V2.1 Flight controller

Specs:

– MCU：STM32F405

– Gyro：MPU6000

– Betaflight OSD：YES

– Blackbox：8MB

– 4X Uarts

– 8 x Dshot/Proshot/Oneshot output

– 8 x individual ESC power/ signal pads

– 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

– VTX telemetry: YES

– WS2812 led Strip：YES

– Baro: yes BMP280(I2C)

– Beeper：YES

– Input：2-6S（Max 8S）

– BEC：5V / 3A

– Firmware target : IFLIGHT_SUCCEX-E F4

– Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm

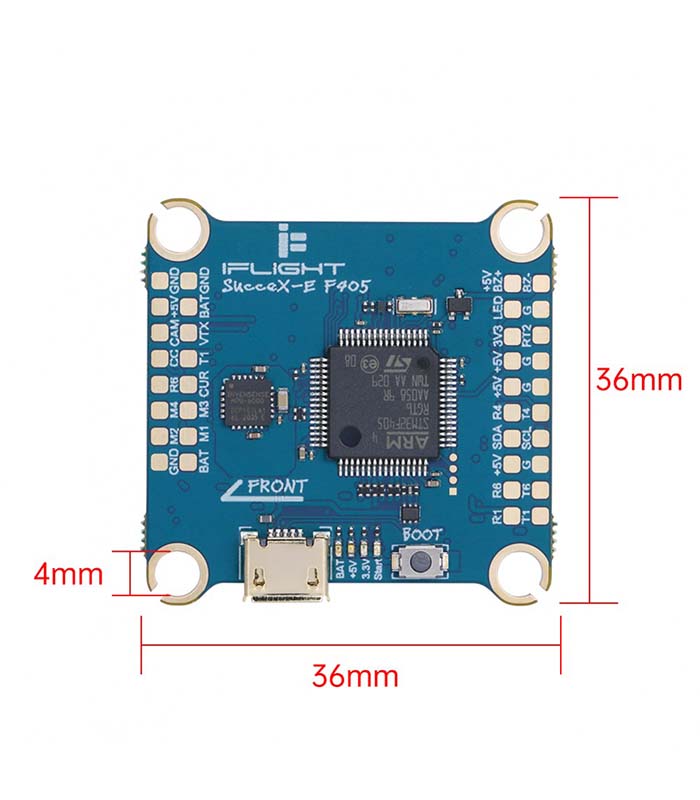

– Dimensions：36*36mm

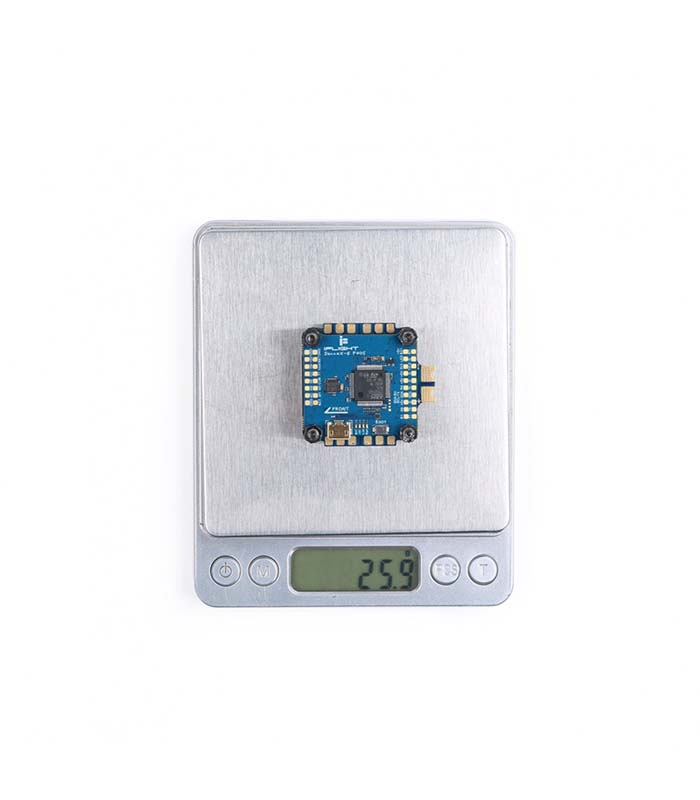

– Weight：6.6g

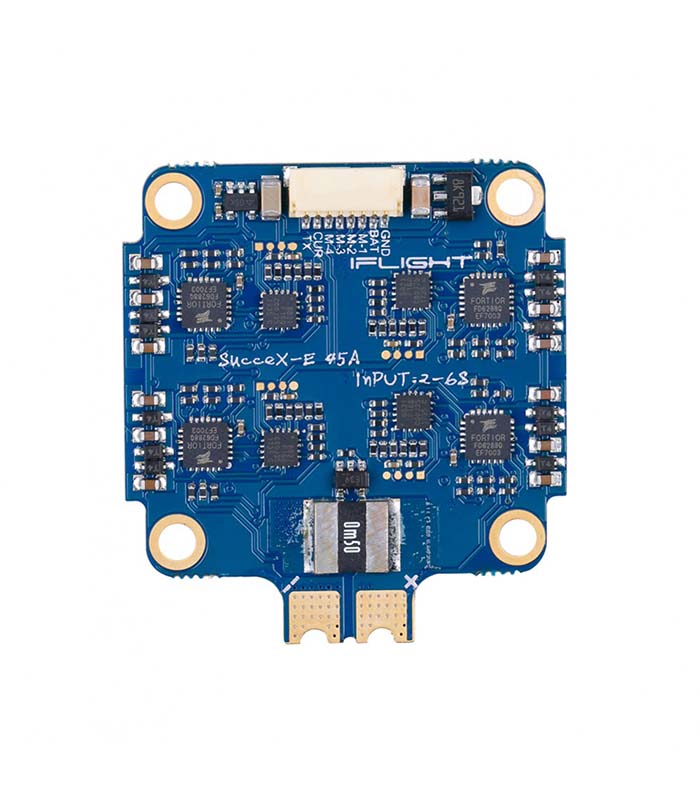

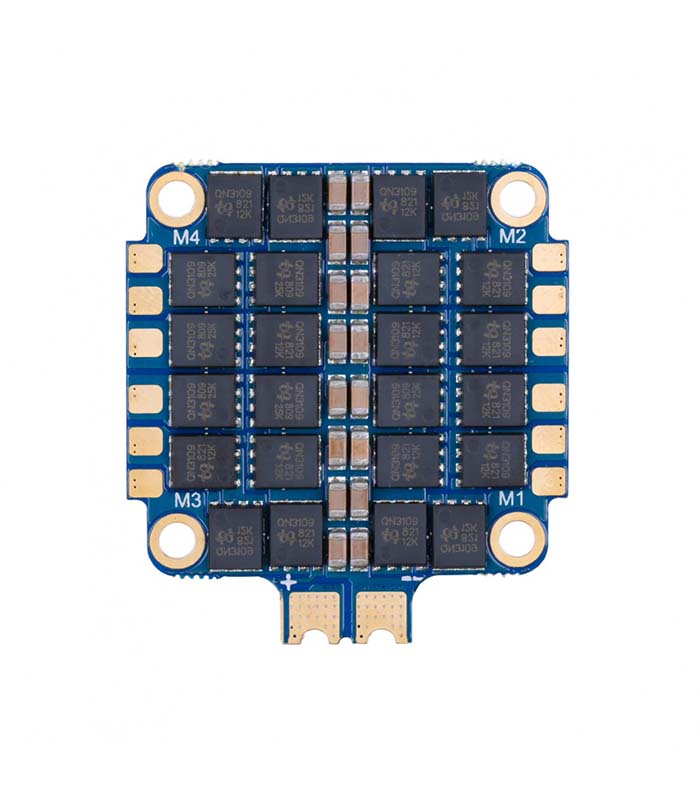

ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

– Dimension: 40*43mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

– Weight: 14.4g

– Supports 2-6S Lipo input

– EFM8BB21 MCU, 24Mhz Runs BLHELI 16.X Firmware

– Current sensor: YES

– BEC: NO

– Supports: DShot150/300/600/1200/MultiShot/OneShot etc.

– Target: G-H-30 BLS 16.7

Package included:

-1pc x  SucceX-E F4 V2.1 Flight controller

-1pc x 45A 4in1 ESC

-1set x Wire harness
