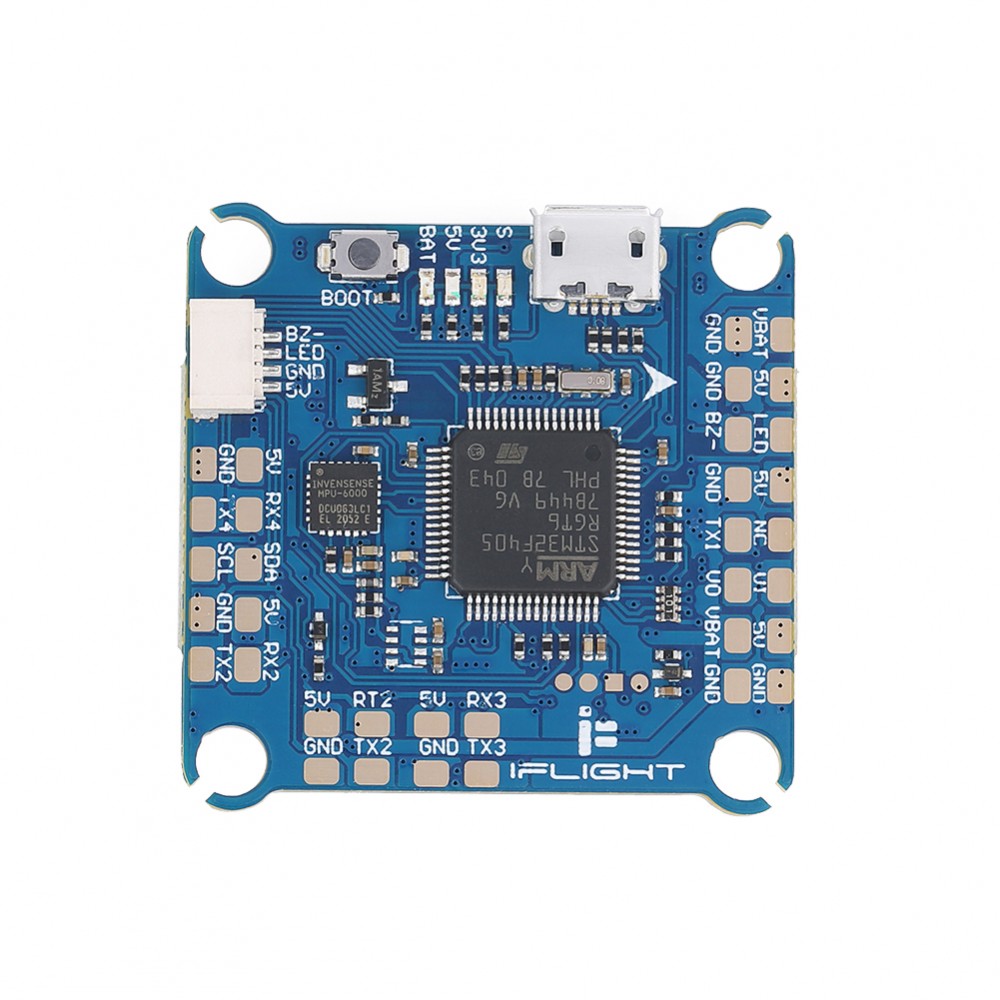

iFlight SucceX-E F4 V2.2 Flight Controller (MPU6000)

Specs:

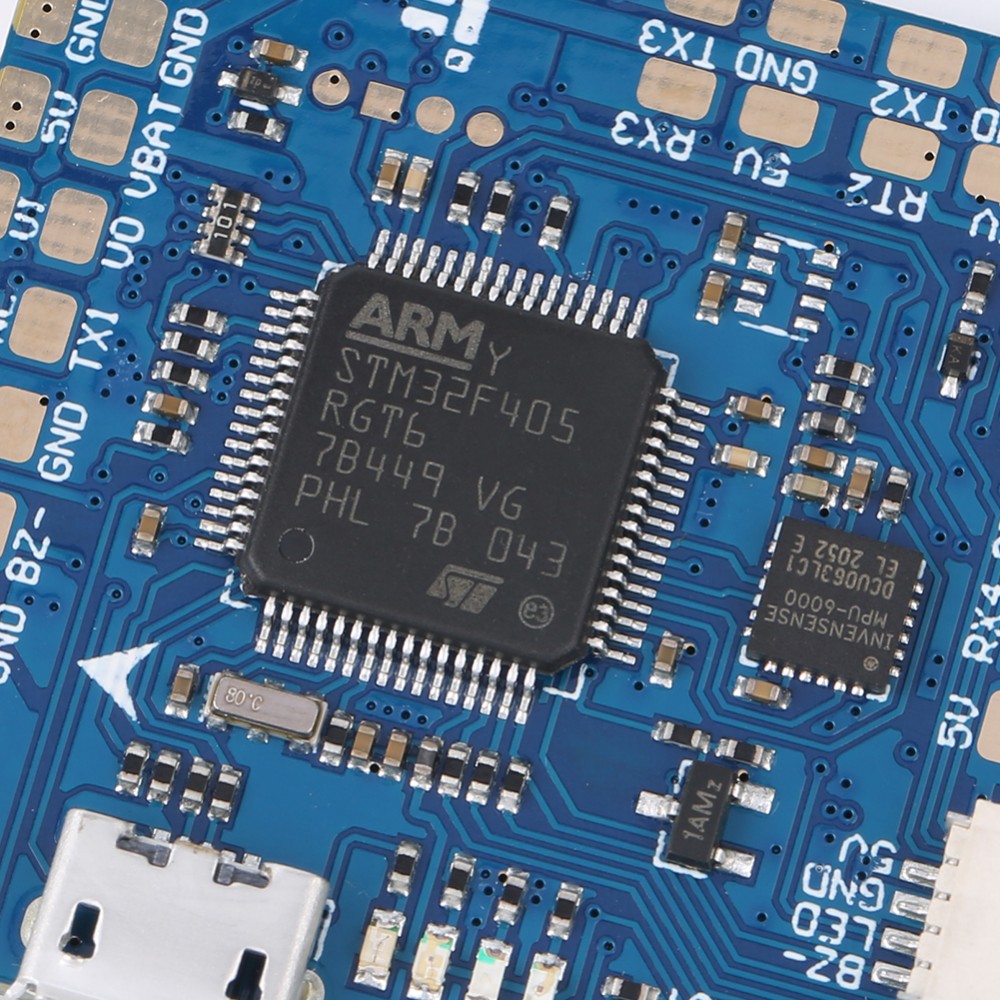

– MCU：STM32F405

– Gyro：MPU6000

– Baro: NO

– Betaflight OSD：IFLIGHT OSD （AT7456E)

– Blackbox：16MB(W25Q128)

– 4X Uarts

– UART1  VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/Analog Telemetry

– UART2  Receiver

– UART4  Vacancy

– UART6  ESC Telemetry

– 1×12C

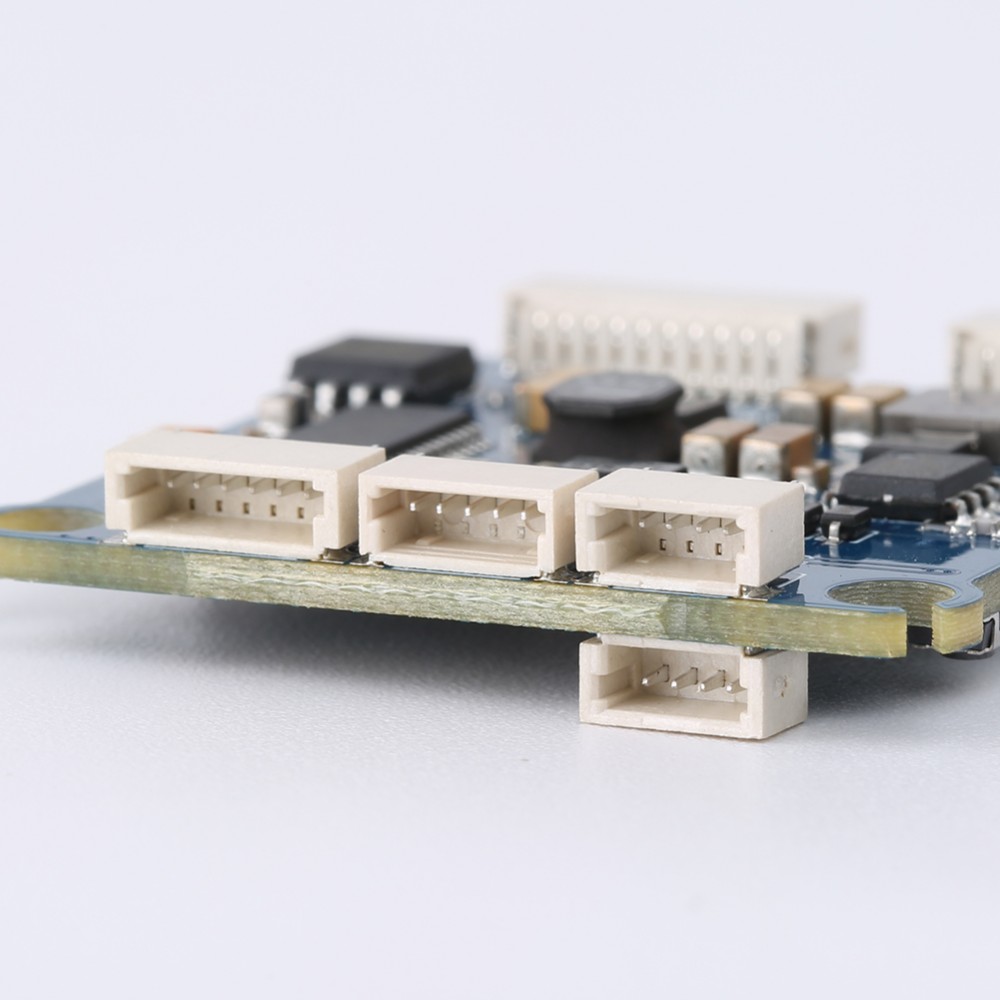

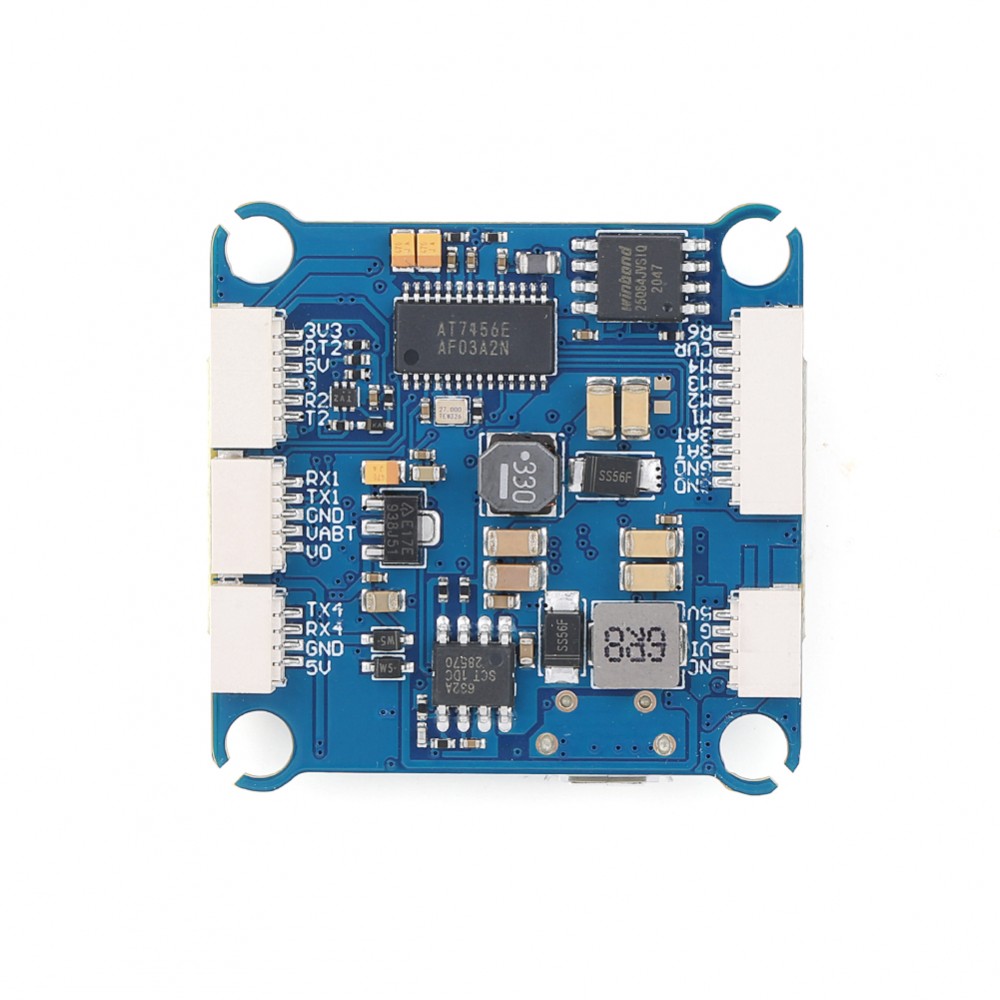

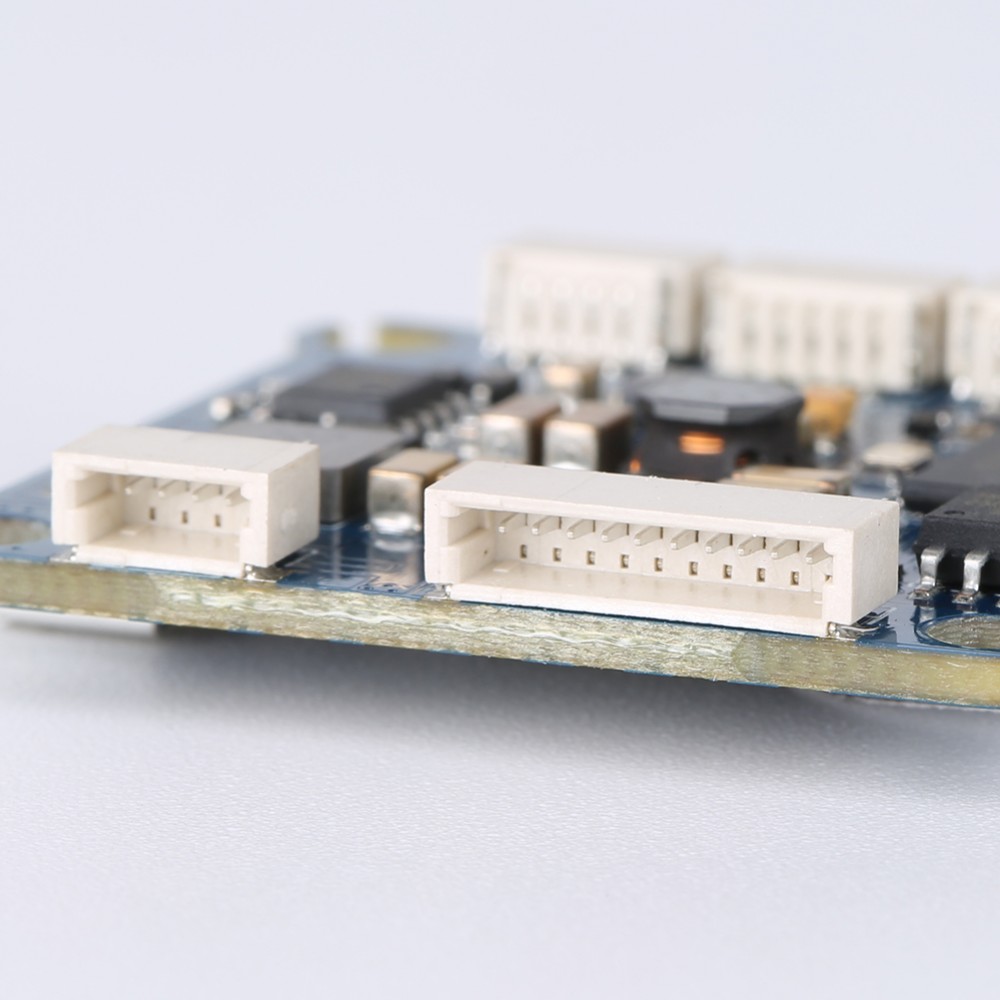

– 1×SH1.0 10pin connector for ESC（GND/GND/BAT/BAT/M1/M2/M3/M4/CUR/R6)

– 1 x SH1.0 6pin connector for Receiver（3.3V/RT2/5V/GND/R2/T2）

– 1 x SH1.0 5pin connector for VTX/Vista（RX1/TX1/GND/VBAT/VO)

– 1 x SH1.0 4pin connector for Camera(5V/GND/VI/NC)

– 1 x SH1.0 4pin connector for LED&Buzzer(5V/GND/LED/BZ-)

– 1 x SH1.0 4pin connector for Free （TX4/Rx4/GND/5V）

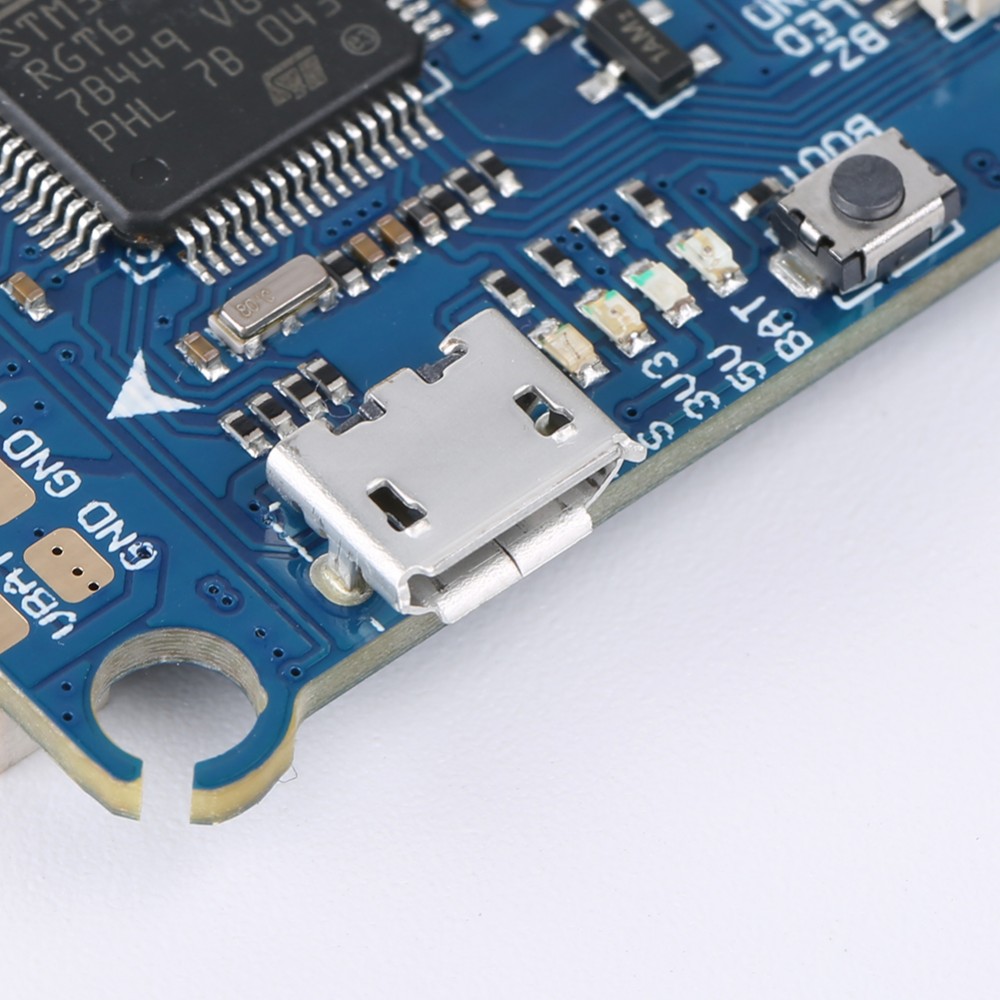

– 4×0201 LEDs for FC STATUS (Blue, Red，Orange ) and 3.3V indicator(Red)  BAT/+5V/3.3V/star

– WS2812 led Strip：YES

– Baro: BMP280(I2C）

– Beeper：YES

– Input：2-6S（Max 8S）

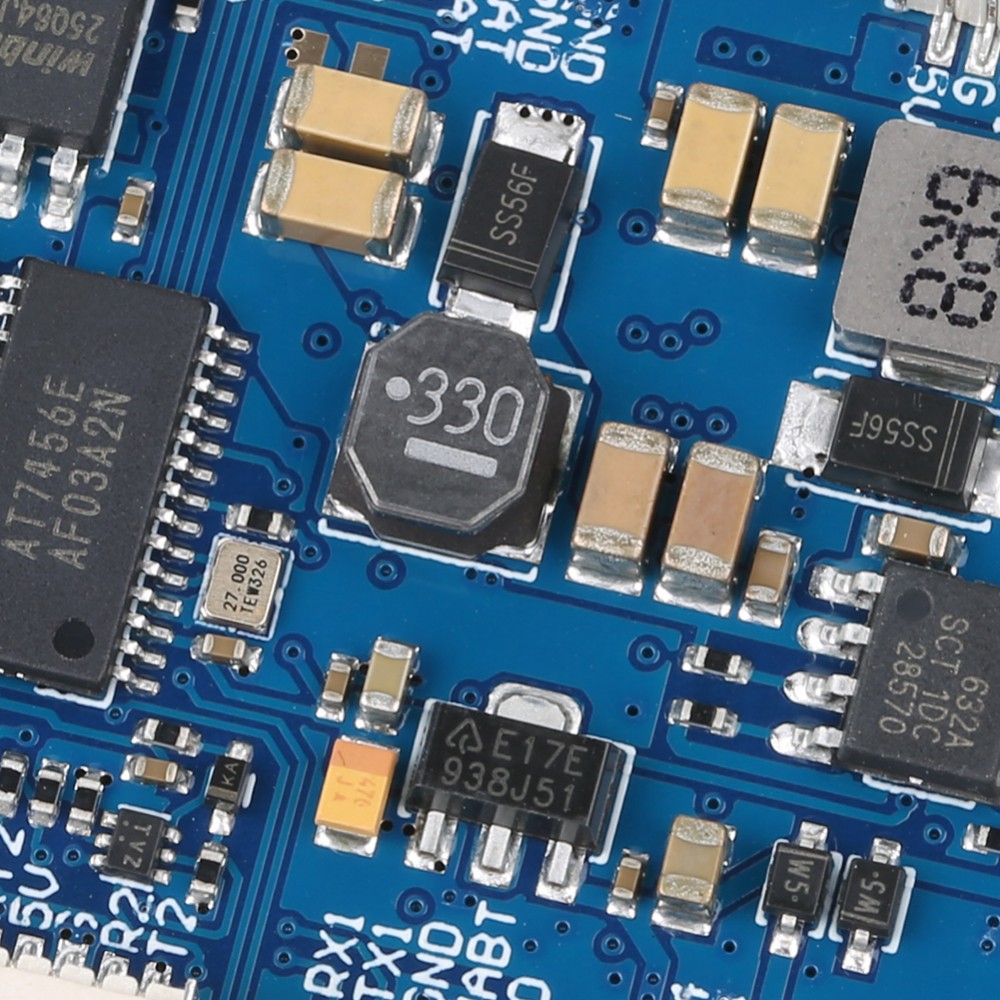

– BEC：5V / 3A

– Firmware: IFRC/BASE_F4

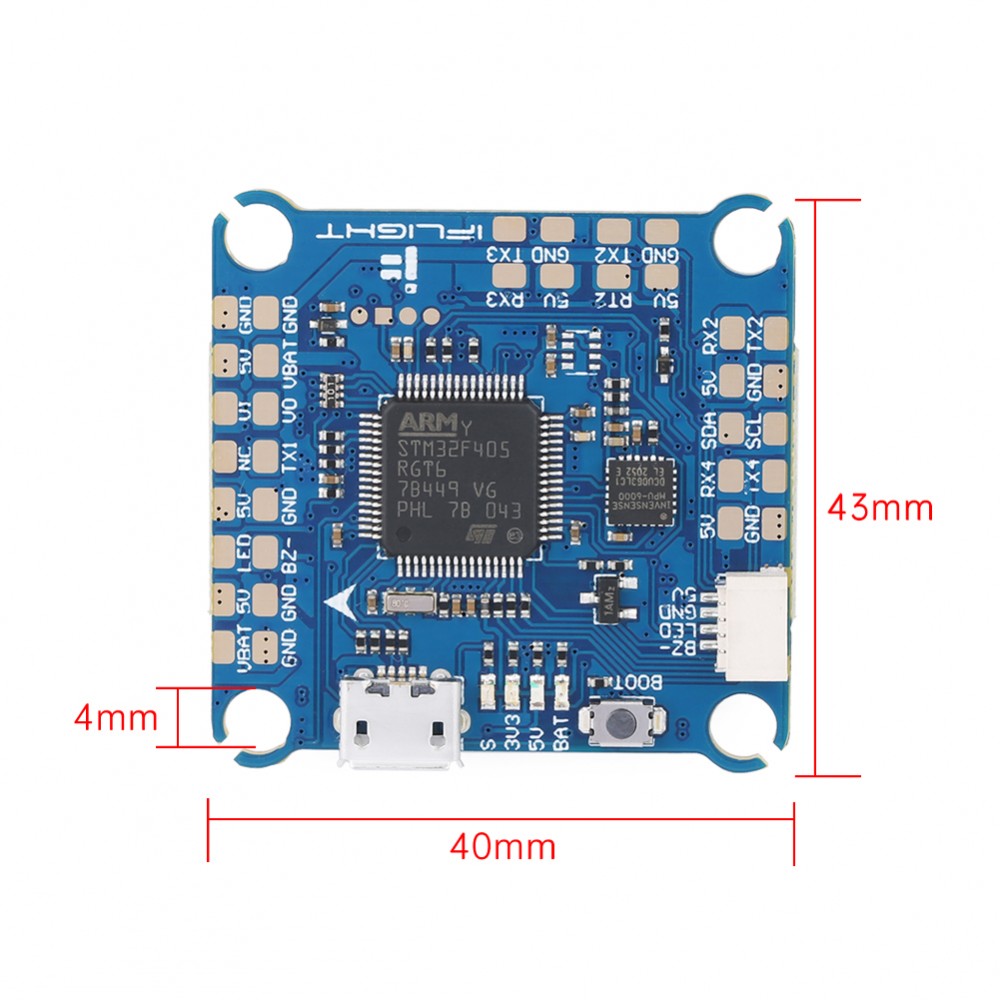

– Mounting：30.5*30.5/φ4

– Dimensions：36*36mm

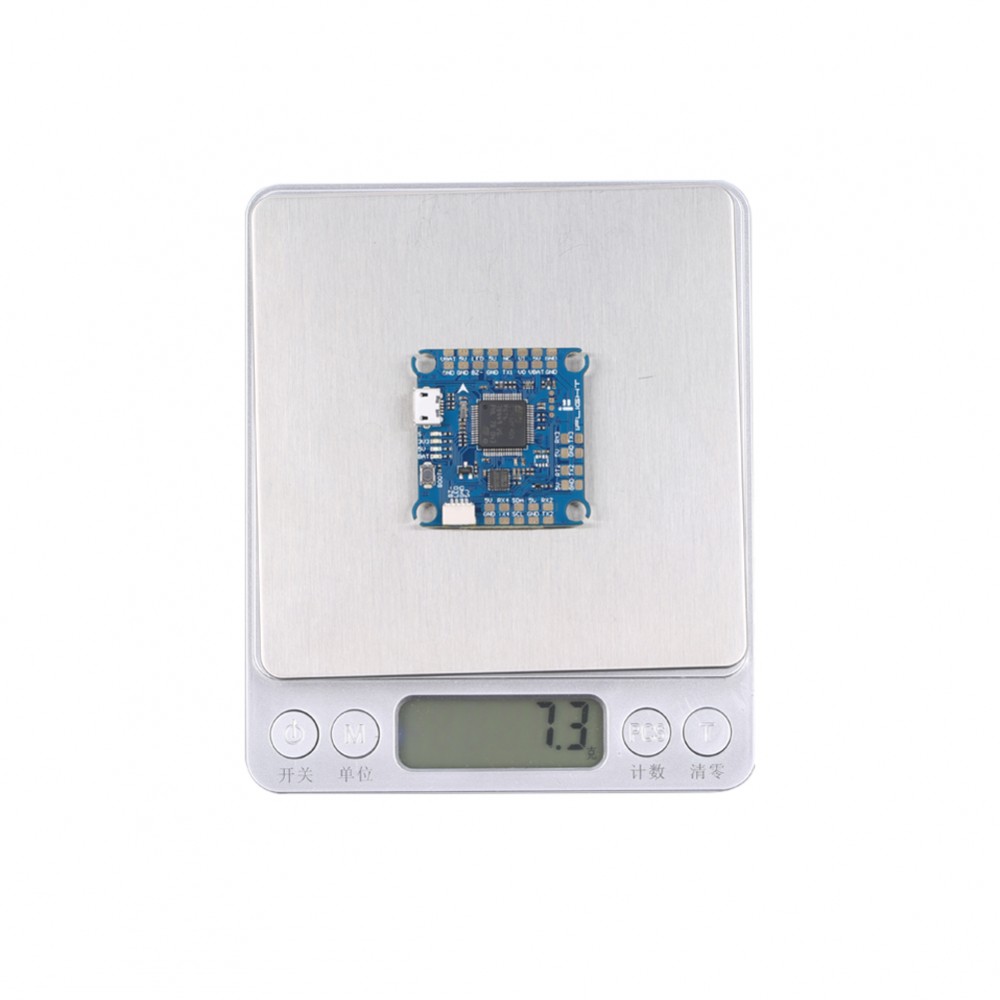

– Weight：7.3g

Package included:

1pc x SucceX-E F4 V2.2 Flight Controller

1set x Wire harness

NOTE: F.PORT protocol RX input support, telemetry not supported.
