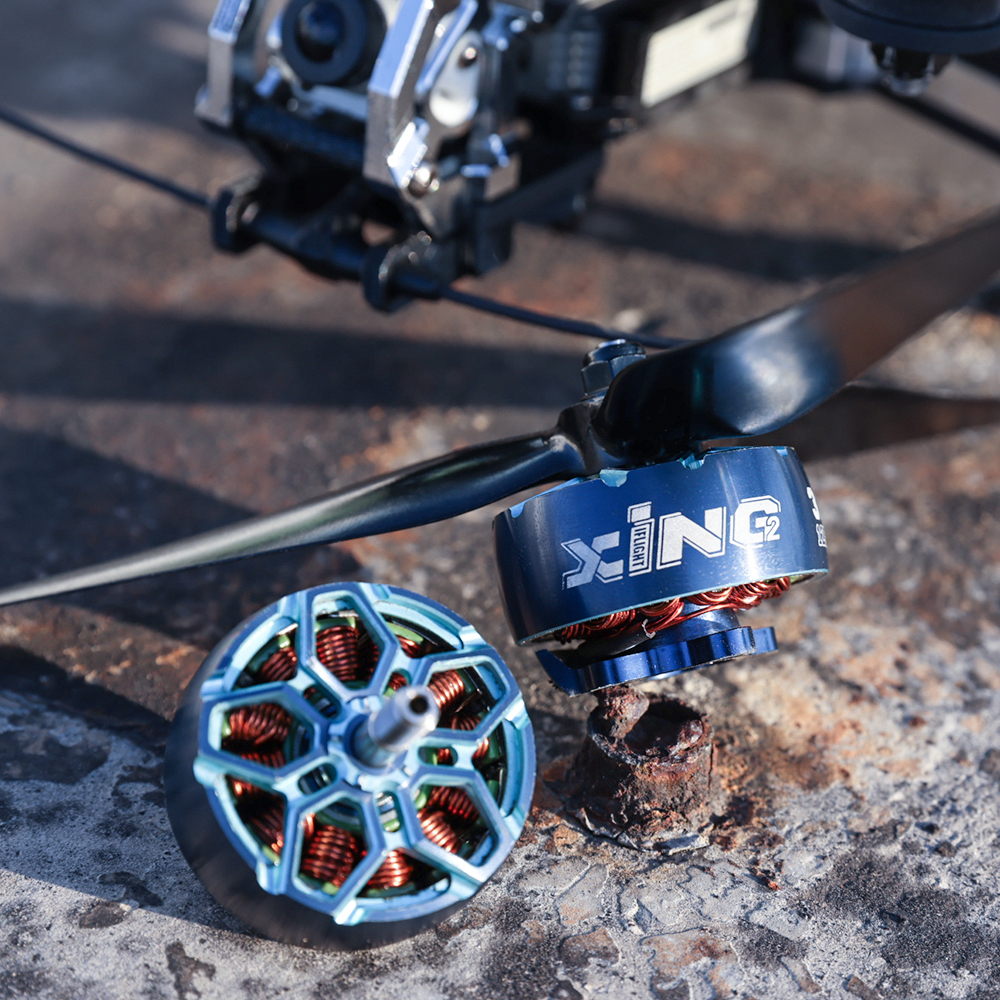

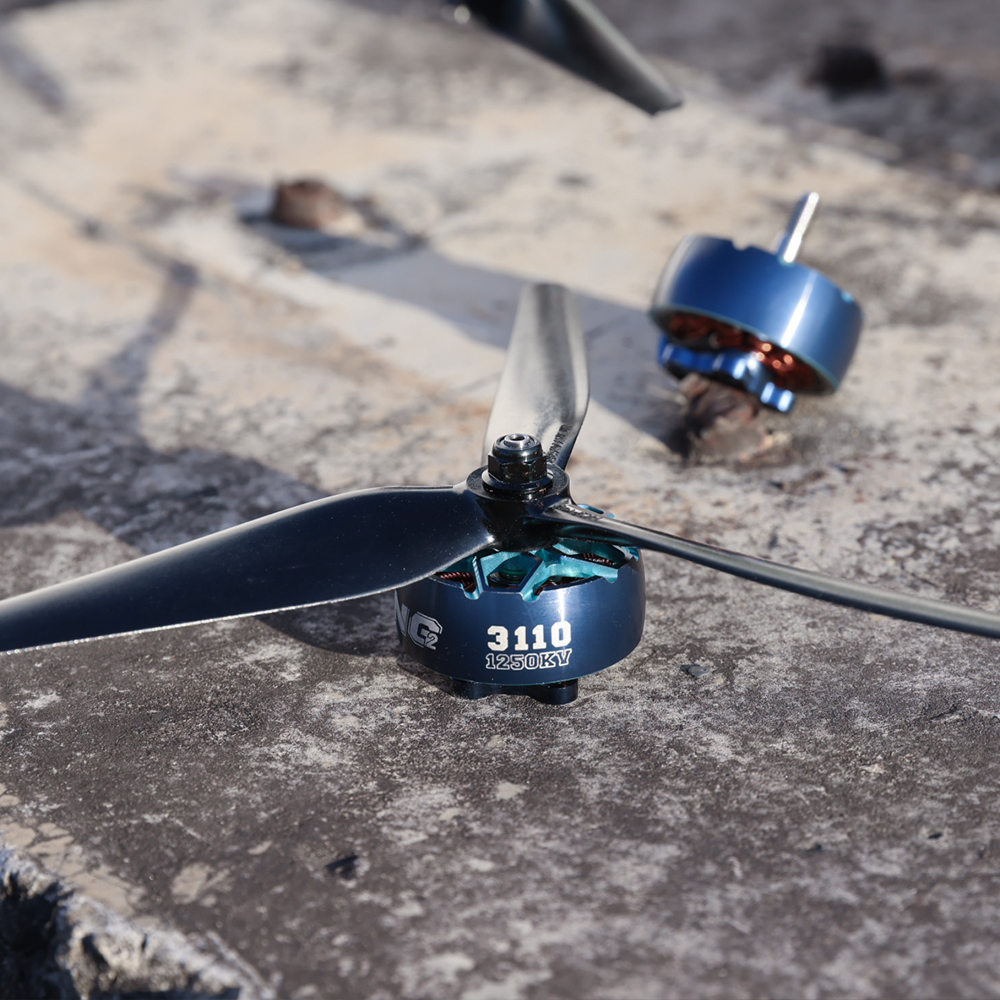

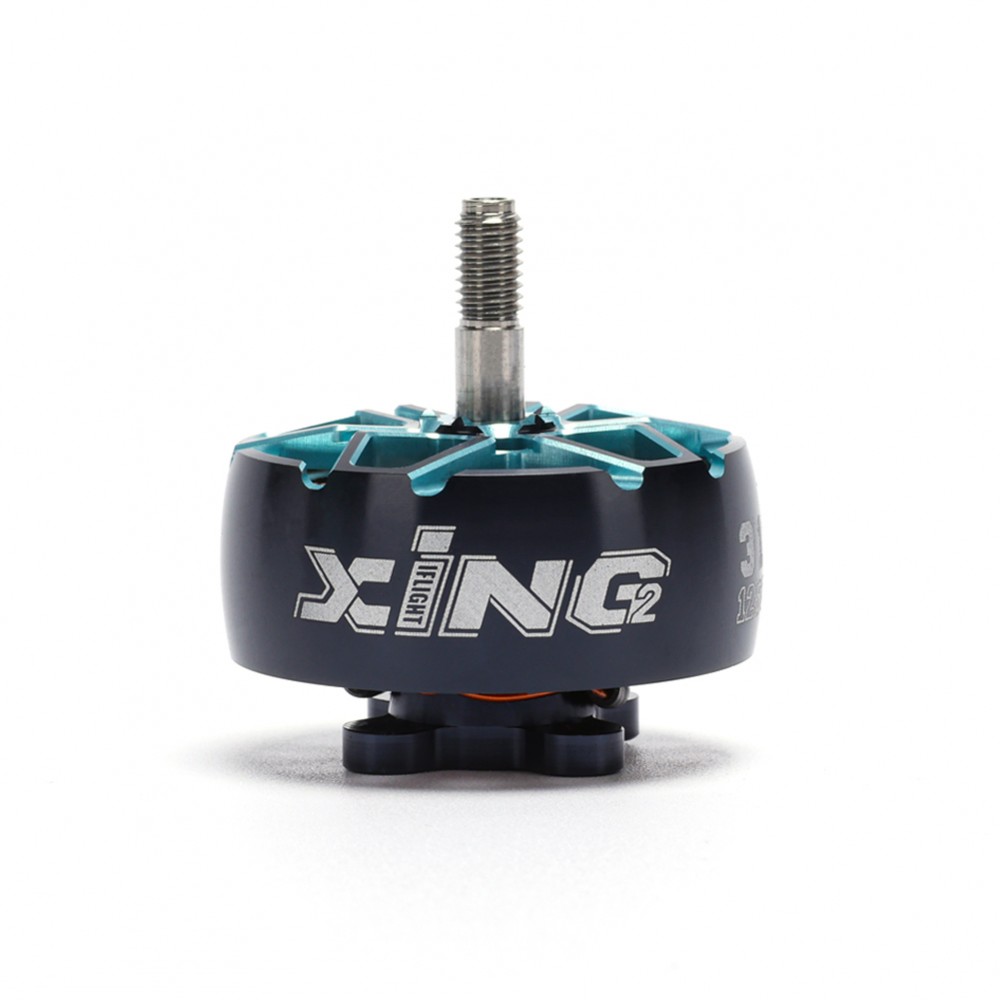

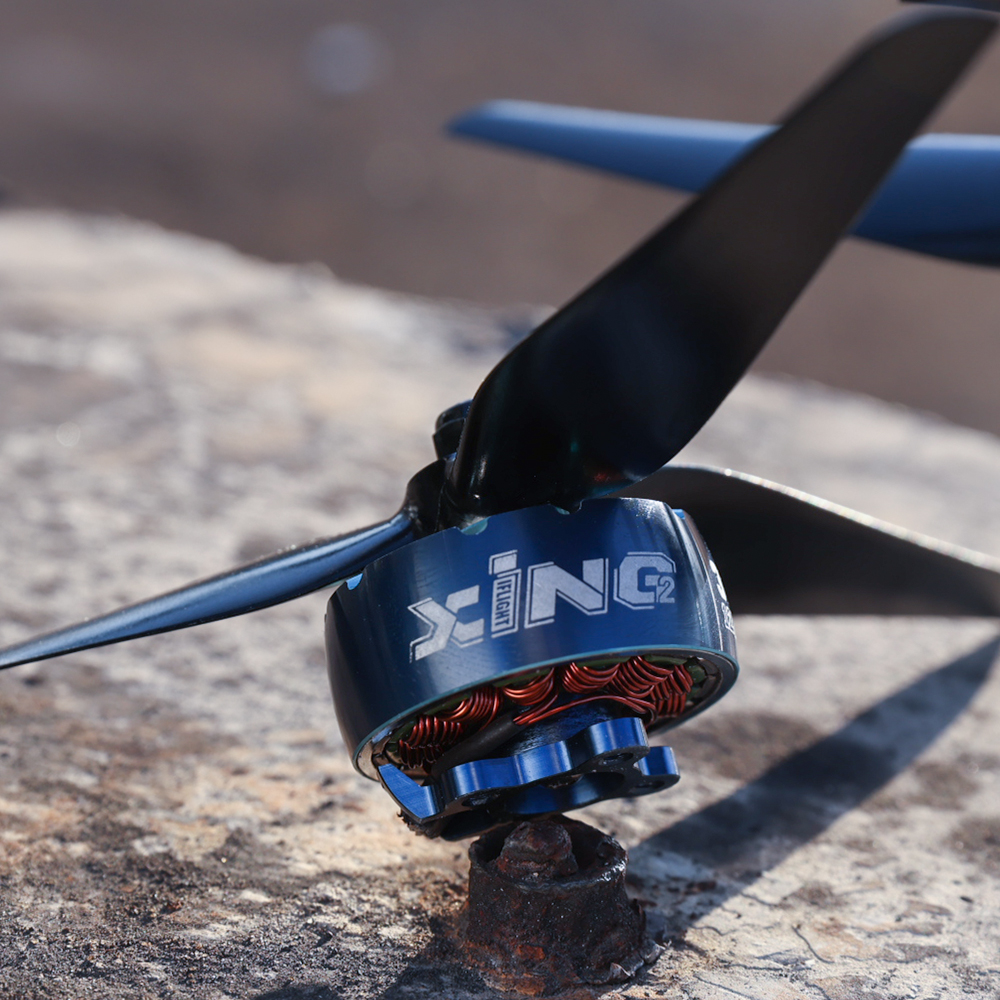

iFlight XING2 3110 FPV Cinelifter Motor

Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again! We’re finally ready to announce our predecessor the XING2!

The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New centre-slotted N52H curved arc magnets were introduced to drastically reduce the response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to its translation delay of braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!

Due to the high-quality materials used and the durable joint of the bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analogue of current) causing more efficiency and higher power!

Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high-quality 7075 bells, O-ring bearing protection and all the other features you’ve just seen on your original XING series are still built in a new shape and design!

Features:

– 5mm titanium alloy shaft, our strongest prop shaft ever!

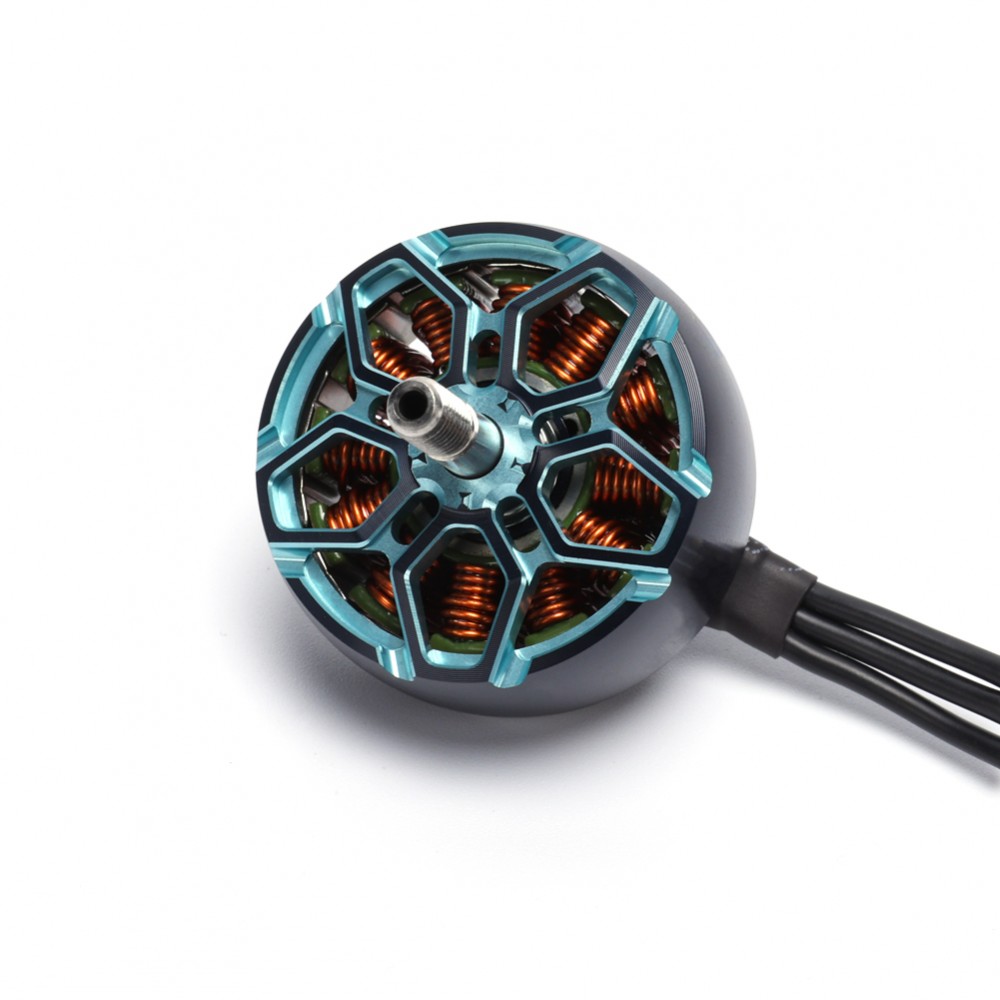

– Crash-resistant 7075 aluminium bell

– Smooth and long-lasting NSK 11x5x5 bearings

– Center-slotted N52H curved arc magnets

– XING O-ring bearing gap protection

– Motor wire protector

– Dynamically balanced

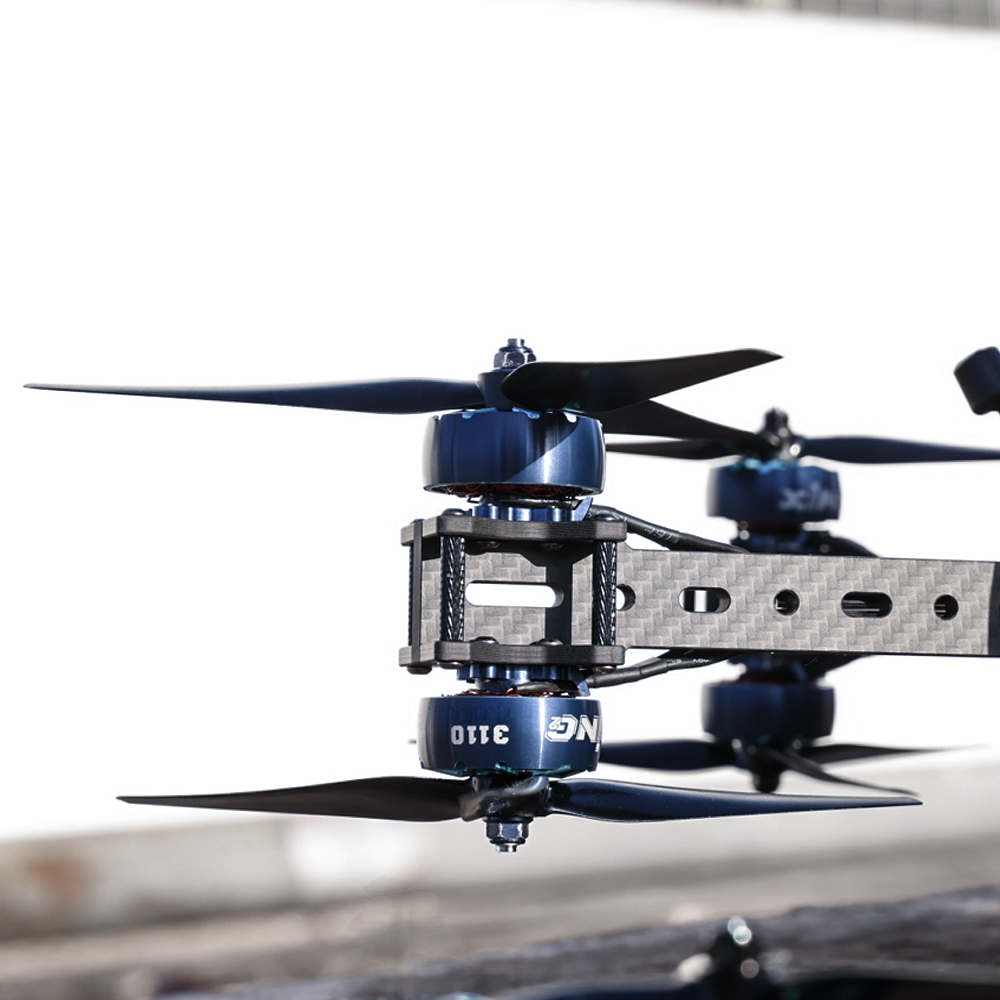

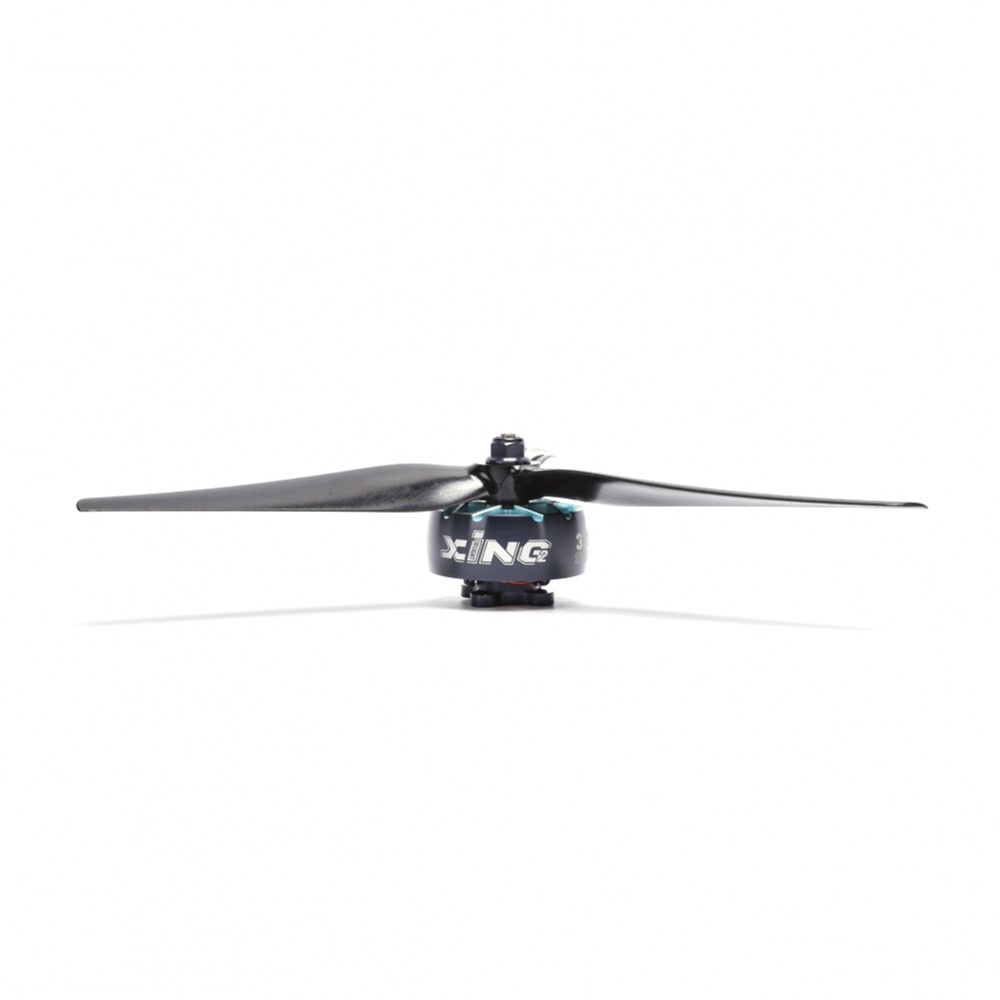

– Designed for 7/8/9 inch Cinelifter.

Specification

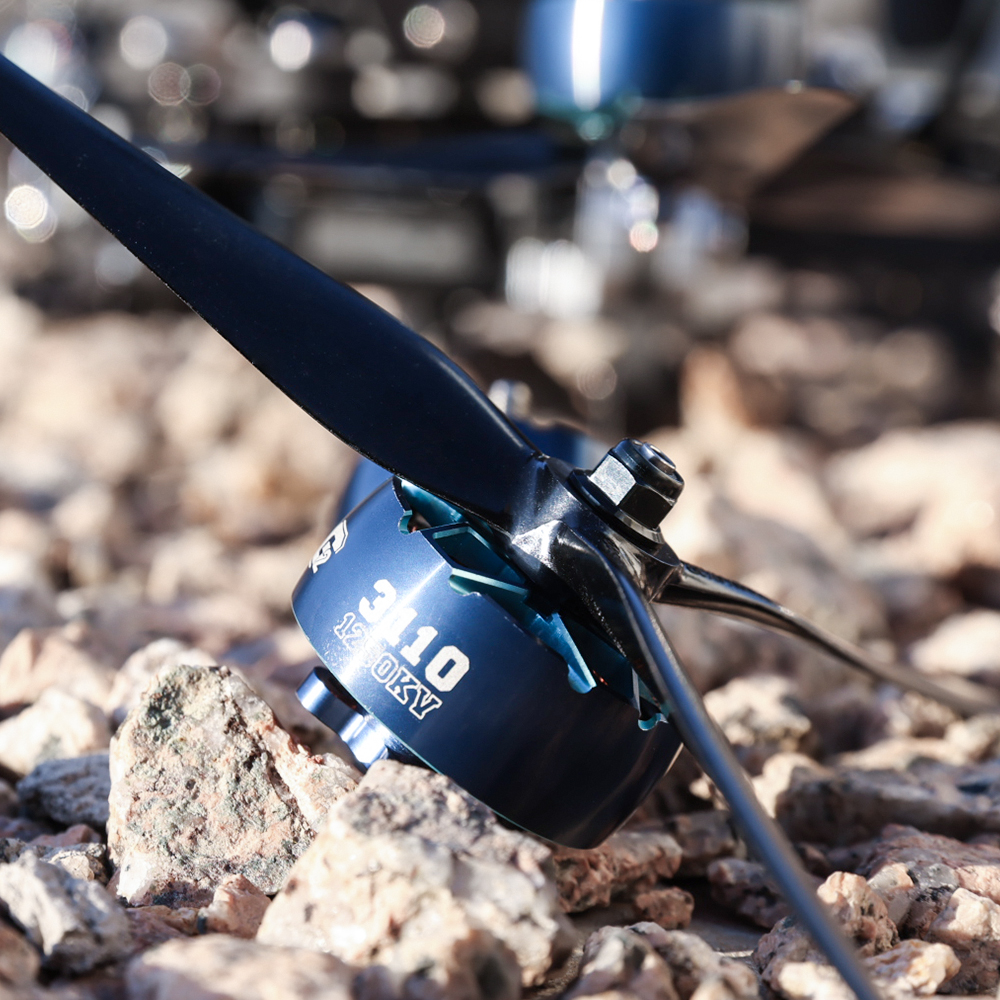

– Model: XING2 3110

– KV: 900kv / 1250kv(as optional)

– Prop shaft: CW thread

– Input Volts: 33.6V

– Configuration: 12N14P

– Stator Diameter: 38.72mm

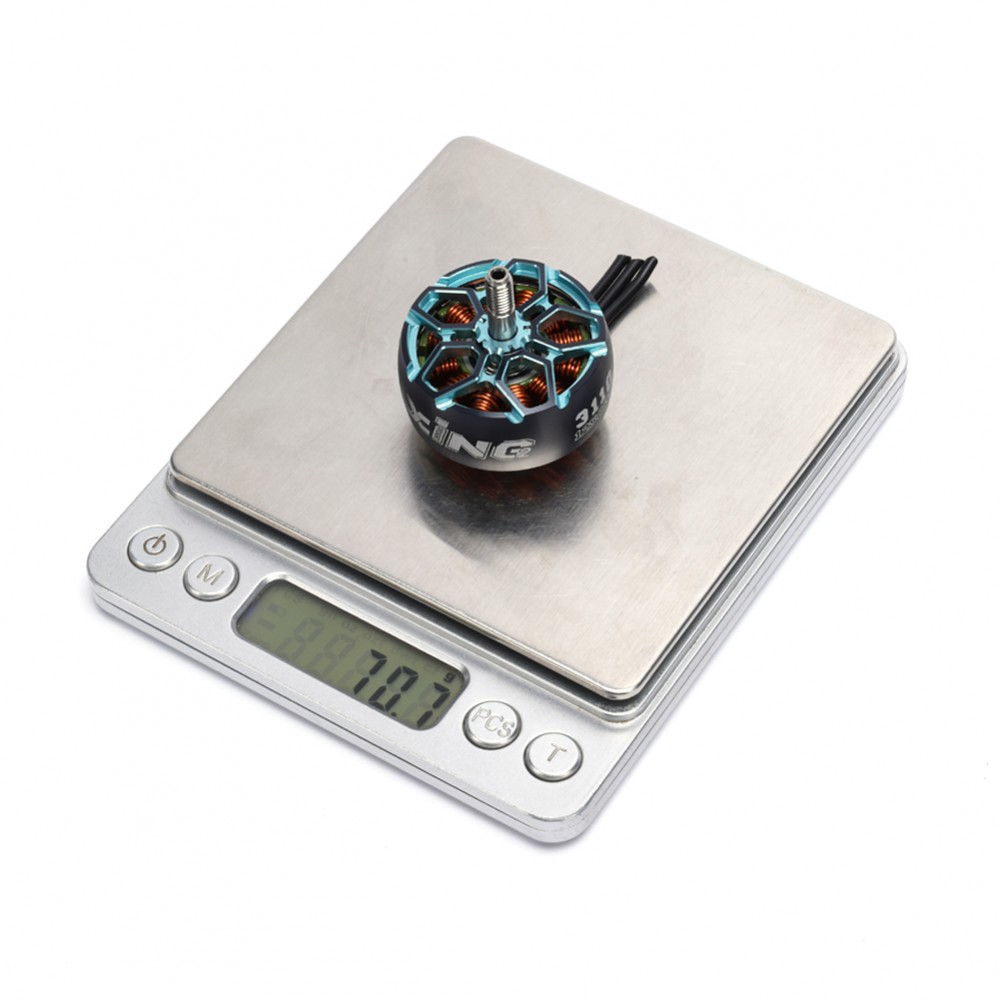

– Weight: 80g with short wire

– Wire length: 18AWG 260mm

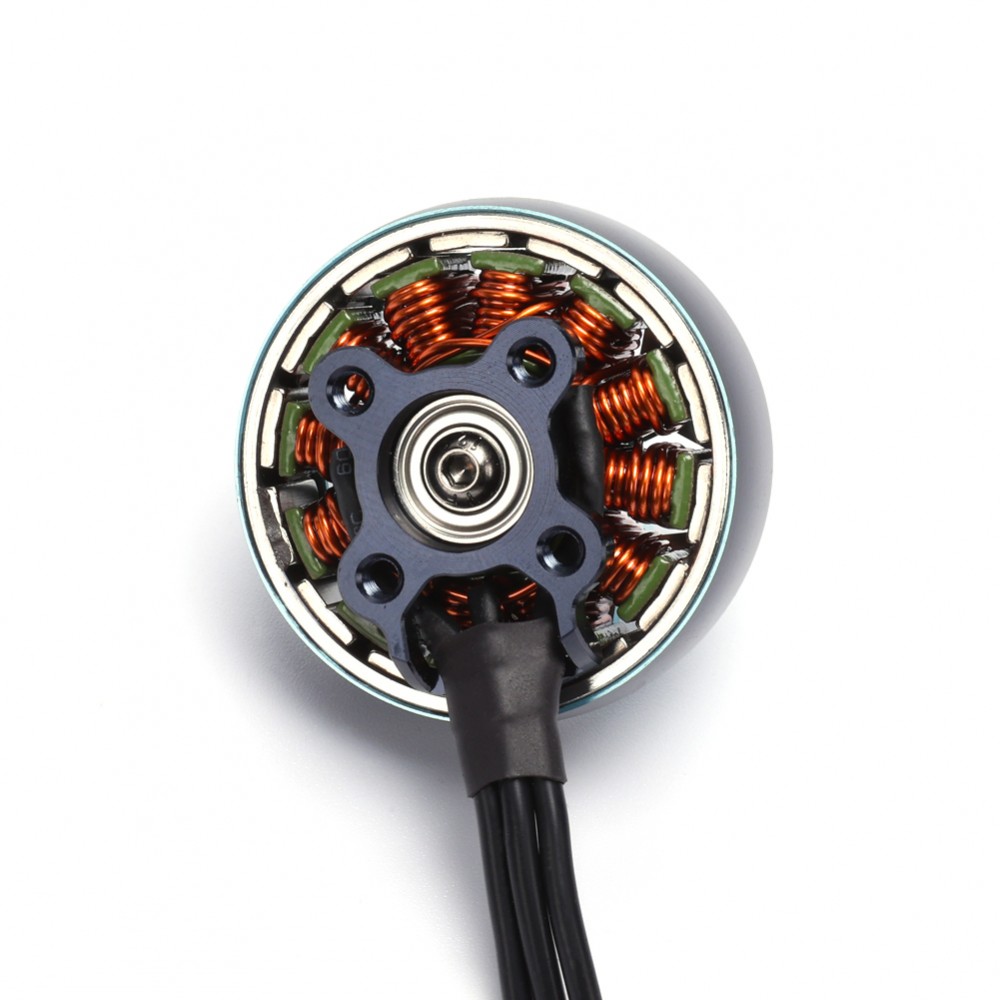

– Mounting pattern: 19*19mm

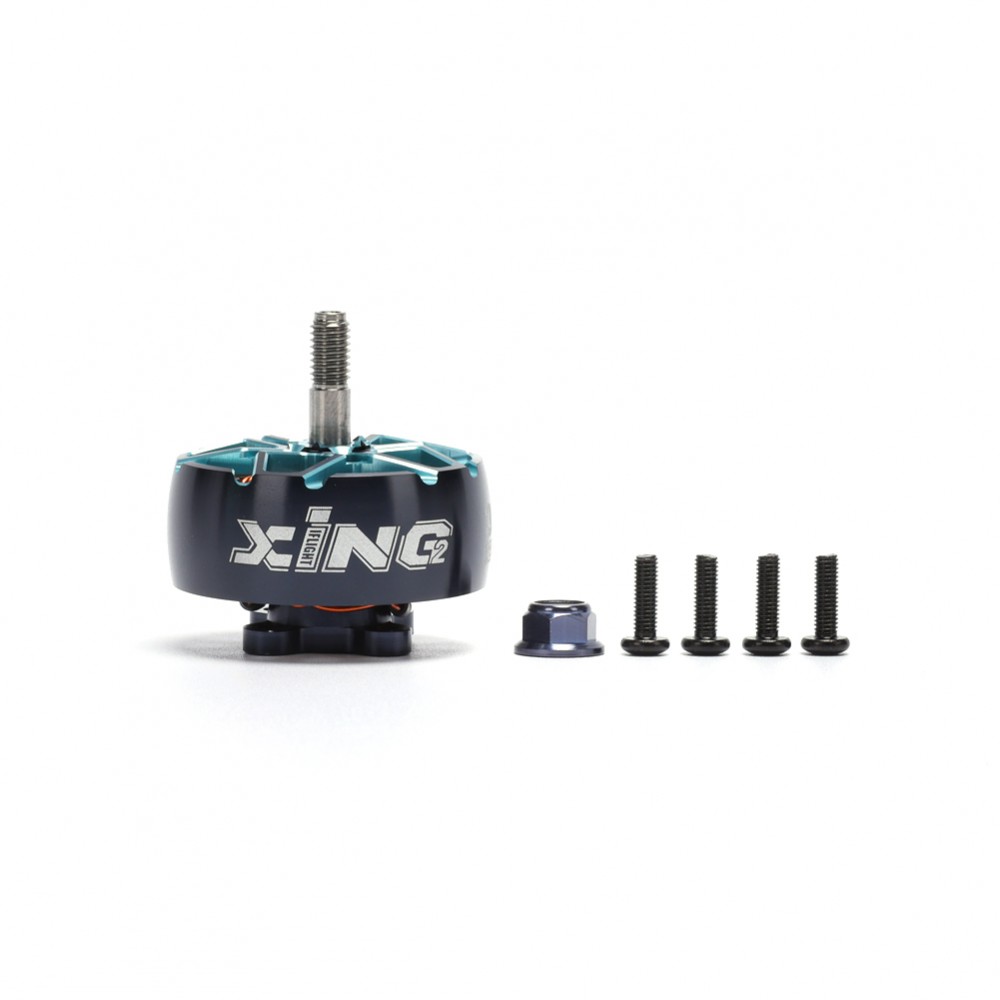

Package includes:

1x XING2 3110 Brushless Motor

4x M3x10 screws

1x M5 Flange Nut

NOTE: Propellers are not included!
