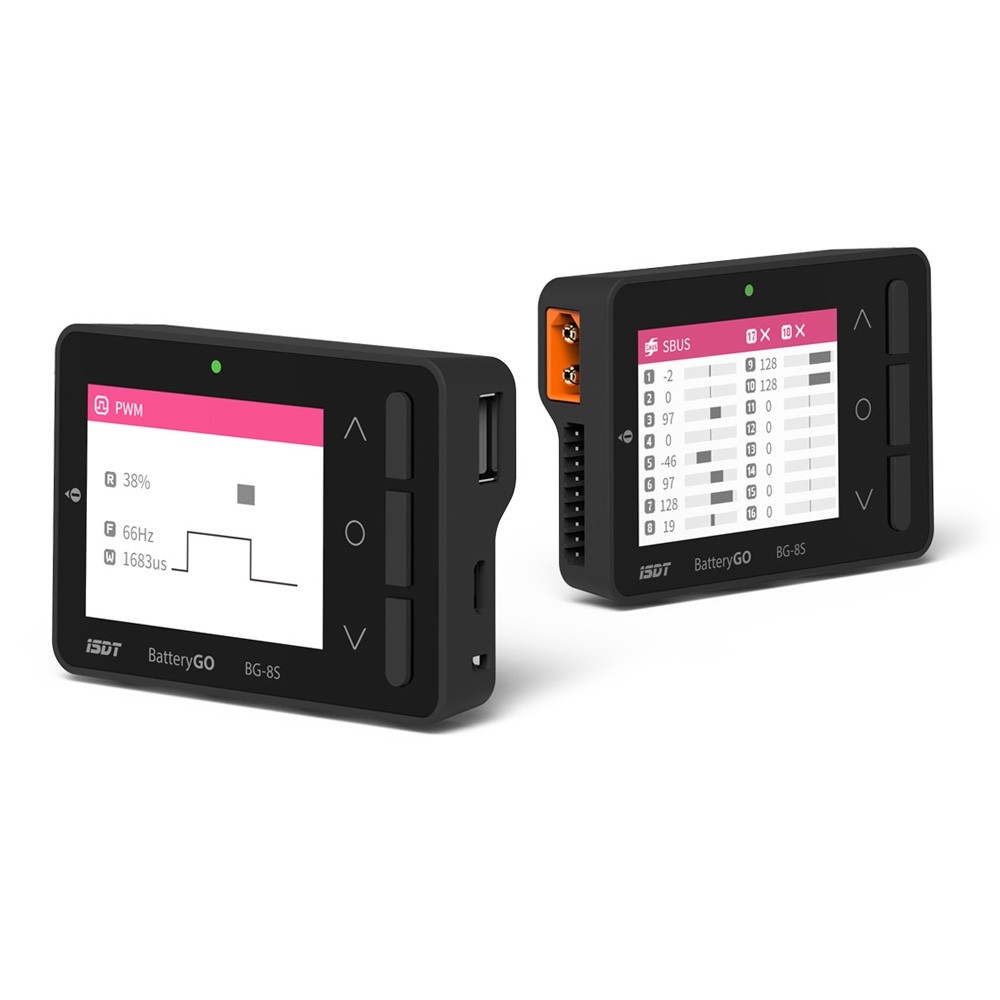

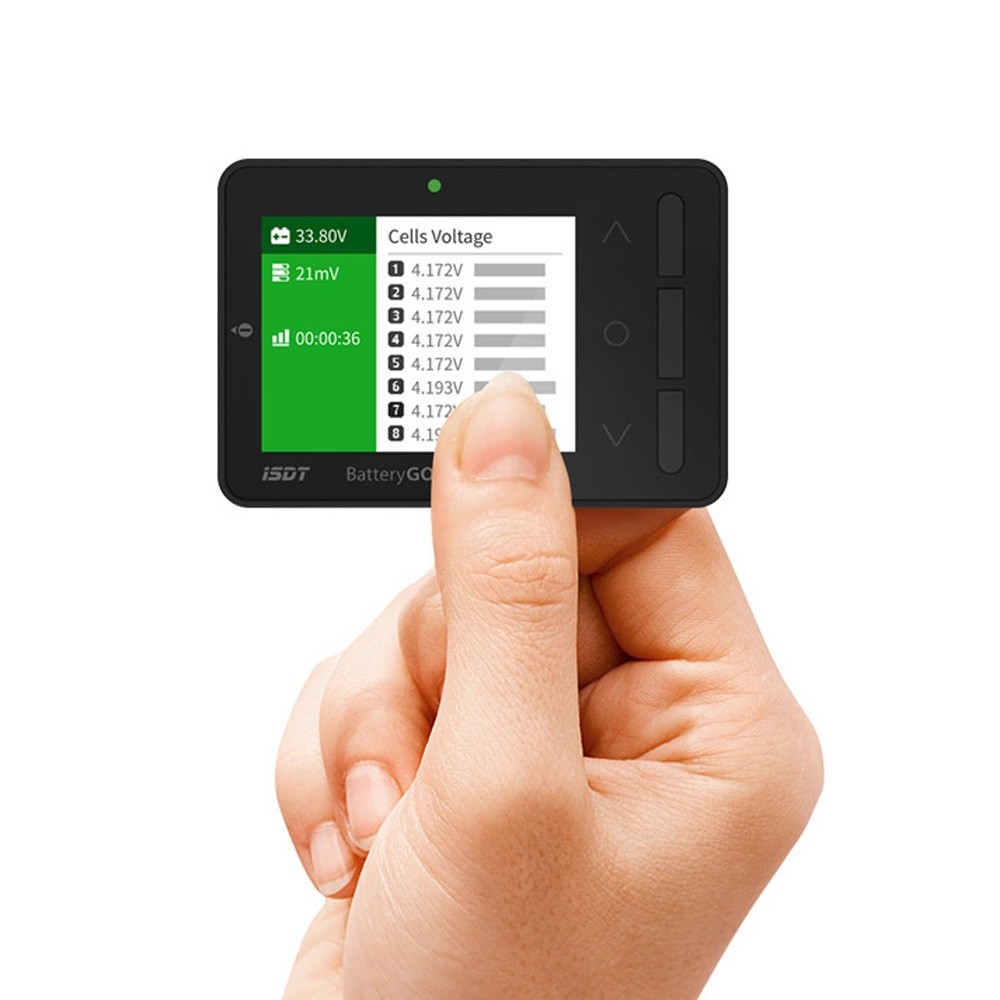

ISDT BG-8S Smart Battery Checker

Smart Battery Checker with 260,000 color display visible under strong sunlight. Exquisite and powerful BG-8S smart battery checker. Fully support BattGO technology.

Specifications

• Working voltage: 5.0V-36V
• Input voltage 1s: 0.8V-15V
• Input voltage 2-8S: 0.8V-4.8V
• Battery cells: 1-8S
• Voltage measurement accuracy: ±0.005V @ 4.2V
• Balancing cells accuracy: < 0.005V
• Support USB charging: QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A

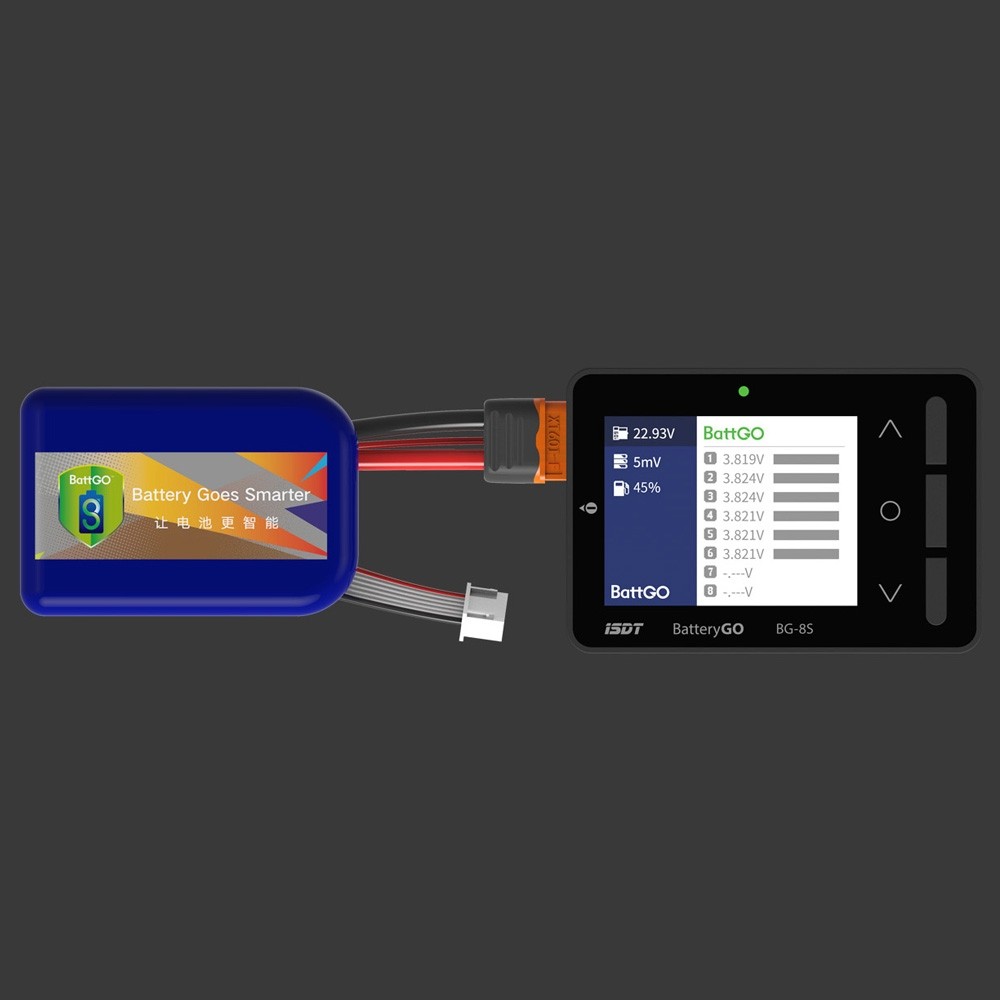

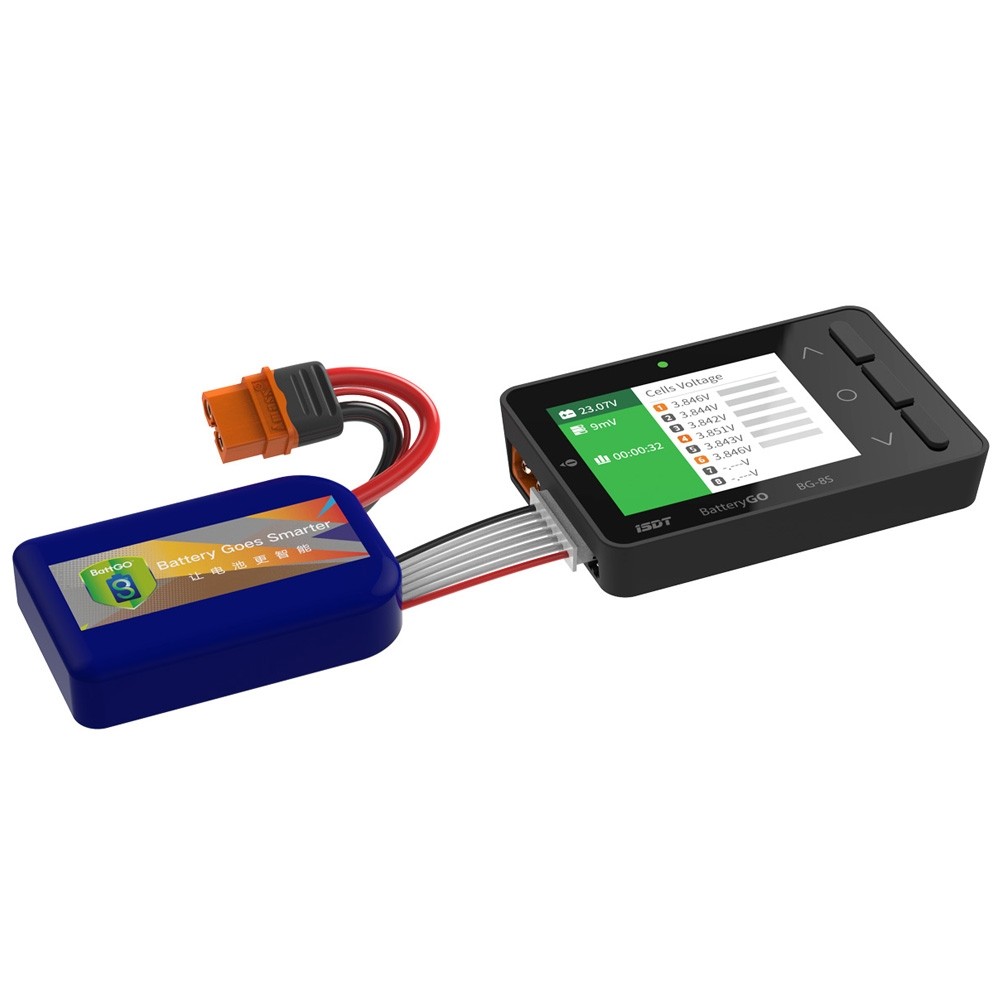

• Support smart battery: Charging and discharging setting, read battery info and usage history.

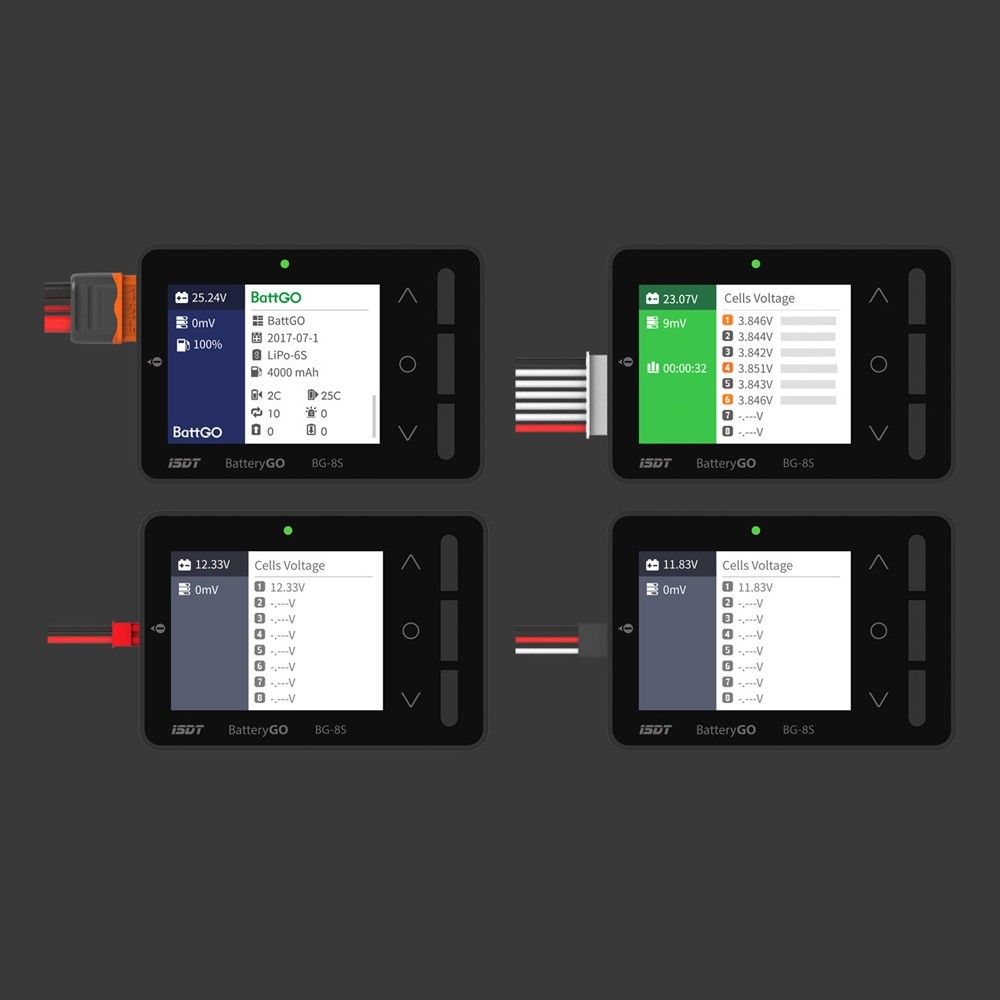

• Supported Batt. Type: LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/Cd(1-10S)
• Display: 2.4〃320×240 260,000 color IPS LCD
• Dimension: 80 X 55 X 19 mm
• Weight: 59g
• Operating Temperature: 0-40℃
• Working Humidity: 10%-90%RH (noncondensing)
• Storage Temperature: -20-60℃
• Storage Humidity : 5%-90%RH (noncondensing)

Includes

• 1x ISDT BG-8S Smart Battery Checker
