Please note: Pre-order right now. ETA 4 weeks.

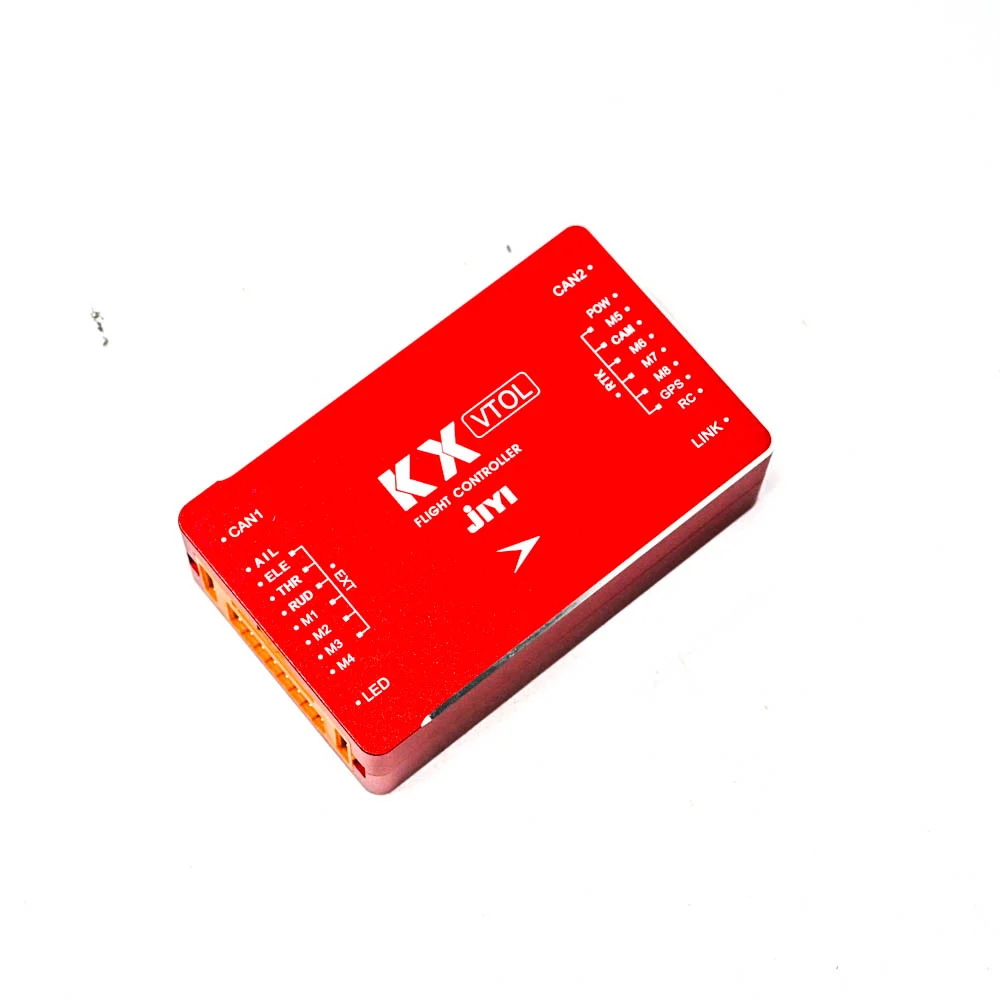

KX flight controller is designed for industrial application scenarios, with redundant control of software and hardware. It has advanced diagnostic algorithms to meet the applications of power line inspection, fire fighting, logistics, emergency rescue, transportation, surveying and mapping, etc. Provide API interface development according to different needs.
Features:
- Redundant control of both software and hardware
- Supports multiple frame types (I4, X4 quadrotors)
- Advanced diagnostics for enhanced reliability
- Operates in challenging environments with high wind resistance
- Integration with JIYI products like 5G picture transmission and RTK
- API interface for customized development
Specifications
| Supported frame types | I4, X4 quadrotors hanging up |
| Recommended battery type | 3S-14S lithium polymer battery |
| Type of external receiver | SBUS receiver |
| Support for JIYI products | 5G picture transmission, 15KM picture transmission module, |
| RTK,Integrated remote control, FPV camera, pod | |
| Adjust the software system configuration requirements | Android APP |
| Hover accuracy | Horizontal direction: ±1.5m Vertical direction: ±0.5m |
| Maximum tilt angle | 30° |
| Maximum yaw speed | 150°/s |
| Maximum vertical speed | 6m/s |
| Maximum wind resistance | Continued wind: Force 4 Gusts: Force 5 |
| Power dissipation | ＜5W |
| Working environment temperature | -10℃ ~ 60℃ |
| Storage ambient temperature | 25 ℃ ~ 60 ℃ |
| Operating voltage range | FC: 4.8V-5.3V |
| PMU: Enter 11.1V-60V (3S-14SLiPo recommended) Output maximum current 3A@5V | |
| GPS: 5V | |
| LED: 5V | |
| Battery voltage: 3S-14S | |
| Colour | Red |
| Weight | Total net weight: 180g (without trimmings) |
| FC: 80g | |
| PMU: 41g | |
| GPS: 45g | |
| LED: 14g | |
| Size | FC: 72.6*48*22.8mm |
| PMU: 53.4*34.4**14.5mm | |
| GPS: φ62*14.3mm | |
| LED:24*24*8mm | |
| Full box weight | 480g |
| Full box size | 256*176*55mm |
Package Includes:

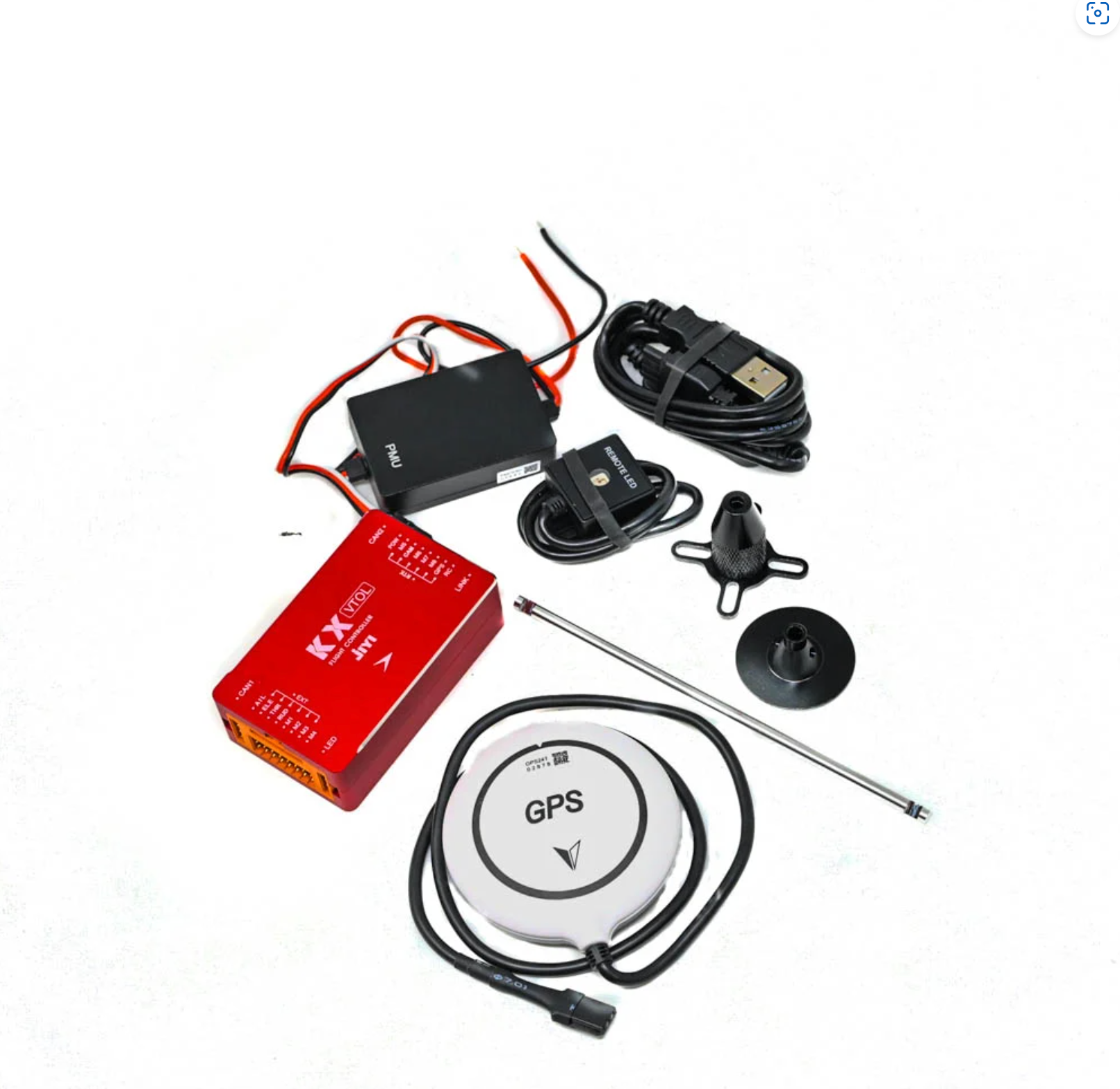

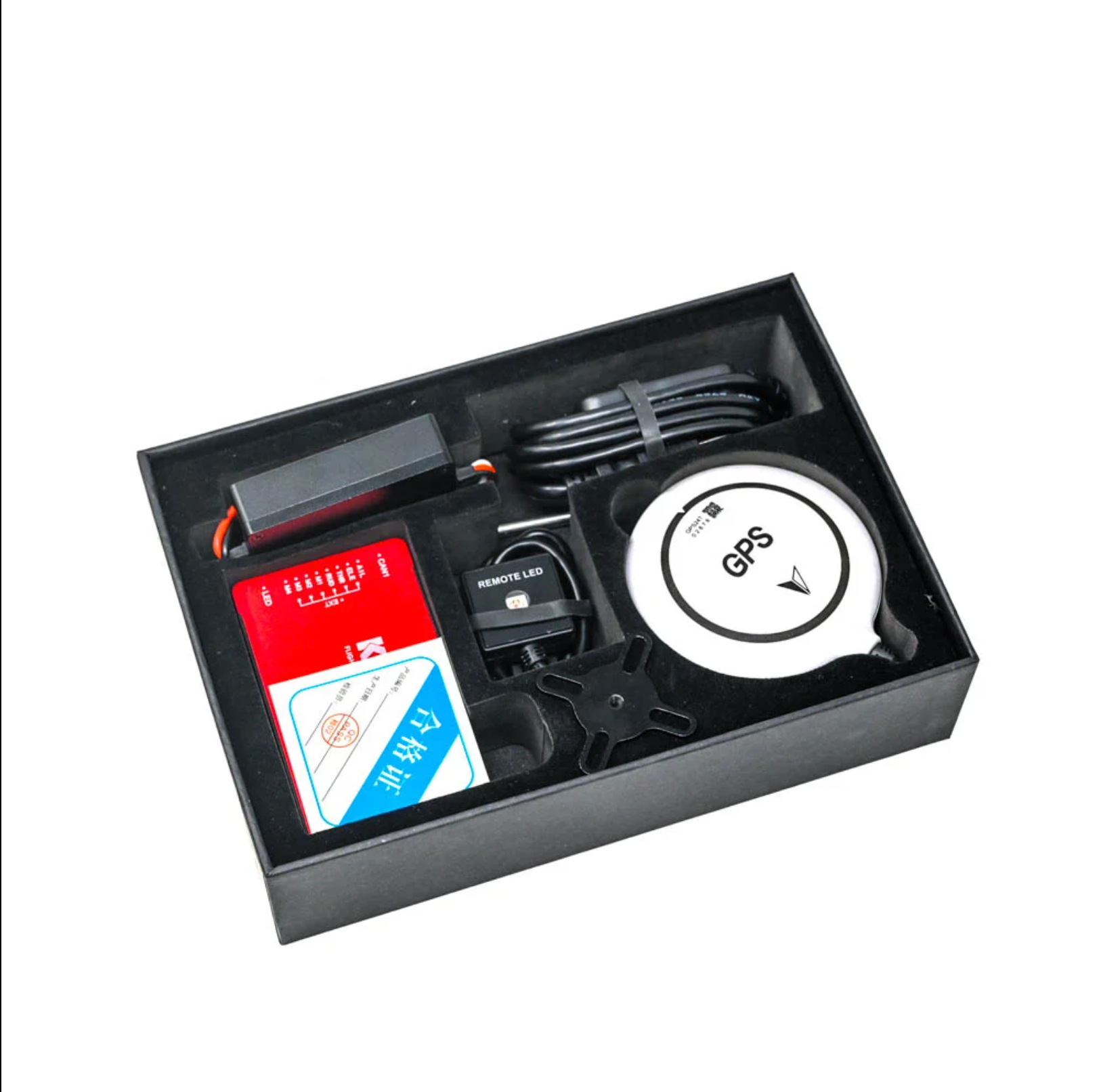

1 x Jiyi KX Flight Controller Kit – For VTOL
