Radiolink A560 Airplane Plug & Play RC Gyro Airplane

*Frequently Asked Questions and User Manual documents can be found sales page.

* To fully enjoy the benefits of this product and ensure safety, please read the user manual carefully and set up the device as instructed steps.

Specification:

• Byme-a: 4 Channels
• T8S Controller & R8XM receiver: 8 Channels

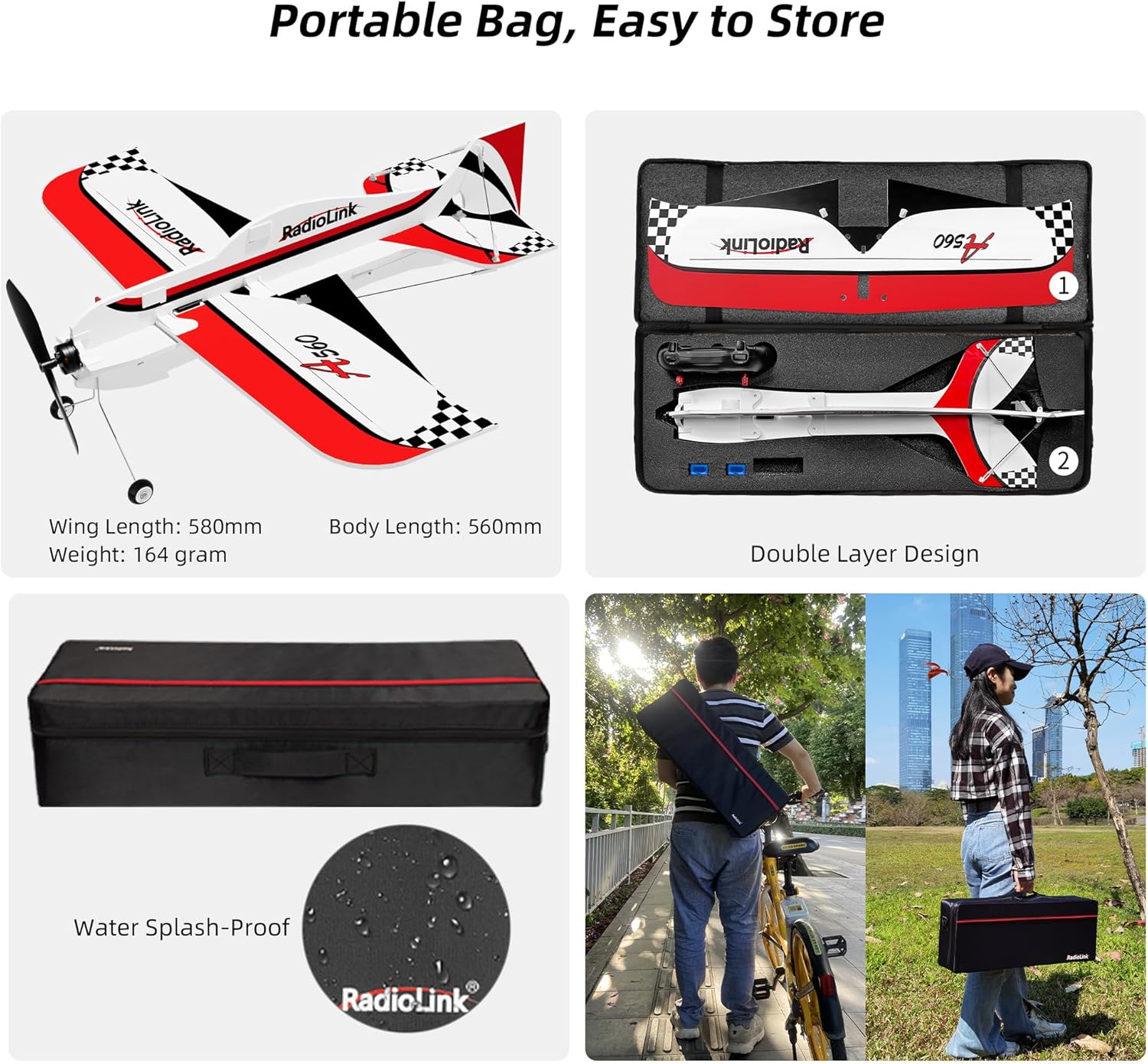

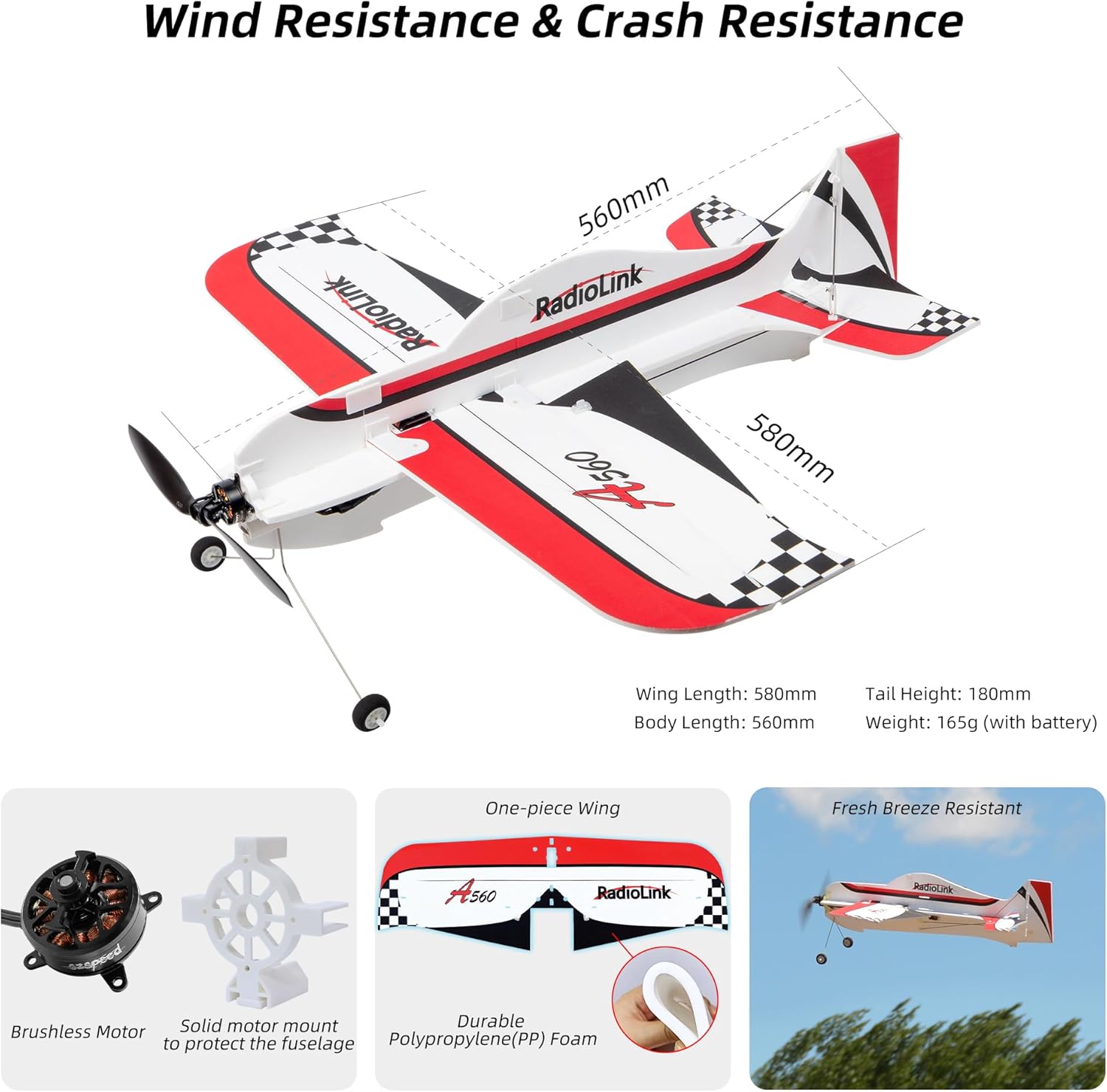

• Body Length: 560 mm/22 inch
• Wing Span: 580 mm/22.8 inch
• Height: 180 mm/7 inch
• Airplane Batteries Charging Time: about 20 minutes
• T8S Battery Charging Time: 40 minutes
• T8S Standby time: 5 hours (Full-Charge)
• Fly Time: stabilized flight about 20 minutes*2 or vertical mode about 10 minutes *2 (2 batteries)

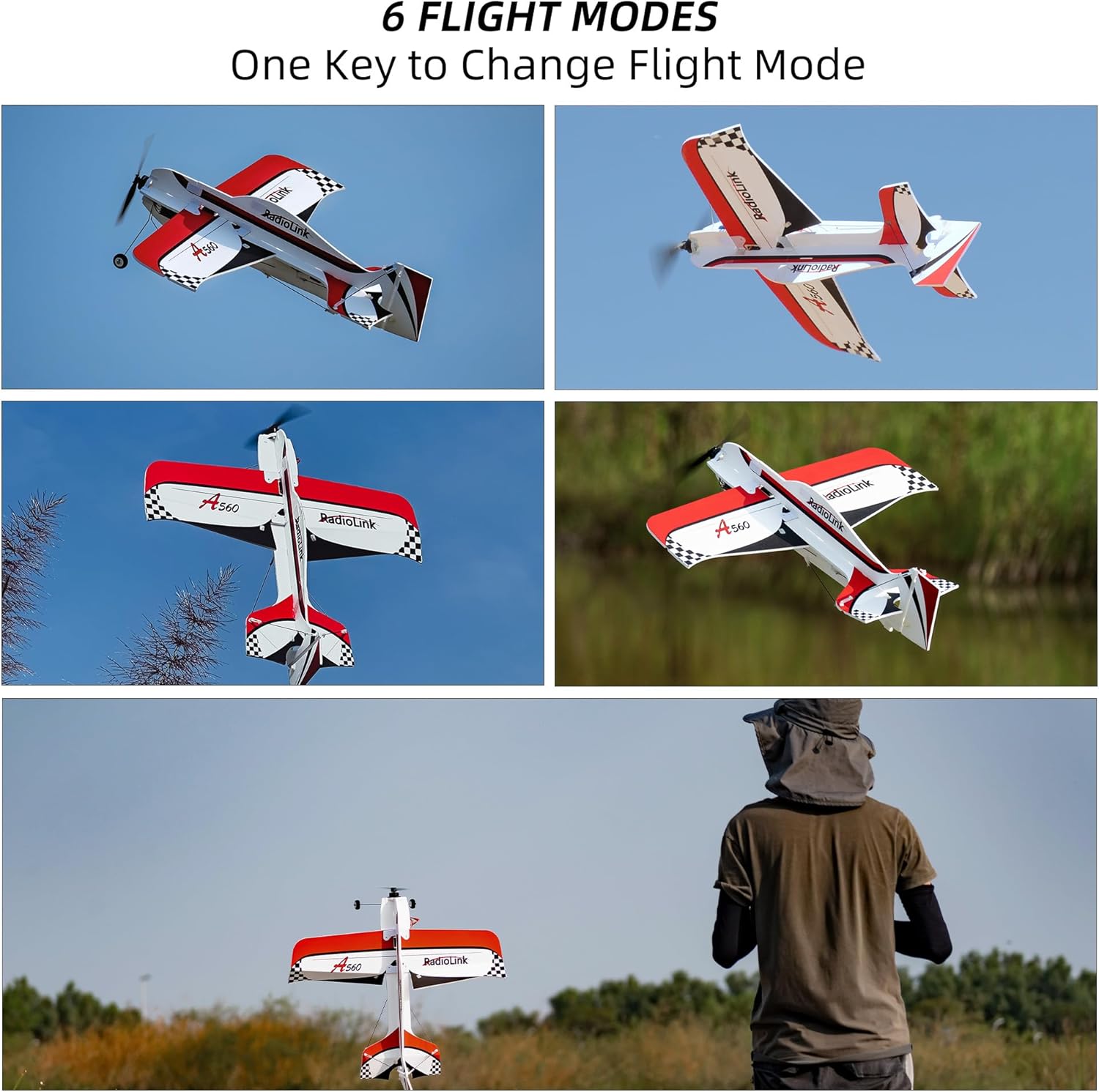

Stabilize Mode: with gyro assisting to balance the airplane. When the joystick is back to the center point, A560 will return to level automatically. Recommend for beginners to practice level flight.

Gyro Mode: Gyro enhances the A560 balance but the airplane won’t be leveled automatically. Pilots with certain experience take the Gyro Mode to practice the fixed-wing, such as realizing various freestyles, rolling, rapid pitching, backward, side flight, and spiral descending.

Acrobatic Mode: Combination of Stabilize Mode and Gyro Mode. Byme-A flight controller helps airplanes be leveled automatically when released joysticks making beginners easy to perform rolls, flat spins, 3D flight, and other amazing aerobatics.

Dual Vertical Modes:

Multirotor Logic: A560 remains in stunt posture and direction automatically and moves as quadcopter logic.

Fixed-wing Logic: The fixed-wing Vertical Mode will automatically fly with the vertical posture and move as fixed-wing logic.

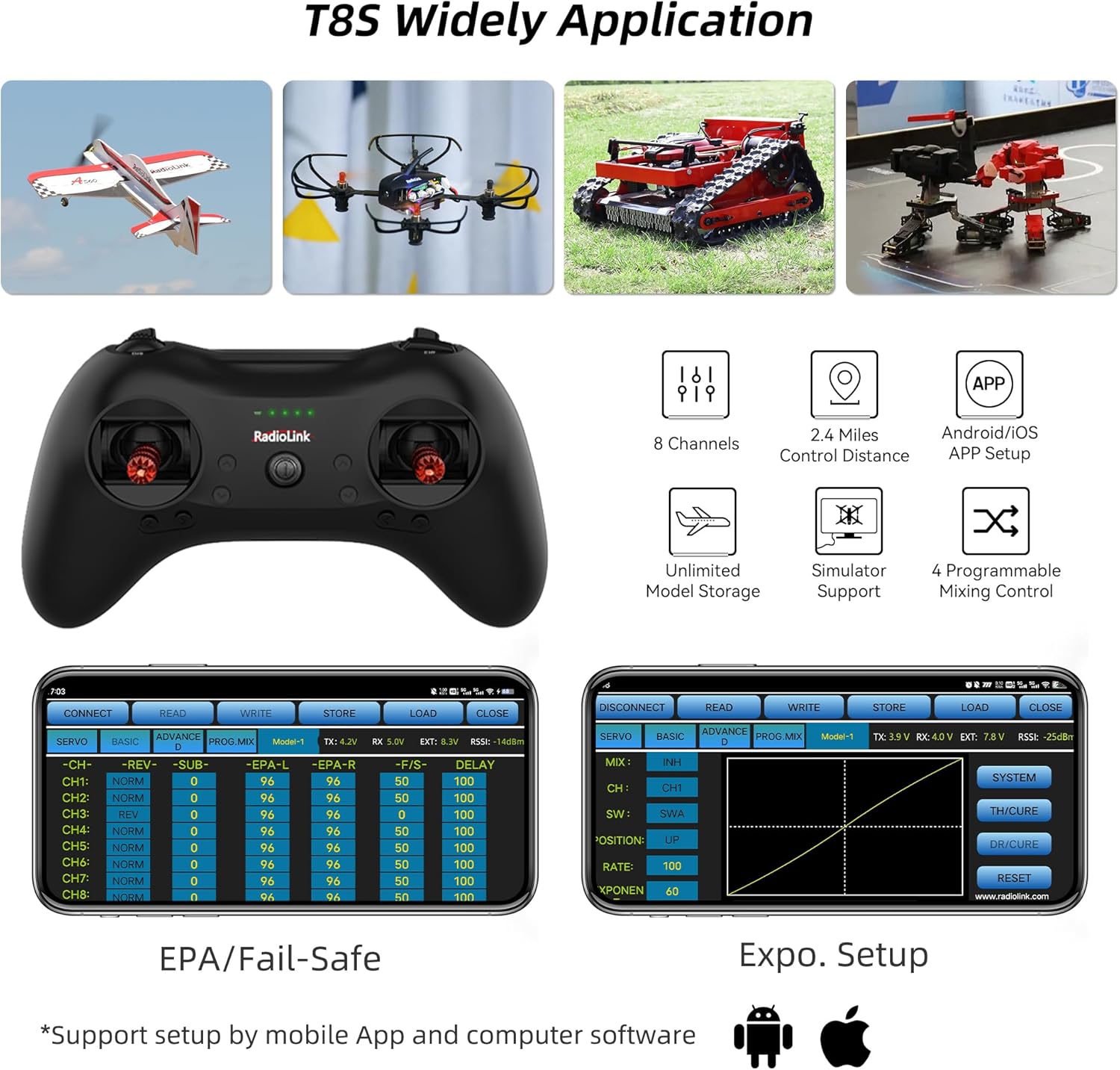

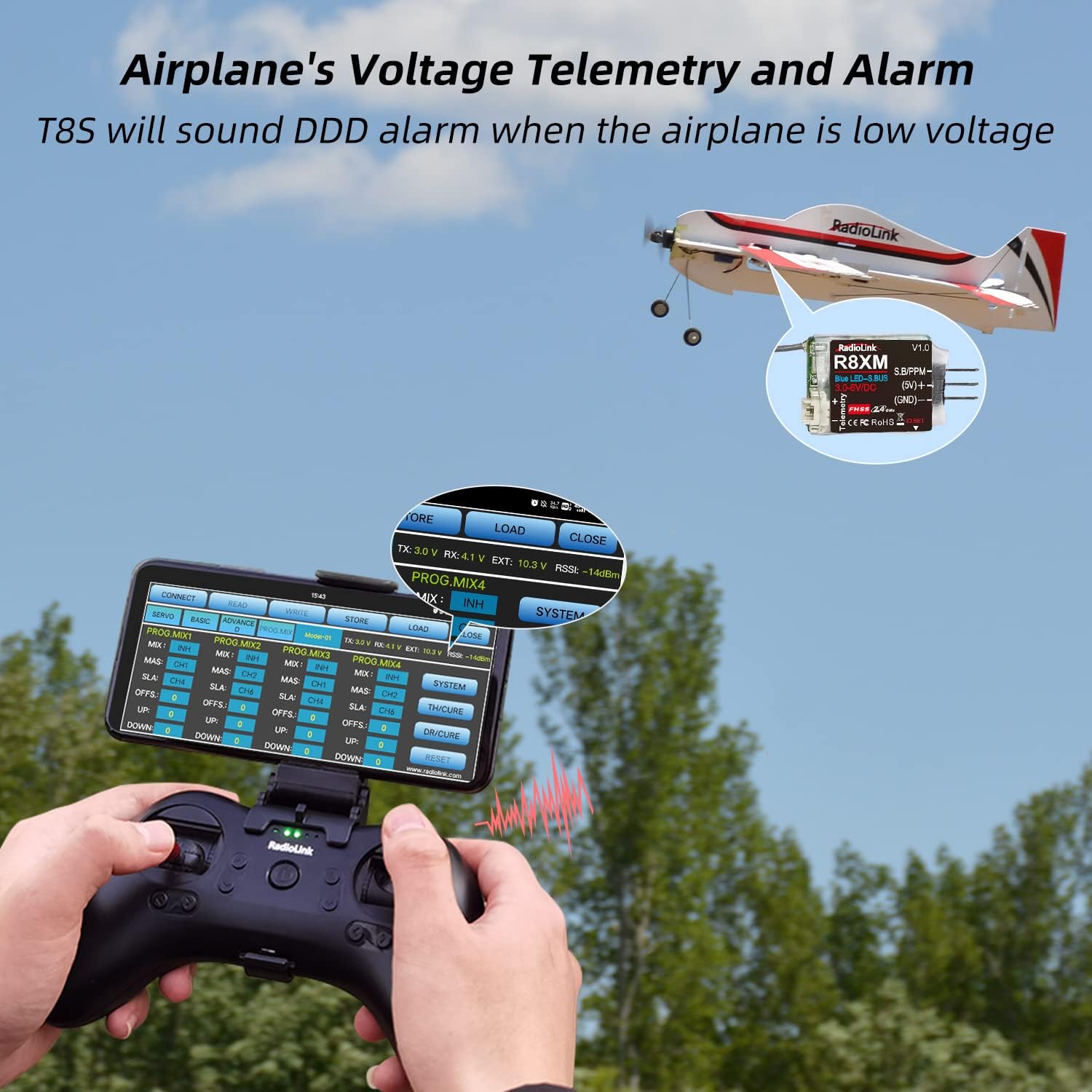

Radiolink T8S Universal Radio: it supports EXPO set, 4 sets of mix control, dual-rate, fail-safe, long rang control up to 2.48 miles in the air. It supports Bluetooth connected to Android & iOS phone apps to update airplane settings.

Plug & Play Byme-A: 4-channel flight controller, with 6 flight modes, lightweight and small size, supports 5-6v voltage, easy to switch flight modes when it flying. It applies to various models, like stunt airplanes, 3D fixed wing(F3P), RC jets, and scale model planes. Byme-A works with transmitter and receiver which supports PPM/SBUS signal.

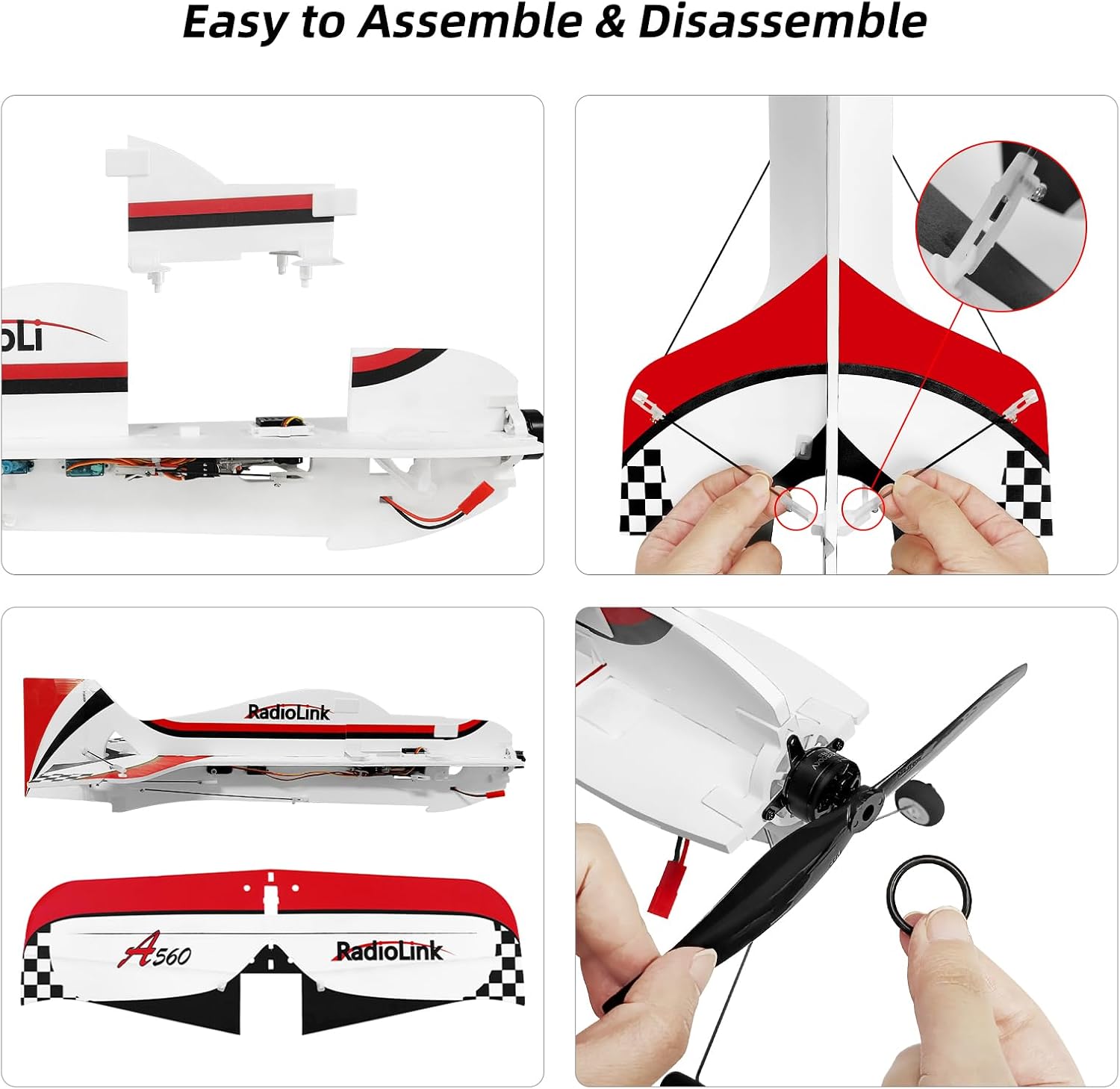

No Glue or Tape Required: factory-installed 3 servos and linkages, no need for glue or tape to build, all of the servos can be replaced by a screwdriver, which is in the package.

Efficient Brushless Power System: factory-installed brushless 2204-1600kv motor and 15A ESC. Software and hardware improve the radiation of heat and extend the motor and ESC lifespan.

• The propeller saver keeps the propeller from damage, and prevent the electronic components from over current. Pick up the prop and install it to the shaft adaptor to fly again after the propeller drop off. GENFAN prop and brushless motor is durable for crashed.

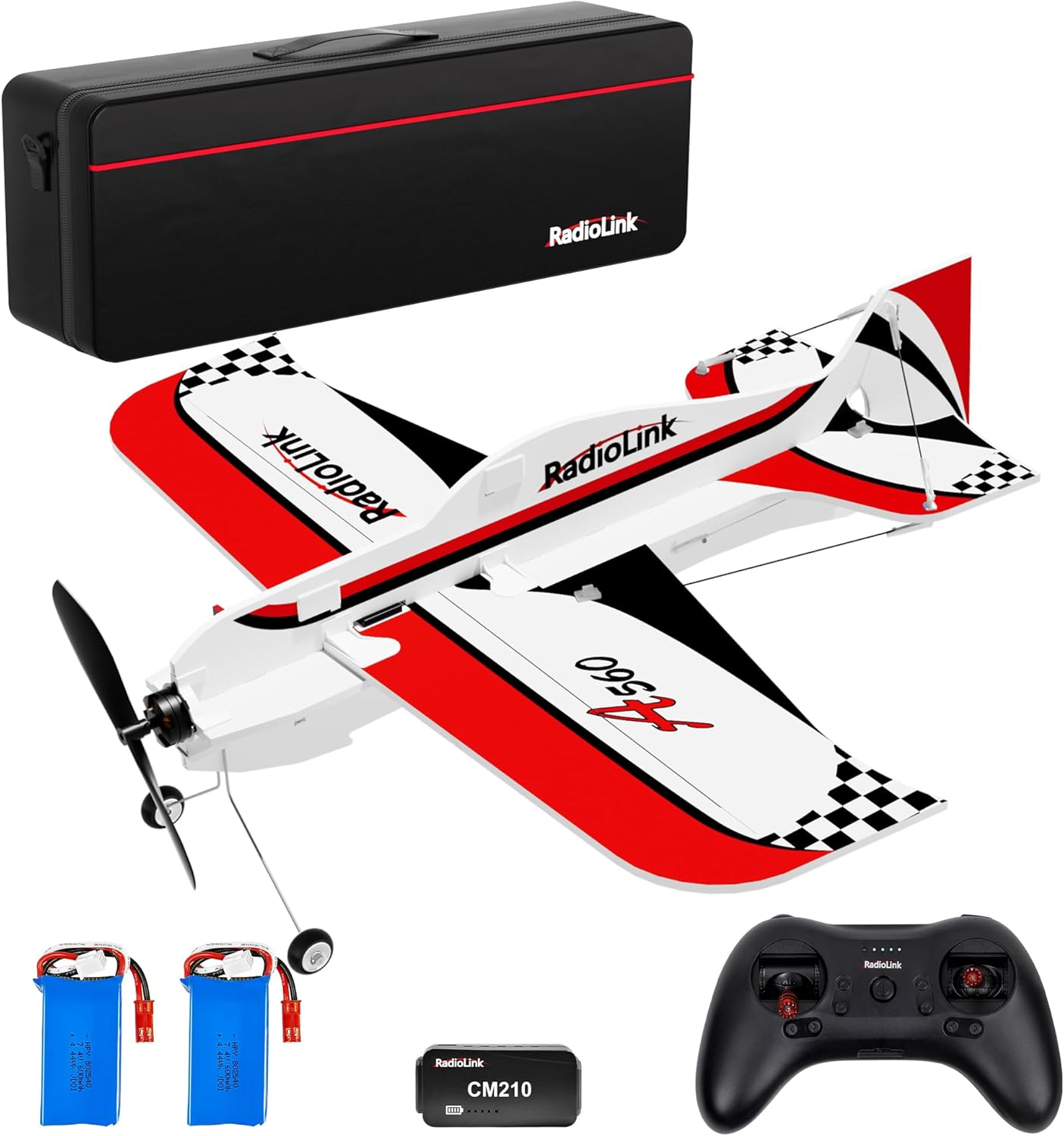

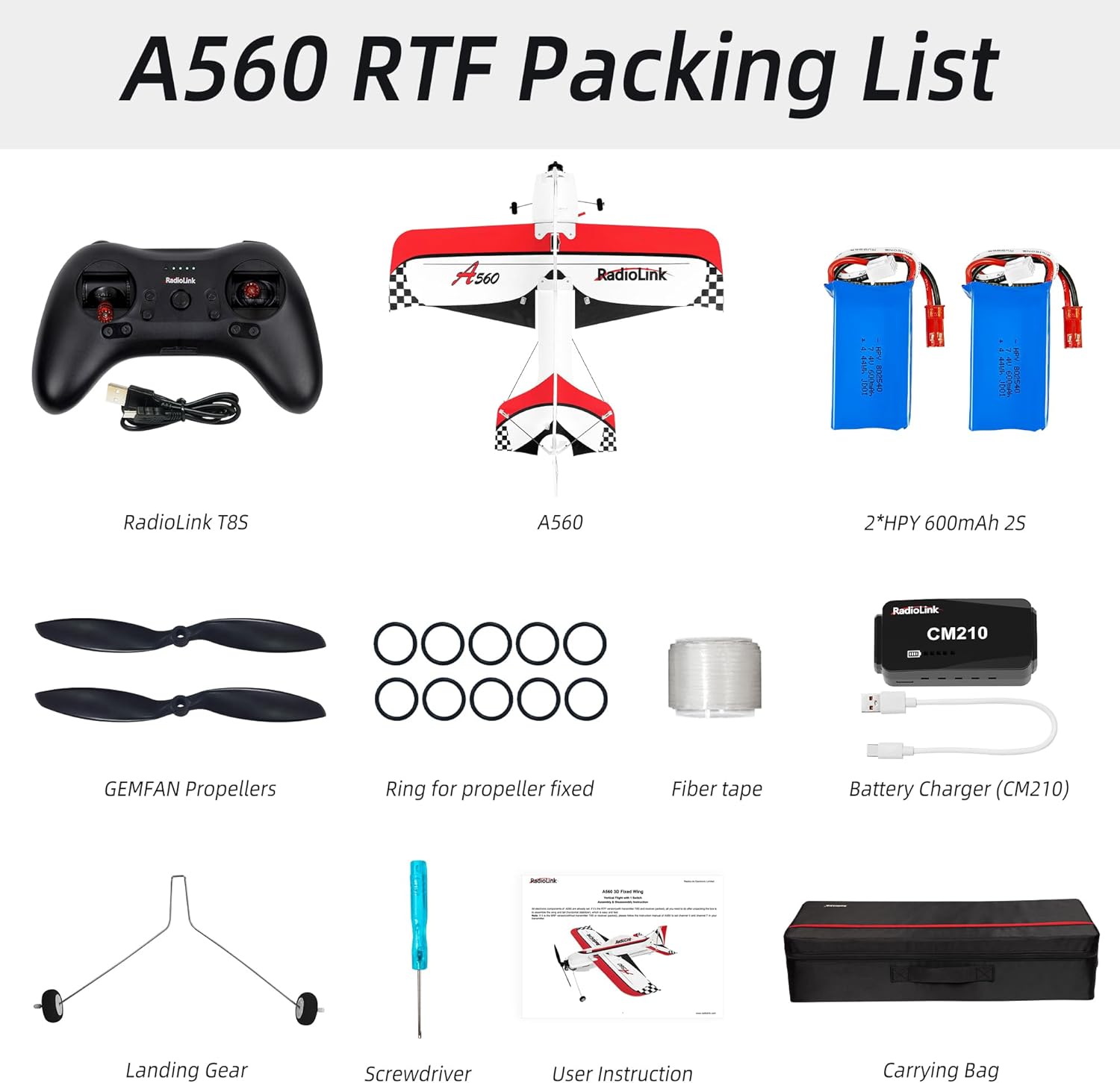

• Package comes with 2S LiPo battery balance charger CM210 and 2 of 600mAh 2s 7.4V LiPo with a high-quality and safe cell, one liPo flight time up to 10 minutes of vertical flight or 20 minutes of level flight.
• Replace 2s-3s LiPo size recommend: 1.9*0.9*0.6 inch, 0.88-1.2 oz.
• Note: Make sure liPo batteries fully charged before first fly.

Propeller FAQ

Q: What is the difference between 8038 propeller and 7035 propeller?

A: The 8038 propeller are larger and the flight speed will be slower. The 7035 propeller have small size, high flexibility and low noise. It will be smoother when choose Vertical Mode to fly. Equipped with two types of propellers to meet the different experience needs of pilots.
