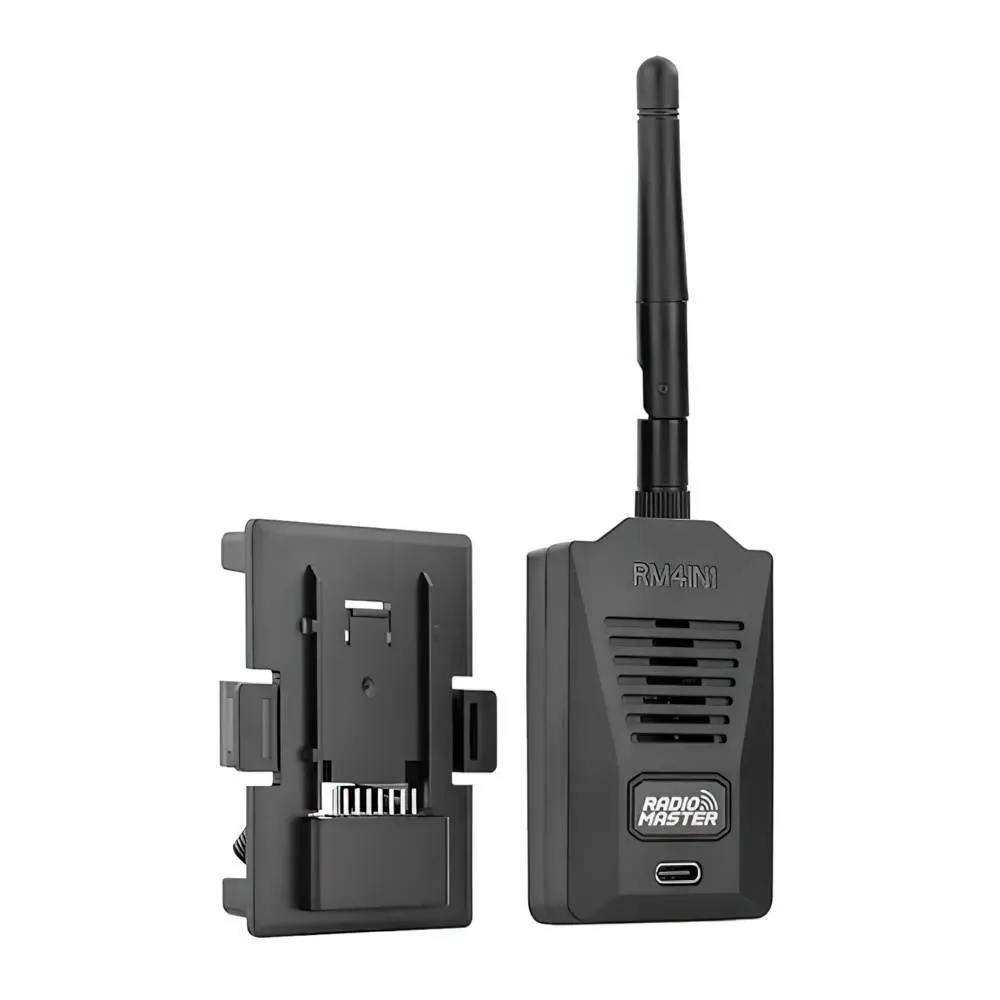

RadioMaster Micro 2.4GHz 4-in-1 Module – JR / Nano

The Radiomaster Micro 2.4GHz 4-in-1 Module is an external nano module that can also be used on JR modules with the included JR adapter. This means this module is compatible with Zorro and also TX16s, TX16sMKII, TX12, TX12MKII, and Boxer. The module features a +20dBm RF gain, a 2.4GHz frequency band, and an operational voltage of 4.5-8.4V.

• For Zorro, TX16S MKII, TX12 MKII and more
• Compatible with more than 70 RF Protocols
• Works with JR and Nano Module Bays
• Up to 20dBm power output
• Wireless trainer function

• Operational frequency: 2.4G ISM band (2400mHz – 2483mHz)
• RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936

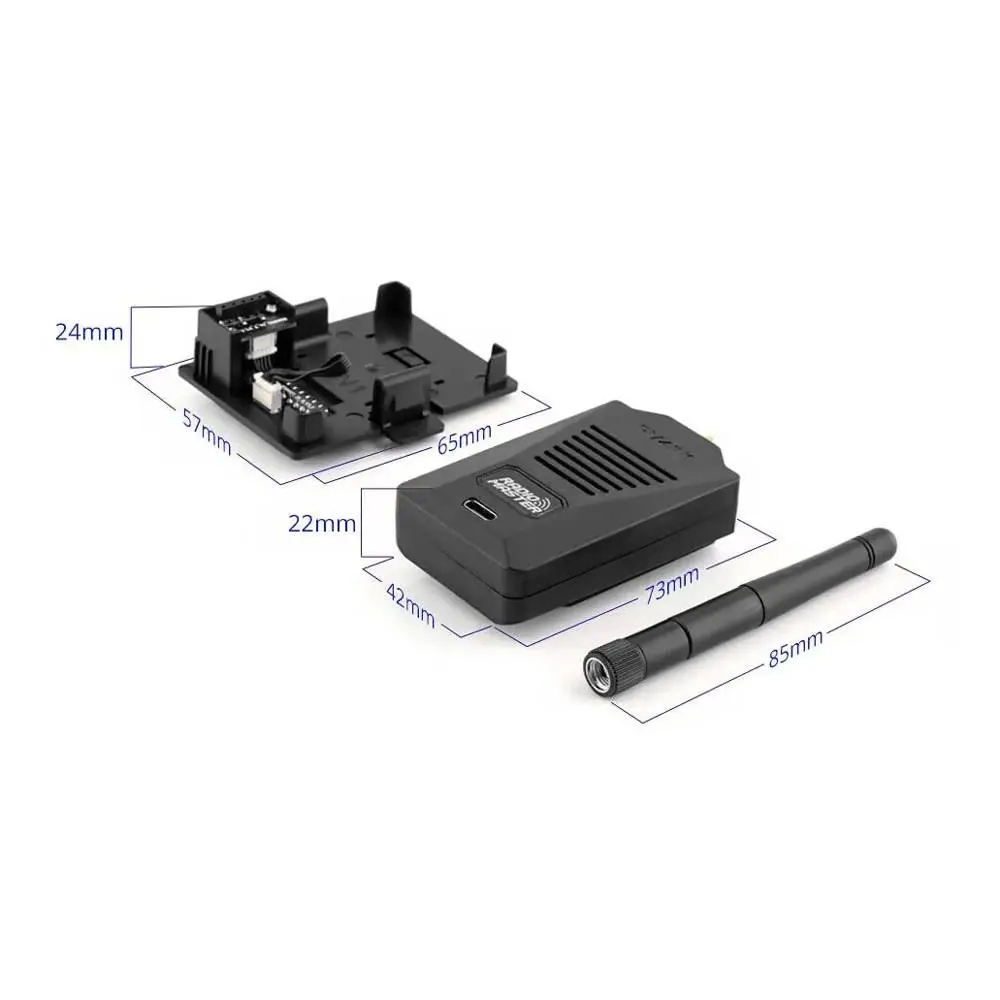

• Dimension: 73*42*22mm (without antenna)
• Weight: 30g (without antenna)
• Operational voltage: 4.5-8.4V
• Operational current:≈100mA
• Item: RM 4IN1 Module
• RF Gain: +20dBm

• 1x RadioMaster Micro 2.4GHz 4-in-1 Module (Nano)
• 1x JR Adapter
• 1x Antenna
