Specification
| Versions | CC2500 | 4in1 | ELRS | ELRS Starter Set | CC2500 + TBS Nano Crossfire Combo | |
| Physical Dimensions |
170*159*108mm |
|||||
| Weight |
350 grams |
|||||
| Operating Frequency |
2.400GHz-2.480GHz |
|||||
| Internal RF Options | CC2500 multi-protocol | 4-in-1 multi-protocol | ELRS | CC2500 multi-protocol | ||
| Supported Protocols | Module dependent | Module dependent | ELRS | Module dependent | ||
| RF Power | CC2500: 20dBm max. | 4-in-1: 20dBm max. | Up to 250mw ( CE & FCC Versions will be available) | CC2500: 20dBm max. | ||
| Antenna Gain |
Folding 2db |
|||||
| Operational Current |
160mA@8.4V |
|||||
| Operational Voltage |
6.6-8.4v DC |
|||||
| Control Distance | > 2km @ 20dbm | > 2km @ 20dbm | Receiver and Power Output dependant | > 2km @ 20dbm | ||
| Operating system |
OpenTX / EdgeTX Compatible |
|||||
| Control channels |
Maximum 16 (Rx dependent) |
|||||
| Display |
128*64 Monochrome LCD |
|||||
| Battery |
2 x 18350 (Not included) |
|||||
| Charging |
Built in USB-C Charging |
|||||
| Gimbal |
Hall-effect |
|||||
| Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
| Firmware Upgrade Method |
Via USB or SD card |
|||||
Support OPENTX & EDGETX
Support 4 RF Configurations
Switchable in Mode 1 and Mode 2
Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
Adjustable Hall Gimbals
External Module Bay
Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

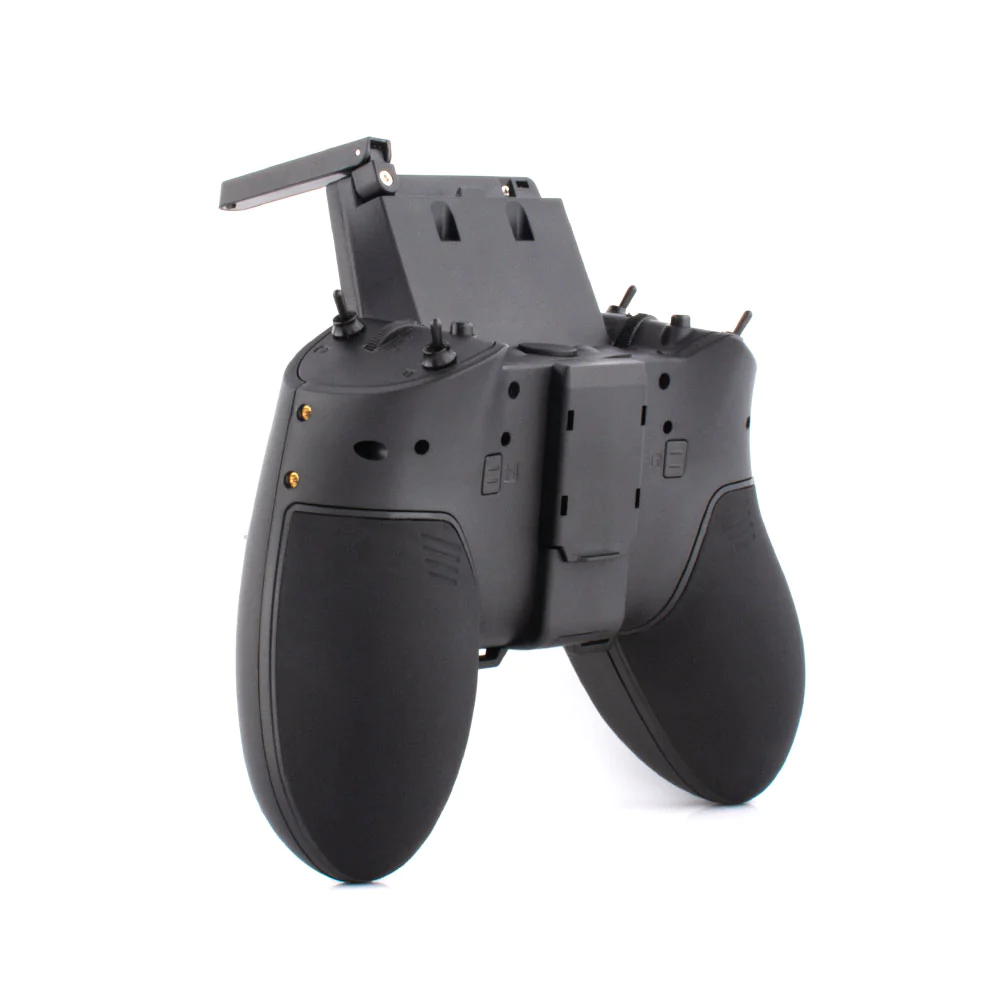

18350 Battery Compartments
Battery Charging
- Supports USB-C Directing Charging
- Supports External 2S Battery Power Supply
Oversized LCD & Foldable Antenna
DIY Attachment Points
Ergonomically Designed
Accessories
- 18350 900mah Battery
- EP1 Nano Receiver
- EP2 Nano Receiver
- Carry Case for Zorro Radio
- XT30 to JST 3 Pin connector for Zorro Radio
User Manuals
Firmware Updates
Zorro SD Contents and Firmware
Package Includes
Please note, when you choose a different version, it is packaged with different parts.
The chart below doesn’t mean you will receive all versions.
| Version | Package Includes |
| CC2500 |
|
| 4-in-1 |
|
| ELRS |
|

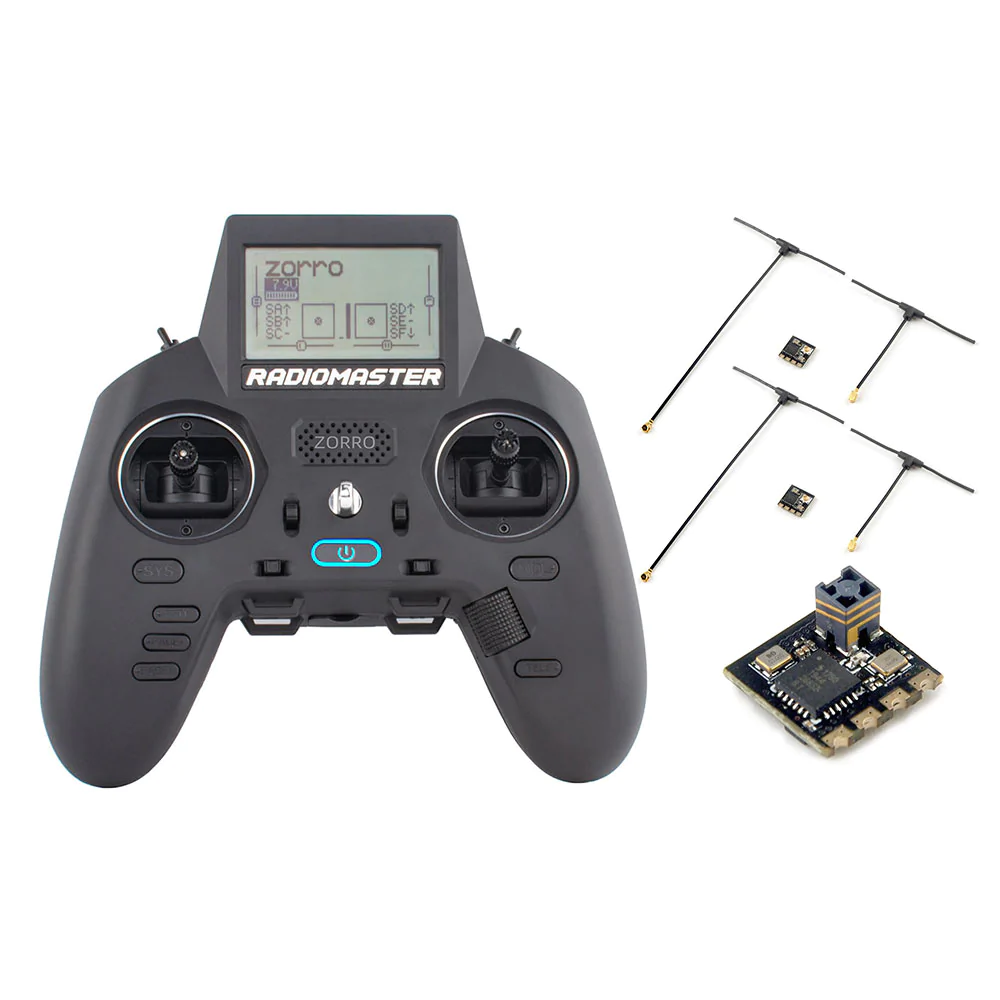

| ELRS Starter Set |
|

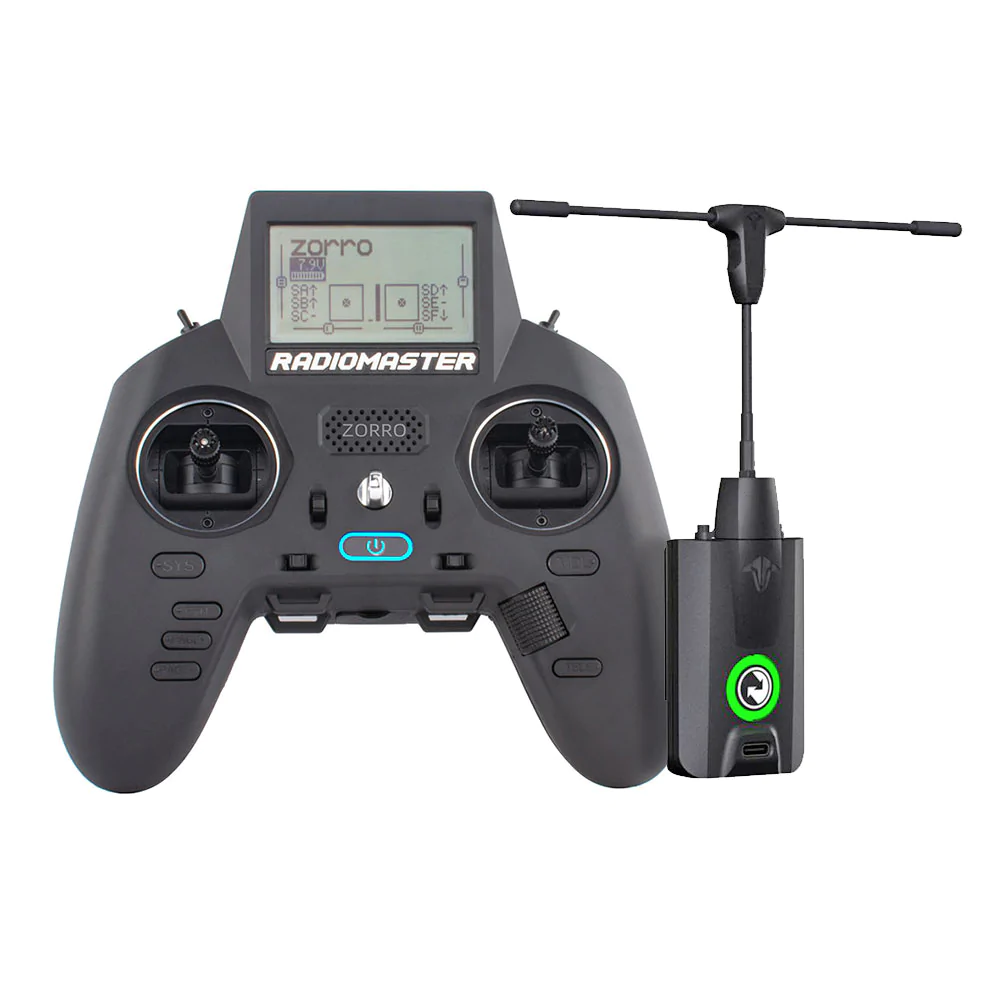

| CC2500 + TBS Nano Crossfire Combo |
|
