Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and the Ranger Micro modules. For more information on the Ranger series
Features
-
High-efficiency cooling system
-
Wifi and Bluetooth support
-
Packet rates up to F-1000Hz
-
Up to 1Watt Power output
-
T-antenna included

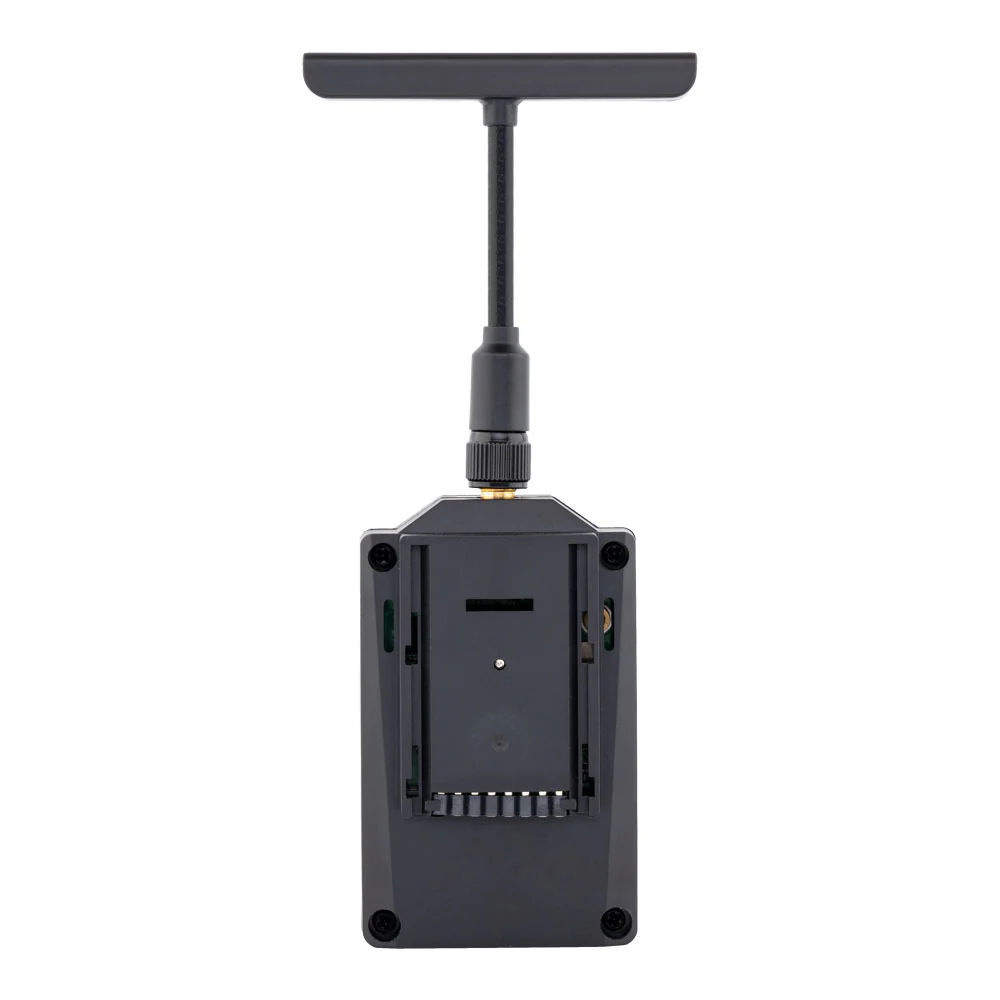

- With the Nano connector, support Zorro radio
Specification
-
Item: Ranger Nano Module
-
Regulatory Domain: ISM2400
-
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
-
RF chip: SX1281IMLTRT
-
Frequency Range: 2400 MHz – 2480 MHz
-
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
-
Minimum receiver refresh rate: 25Hz
-
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
-
Wifi Support: Yes
-
Bluetooth support: Yes
-

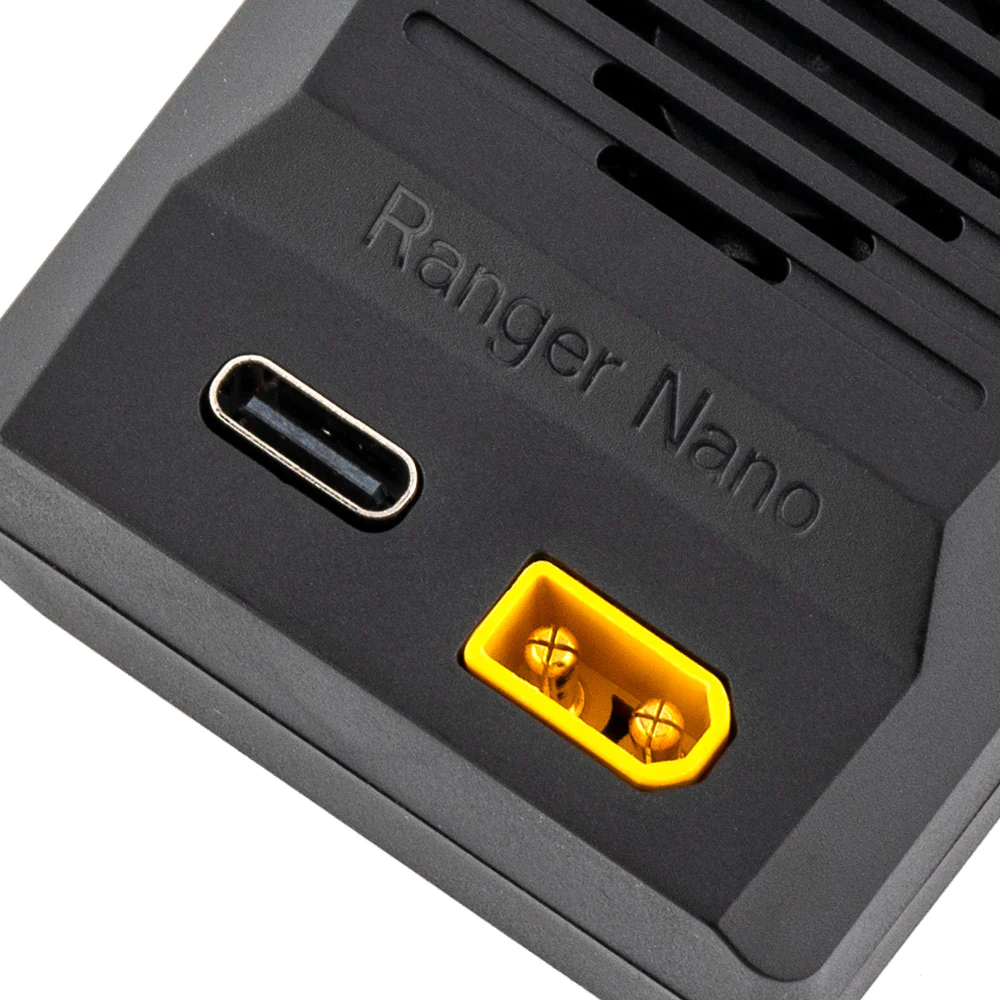

XT30 Power supply voltage: DC 6V – 16.8V
-
Weight: 48g (with antenna) / 39g (without antenna)
-
Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
Size
![Ranger Nano 2.4GHZ ELRS Module](https://cdn.shopify.com/s/files/1/0609/8324/7079/files/01_480x480.jpg?v=1668050661)
Ranger Series
We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/
- Ranger 2.4GHz ELRS Module
- Ranger Micro 2.4GHZ ELRS Module
- Ranger Nano 2.4GHZ ELRS Module
- 2.4GHz T Antenna
- 2.4GHz Moxon Antenna
How to Replace Ranger Nano Board
Package Includes
-
1 * Ranger Nano Module
-
1 * T Antenna

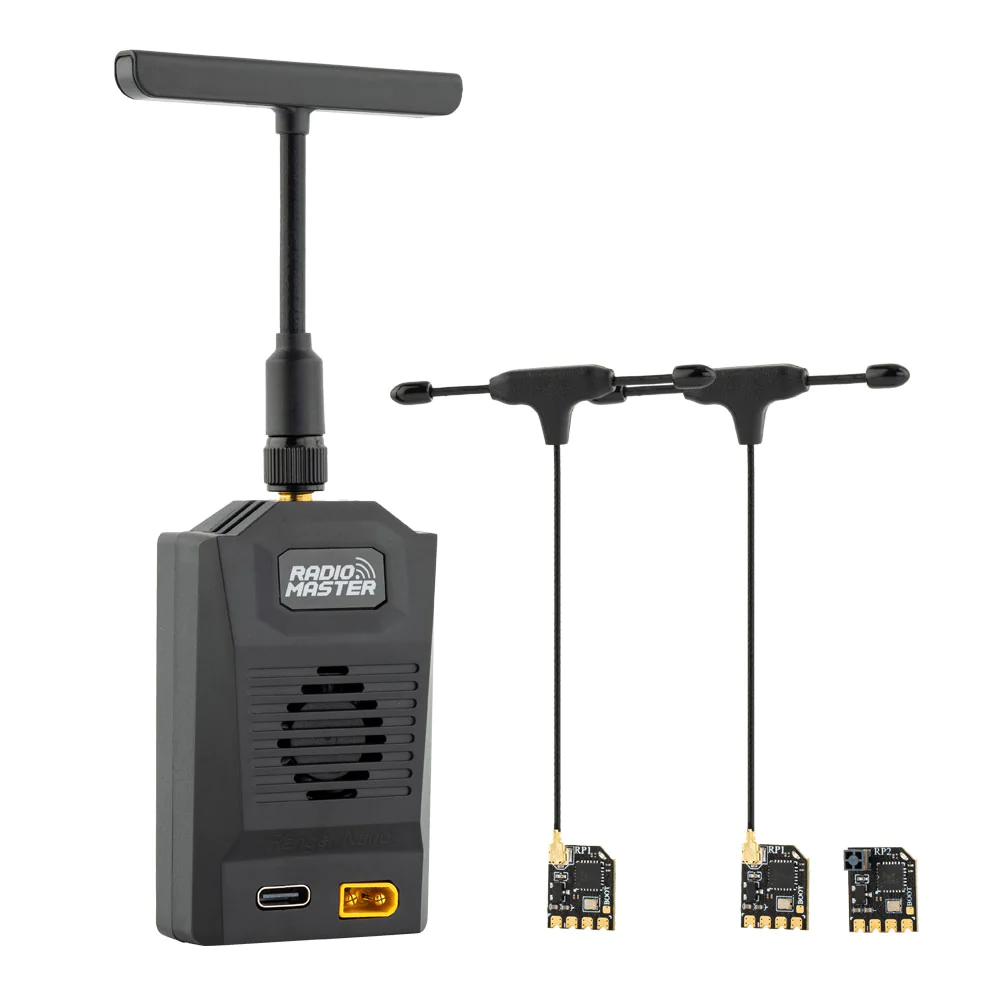

Need receivers too? Purchase the Ranger Nano Combo, which includes the following items:
- 2 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
