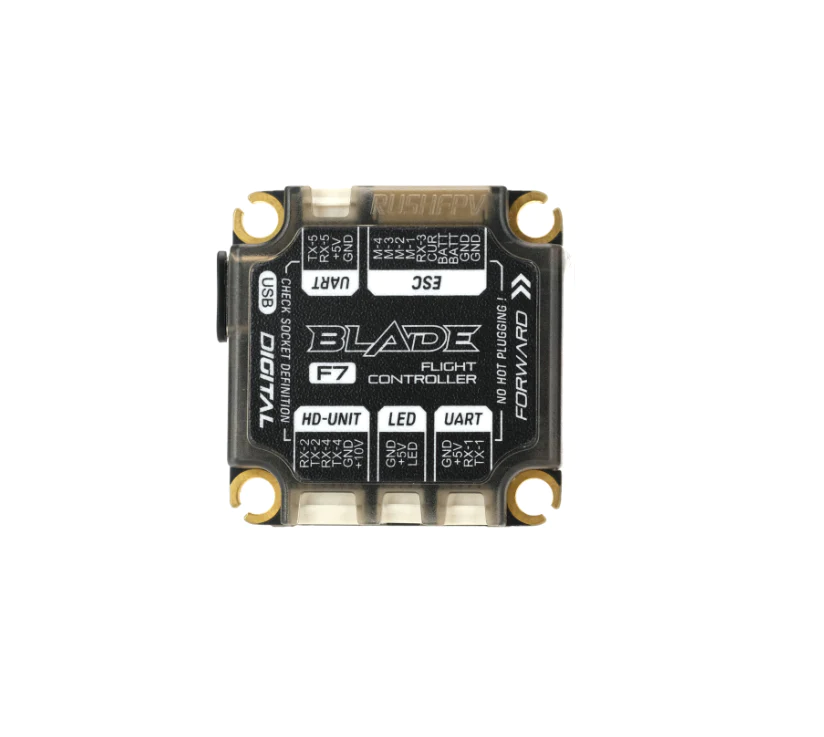

RUSH BLADE F722 V2 Flight Controller – Digital

BLADE  722 v2 Digtal version

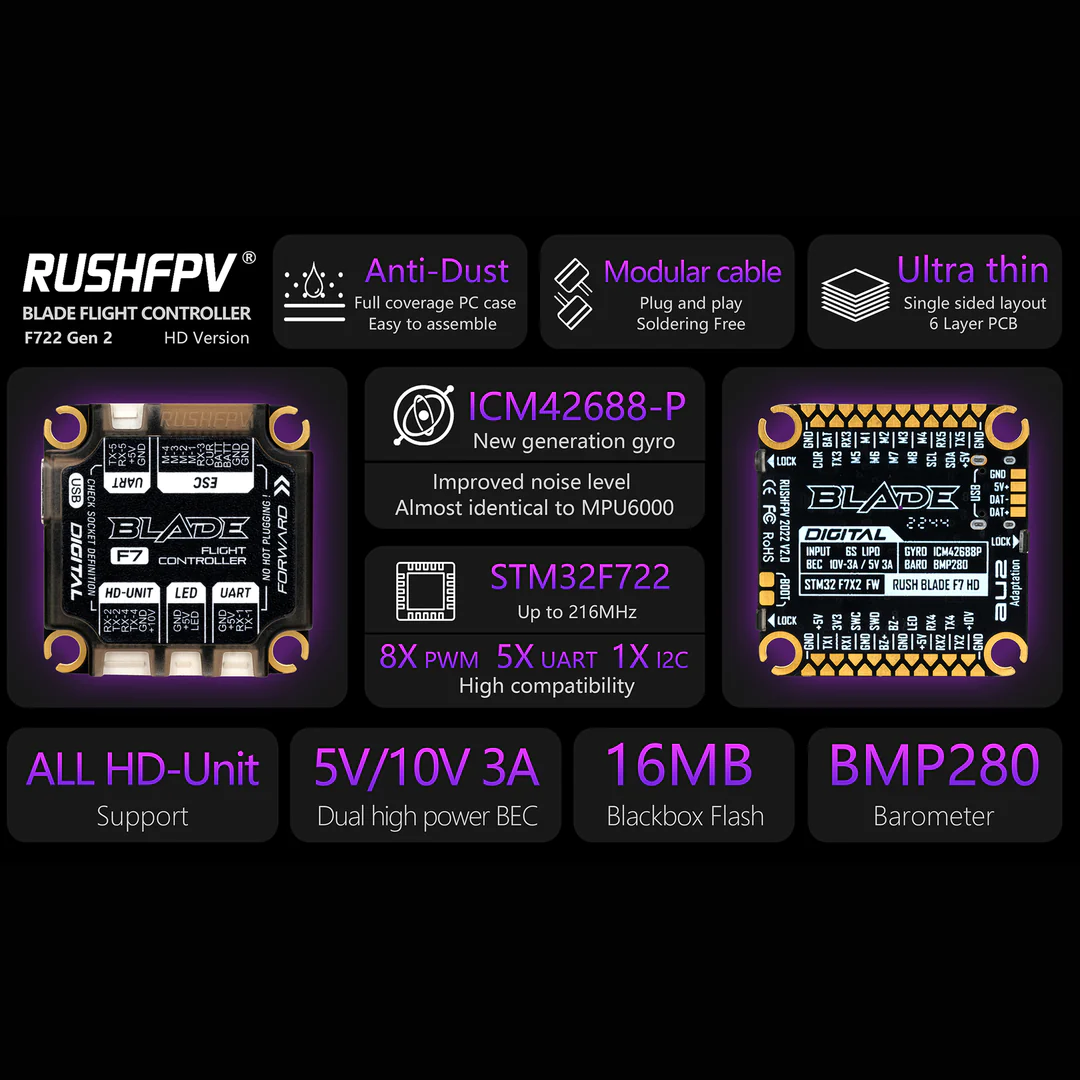

Features

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port.
• Dual high power synchronous rectifier BEC, supports up to 36V input and provides stable 5V/10V 3A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining full-featured pads on the back, providing more expansion support.
• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings

Specification

• MCU： STM32F722RET6
• GYRO： ICM42688P
• BLACKBOX ：16MB FLASH
• BEC：INPUT 7-36V / 3-6S LIPO，OUTPUT 1 5V 3A，OUTPUT 2 10V 3A
• PORT： 8×PWM 5×UART 1×I2C
• ADC： V-BATT / CURR-ESC
• LED： WS2812 LED STRIP
• SIZE： 36.5mm*37mm*5.2mm
• BARO：BMP280
• MOUNTING HOLES：30.5*30.5mm
• TARGET： RUSH_BLADE_F7_HD WEIGHT 11g(without cable)

Includes

• 1 x RUSH BLADE F722 V2 30×30 Flight Controller For DJI HD
• 2 x 60MM UART Cable
• 2 x 60MM UART Cable
• 1 x 60MM ESC Cable
• 1 x 60MM ESC Cable
• 1 x 60MM ESC Cable
• 1 x 60MM LED Cable
• 1 x 90MM HDCable
• 1 x 110MM Air Unit Cable
• 5 x 8MM Grommet
• 5 x 5MM Grommet
