Product Description:
(1) Supports test voltage from DC4.5V to DC30V, current from 0A to 15A.
(2) Detects bidirectional current. Supports USB-A & Type-C interface.

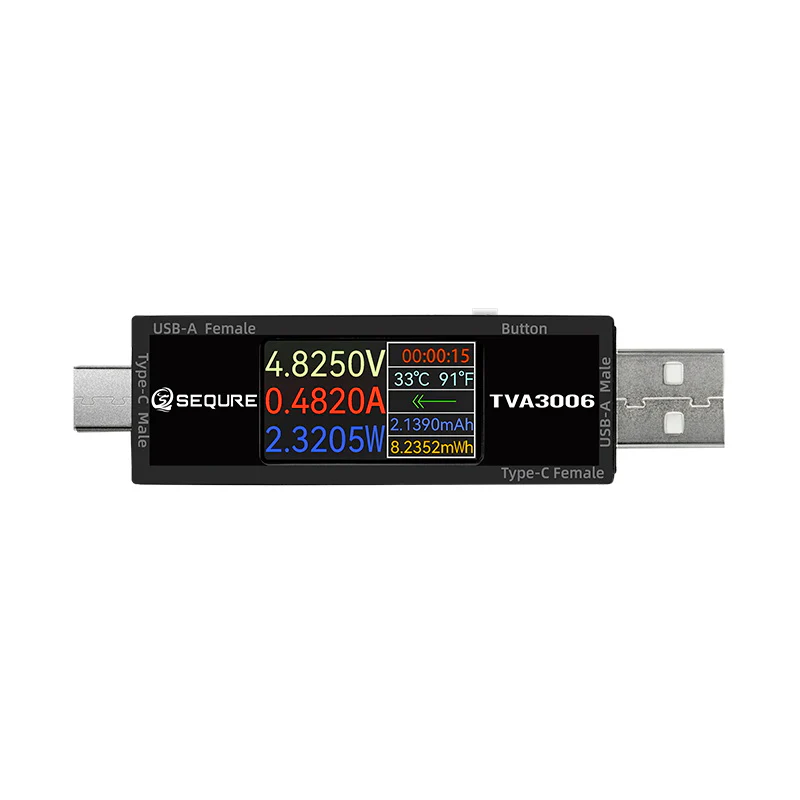

(3) Monitors the voltage, current, power, work timekeeping, current direction, capacitance, quantity of electricity in real time.
(4) Features with data statistics, the statistics interface will show the maximum/minimum/average value of voltage, current, and power.
(5) Adopts HD color screen display, the display direction of screen is adjustable.
(6) Equipped with a multi-functional UI design interface, the tester supports firmware upgrade.
(7) Suitable for monitoring the voltage,current, and power of power supply devices.
Parameters of Product:
| Model | TVA3006 |
| Voltage Range | DC 4.5-30V |
| Current Range | 0-15A(Continuous 6A) |
| Interface Specification | USB-A & Type-C |
| Voltage Measurement Accuracy | ±0.01V |
| Current Measurement Accuracy | ±0.01A |
| Screen Specification | 1.14”IPS LCD |
| Monitoring Methods | Pass-through |
| Monitoring Content | Voltage, Current, Power, Work Timekeeping, Temperature, Current Direction, Capacitance, quantity of electricity, and so on. |
| Adjustable Display Direction of Screen | Support |
| Data Statistics | Support |
| Firmware Upgrade | Support |
| Dimension of Host | 80*20*14mm |
| Weight of Host | 18g |
Package included:
TVA3006×1
Overall Dimension

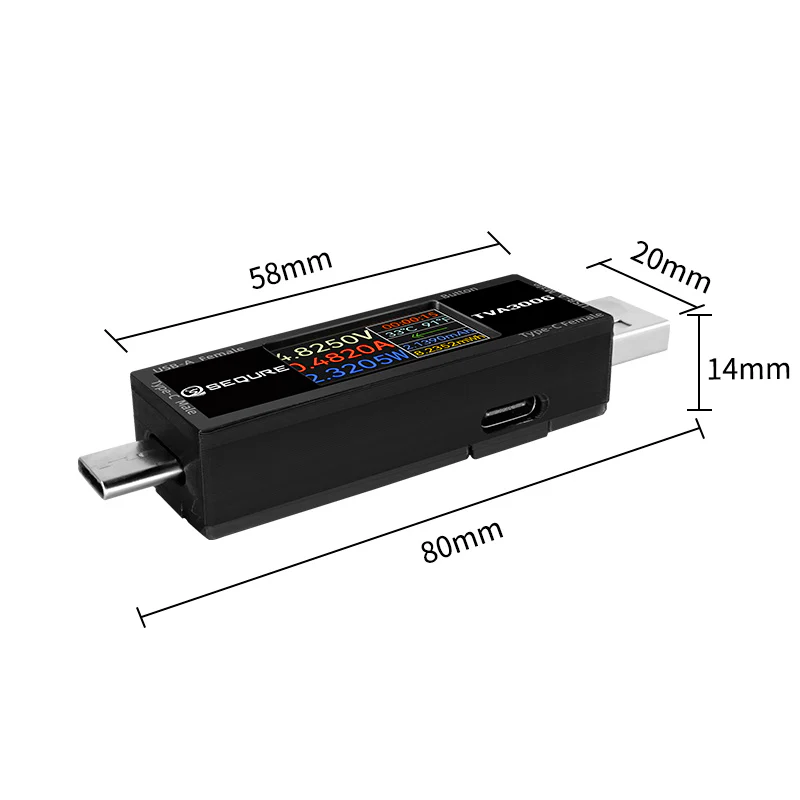

（1）Product Size: 80*20*14mm

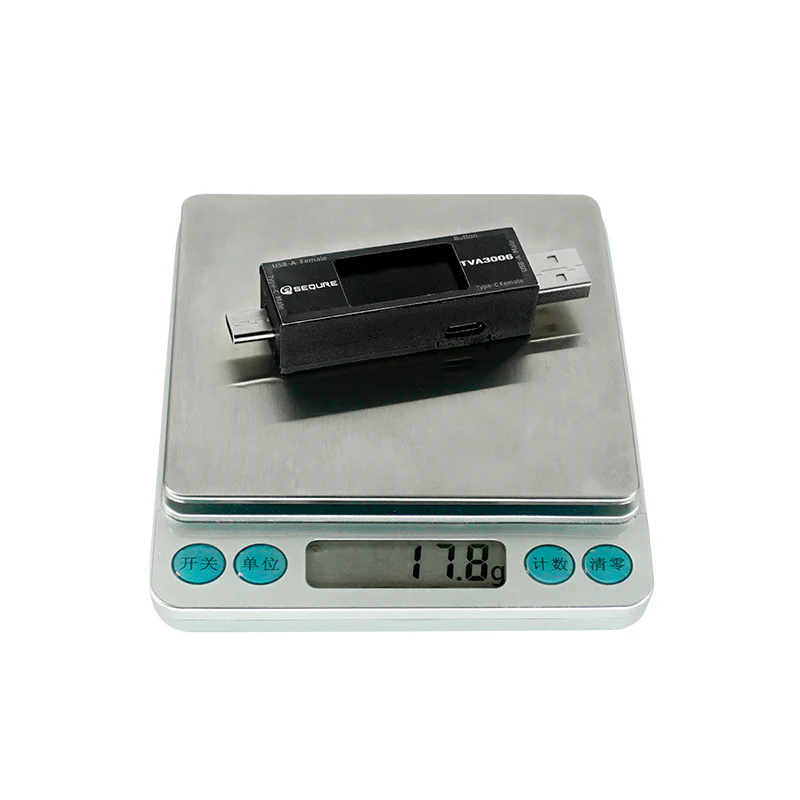

Net Weight Of Product: 17.8g
（2）Package Size: 120*80*15mm
Packing Weight: 20g
（3）Package Size (Including Outer Carton)：200*110*40mm
Packing Weight (Including Outer Carton)：68g
