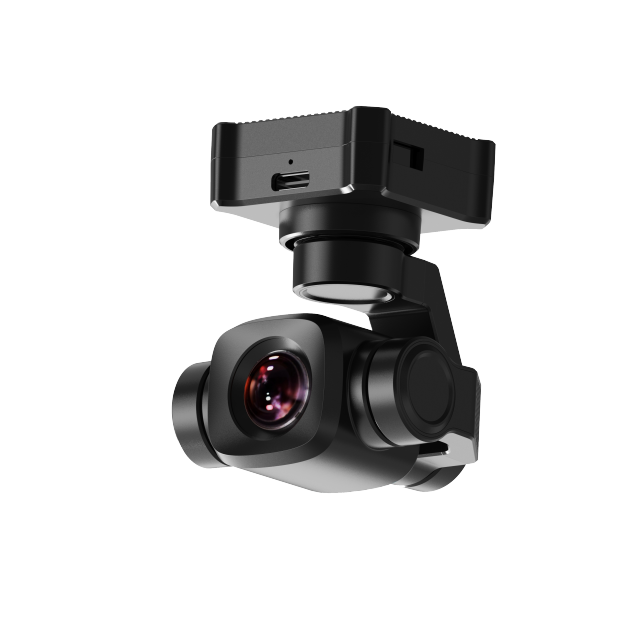

SIYI A8 Mini 4K 8MP Ultra HD 6X Digital Zoom Gimbal Camera with 1/1.7″ Sony Sensor AI

SIYI A8 mini 4K 8MP Ultra HD 6X Digital Zoom Gimbal Camera with 1/1.7″ Sony Sensor AI Smart Identify and Tracking HDR Starlight Night Vision Mini 3-Axis Stabilizer 95g Lightweight 55x55x70mm for UAV UGV USV RC Planes and FPV Drones.

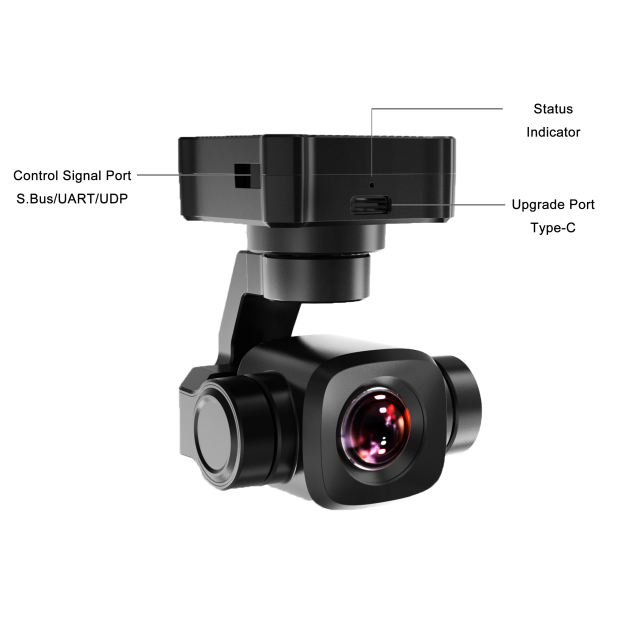

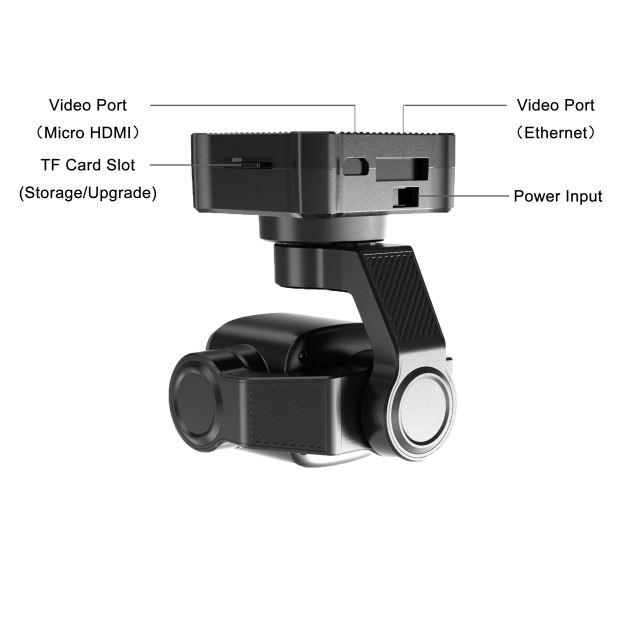

Overall Model: A8 mini Video Output Port: Ethernet, HDMI, CVBS (AV) Control Signal Input Port: S.Bus, UART, Ethernet UDP Control Signal Output Port: S.Bus Working Voltage: 11 ~ 25.2 V *Early manufacturing lots of A8 mini may not support 25.2 V, please be careful Power Consumption: – Average 5 W – Summit 12 W Working Temperature: -10 ~ 50 ℃ Dimension: 55*55*70 mm Weight: 95 g

Gimbal Angular Vibration Range: ±0.01° Controllable Pitch Angle: -135° ~ +45° Controllable Yaw Angle: -160° ~ +160° Rotatable Roll Angle: -30° ~ +30° Camera Lens: Fixed Focal Length, 6X Digital Equivalent Focal Length: 21 mm Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution Aperture: F2.8 FOV: – Diagonal 93° – Horizontal 81° TF Recording Resolution: – 4K (4096 x 2160) @ 25 fps – 2K (2560 x 1440) @ 30 fps – 1080p (1920 x 1080) @ 30 fps – 720p (1280 x 720) @ 30 fps Video Storage Bitrate (H.265 Codec): – 4K / 2K: 20 Mbps – 1080p / 720p: 15 Mbps

Supported File System: – FAT32 – ExFAT Photography File Format: JPG Video File Format: MP4 Supported MicroSD Cards: MicroSD Class10, max 512 GB Still Photography Mode: Single White Balance: Auto
