Overall

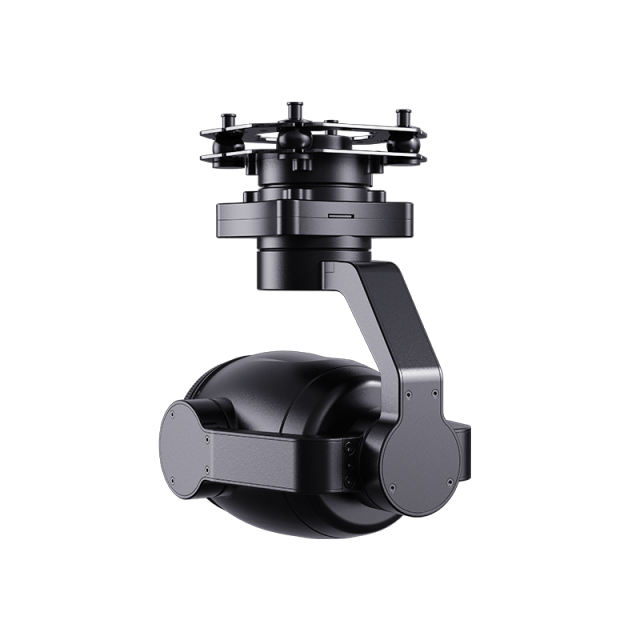

Model: ZR30

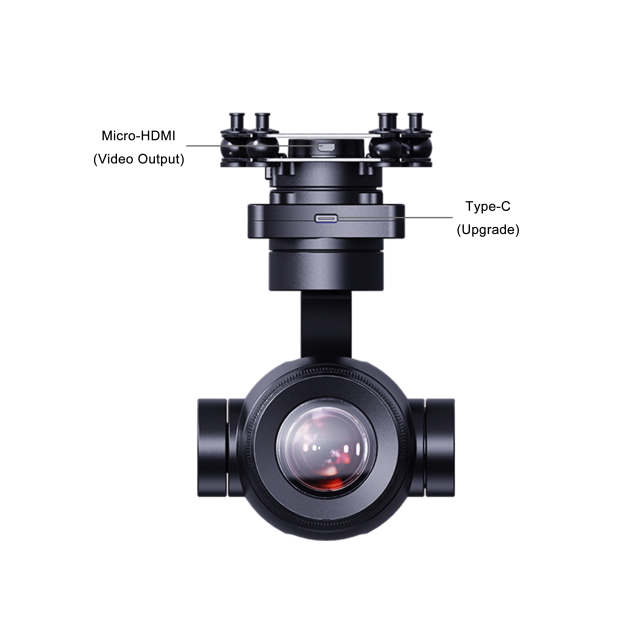

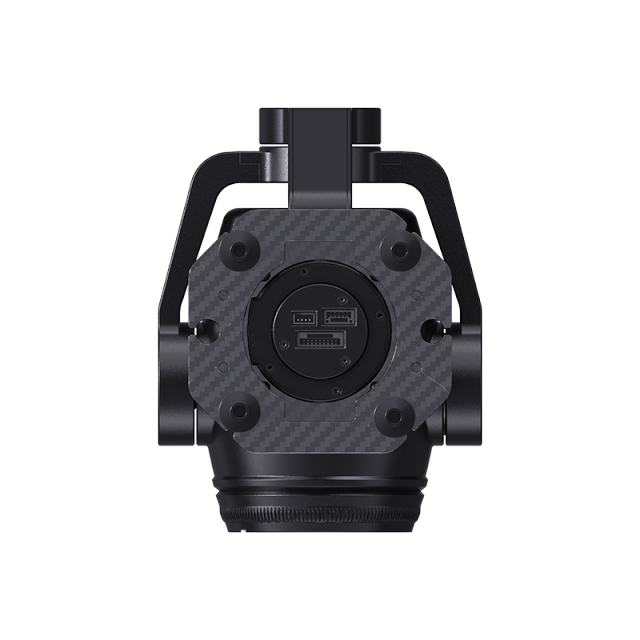

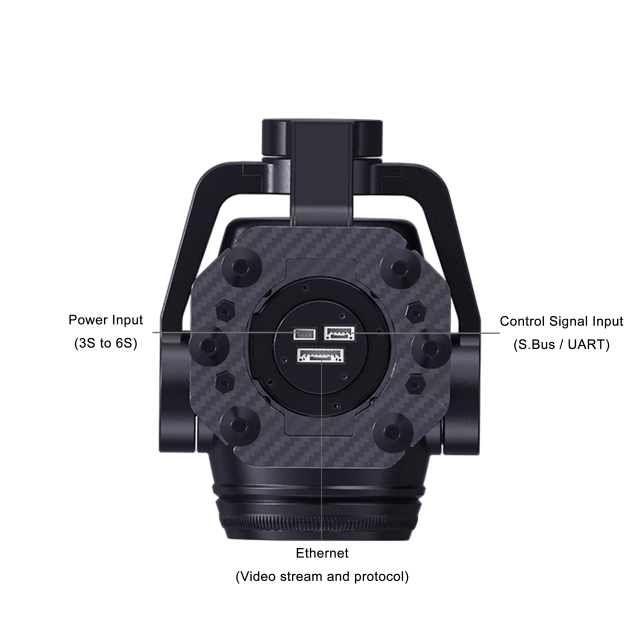

Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port: S.Bus, UART, Ethernet UDP
Working Voltage: 11 to 25.2 V
Power Consumption:
– Average: 5 W
– Summit: 12 W
Working Temperature: -10 ~ 50 ℃
Video Output Port: Ethernet, Micro-HDMI
Control Signal Input Port: S.Bus, UART, Ethernet UDP
Working Voltage: 11 to 25.2 V
Power Consumption:
– Average: 5 W
– Summit: 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 132*100*159 mm (including the quick release board)
Weight: 628 g (including the quick release board)

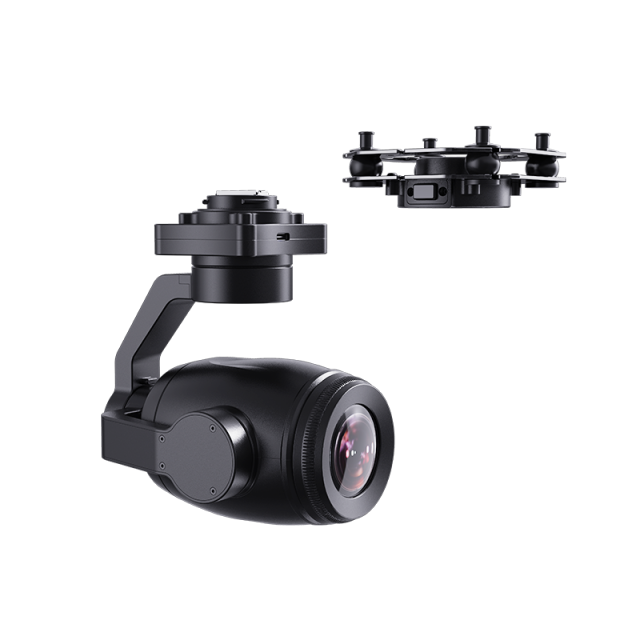

ZR30 Quick Release Board
Dimension: 82*65*18 mm
Weight: 38 g
Weight: 38 g

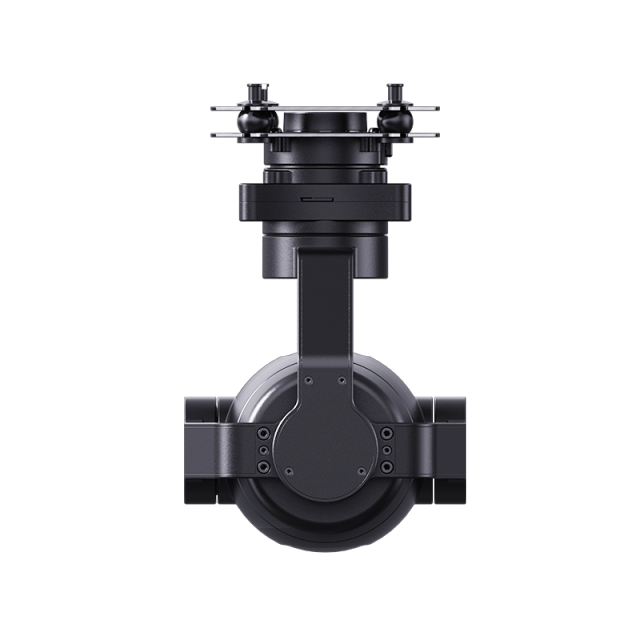

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45° to +45°
Controllable Pitch Angle: -90° to +25°
Controllable Yaw Angle: -270° to +270°
Roll Angle: -45° to +45°

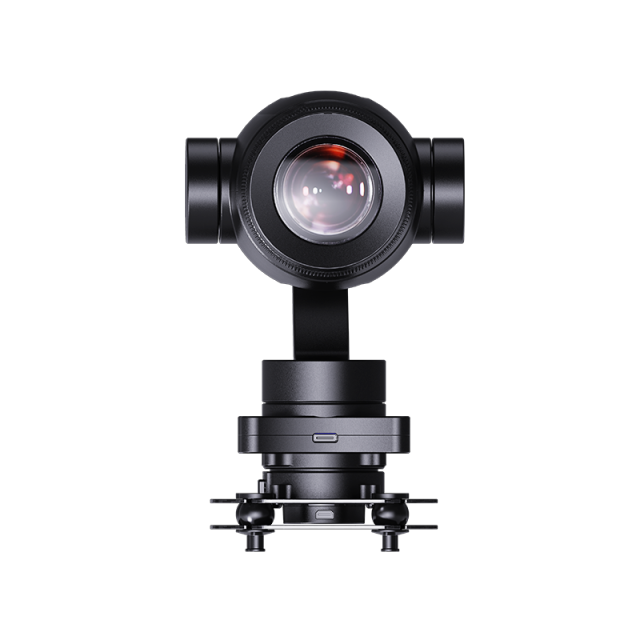

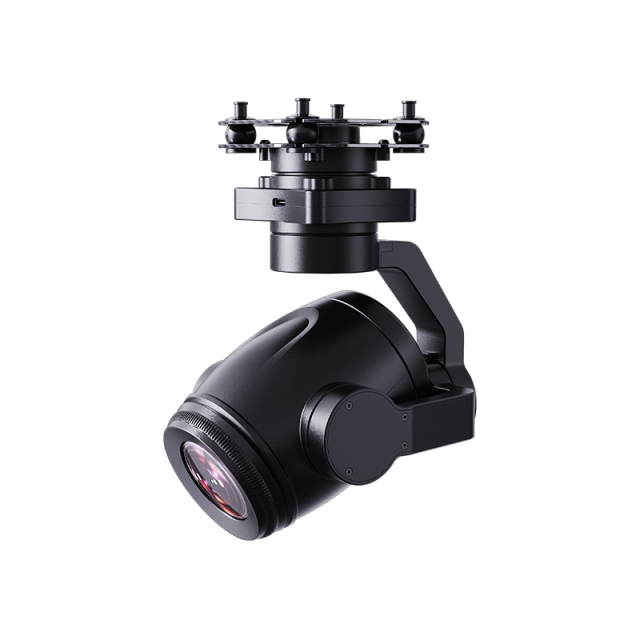

Camera
Lens: 30X Optical Zoom (180X Hybrid Zoom)
Focal Length: 4.5±5% to 148.4±5% mm
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Image Sensor: 1/2.7 Inch, 8 MP effective resoultion
Aperture: F1.3±5% to F2.8±5%
FOV: Horizontal 58.1°
TF Recording Resolution:
– 4K (4096 x 2160) @ 25 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
– 4K (4096 x 2160) @ 25 fps
– 2K (2560 x 1440) @ 30 fps
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Video Storage Bitrate: 12 Mbps (H.265 codec)
File Storage Format: FAT32
Image Format: JPG
Video Format: MP4

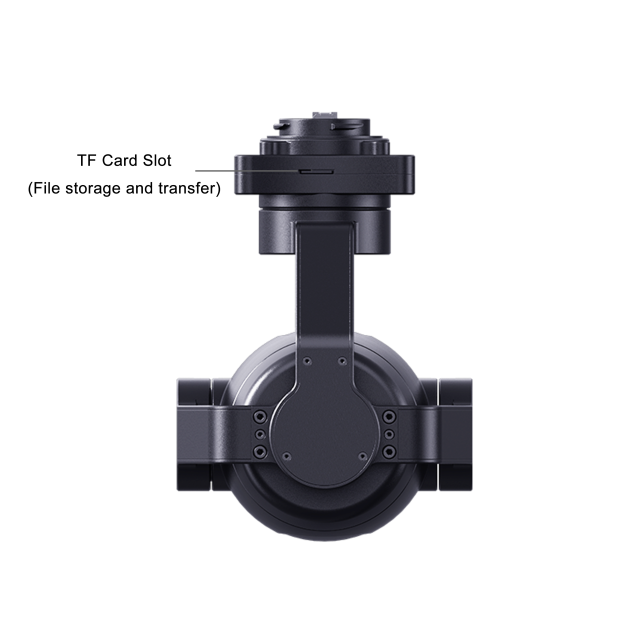

Supported MicroSD Cards: MicroSD Class10, Max 128GB
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 128GB
Still Photography Mode: Single
Metering Mode: Evaluative metering
