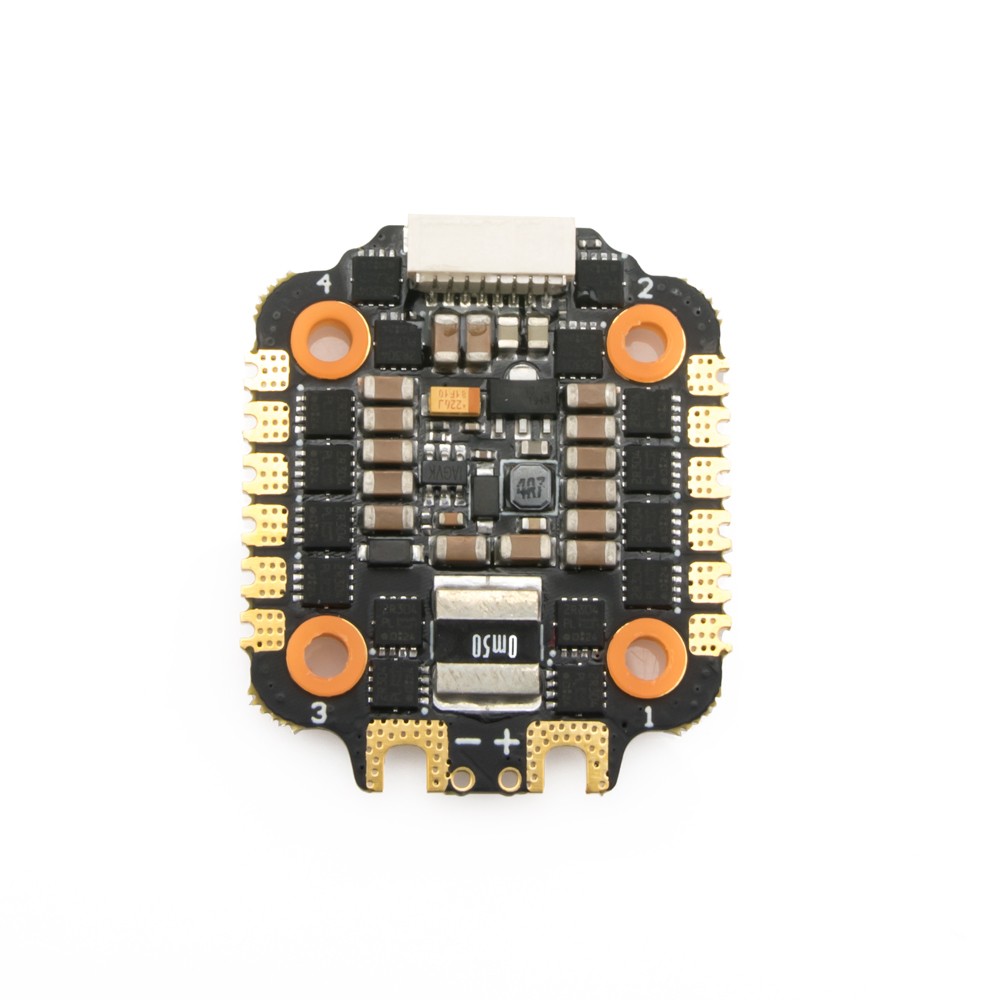

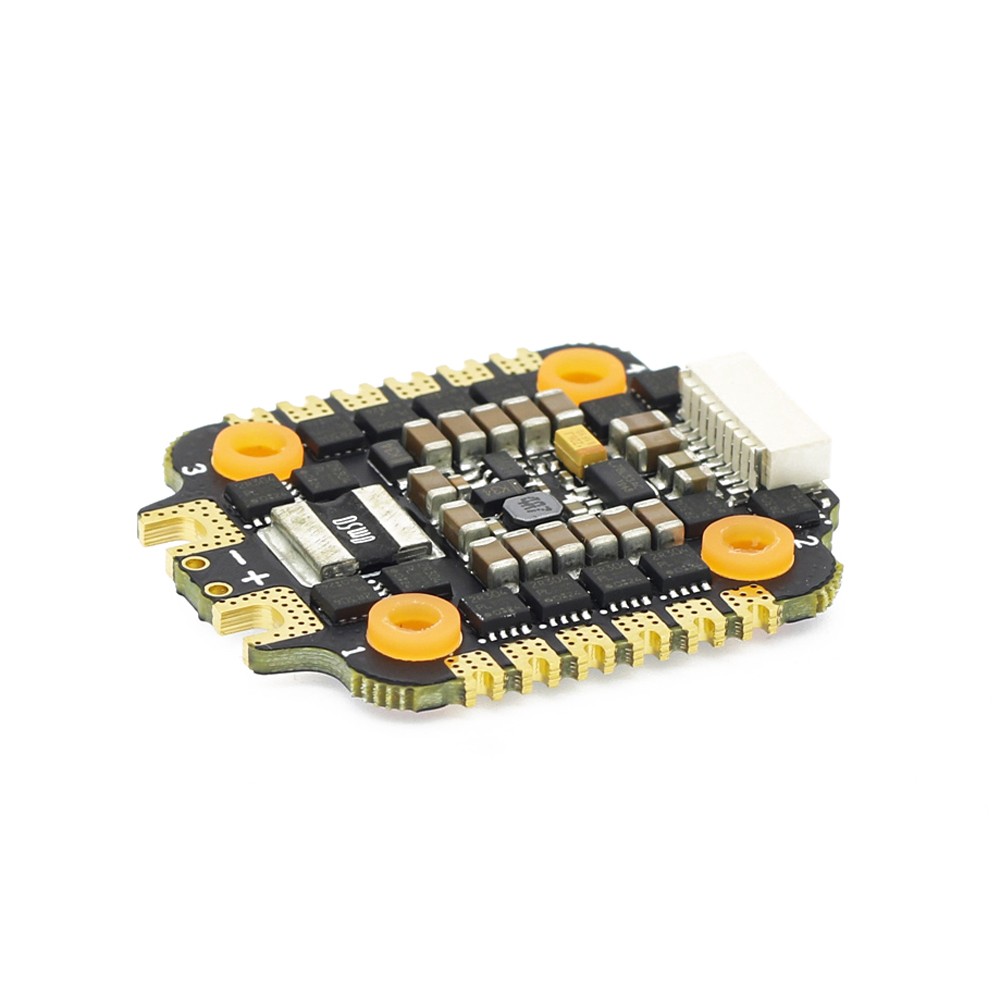

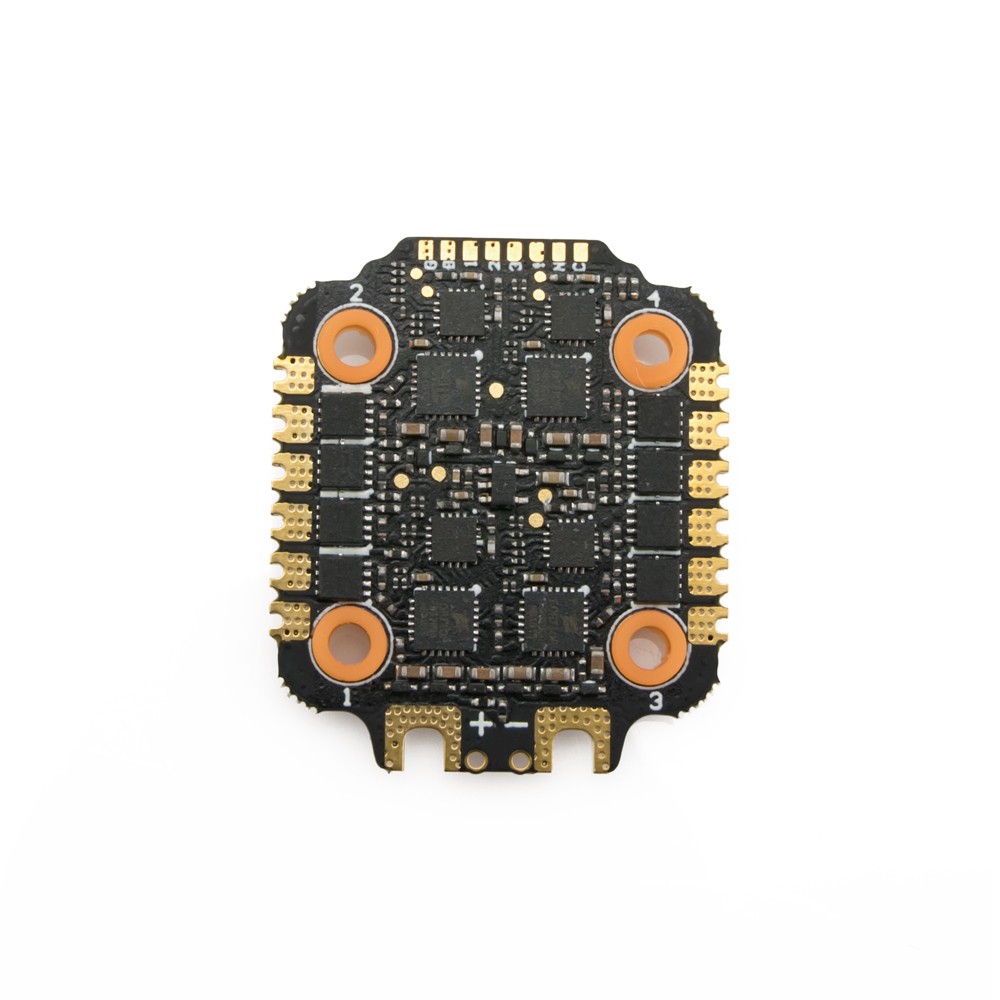

SkyStars KM35 35A BLHeli_S 3-6S 20×20 4-in-1 ESC

The SkyStars KM35 35A  3-6S 20×20 4-in-1 ESC features BLHeli_S, Dshot 300/600, 20X20 mounting holes, excellent over-current capability, better control performance and supports 6S Lipo batteries!

Features

A 35A ESC, with 20×20 mounting holes, Makes the ESC a smaller size.

Excellent over-current capability.
By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB, can withstand bigger current.

Extreme stably support 6S LiPo battery
By use of 24 pcs of new Toshiba 40v Mosfet, and other electronic materials imported from the USA or Japan. Together with advanced lead-free SMT Processing technology, make ESC can fully support a 6s battery and get better performance.

Better control performance
Support reversed Dshot 300 /600, make ESC have smooth control feel.

Specifications

• Input voltage: 3-6S LiPo
• Con.Current: 35A
• Peak Current:45A≥ 10S
• Firmware: BLHeli_s
• Support: Dshot 300/600
• Mounting hole : 20X20 mm/M3
• BEC: No
• Product size: 31*36*3.9mm
• Weight: 7.8g

Includes

• 1 x Skystars KM35 35A 3-6S 4 in 1 ESC
• 4 x Damping Rubbers (M3x4mm)
• 1 x XT60 connector and wires
• 2 x 8pin 50mm wiring harness
• 1 x 35v 560uf Capacitor
