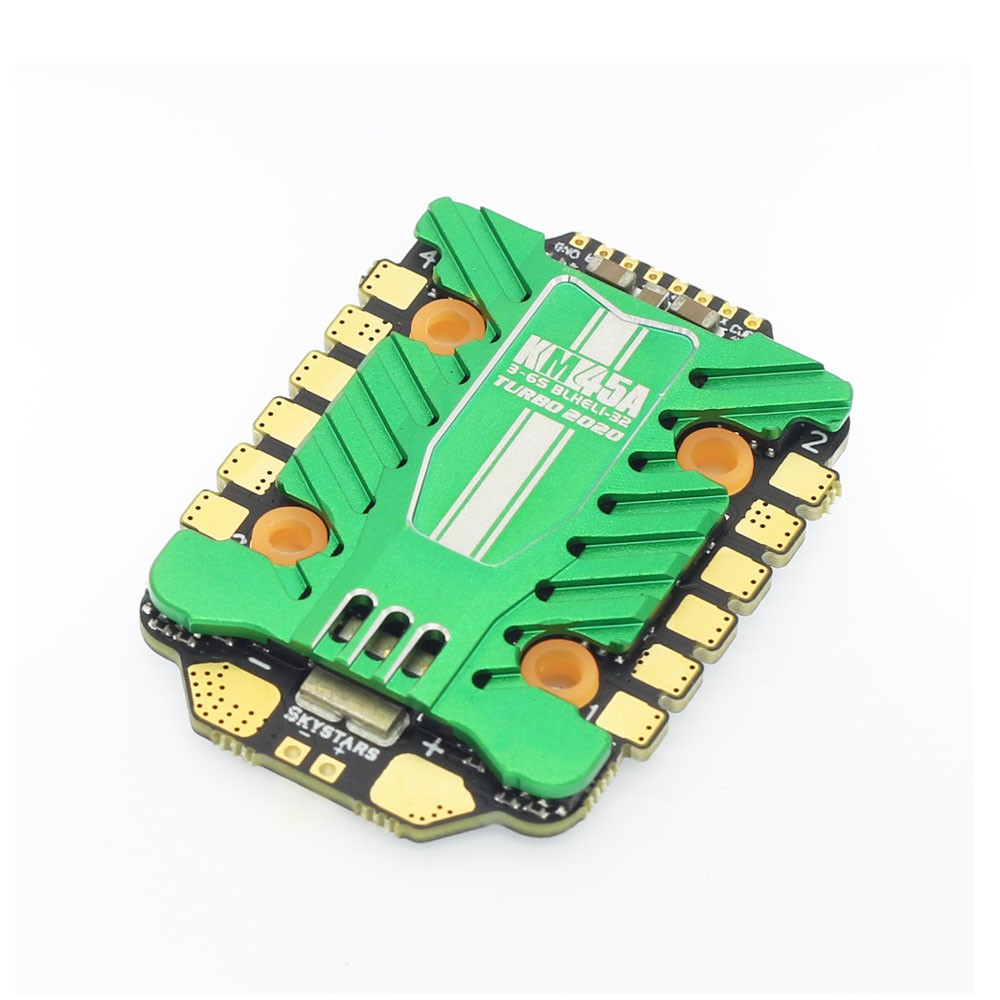

SkyStars KM45 45A BLHeli_32 3-6S 20×20 4-in-1 ESC

The SkyStars Turbo2020 KM45 45A 4-in-1 ESC features BLHeli_32, Dshot 600/1200, 20×20 mounting holes, supports telemetry functions (including voltage, RPMS & current ), and other cool features!

Features

A 45A ESC, use standard big 5x6mm MOSFET on 20×20 mounting holes, Make a small size ESC can also stable withstand big current now.

Excellent over-current capability.
By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with independent current board layout design, can withstand bigger current.

Extreme stably support 6S LiPo battery
By use of 24 pcs of new standard 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology. It makes ESC can fully support 6s battery and get better performance.

Excellent heat dissipation performance
F1 racing car appearance of CNC hollow aluminum alloy shell used, Not only good for heat dissipation but also get a beautiful appearance.

Better control performance
Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage, RPMS & current )

Specifications

• Input voltage: 3-6S LiPo
• Con.Current: 45A
• Peak Current: 55A≥ 10S
• Firmware: BLHeli_32
• Support: Dshot 600/1200

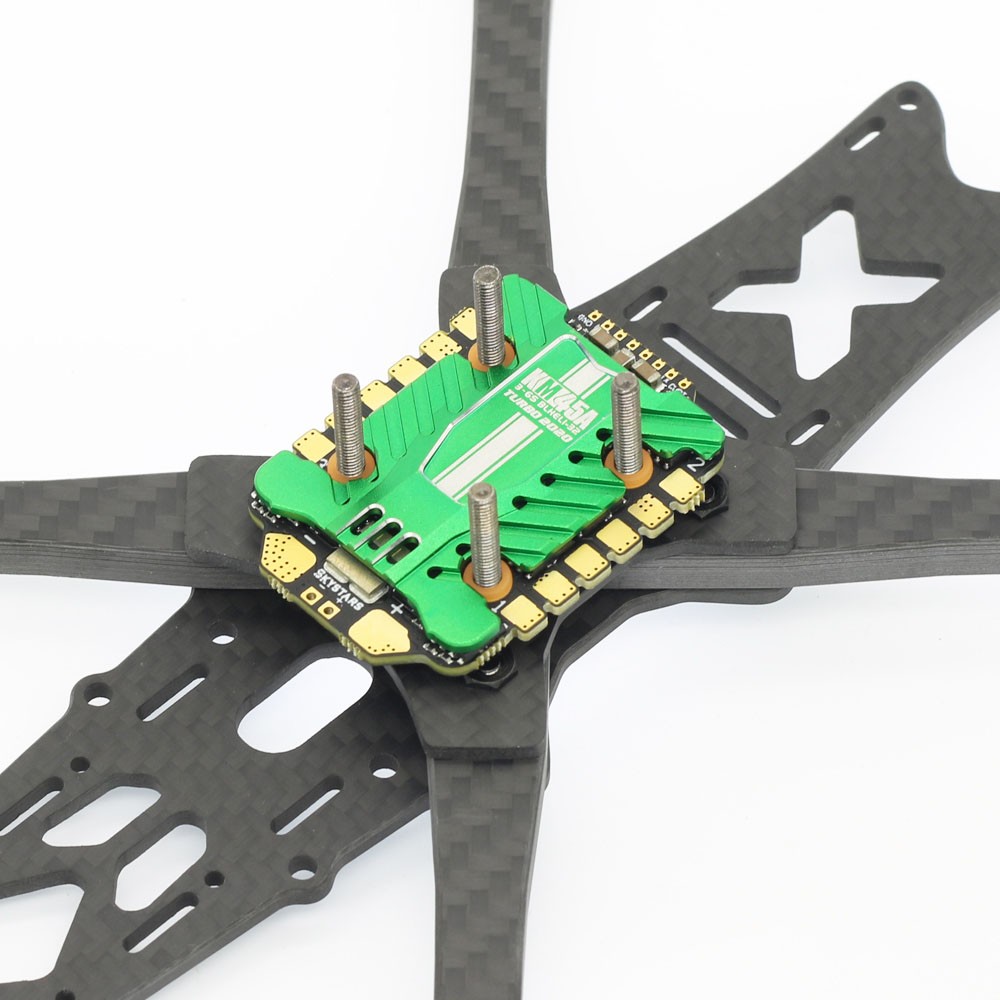

• Mounting hole : 20X20 mm/M3
• BEC: No
• Product size: 35*47*6.5mm
• Weight: 16.5g

Includes

• 1 x Skystars KM45 45A 3-6S 4 in 1 ESC
• 4 x Damping Rubbers (M3x4mm)
• 1 x XT60 connector and wires
• 2 x 8pin 50mm wiring harness
• 1 x 35v 560uf Capacitor
