The SKYZONE M5F 5.8 GHZ FPV monitor with DVR is a high brightness 5-inch monitor integrated with steadyview receiver, the receiver merges two signals into one, avoids image tearing and rolling, make image more stable and clear. The wheel with classic skyzone UI made the goggles easy to use, the monitor support 1cell 18650 battery, easy to switch battery, also support 2-6S Lipo, easy to power on the field.
—5.8G 48CH Steadyview Receiver
—5inch LCD 800X480 highlight screen
—FOV up to 50°
—Bulit-in with heat-sink fan
—channel scanning
—Type C connector to upgarde the firmware or power goggle
—support Chinese and Englis
—Shuttle Wheel Contorl
—2S-6S wide voltage support
—MJPEG 60FPS DVR
Built-in Steadyview Receiver:
Diversity mode: The receiver will compare with 2 rssi, selects the strongest signal output Ifthe signal changes rapidly, the image will be tearingand rolling.
MIX mode: Two signals are processed through complex circuits and algorithms, fuse the two signal into one, caused the more stable and clear image.

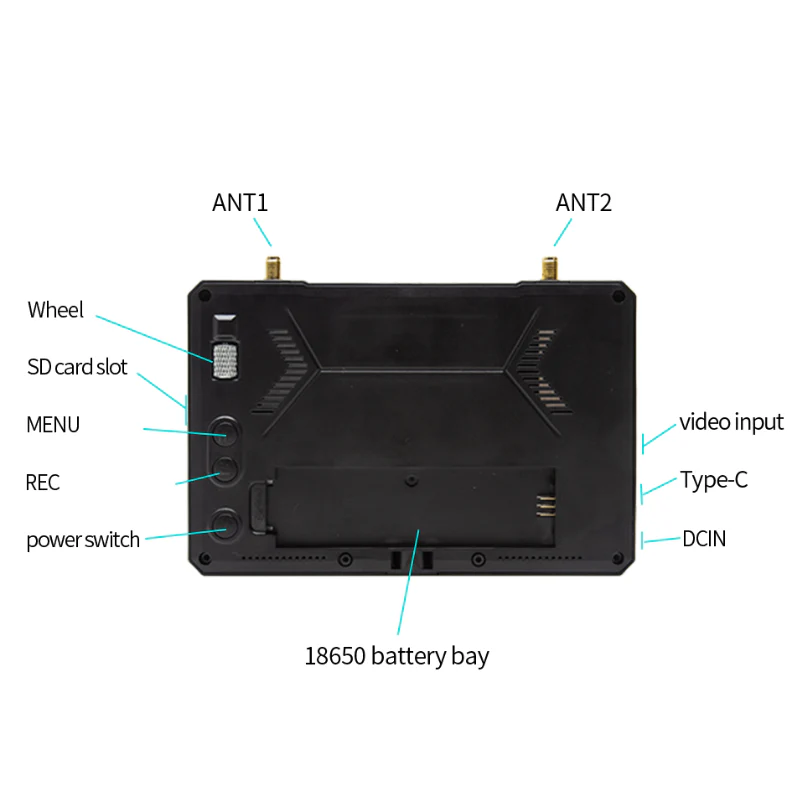

Multiple power supply:

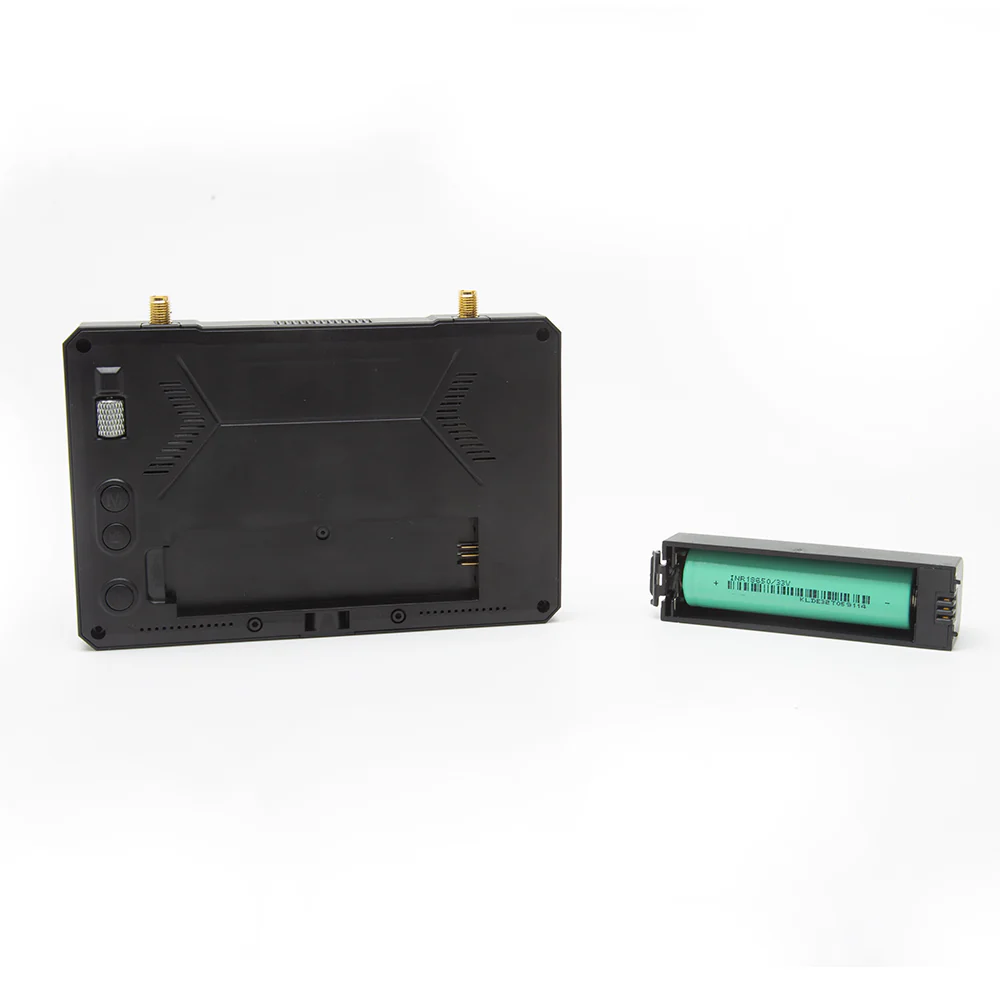

Support 18650 Lion battery replacement, Support 2-6S Lion input, SupportsType-C USB power supply.
User Manuel(click to download)
