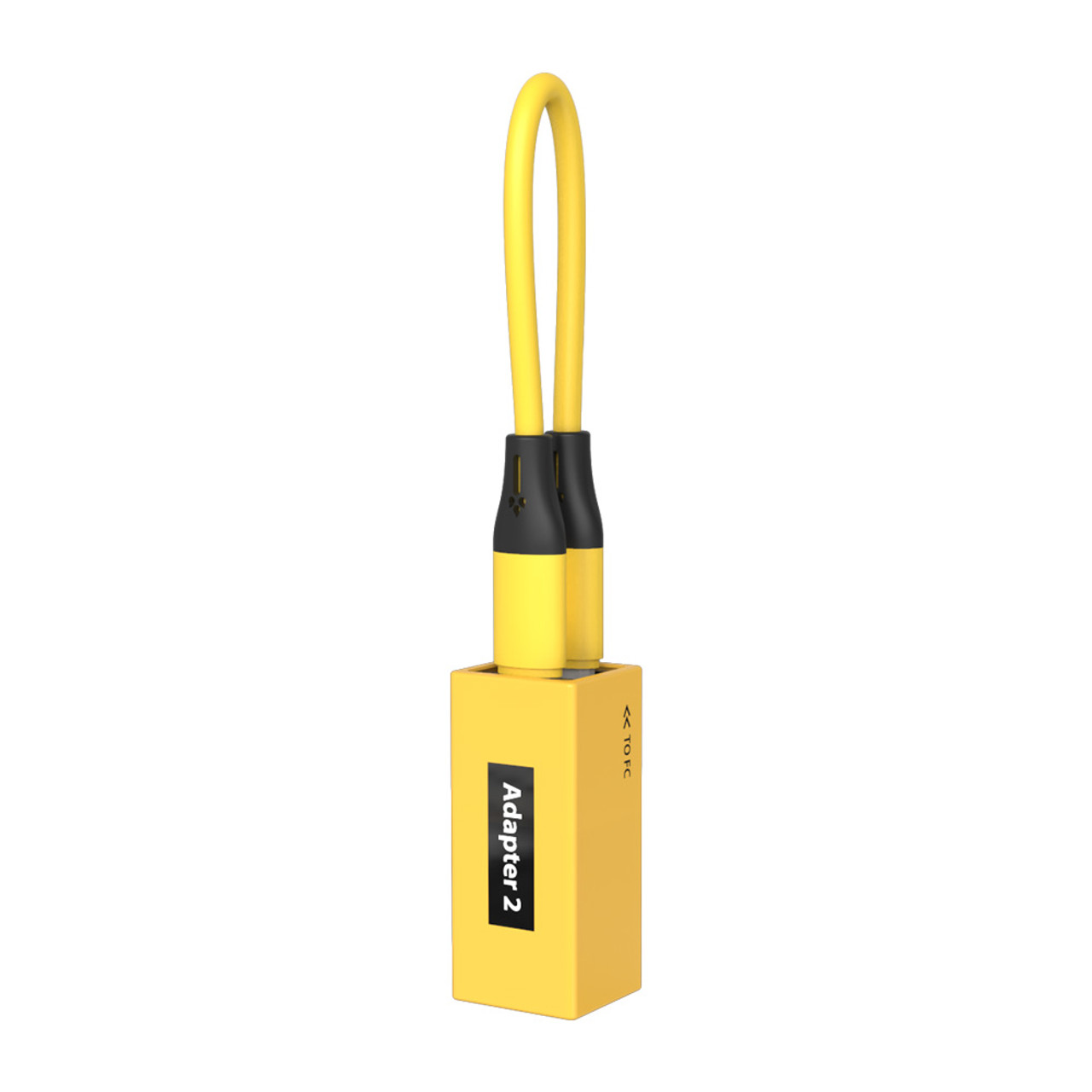

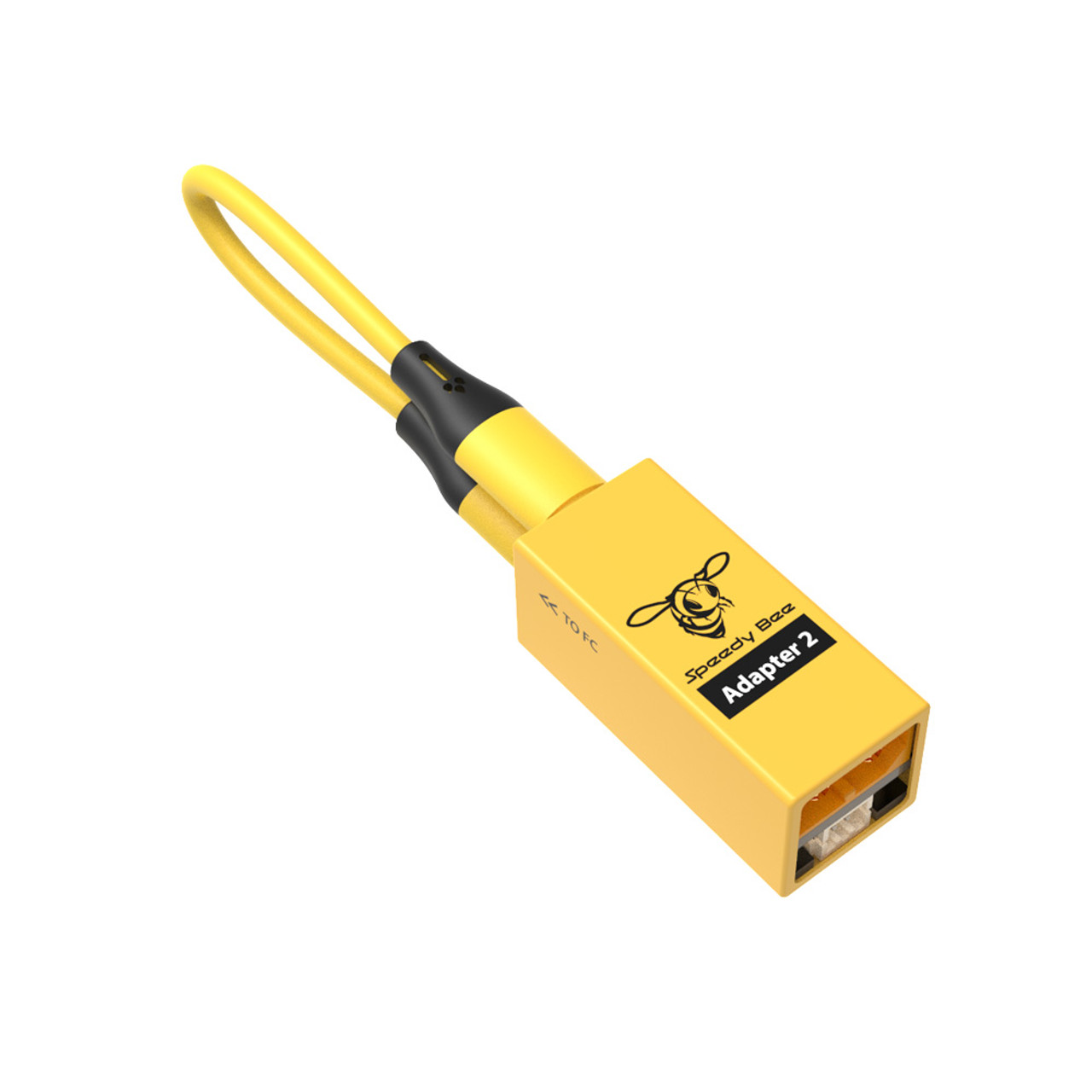

Speedy Bee Adapter 2
Full-featured BF/INAV/Emu configrator in your pocket
·Upgrade FC firmware via App
·Full-featured BF/INAV/Emu configuration
·Built-in WiFi
·XT60 & PH2.0 battery connectors
·1-6S power input
·Full-featured BF/INAV/Emu configuration
·Built-in WiFi
·XT60 & PH2.0 battery connectors
·1-6S power input
Upgrade your flight controller via App!
We put a WiFi chip in the Adapter 2 which greatly improves the
transmission speed and makes it possible to upgrade your flight
controllers The whole upgrading process costs only 2-3 minutes.
* The firmware flashing currently supports Betaflight/Emuflight
via WiFi connection to the Adapter 2.
transmission speed and makes it possible to upgrade your flight
controllers The whole upgrading process costs only 2-3 minutes.
* The firmware flashing currently supports Betaflight/Emuflight
via WiFi connection to the Adapter 2.

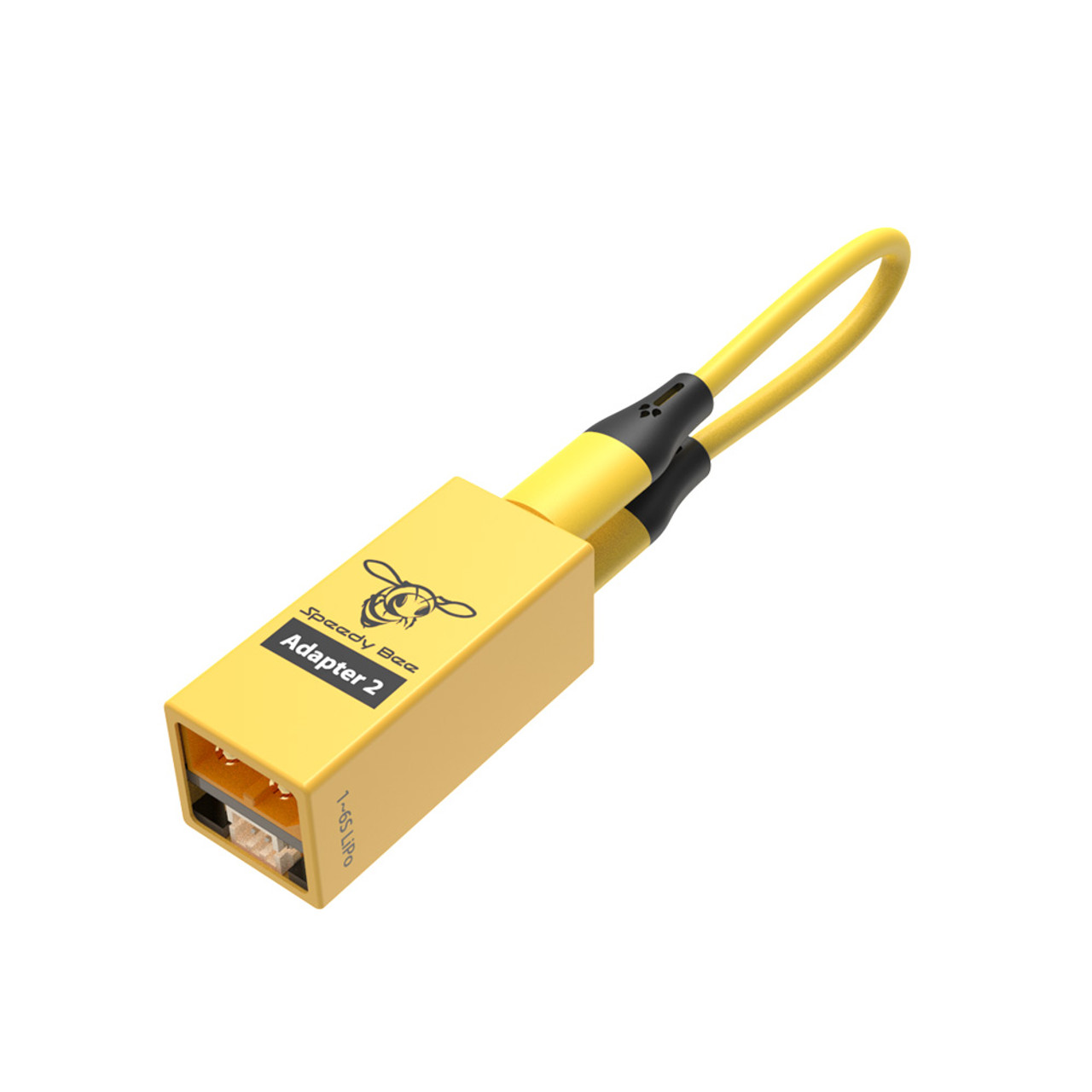

Power the whole thing with one battery.
Soldering work should be done on the user end on the previous generation. But the Adapter 2 now has
built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2
can power your flight controller, you don’t need another battery to power your quad.
built-in XT60 and PH2.0 connectors which both support 1-6S LiPo batteries input*. As the Adapter 2
can power your flight controller, you don’t need another battery to power your quad.
*For 1S batteries, 3.8V or above is requried. Because some(very few)
quadcopters may consume a lot of current, and the output
voltage of the adapter 2 will be greatly reduced.
quadcopters may consume a lot of current, and the output
voltage of the adapter 2 will be greatly reduced.
Specifications
| Product Name | Speedy Bee Adapter 2 |
| Power Input Voltage Range | 1-6S(3.8V+ for 1S) |
| Power Input Interface | XT60-Male, PH2.0 male |
| Case Meterial | Heat-shrink Tubing |
| Liquid Silicone Cable Length(Pure Wire) | 10cm |
| Net Weight | 21.8g |
| WiFi Transmission Distance | 3 meters |
| Standby Working Current Under 5V | 120mA |
| Maximum Output Current | 200mA @5V |
| Dimension(Main Body) | 18*18.5*42mm |
