About this product

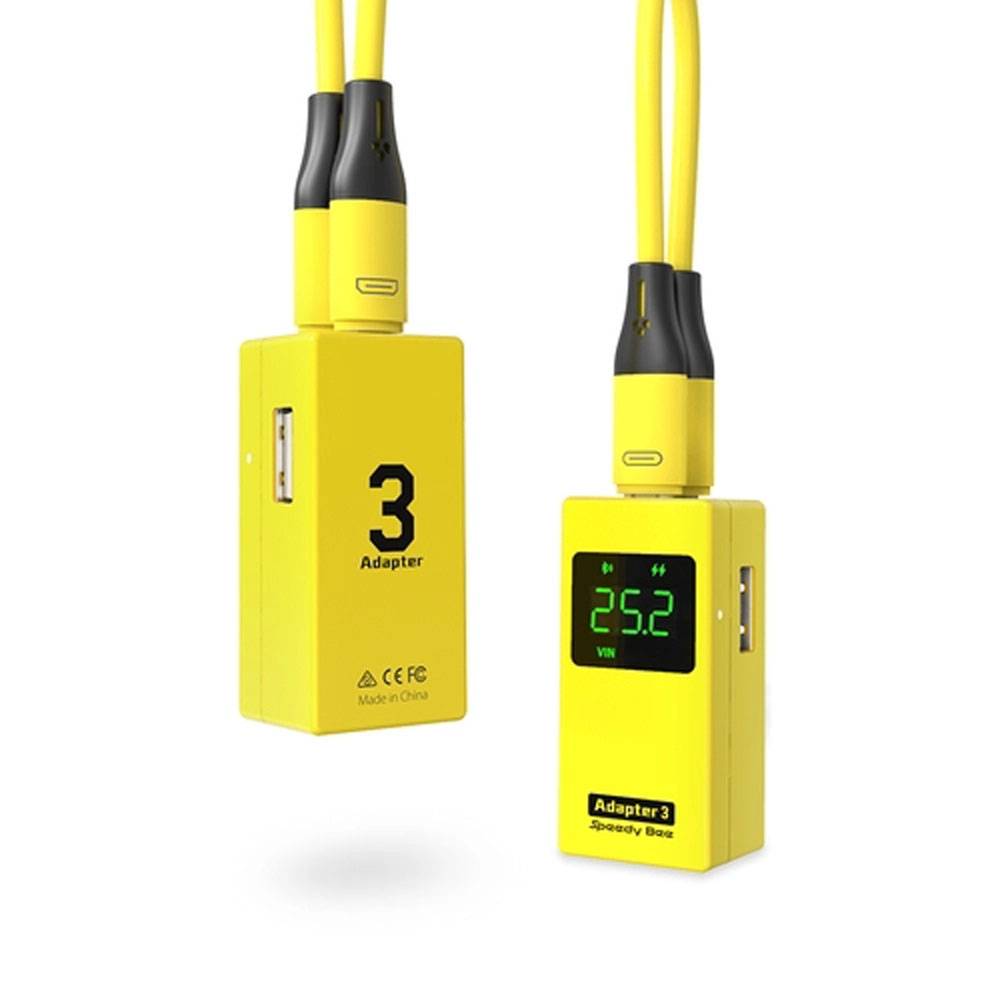

The third iteration of the useful SpeedyBee Adapter is the best yet! Configure, charge, check, analyze, flash, you name it, the Adapter 3 probably does it. And all from your smartphone, no need for a laptop! With so many ways to use this tool, it will become standard in your FPV bags.
Features
- Wireless Firmware Flasher & Configurator
- 30W Fast USB Charger
- Wireless Blackbox Analyser
- Wireless ESC Flasher
- 1-6S LiPo Checker
- iOS & Android Compatible
- USB-C & Micro USB
Turn your smartphone into your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session. The choice is yours.
Analyzing Blackbox data has never been easier
No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight. Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs wherever you want
Why stop at the flight controller? Change your BLHeli_S ESCs setting or update the firmware anytime, anywhere. Broken motor? Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app
– now supporting BLHeli_32 and BLHeli_S ESCs.
Forgot your LiPo checker? Don’t Worry

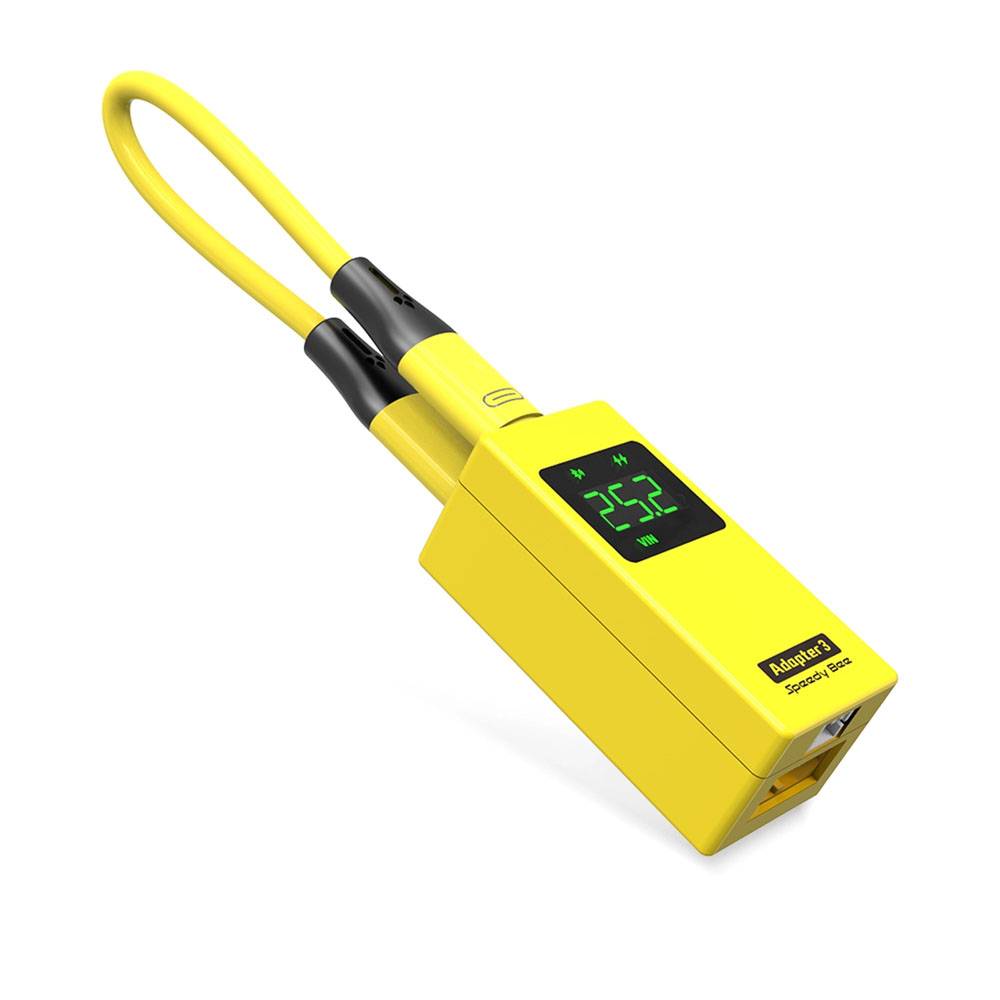

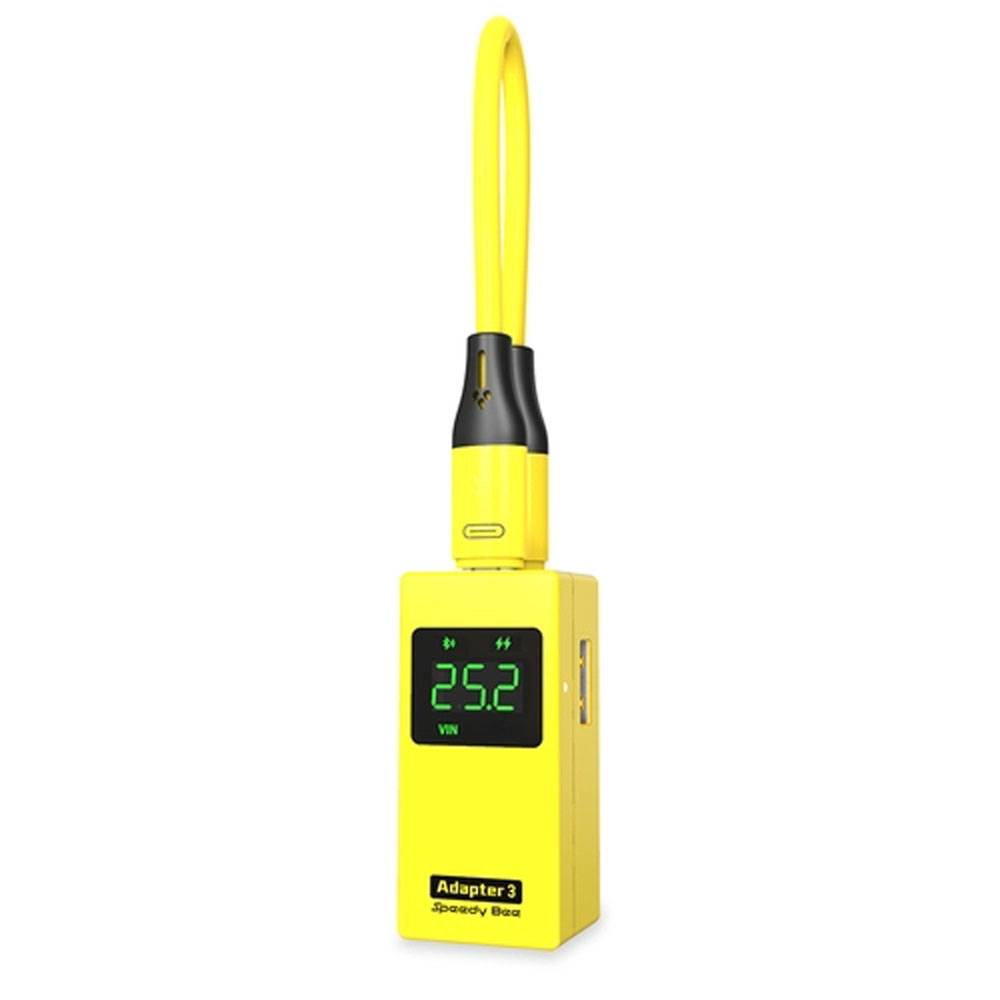

Connect your 1S – 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*. The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).
| Item | SpeedyBee Adapter 3 | SpeedyBee Adapter 2 | OTG |
| Support 1-6S LiPo input | ✔ | ✔ | N/A |
| XT60 and PH2.0 connectors | ✔ | ✔ | N/A |
| BF/INAV/EMU configuration | ✔ | ✔ | ✔ |
| Flight control firmware upgrade | ✔ | ✔ | ✘ |
| Built-in WiFi | ✔ | ✔ | ✘ |
| Built-in Bluetooth | ✔ | ✘ | ✘ |
| Blackbox downloader and analyzer | ✔ | ✘ | ✘ |
| 8-bit BLHeli_S ESC firmware updater | ✔ | ✘ | ✘ |
| Built-in MicroUSB and Type C connector | ✔ | ✘ | ✘ |
| Fast charging output up to 30W | ✔ | ✘ | ✘ |
| Built-In LiPo Voltage Checker | ✔ | ✘ | ✘ |
Specifications
- Input Voltage: 1-6S(3.8V+ for 1S)
- Power Input Connector: XT60-Male, PH2.0 male
- Required Mobile Device System Version: Android 7.0+ | iOS 12.0+
- Supported SpeedyBee App Version: V1.6.1 + for iOS | V1.5.6+ for Android
- Maximum Output Current for flight controllers: 700mA @5V
- Fast Charging Output interface: USB A Port
- Minimum Input Voltage for Charging output: 7.4V(2S LiPo)
- Supported Fast Charging Protocol: QC3.0/QC2.0, AFC, FCP, SCP/High SCP, PE2.0/PE1.1, SFCP
- Max Fast Charging Current: 3.5A
- Max Fast Charging Power: 30W
- Case Material: ABS + PC
- Liquid Silicone Cable Length: 12.4cm
- Dimension(Main Body): 24.8×21.8×53.6mm
- Net Weight: 35g
Includes

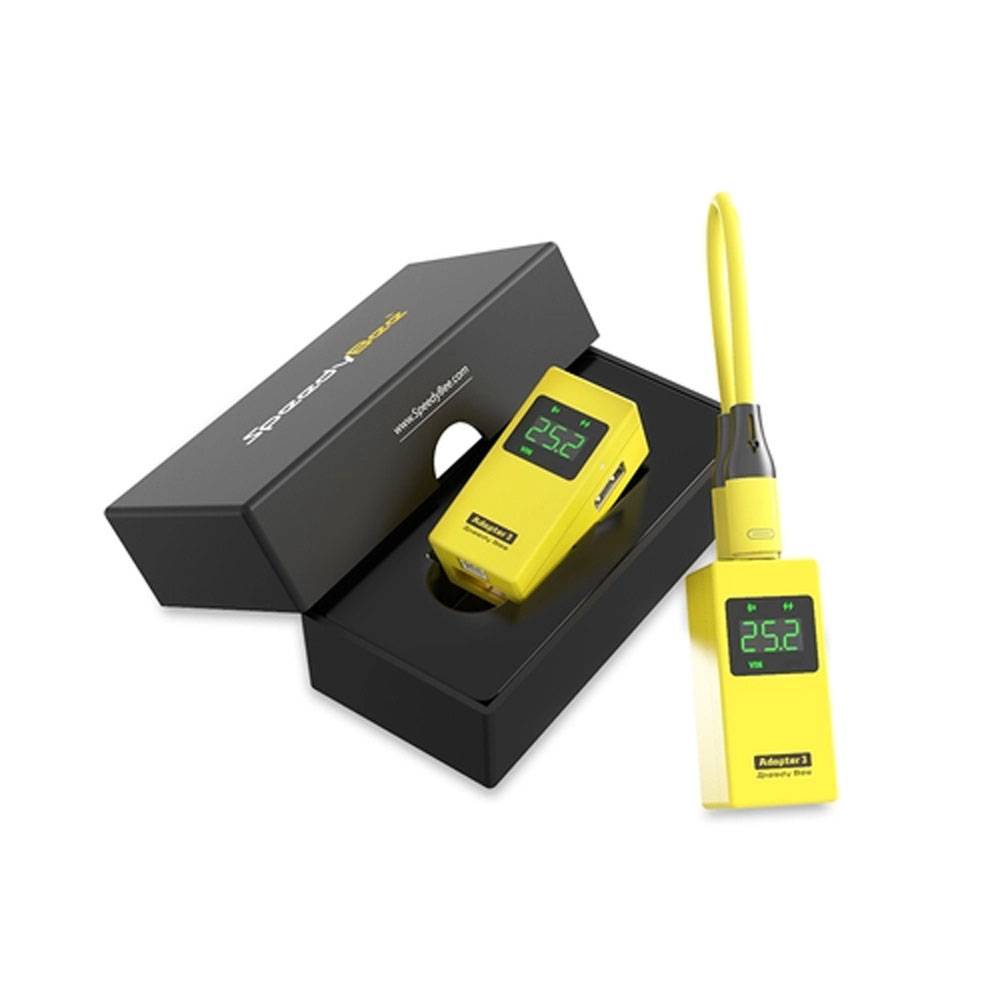

- 1x Speedy Bee Adapter 3
