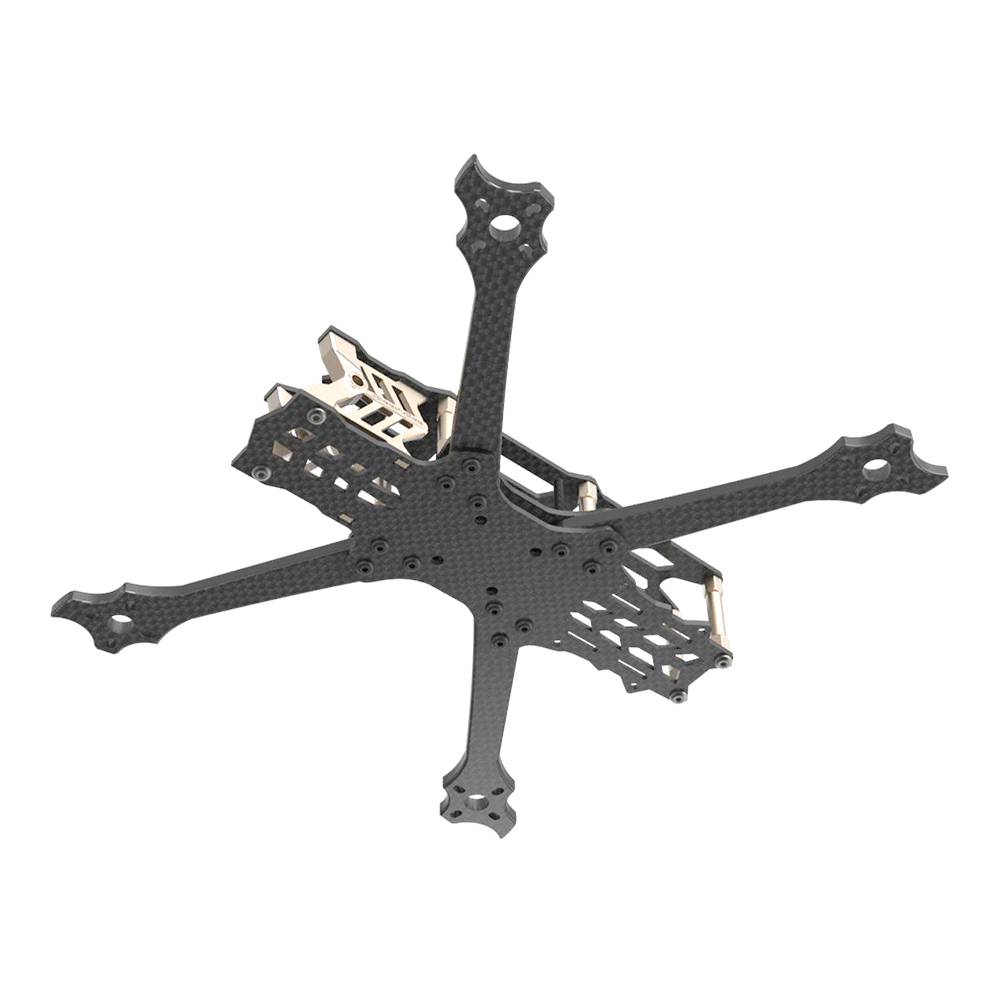

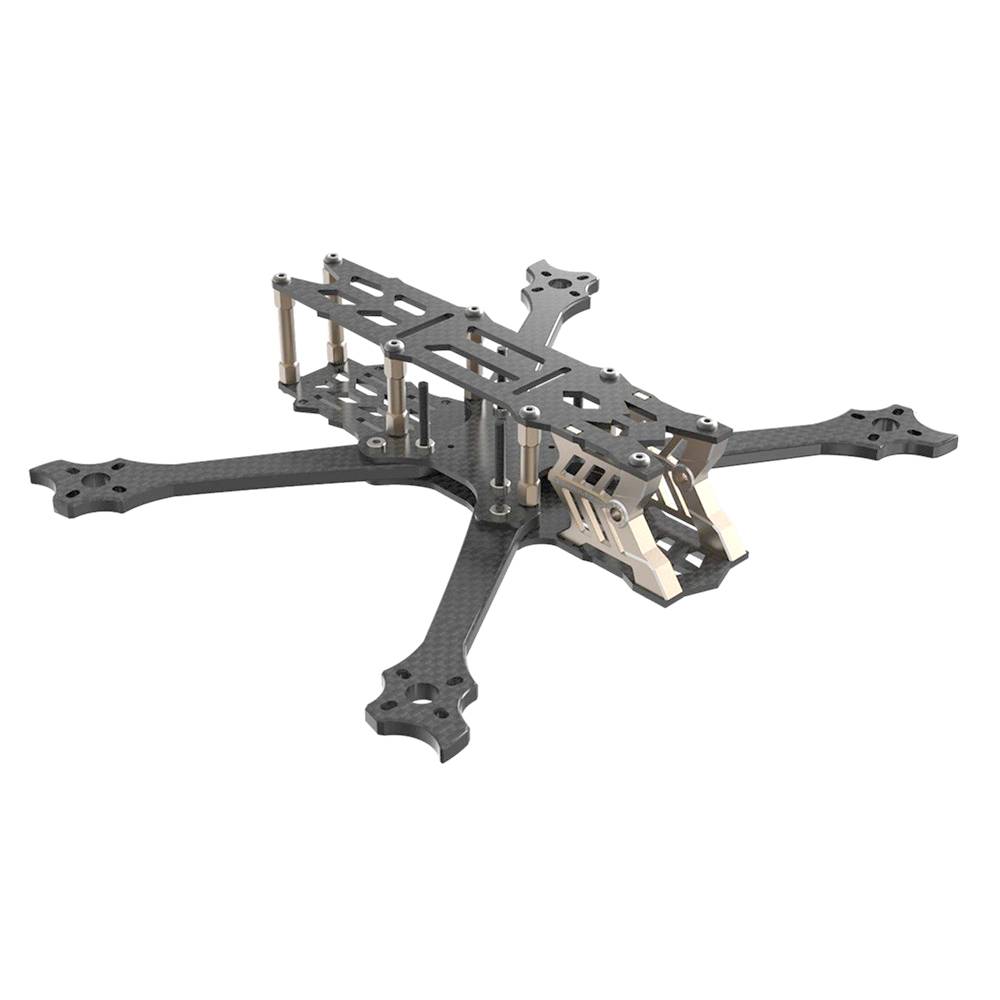

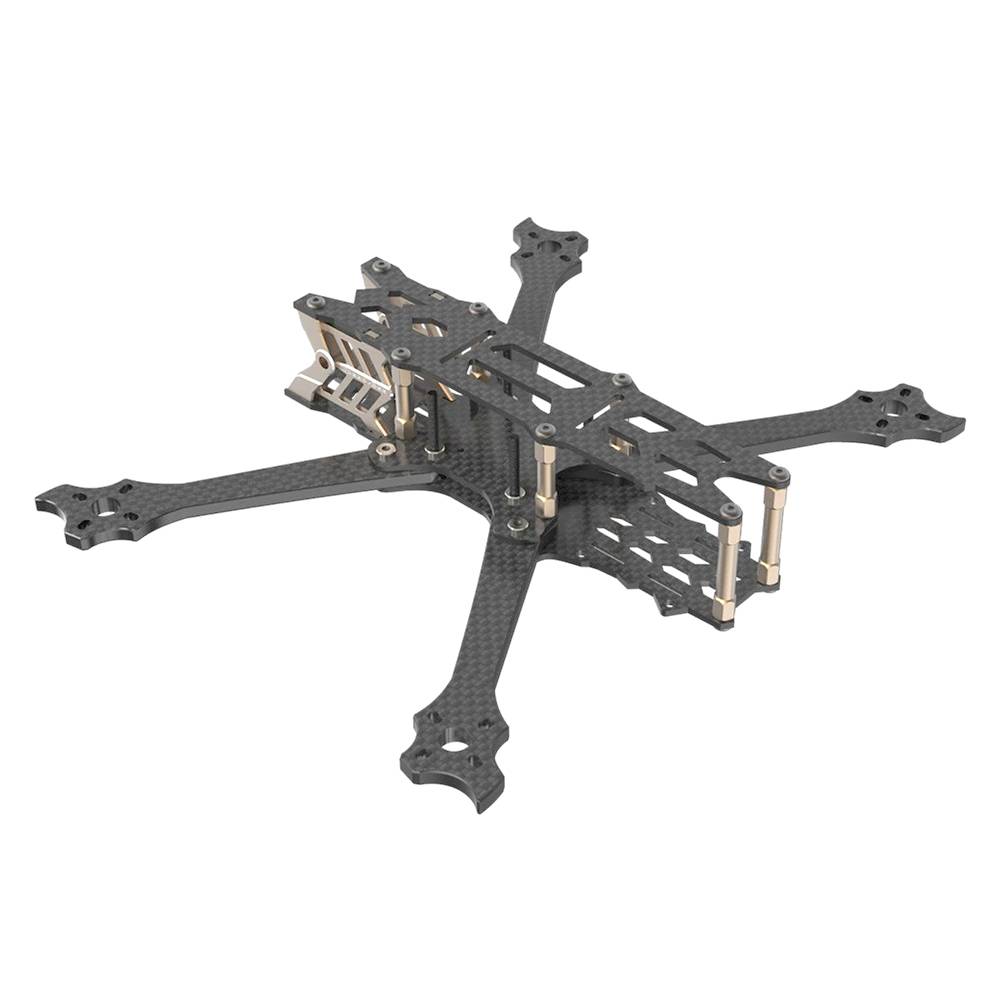

SpeedyBee FS225 V2 5″ Frame Kit

The FS225 V2 frame from Speedy Bee is a robust and versatile frame for any builder. With easy to replace arms, 20 and 30.5mm electronic mounting holes, 19mm and 20mm camera mount, and support for DJI Air Unit, this freestyle frame can pretty much do it all.

Features

• Supports 19mm/20mm Wide Camera Installation
• Sliding Mount 20mm Mounting Hole Pitch
• Replaceable Arm for easy maintenance
• Fly Freestyle

Specifications

• Flight Control Mount: 20*20mm/30.5*30.5mm
• VTX Mount: 20*20mm/30.5*30.5mm
• DJI Mount: 3d Printed Mount Needed
• Camera Fixed Width: 19mm/20mm
• Material: Carbon Fiber
• Plate Thickness: 2mm
• Arm Thickness: 5mm
• Frame height: 36mm
• Wheelbase: 225mm
• Weight: 119g

User Manual

Manual

Includes

SpeedyBee FS225 V2 5″ Frame Kit

• 12x M3x6mm Cup Head Screw
• 4x M3x11mm Cup Head Screw
• 4x M3x14mm Cup Head Screw
• 4x M3x30mm Cup Head Screw
• 4x M3x25mm Aluminum Post
• 2x M3x32mm Aluminum Post
• 1x Battery Non-Slip Stickers
• 8x Pressure Riveting Unit
• 2x CNC Side Plates
• 1x Antenna Tube
• 1x Antenna TPU
• 1x Battery Strap
• 1x Bottom Plate
• 1x Middle Plate
• 4x Frame Arms
• 1x XT60 TPU
• 1x Top Plate
