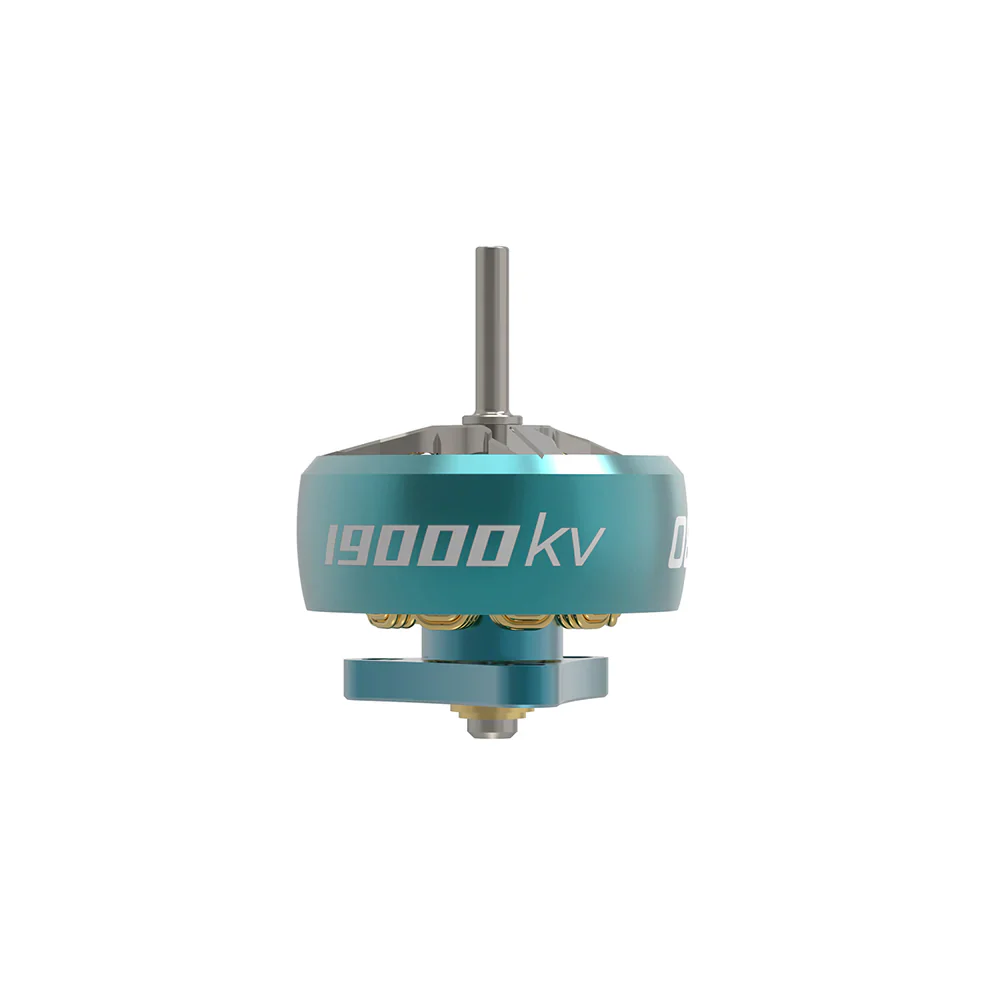

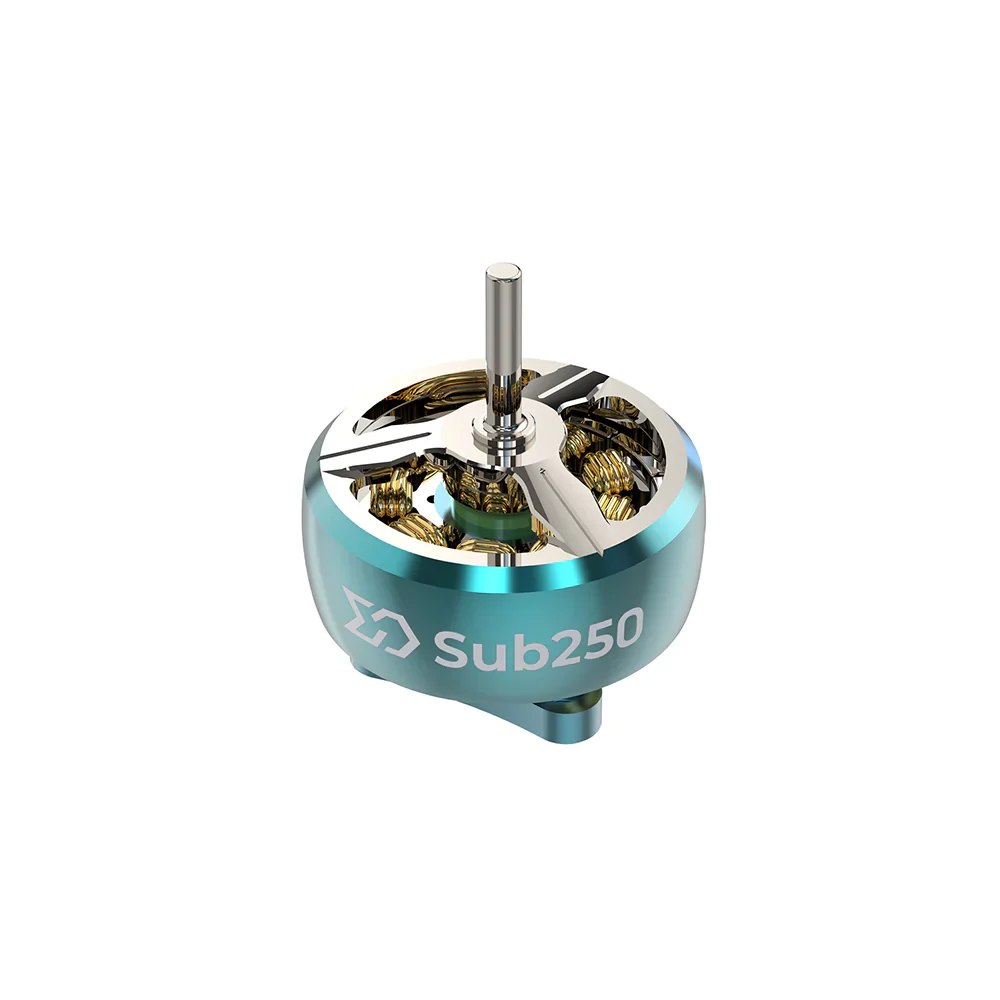

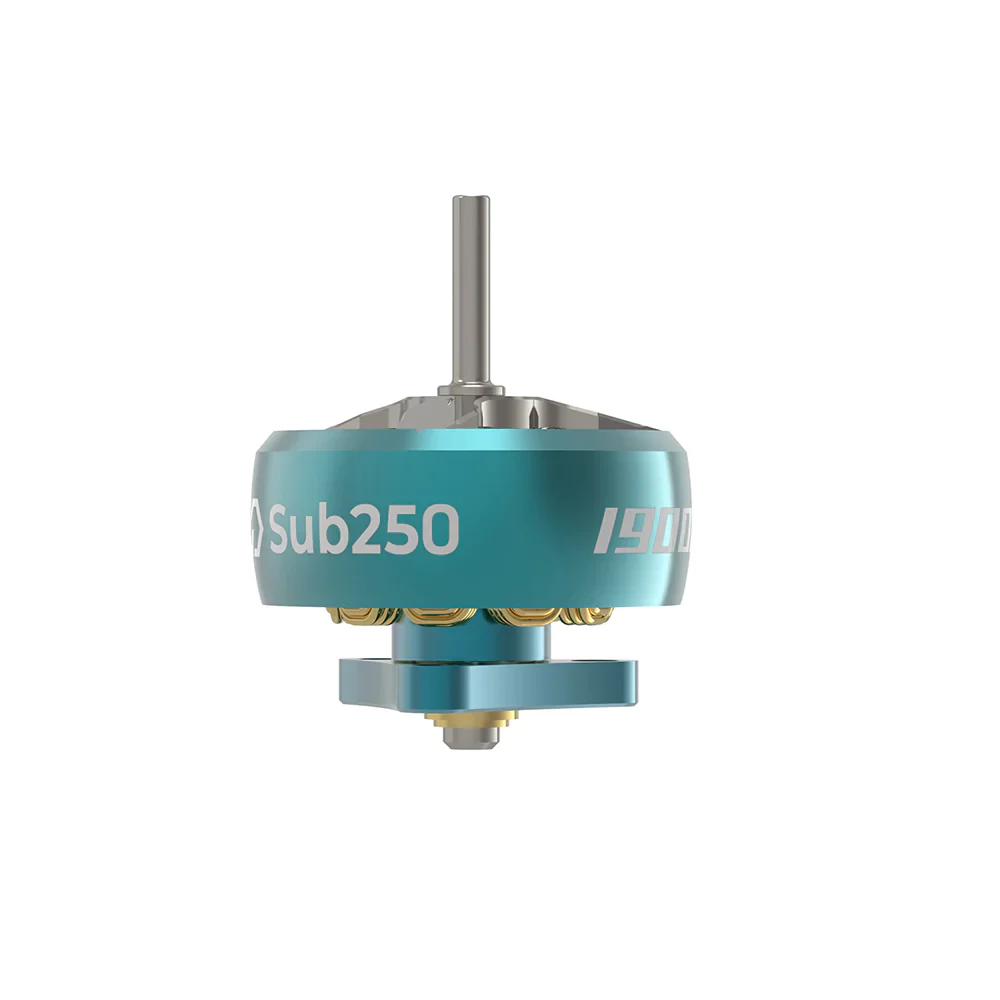

Sub250 developed the first M1 0803-19000KV brushless motor for the 1.6-inch toothpick quads. This motor is small in size and light in weight and is specially designed for micro drones.
Feature:
1. Small size and lightweight, only 2.2g.
2. N52H strong magnetic magnet, high-temperature resistant coil, full of power.
3. Low loss customization, low heat generation, and high efficiency.
4. Suitable for a 1.4-1.6 inch micro drone.
5.1.0mm shaft diameter is suitable for more propellers.
Brand Name: Sub250
Model: M1 0803 19000KV
Configure-ration:9N12P
Voltage: 4.2V (1S)
Stator Diameter:8.4mm
Stator Length:2.8mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ12mm*14mm
Weight(g):2.2g
No.of Cells(Lipo):1S only
Battery: Recommend: 1S 380mAh-530mAh LiPo
Suitable for 1.6-inch FPV drone
4x M1.4*3mm Screw
4*M1 0803 19000KV Motor
16x M1.4*3mm Screw
