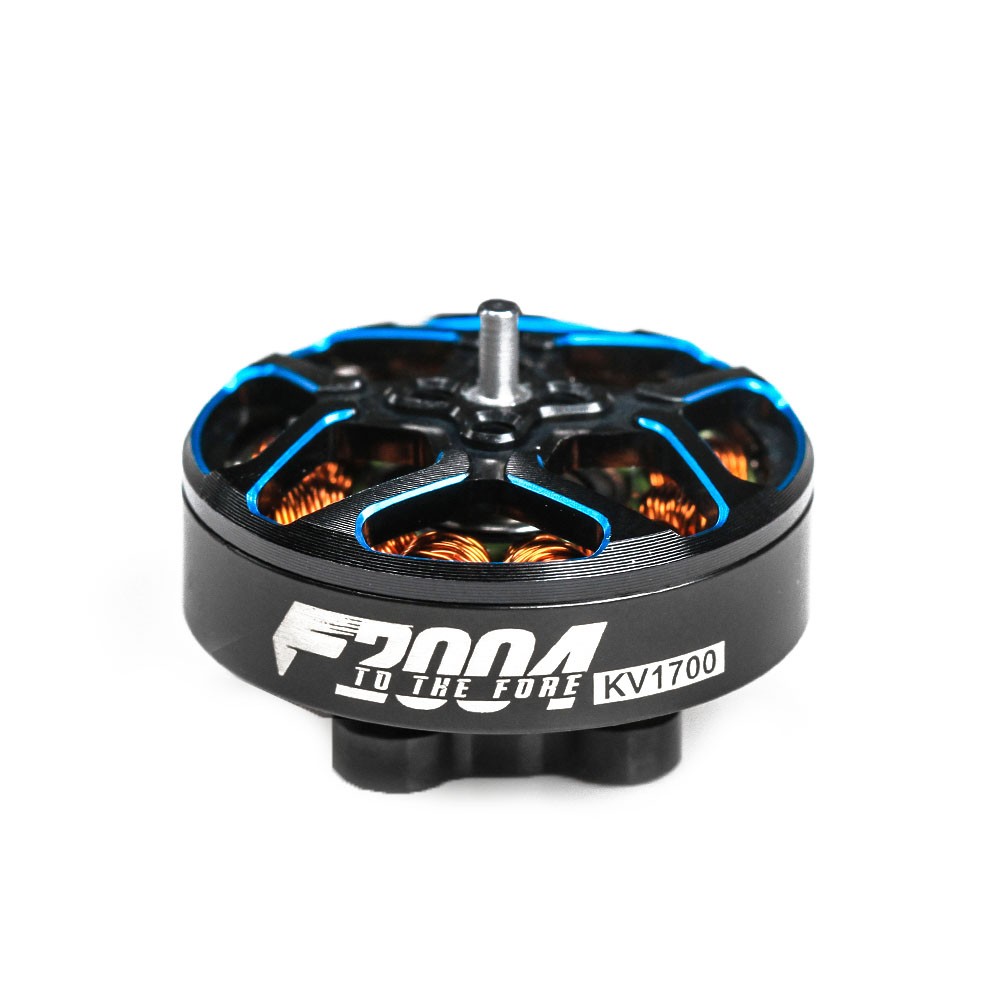

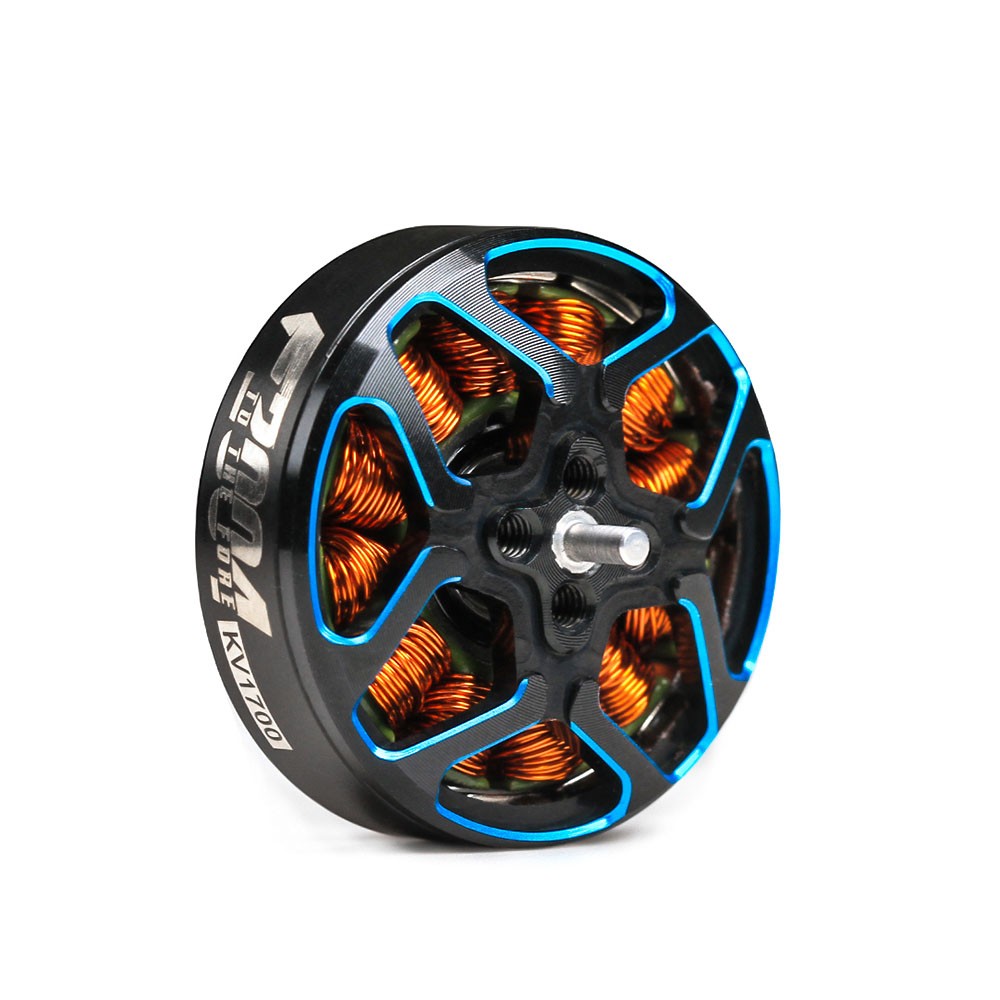

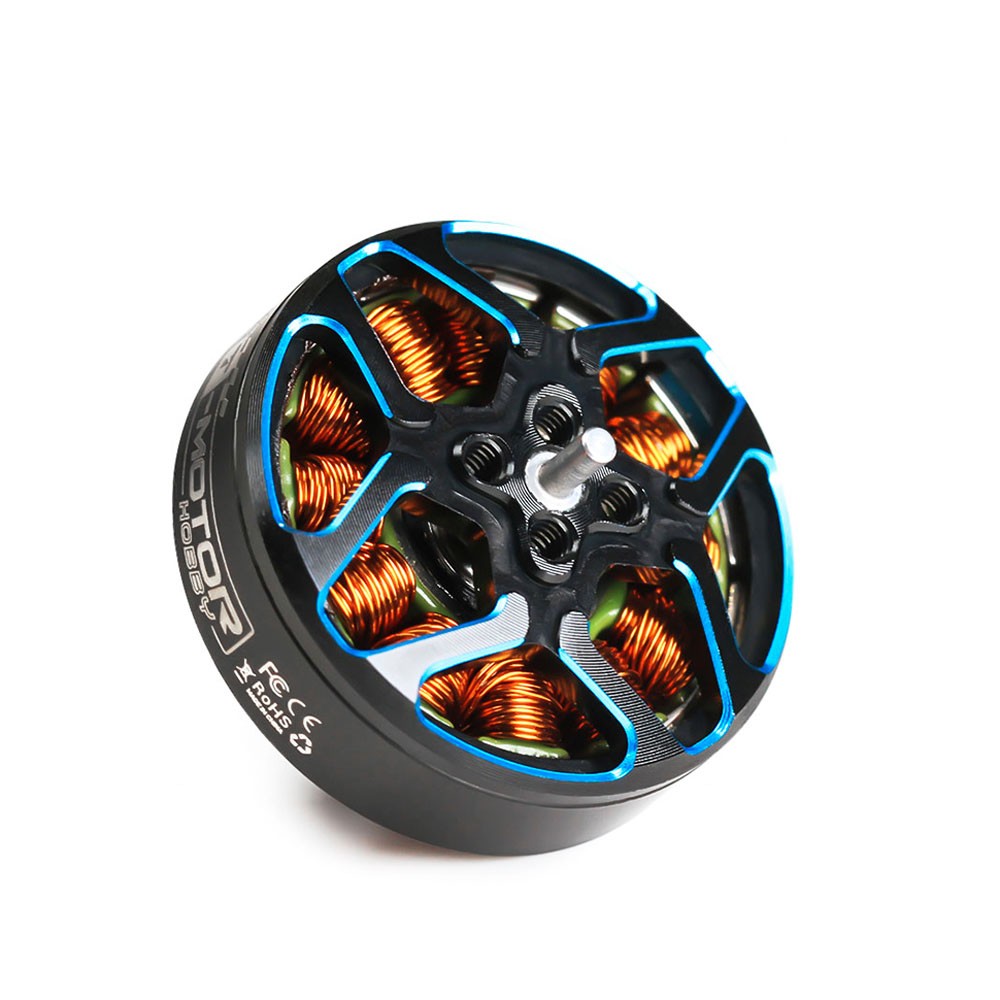

T-Motor F2004 1700KV/3000KV Micro FPV Motor

Get long-range with the T-Motor F2004 1700KV/3000KV Motor! The F2004 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing drones, like 3″ cine-whoops and 4″-5″ toothpick builds or ultralight drones!

Specifications

KV: 1700KV

• Motor DimensionS: Φ24.3*17.25mm
• Lead: 24#AWG 130mm
• Shaft Diameter: 3mm
• Idle Current (10): 0.38A
• Max.Power (the 60s): 503W
• Weight (Excl. Cable): 16.4g
• Internal Resistance: 221mΩ
• Configuration: 12N14P
• Rated Voltage (Lipo): 6S
• Peak Current (60s): 21.2A

KV: 3000KV

• Motor DimensionS: Φ24.3*17.25mm
• Lead: 24#AWG 130mm
• Shaft Diameter: 3mm
• Idle Current (10): 0.88A
• Max.Power (the 60s): 460W
• Weight (Excl. Cable): 16.4g
• Internal Resistance: 90mΩ
• Configuration: 12N14P
• Rated Voltage (Lipo): 4-5S
• Peak Current (60s): 30.1A

Includes

• 1 x T-Motor F2004 1700KV/3000KV Motor
