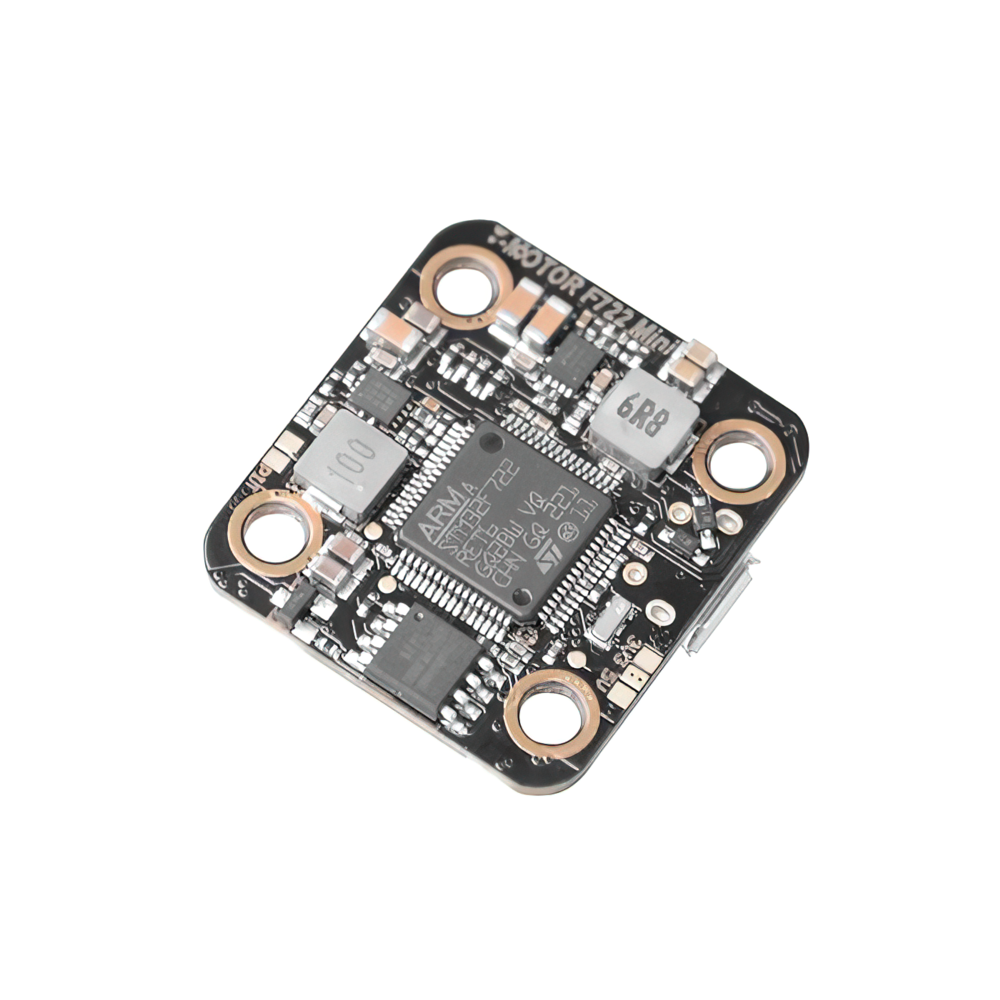

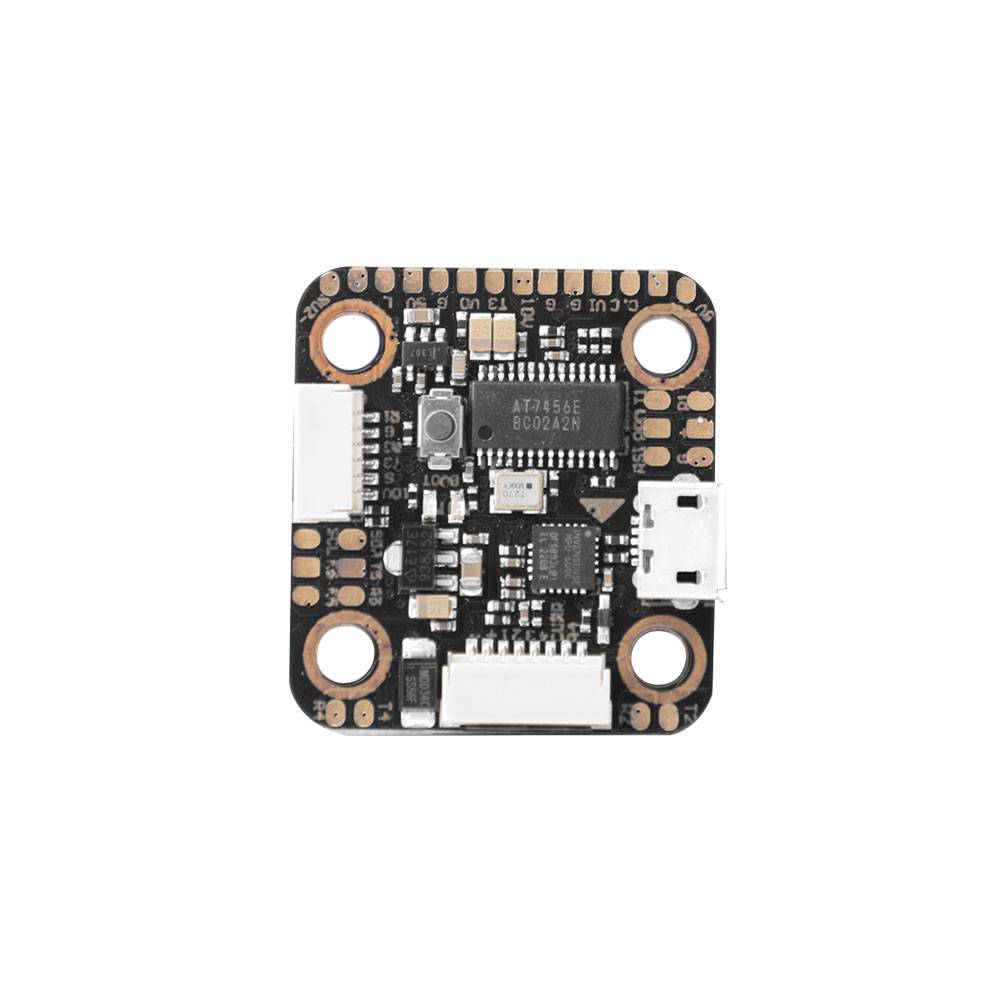

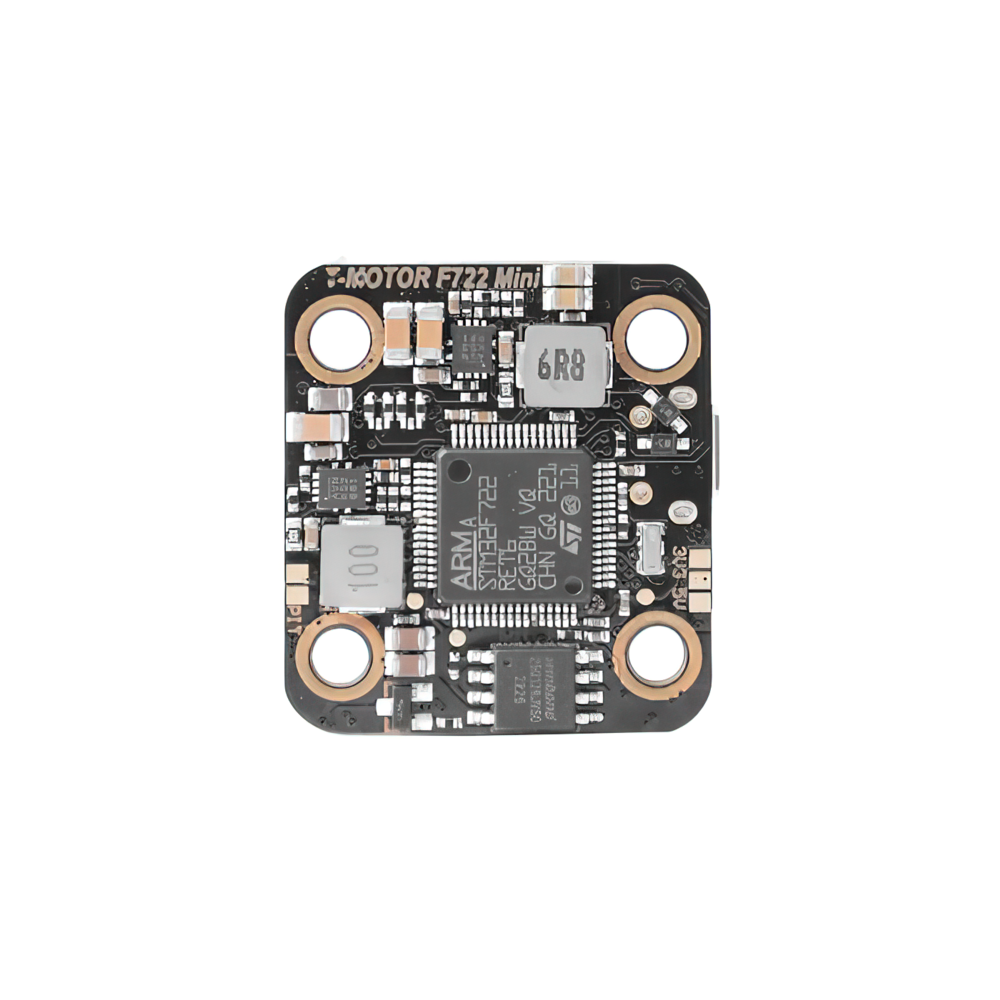

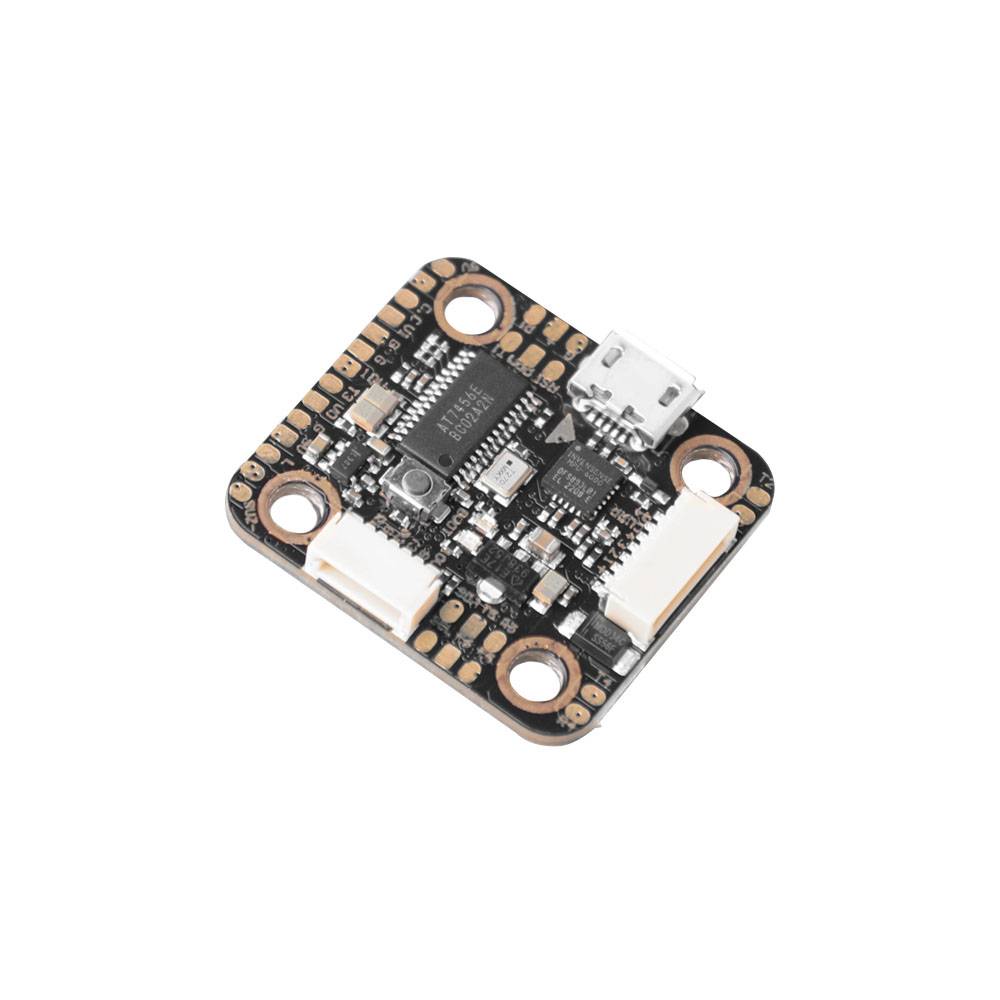

T-Motor Mini F7 HD 3-6S Flight Controller w/ OSD + VTX Switch (MPU6000) – 20×20

The T-Motor Mini F7 HD 3-6S Flight Controller w/ OSD + VTX Switch (MPU6000) – 20×20 features a lightweight and small design with strong performance. The Mini F7 HD is lighter and stronger that the standard FC version. It also features 32-Bit main control and FC integrating dual BEC plug-and-play without welding. For best performance match with T-Motor F45A Mini 4-in-1 ESC

• FC integrating dual BEC plug-and-play without welding
• Adjusting OSD parameters in FC parameter software
• Support current various mainstream throttle signals
• Integrating pit switch function
• Lightweight and small design
• Strong performance
• 32-Bit main control

• BEC: 5V/2A, 10V/2A (For DJI HD VTX)
• Firmware: TMOTORF7 (STM32F7X2)
• betaflight galvanometer ratio: 200
• Mounting pattern: 20*20mm
• Main control: STM32F722
• ESC Firmware: BLHeli32
• galvanometer: Support
• Gyroscope: MPU6000
• RAM: Onboard 16M
• Input Voltage: 3-6S
• Telemetry: Support
• Barometer: No
• OSD: Support
• Weight: 9.2g

• 1x T-Motor Mini F7 HD 3-6S Flight Controller w/ OSD + VTX Switch (MPU6000) – 20×20
• 1x Connecting Wire Set
• 5x Rubber Dampers
