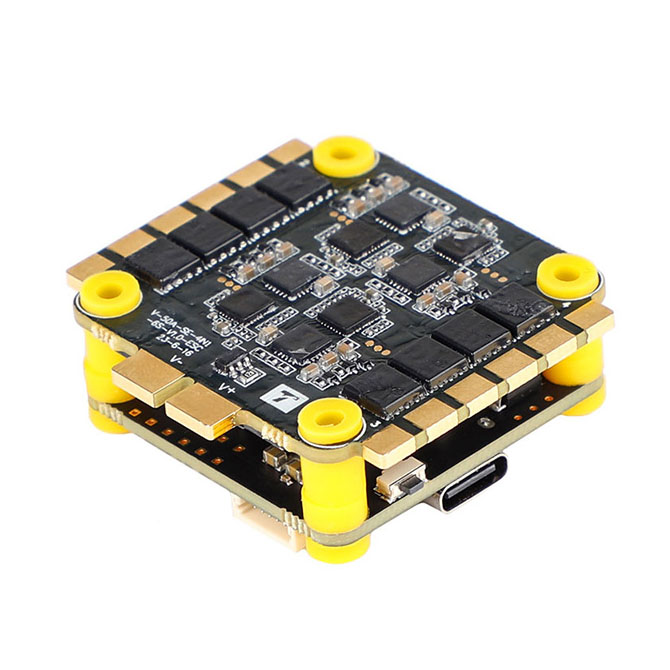

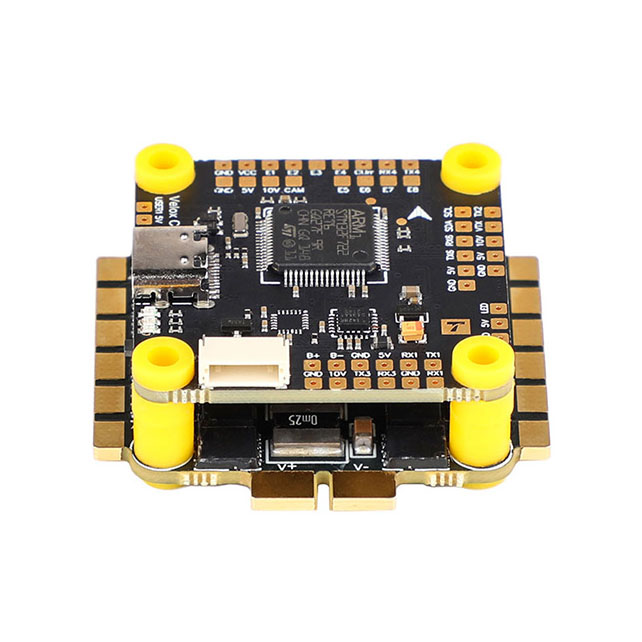

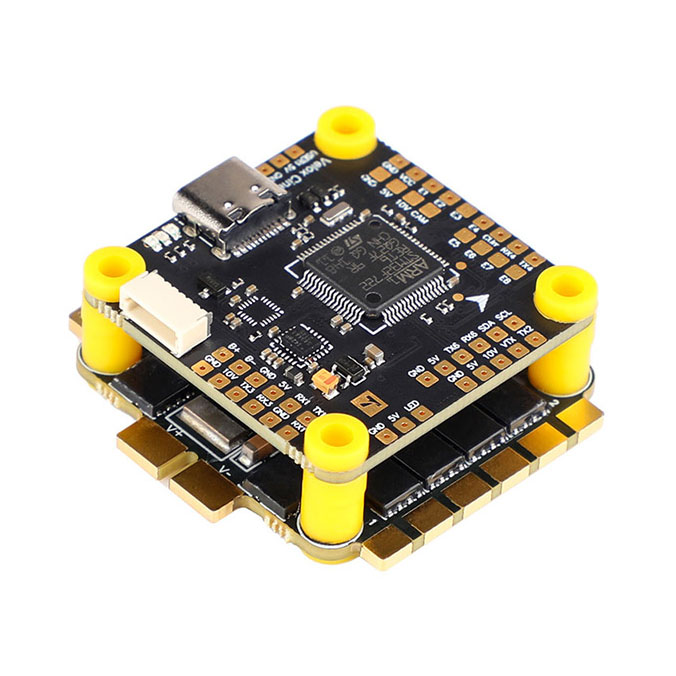

The T-Motor Velox Cine F7+V50SE is a combination of flight controller and ESC suitable for freestyle 5-6″ drones. Velox is T-Motor’s affordable range, yet retains their high standard. The stack supports power from 3-6S Lipo batteries.

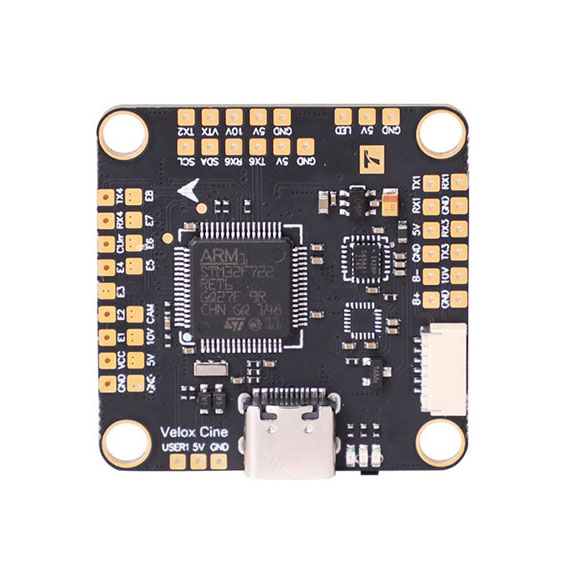

At the heart of the flight controller is the F722 processor complemented by the ICM-42688P gyro, which supports a refresh rate of up to 8kHz. The board is also equipped with 16MB memory for blackbox, a barometer for altitude measurement, and TVS diode to protect the board from voltage spikes. The board also includes a 5V and 10V BEC.

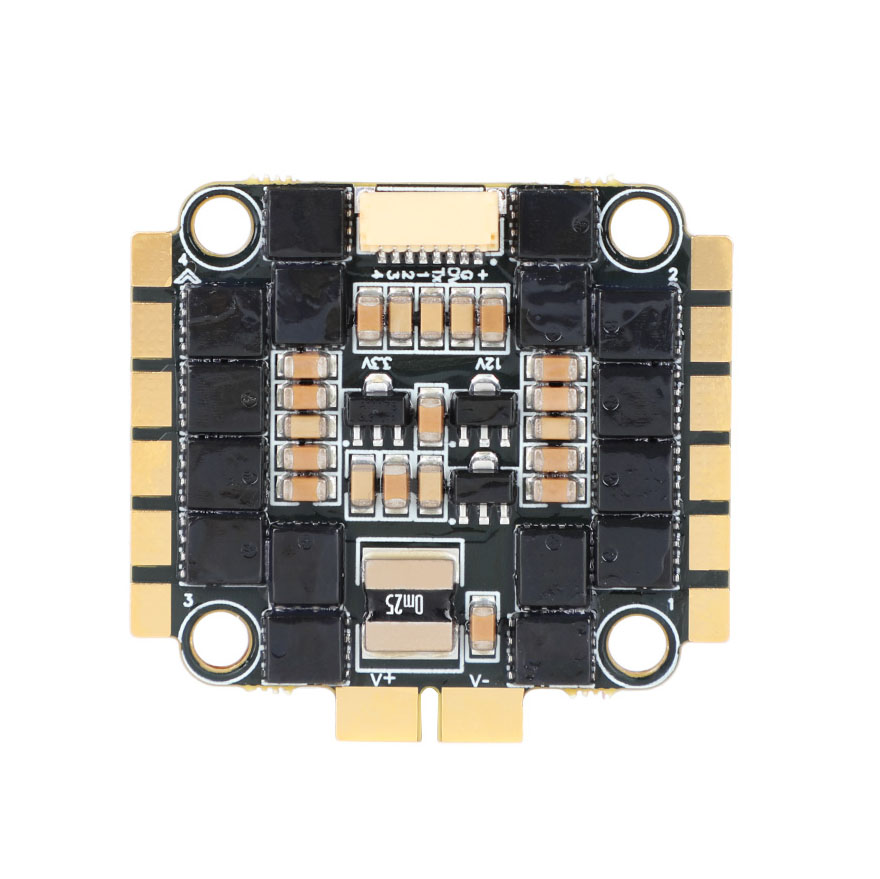

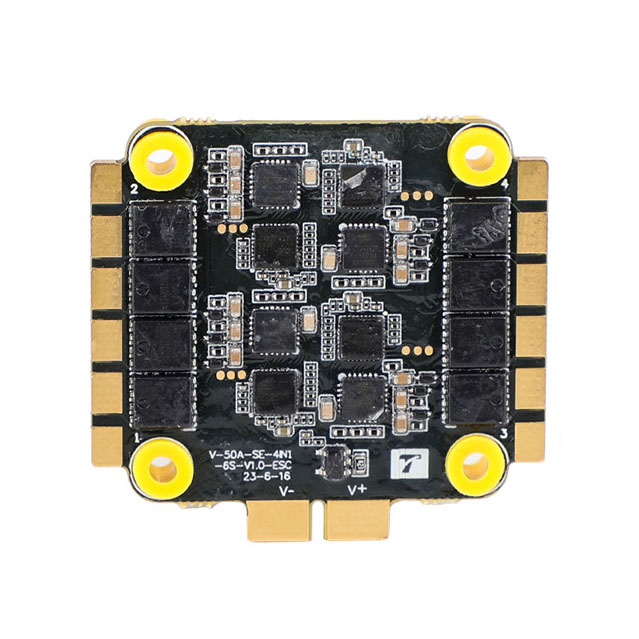

The T-Motor V50A SE ECS uses a 32-bit processor and BlHeli_32 firmware that supports telemetry and variable PWM frequency. The ESC can handle current up to 50A.
Key Features
- Input voltage: 3-6S Lipo
- Processor FC: STM32F722
- IMU: ICM-42688P
- Blackbox: 16MB
- BEC: 5V, 10V
- Barometer: SPL06
- OSD: AT7456
- Mounting Holes: 30.5×30.5mm M3 (with softmount)
- Current Load Capacity: 50A (60A short term)
- ESC Firmware: BlHeli_32
- Current Sensor: Yes
- Mounting holes: 30.5×30.5mm M3

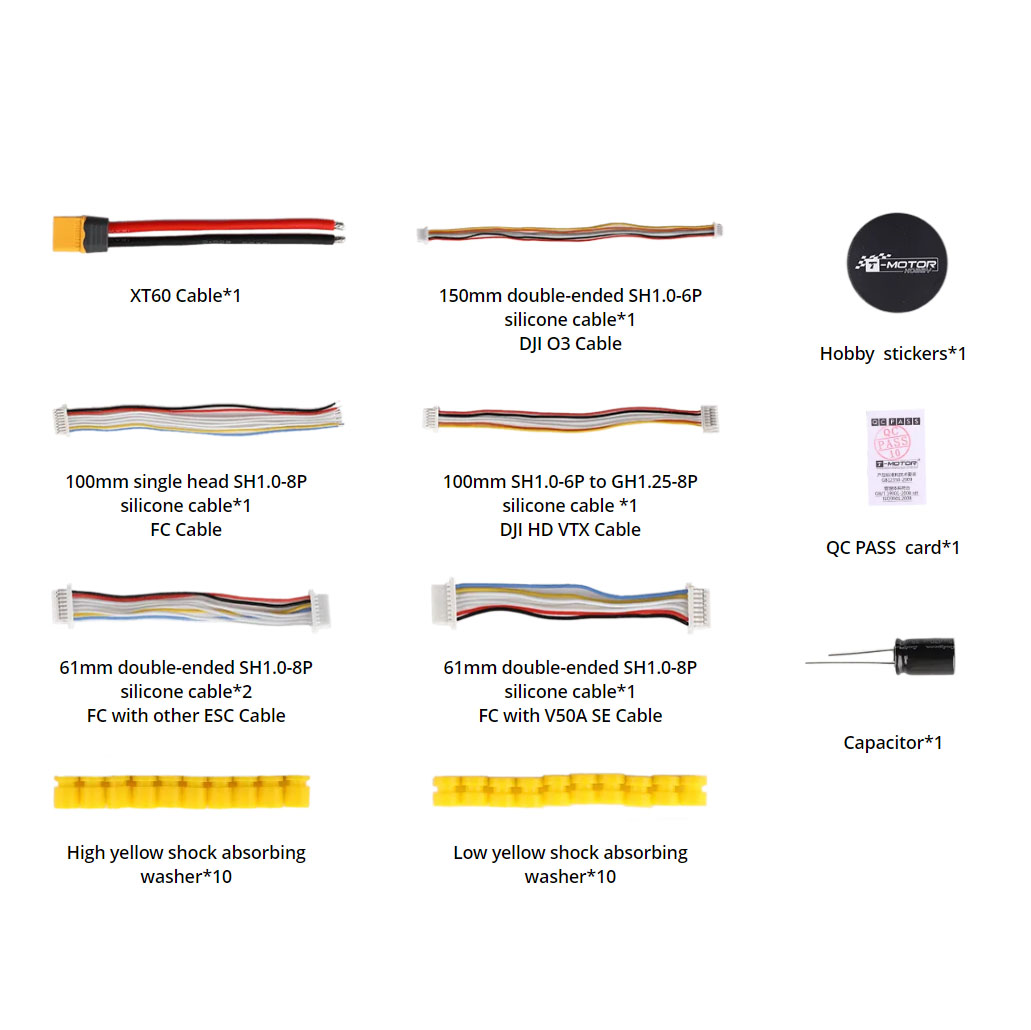

Package Includes
- 1x Flight controller
- 1x ESC
- 1x XT60 with cable
- 1x Capacitor
- 2x Softmount Kit
- 1x Cable Kit
