The new design sink motor mounting position, uplift the the PCB position of the new four-axis aircraft center of gravity lower.
Optimize the design of a large installation space for the various flight control system to provide adequate space for installation.
The integrated PCB board connection, with gold-plated composite PCB circuit board for high-strength, power, power transfer
Connection is quicker and more convenient, safe. Non-standard M2.5 ladder screws PCB board can arm securely connected.
Detailed installation wiring diagram ：
Product description:

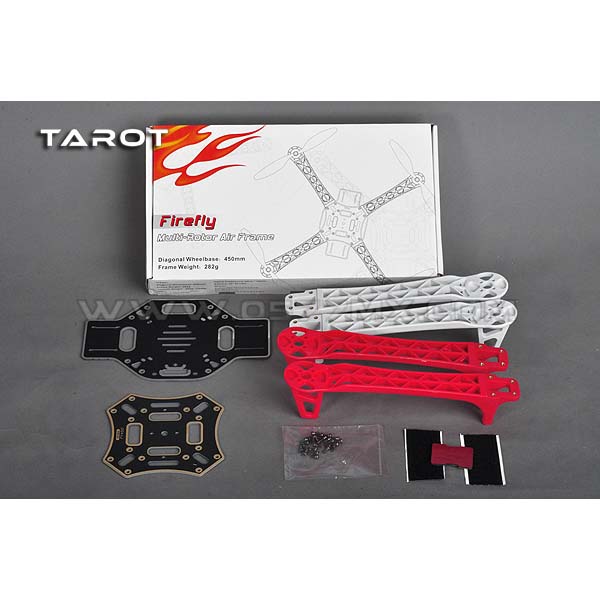

The new four-axis aircraft rack arm PA66 +30% ultra high strength material,
Impact, and impact-resistant. The main use of integrated PCB board connection, gold-plated composite PCB circuit equipped with high-strength
Board, the power ESC connection faster and more secure. The new design sink motor mounting position,
Uplift the PCB position to make the new four-axis aircraft center of gravity lower and more stable. Optimize the design of large installation space,
For various flight control system to provide sufficient space for the installation. The new four-axis aircraft with non-target M2.5
Stepped screws, PCB board and arm can securely connected.
Specifications:
Aircraft Model: FY450
Body weight 282g
The symmetrical motor wheelbase 450mm
Take-off weight of 800g ~ 1200g
Propeller 10 × 4.5in
Recommended battery LiPo (3S 1500mAh ~ 2600mAh)
Recommended motor 2212 to 2216 (the stator size) 22 × 15mm or 22 × 12mm
Recommended ESC 20 A ~ 30A
