PLEASE NOTE:
THIS PRODUCT COMES AS A KIT THAT YOU HAVE TO ASSEMBLE YOURSELF. IT IS NOT A READY-TO-FLY DRONE!
- Returns will not be accepted if the user does not heed this notice.
- The Frame is HD compatible but the kit is for Analog

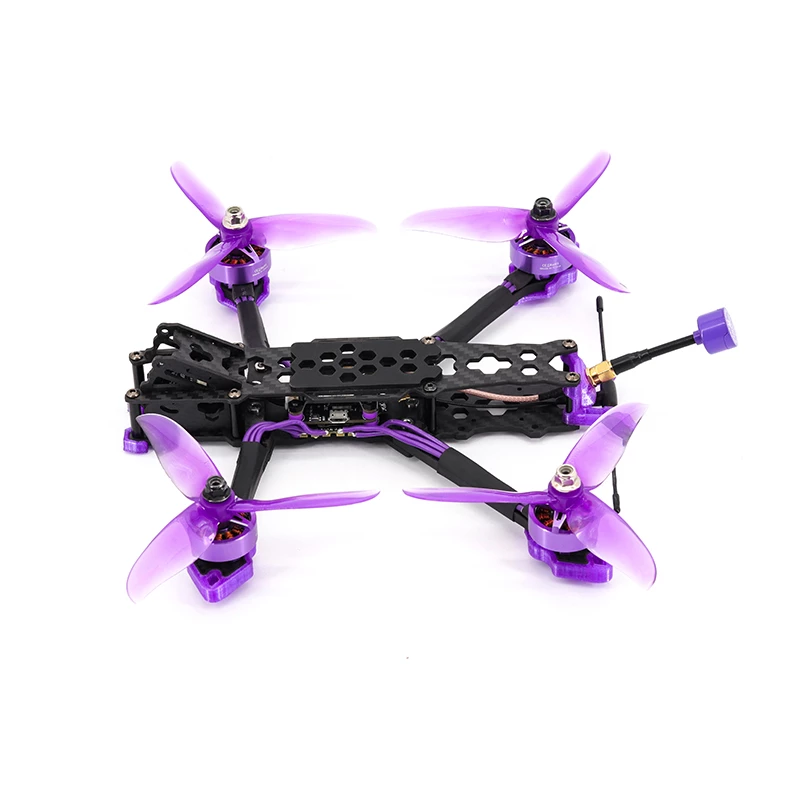

Avenger 225 PRODUCT PARAMETERS：
Motor Model：2306/1850 rpm/v
ESC：40A 4 in 1 Brushless Esc
Flight Control： Omnibus F4 V3 Flight Controller
camera： RUNCAM Swift 2
Propeller：DALPROPT5046C Tri-blade Propeller
F4-40A esc:
Continuous current: 40A
Peak current: 55A (6S)
Lithium battery section number: 2-4S
BL_S50A4IN1BEC: 5V2A
ESC weight: 10.8g
Firmware: BL_S
Maximum support throttle signal:
DSHOT600
Mounting hole: M330.5 * 30.5mm
F4129 Flight control:
Lithium battery section number: 2-5S
BEC: 10V 1A, 4.5V, 3.3V
MCU: STM32F405
Gyro: MPU6000
OSD: AT7456E
Firmware: MATEKF405
Weight: 6.9g
Mounting hole: M3 30.5 * 30.5mm
Support barometer, black box
