VECROS JETCORE NVIDIA Jetson Carrier Board

Lead time – 2 weeks.

Product Description

The JETCORE Carrier Board is engineered to harness the power of NVIDIA Jetson modules, providing high-performance edge computing solutions for a diverse range of applications, including robotics, industrial automation, and surveillance. It boasts extensive connectivity options, advanced environmental monitoring features, and robust security measures, making it an ideal choice for integration into various systems.

Key Features

• Compatibility: Supports NVIDIA Jetson modules, including Jetson Xavier NX, Jetson Orin NX, and Jetson Nano.
• USB Ports 7 x USB 2.0 (FPC Type)
• Networking 1 x Gigabit Ethernet (RJ45)
• Video Output 1 x Micro HDMI port (supports up to 3840 x 2160 resolution)
• Storage Expansion 1 x M.2 Key M interface for NVMe SSD; SD card slot fo additional storage
•  EnvironmentalMonitoring Integrated IMU for temperature and motion sensing
• Security Features Built-in Crypto Auth IC for enhanced data protection
• Power Supply Supports 12-18V DC input
  Technical Specifications
• Module Compatibility NVIDIA Jetson Xavier NX, Jetson Orin NX, Jetson Nano

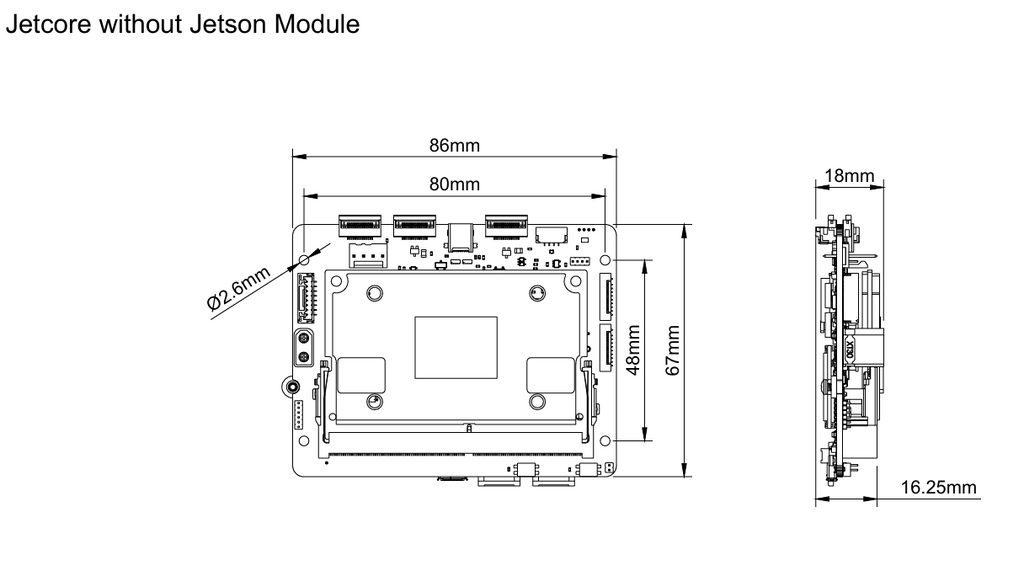

• Dimensions 88 mm x 71 mm
• Operating Temperature -40°C to +85°C
• Weight 40 gPeripheral Interfaces
• Interface Micro HDMI 2.0 (Max Resolution: 3840 x 2160)
• USB Ports 1 x USB 3.0 (FPC Type), 6 x USB 2.0 (FPC Type), 1 x USB 2.0 (Micro USB for Debugging)
• Networking 1 x Gigabit Ethernet (RJ45)
  Additional Interfaces
• 12-lane CSI-MIPI (via Daughterboard Connector); 2 x SPI, 1 x CAN, 1 x I2C, 1 x UART (all JST GH connectors); GPIO and PWM supportApplications
• Application Area Description
• Autonomous Vehicles
• Real-time data processing for self-driving applications, enhancing navigation and obstacle detection.
• Security & Surveillance
• Integration with high-definition cameras for real-time monitoring and data analysis.
• Healthcare Edge AI capabilities for medical devices, improving diagnostics and patient monitoring.
• Industrial Automation Optimized for tasks involving various sensors and actuators.
• Robotics Suitable for platforms requiring agile processing in compact spaces, such as drones and robotic arms.Key Advantages
• Performance Optimized for NVIDIA’s Xavier NX platform, offering cutting-edge AI andedge processing capabilities.
• Connectivity Multiple interface options ensure seamless integration into existing systems.
• Security Robust security features designed for mission-critical applications.
• Durability Operates efficiently in extreme temperatures.Software Support Details
• Software Support Compatible with QGC Mission Planner, Ardupilot, PX4.
• JetPack Versions Supports JetPack 4.x and 5.x (LTS).

Here are the key specifications of this product.


The package would include
1x Jetcore carrier board and
1x power cable in the box.
